Installation Procedure

Step 1 Checking and preparing
accessories

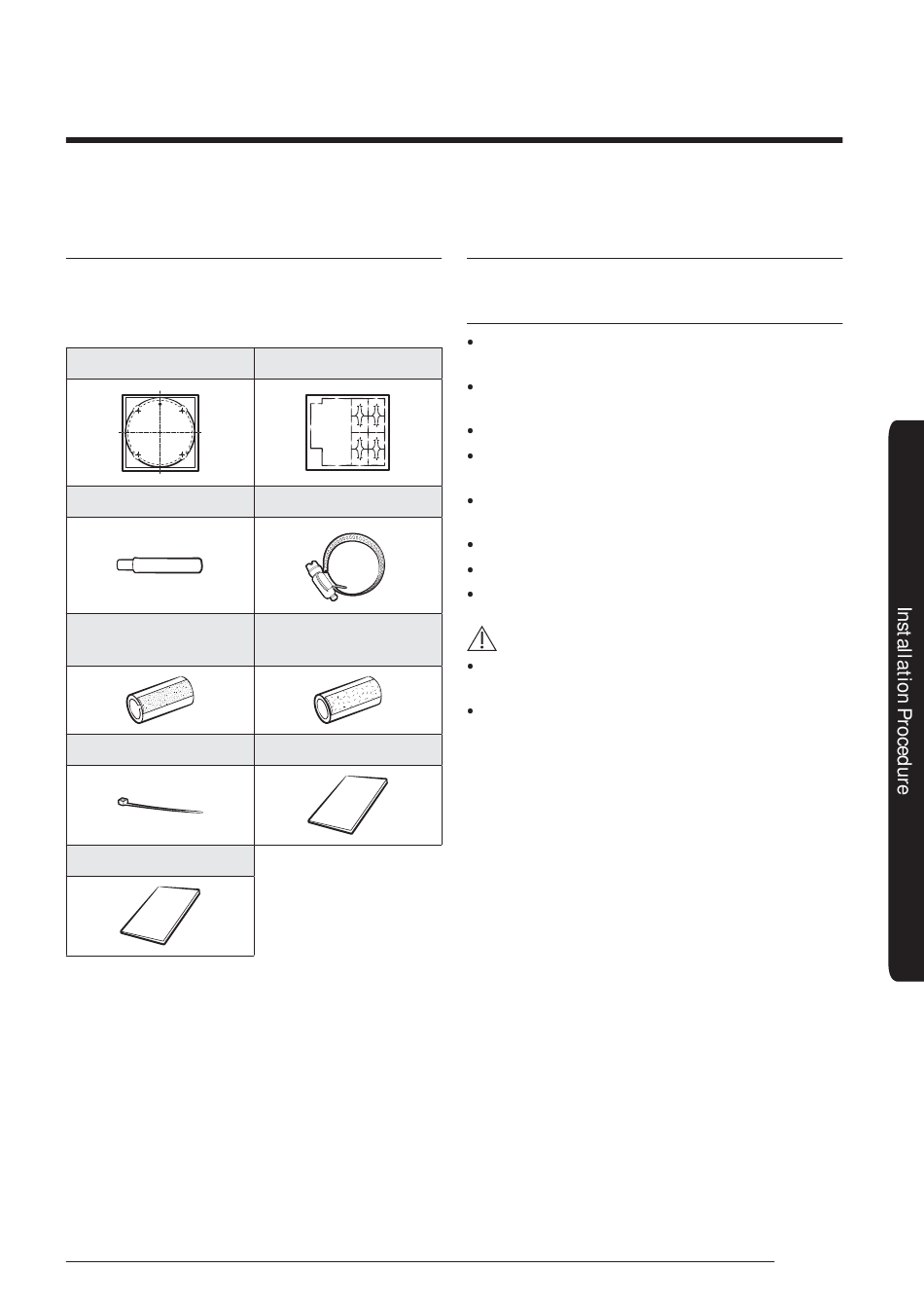

The following accessories are supplied with the indoor
unit. The type and quantity may differ, depending on the
specifications.
Installation template (1)
Drain hose (1)
Insulation pipe
(Liquid side (1), gas side (1))
Cable-tie (6)
User manual (1)
Dimension gauge (1)
Clamp (1)
Insulation drain hose (1)
Installation manual (1)
Step 2 Choosing the installation
location
Installation location requirements
There must be no obstacles near the air inlet and
outlet.
Install the indoor unit on a ceiling that can support its
weight.
Maintain sufficient clearance around the indoor unit.
Before installing the indoor unit, be sure to check
whether the chosen location is well-drained.
The indoor unit must be installed such that it is beyond
public access and is not touchable by users.
Rigid wall without vibration.
Where it is not exposed to direct sunshine.
Where the air filter can be removed and cleaned easily.
CAUTION
As a rule, the unit cannot be installed at a height of
less that 2.5m.
If you install the cassette or duct type indoor unit on
the ceiling with humidity over 80%, you must apply
extra 10mm of polyethylene foam or other insulation
with similar material on the body of the indoor unit.
