Touch control multifunction
Description
This control is a SCS control, which traditional pushbuttons are replaced by capacitive
sensors. Moving the finger close to a sensor is the same as pressing a pushbutton.
The device can be used to perform the functions typical of a special SCS control by
simply moving a finger close to the surface. It is produced in the 2 module flush-
mounting version, 4 keys respectively. Each zone corresponding to a key is marked at
the centre by two light blue LED. When the user moves a finger close to the zone, its
intensity increases sensibly, and remains so until the finger is moved away again. This
effect is necessary to give the user the feeling of activating the control. Therefore, the
LEDs can have two different levels of light intensity. It is however possible to select
different intensity levels using push button "P".
The control may operate in four different modes: self-learning, scenarios, swivelling,
CEN and sound system mode.
- The self-learning mode (cyclic or non-cyclic) allows to associate to each key
most of the typical automation system, sound system, video door entry system
(staircase light, open-door, call to the floor, door lock, and cycling of cameras)
functions, in additional to auxiliary controls.
- The scenario mode can be used to recall, program and delete 4 scenarios of a
scenario module.
- The swivelling mode can be used to drive the 2 consecutive light points or rolling
shutters (or rooms or groups)
- The CEN mode enables using the control with the scenario programmer 035 65
In order to clean the device, it is possible to temporarily disable the sensitive
zones by pressing two diagonally opposite zones at the same time (keys 1 – 4). The
LEDs will flash in sequence. Normal operation is automatically reinstated after 10
seconds.

Technical data

Power supply from SCS BUS: 18 – 27 Vdc
Max. consumption :
25 mA with LED=MAX
20 mA with LED= MED
17 mA with LED= MIN
Operating temperature:
0 – 40 °C
C É L I A N E T E C H N I C A L G U I D E
1
2
A
PL
M
SPE
7

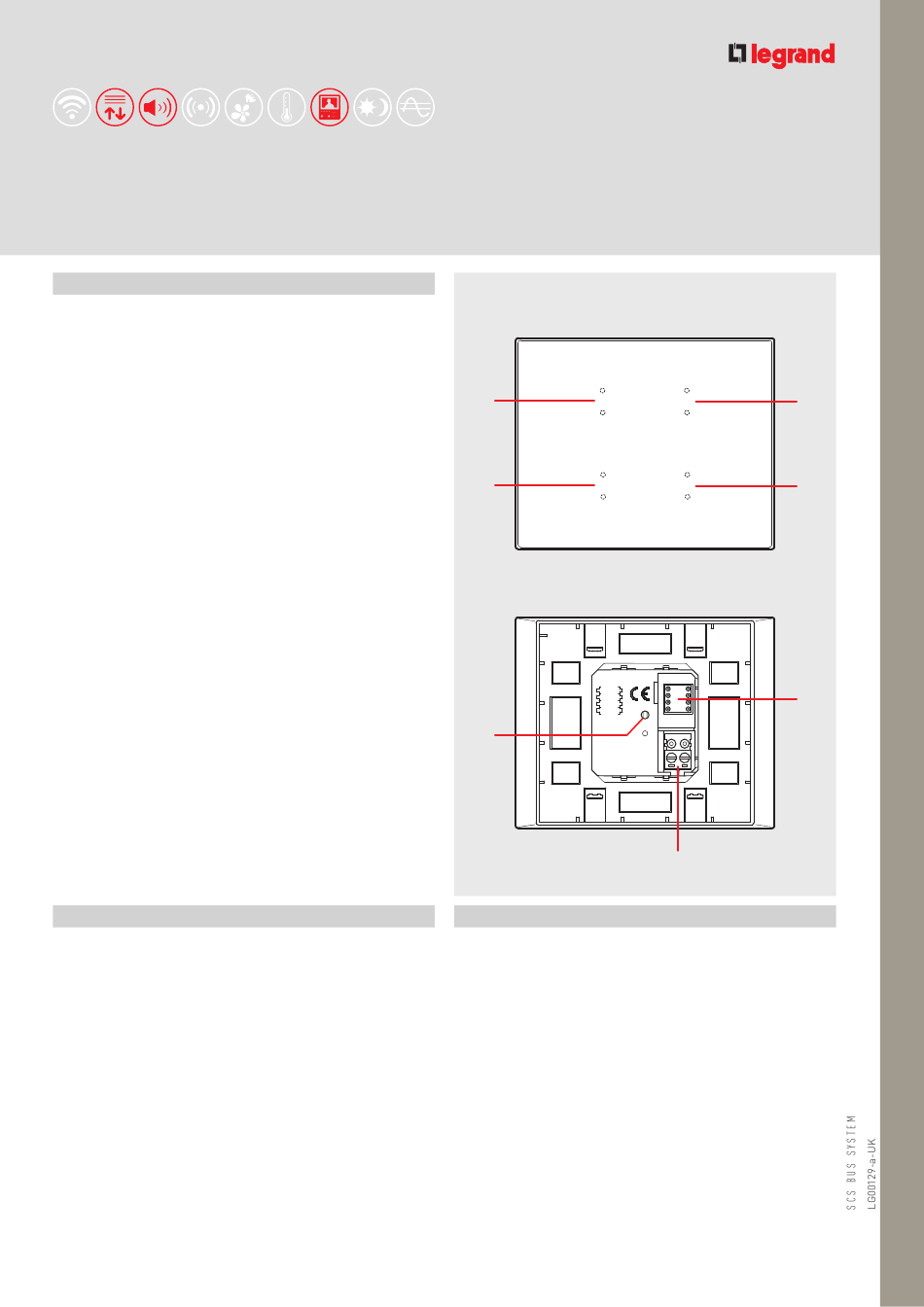

Legend
1.
Key 1
2.
Key 2
3.
Key 3
4.
Key 4
5.
Configurator housing
6.
BUS
7.
Selection Of The Led Intensity and programming pushbutton
672 43
672 44
672 45
3
4
5
P
6
1
