Summary of Contents for Leyard Planar PCT2265

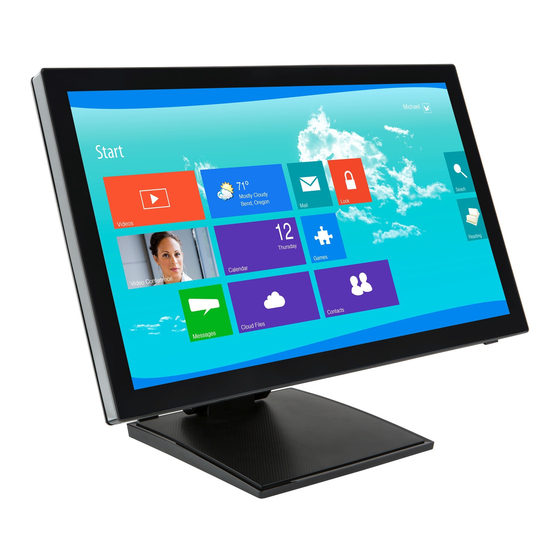

- Page 1 PCT2265 Touch LED LCD Monitor...
- Page 2 The information contained in this document is subject to change without notice. This document contains proprietary information that is protected by copyright. All rights are reserved. No part of this document may be reproduced, translated to another language or stored in a retrieval system, or transmitted by any means, electronic, mechanical, photocopying, recording, or otherwise, without prior written permission.
-
Page 3: Table Of Contents
| TABLE OF CONTENTS FOR YOUR SAFETY .......................3 PRECAUTIONS .......................4 SPECIAL NOTES ON LCD MONITORS ..............6 BEFORE YOU OPERATE THE MONITOR ................6 FEATURES ........................6 PACKAGE LIST ........................7 ADJUSTING THE HEIGHT ....................8 CONTROLS AND CONNECTORS ................9 ADJUSTING THE VIEWING ANGLE ..............10 OPERATING INSTRUCTIONS .................. -
Page 4: For Your Safety
| FOR YOUR SAFETY Before operating the monitor, please read this manual thoroughly. This manual should be retained for future reference. FCC Class B Radio Frequency Interference Statement WARNING: (FOR FCC CERTIFIED MODELS) NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 5: Precautions
Disposal of waste equipment by user in private household in the European Union This symbol on the product or on its packaging indicates that this product must not be disposed of with your other household waste. Instead, it is your responsibility to dispose of your waste equipment by handing it over to a designated collection point for the recycling of waste electrical and electronic equipment. - Page 6 • Never push any object into the slot on the monitor cabinet. It could short circuit parts causing a fire or electric shock. Never spill liquids on the monitor. • Do not attempt to service the monitor by yourself; opening or removing covers can expose you to dangerous voltages and other hazards.
-
Page 7: Special Notes On Lcd Monitors
SPECIAL NOTES ON LCD MONITORS The following symptoms are normal with LCD monitor and do not indicate a problem. NOTES • Due to the nature of the fluorescent light, the screen may flicker during initial use. Turn off the Power Switch and then turn it on again to make sure the flicker disappears. •... -
Page 8: Package List
PACKAGE LIST The product package should include the following items: User's Guide Monitor Power Cable VGA Cable HDMI Cable USB Cable DVI Cable Audio Cable... -
Page 9: Adjusting The Height
ADJUSTING THE HEIGHT The monitor's height may be adjusted from 4.8in to 15.2in (122mm to 385mm). 122mm... -
Page 10: Controls And Connectors
CONTROLS AND CONNECTORS POWER CORD Power Source: 1. Make sure that the power cord is the correct type required in your area. 2. This monitor has an internal universal power supply that allows operation in either 100/120V AC or 220/240V AC voltage area (No user adjustment is required.) 3. -
Page 11: Adjusting The Viewing Angle
ADJUSTING THE VIEWING ANGLE • For optimal viewing it is recommended to look at the full face of the monitor, then adjust the monitor’s angle to your own preference. • Hold the stand so you do not topple the monitor when you change the monitor’s angle. •... -
Page 12: Operating Instructions
| OPERATING INSTRUCTIONS GENERAL INSTRUCTIONS Press the power button to turn the monitor on or off. The other control buttons are located at front panel of the monitor (See Figure 4). By changing these settings, the picture can be adjusted to your personal preferences. •... -
Page 13: Front Panel Control
FRONT PANEL CONTROL • Power Button: Press this button to switch ON/OFF monitor’s power. • Power Indicator: Blue — Power On mode. Orange —Power saving mode. • MENU / ENTER : Activates OSD menu or function adjust confirm. • ECO/(-) Activates the ECO control when the OSD is OFF or navigate through adjustment icons when OSD is ON or adjust a function when function is activated. - Page 14 strong solvents such as thinner, benzene, or abrasive cleaners, since these will damage the cabinet. As a safety precaution, always unplug the monitor before cleaning it. • Do not scratch the screen with hard things as it may cause permanent damage. •...
-
Page 15: How To Adjust A Setting
HOW TO ADJUST A SETTING 1. Press the MENU-button to activate the OSD window. 2. Press + or - to navigate through the functions. Once the desired function is highlighted, press the MENU-button to activate it. If the function selected has a sub-menu, press + or - again to navigate through the sub-menu functions. -
Page 16: Adjusting The Picture
ADJUSTING THE PICTURE Main Menu Main Menu Description Item Icon Menu Item Luminance Contrast Adjusts Image brightness in relation to the background. Brightness Adjusts backlight levels. Eco Mode Picture Adjustment, Standard: Brightness = 90, Contrast = 50. Brightness, Contrast (Adjustable) Text: Brightness = 20, Contrast = 50. - Page 17 Main Menu Main Menu Description Item Icon Menu Item Color Normal Normal Color Temperature. Temp. (RGB value is nonadjustable) Warm Warm Color Temperature. (RGB value is nonadjustable) Cool Cool Color Temperature. (RGB value is nonadjustable) sRGB RGB Color Temperature. (RGB value is nonadjustable) User Adjust R.G.B levels as desired.
-
Page 18: Plug And Play
PLUG AND PLAY Plug & Play DDC2B Feature This monitor is equipped with VESA DDC2B capabilities according to the VESA DDC STANDARD. It allows the monitor to inform the host system of its identity and, depending on the level of DDC used, communicate additional information about its display capabilities. The DDC2B is a bidirectional data channel based on the I²C protocol. - Page 19 CALIBRATION/RESET INSTRUCTIONS PCT2265 Calibration/Reset Instructions: The PCT2265 is available with USB connection. It is Microsoft® Windows® 7, 8 HID (Human Interface Device) compatible if you use the USB touch screen interface. No additional software driver is required. Calibration is a simple process and can be invoked by running Tablet PC Settings from Control Panel and clicking the Calibrate button.
- Page 20 TECHNICAL SUPPORT (FAQ) Problem & Question Possible Solution Power LED is not on * Check if the Power Switch is in the ON position. * Power Cord should be connected. No Plug & Play * Check if the PC system is Plug & Play compatible.
-
Page 21: Technical Support (Faq)
TECHNICAL SUPPORT (FAQ) CLOCK (pixel frequency) controls the number of pixels scanned by one horizontal sweep. If the frequency is not correct, the screen shows vertical stripes and the picture has not correct width. FOCUS adjusts the phase of the pixel clock signal. With a wrong phase adjustment the picture has horizontal disturbances in light picture. -
Page 22: Appendix
| APPENDIX SPECIFICATIONS LCD Panel Driving system TFT Color LCD Size 54.6cm(21.5") Pixel pitch 0.2482(H ) × 0.2482(V ) Input Video R,G,B Analog Interface HDMI DVI-D Separate Sync. H/V TTL H-Frequency Analog&Digital:30kHz – 83kHz V-Frequency Analog&Digital:55-75Hz Display Colors 16.7M Colors Dot Clock 170MHz Max. -
Page 23: Factory Preset Timing Table
FACTORY PRESET TIMING TABLE STAND RESOLUTION HORIZONTAL VERTICAL FREQUENCY(kHZ) FREQUENCY(Hz) 640 x 480 31.469 59.94 640 x 480 66.667 640 x 480 37.861 72.809 Mac VGA 640 x 480 37.5 Dos-mode 720 x 400 31.469 70.087 800 x 600 35.156 56.25 800 x 600 37.879... -
Page 24: Connector Pin Assignment
CONNECTOR PIN ASSIGNMENT 15 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. DESCRIPTION Green Ground Blue Ground Ground DDC-Serial Data Detect Cable H-Sync R-Ground V-Sync G-Ground DDC-Serial Clock B-Ground... - Page 25 19 - Pin Color Display Signal Cable PIN NO. DESCRIPTION PIN NO. DESCRIPTION TMDS Data 2+ TMDS Clock Shield TMDS Data 2 Shield TMDS Clock- TMDS Data 2- TMDS Data 1+ N.C. TMDS Data 1 Shield DDC SCL TMDS Data 1- DDC CLK TMDS Data 0+ DDC/CEC Ground...
-
Page 26: Wall Mounting (Optional)
WALL MOUNTING (OPTIONAL) Refer to the instructions that come with the base mounting kit. To convert your display from a desk-mounted to a wall-mounted display, do the following: 1. Verify that the power button is turned Off, then disconnect the power cord. 2. -
Page 27: Planar Support
| PLANAR SUPPORT Cables and Accessories To find cables and accessories for your Planar monitor, touch screen or other Planar products visit our online store at www.PlanarOnline.com Technical Support Visit Planar at http://www.planar.com/support for operations manuals, touch screen drivers, warranty information and access to Planar's Technical Library for online troubleshooting. To speak with Planar Customer Support please have you model and serial number available and dial: Planar Support... - Page 28 1195 NE Compton Drive Hillsboro, OR 97006 Q41G22M193511G PN: 020-1236-00D...
