Disassembly Instructions

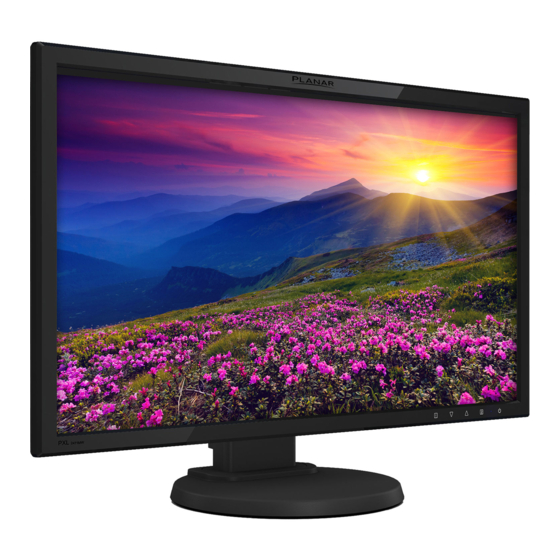

PXL2471MW LED Monitor
Last Modified: March 28, 2016
Page 1 of 11

Advertisement

loading
Need help?

Need help?

Do you have a question about the Planar PXL2471MW and is the answer not in the manual?

Questions and answers

Related Manuals for Leyard Planar PXL2471MW

Summary of Contents for Leyard Planar PXL2471MW

  • Page 1 Disassembly Instructions PXL2471MW LED Monitor Last Modified: March 28, 2016 Page 1 of 11...

  • Page 2: General Product Information

    1. General Product Information 1.1 Product Description Product Name: LED Monitor Model Name: PLANAR PXL2471MW Page 2 of 11...
  • Page 3 2. Disassembly Assessment 2.1 Assessment Summary Product Name / Model Name LED Monitor / PLANAR PXL2471MW Total Weight (g) 5523g Snap Connection Techniques Screw Six Point Socket Disassembly Tools Philips Screwdriver Reuse and Recycling Rate 92.1% Recovery Rate 98.2% Page 3 of 11...
  • Page 4 2.2 Product Derivative Table Product Name / Model Name LED Monitor / PLANAR PXL2471MW Energy WEEE Disposal Process Weight Weight Reuse Recycle Disposal Item Recovery Annex Used after VII(＊) Disassembly Front － 2.13 0.24 Recycling Bezel Back － 7.48 0.83...

  • Page 5: Disassembly Tools

    3. Disassembly Tools Item Tools Pictures Six Point Socket Philips Screwdriver 4. Disassembly Process 1. Exploded drawing for PXL2471MW Page 5 of 11...
  • Page 6 2. Remove screws to disassemble neck and stand 3. Remove back panel Page 6 of 11...
  • Page 7 4. Remove tape and the aluminum foil 5. Remove foam tape 6. Disconnect the cables, and take down the shield cover Page 7 of 11...
  • Page 8 7. Remove the speakers and all related screws Page 8 of 11...
  • Page 9 8. Disconnect cables and remove circuit boards Page 9 of 11...
  • Page 10 9. Take down the panel, disconnect cable, and remove circuit board Page 10 of 11...
  • Page 11 5. Disassembly Time Total time: 20~25 minutes 6. Summary Assessment WEEE Directive 2012/19/EU Specification Annex I Category 3: IT and Telecommunications Equipment Classification WEEE Requirement Disassembly Result Reuse and 92.1 Recycling Rate (%) 98.2 Recovery Rate (%) Complies with WEEE Directive Overall Result Page 11 of 11...
