Summary of Contents for Eizo RadiForce G20-S

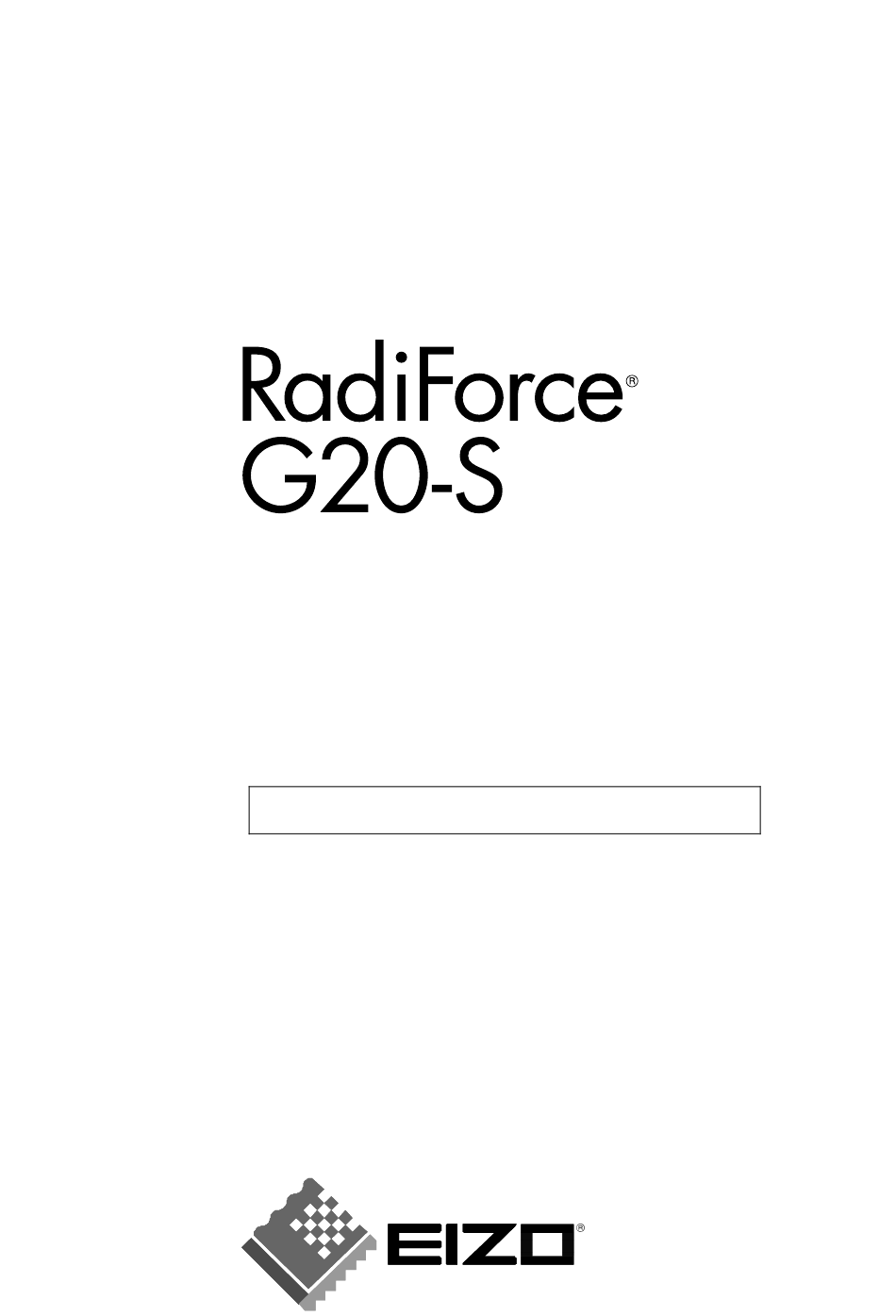

- Page 1 User’s Manual Monochrome LCD Monitor It shall be assured that the final system is in compliance to IEC60601-1-1 requirements.
- Page 2 EIZO NANAO CORPORATION. EIZO NANAO CORPORATION is under no obligation to hold any submitted material or information confidential unless prior arrangements are made pursuant to EIZO NANAO CORPORATION’s receipt of written information. Although every effort has been made to ensure that this manual provides up-to-date information, please note that EIZO monitor specifications are subject to change without notice.
-
Page 3: Table Of Contents
English TABLE OF CONTENTS PRECAUTIONS ................... 4 1. INTRODUCTION ..................9 1-1. Features ......................9 1-2. Package Contents..................9 1-3. Controls & Connectors ................10 2. CABLE CONNECTION ................. 12 2-1. Before connecting ..................12 2-2. Connecting the signal cable ................13 3. ScreenManager ..................15 3-1. -
Page 4: Precautions
English PRECAUTIONS IMPORTANT! This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. To ensure personal safety and proper maintenance, please read this section and the caution statements on the unit (refer to the figure below). - Page 5 English WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
- Page 6 English WARNING Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock. To disconnect the power cord, grasp the plug firmly and pull. Tugging on the cord may damage and result in fire or electric shock.
- Page 7 English WARNING Do not touch a damaged LCD panel directly with bare hands. The liquid crystal that may leak from the panel is poisonous if it enters the eyes or mouth. If any part of the skin or body comes in direct contact with the panel, please wash thoroughly.
- Page 8 English CAUTION Unplug the unit before cleaning it. Cleaning the unit while it is plugged into a power outlet may result in electric shock. If you plan to leave the unit unused for an extended period, disconnect the power cord from the wall socket after turning off the power switch for the safety and the power conservation.
-
Page 9: Introduction
English 1. INTRODUCTION Thank you very much for choosing an EIZO Monochrome Monitor. 1-1. Features DVI (p.34) Digital input (TMDS (p.34)) compliant Resolution: 2M pixels (1600 dots × 1200 lines) Horizontal scanning frequency: 31.5 - 75 kHz Vertical scanning frequency: 60 Hz (VGA text: 70 Hz) USB (Universal Serial Bus) hub supported (p.23) -
Page 10: Controls & Connectors
English 1-3. Controls & Connectors Front Control Panel ENTER ® (1) ScreenManager Main Power Switch (3) ENTER Enter Button Control Buttons (Left, Down, Up, Right Power Button Power Indicator Green Operation Orange Power saving Flashing orange (2 times for each) Power save mode Flashing orange slowly Power is off (Main power is on) - Page 11 English Rear Bottom (10) (11) (12) (13) (14)(15) (7) Height Adjustable Stand (Detachable) Security Lock Slot USB Port (1 Upstream) (10) USB Port (2 Downstream) (11) DVI-D Input Connector (12) Serial Port (D-Sub 9 pin) (for factory use) (13) Serial Port (Mini DIN 6 pin) (for factory use) (14) SENSOR Serial Port (Mini DIN 8 pin) (for factory use) (15)
-
Page 12: Cable Connection
English 2. CABLE CONNECTION 2-1. Before connecting Before connecting your monitor to the PC, change the display screen settings (resolution p.34) and frequency) in accordance with the charts below. Resolutions Only the following resolutions with frequency can be displayed on this model. Resolution Frequency Dot Clock... -
Page 13: Connecting The Signal Cable
English 2-2. Connecting the signal cable NOTE Be sure that the power switches of both the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC. After connecting, secure the connection with the screw-in fasteners. - Page 14 English Projection Cable Entrance Cable Holder Plug the other end of the power cord into a power outlet. WARNING Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock.
-
Page 15: Screenmanager
English 3. ScreenManager 3-1. How to use the ScreenManager Control buttons Left, Down, Up, Right ENTER Enter button Entering the ScreenManager Push the Enter button once to display the main menu of the ScreenManager. Main Menu Making Adjustments and Settings (1) Select the desired sub menu icon using the Control buttons and push the Enter button. -
Page 16: Screenmanager Adjustments And Settings
English 3-2. ScreenManager Adjustments and Settings The following table shows all the ScreenManager’s adjustment and setting menus. Main menu Sub menu Reference Screen Position 4-1. Screen Adjustment (p.19) Resolution Brightness Smoothing Unlock Unlock the lock. (p.18) LUT Setting Default / Normal / Custom Set the LUT (Look-up table) (p.34) setting. -
Page 17: Useful Functions
English 3-3. Useful Functions Adjustment Lock Use the “Adjustment Lock” function to prevent any accidental changes. Locked function Settings in the ScreenManager. Unlocked function Adjustment of brightness by the control buttons. [How to lock] (1) Switch off the monitor’s power by the power button on the front panel. (2) Press on the Enter button while switching on the monitor’s power. - Page 18 English Unlock function after calibration The calibration is available when using the specified optional calibration kit (p.32). After the calibration, the functions below are automatically locked. Locked function Brightness adjustment (including the adjustment by left and right buttons on the front panel) LUT Setting Unlock function is available by using ScreenManager.
-
Page 19: Adjustment
English 4. ADJUSTMENT 4-1. Screen Adjustment If the image position is not correct or larger than the actual image screen, please adjust the following adjustment items using the <Screen> menu of the ScreenManager. NOTE Allow the LCD monitor to stabilize for at least 20 minutes before making image adjustments. -
Page 20: Displaying Low Resolutions
English Set the Brightness of the screen. Use the <Brightness> adjustment. The brightness of the entire screen is controlled by changing the brightness of the backlight. Select <Brightness> in the <Screen> menu and adjust by using the right and left buttons. - Page 21 English Smooth the blurred texts of the enlarged screen. Switch the <Smoothing> setting. Select the suitable level from 1 - 5 (Soft - Sharp). Select <Smoothing> in the <Screen> menu and adjust by using the right and left buttons. NOTE <Smoothing>...
-
Page 22: Power-Save Setup
English 4-3. Power-save Setup The <PowerManager> menu in the ScreenManager enables to set the power-save setup. NOTE Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely. -
Page 23: Making Use Of Usb (Universal Serial Bus)
English 5. MAKING USE OF USB (Universal Serial Bus) This monitor provides a hub which supports the USB standard. When connecting to a USB compliant PC or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily connected. Required system environment PC equipped with USB ports or another USB hub connected to the USB compliant PC USB Cable... - Page 24 English After setting up, the monitor’s USB hub is available for connecting USB compliant peripherals to the downstream ports of the monitor. Connecting Examples Monitor Keyboard Mouse Printer Downstream Downstream ports: Connect the cables from USB compliant peripherals such as a mouse, keyboard, etc.
-
Page 25: Attaching An Arm
English 6. ATTACHING AN ARM The LCD monitor can be used with an arm stand by removing the tilt stand and attaching the arm stand to the LCD monitor. NOTE If you will use the arm or stand of other companies, confirm the followings to the arm or stand maker before selecting. - Page 26 English Attach an arm stand to the LCD monitor securely. Arm-stand 4 Mounting Screws: M4 × 10 (mm) Ni/Fe 6. ATTACHING AN ARM...
-
Page 27: Troubleshooting
English 7. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. No picture problems See No.1 ~ No.2 Imaging problems See No.3 ~ No.9 Other problems See No.10 ~ No.12 USB problems See No.13~ No.14... - Page 28 English Problems Points to check with possible solutions Adjust the image position using the <Position>. 3. Display position is incorrect. (p.19). If the problem persists, use the graphics board’s utility software to change the display position if available. Adjust the resolution using the <Resolution>. 4.
- Page 29 If the problem is solved by doing this, contact an EIZO dealer. The power button of the Apple keyboard does not operate if it is connected to the EIZO USB Hub. Please connect the keyboard directly with the PC. Refer to the instruction of the PC for details.
-
Page 30: Cleaning
English 8. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel. -
Page 31: Specifications
English 9. SPECIFICATIONS LCD Panel 51 cm (20.1 inch), TFT Monochrome LCD panel Anti-Glare Hard Coating 2H Viewing Angle Horizontal: 170 , Vertical: 170 (CR 10) Dot Pitch 0.255 mm Horizontal Scan Frequency 31.5 ~ 75 kHz Vertical Scan Frequency 60Hz, (VGA TEXT: 70Hz) Resolution 2M pixels... - Page 32 19.0 (0.75) 209 (8.2) FRONT SIDE Default settings Smoothing PowerManager DVI DMPM Screen Size Normal Off Timer Disable Menu Settings Menu Size Normal Menu Off Timer 45 seconds Orientation Landscape Language English Optional Calibration Kit EIZO RadiCS GX2 9. SPECIFICATIONS...
- Page 33 English Pin Assignment DVI-D Connector Signal Signal Signal 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 19 20 21 22 23 24 17 18 TMDS Data2- TMDS Data1- TMDS Data0- TMDS Data2+ TMDS Data1+ TMDS Data0+ TMDS Data2/4 TMDS Data1/3...
-
Page 34: Glossary
The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO G20-S display panel consists of 1600 horizontal pixels and 1200 vertical pixels. At a resolution of 1600 × 1200, all pixels are displayed as a full screen. - Page 35 Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class A digital device. - AC Cord...
