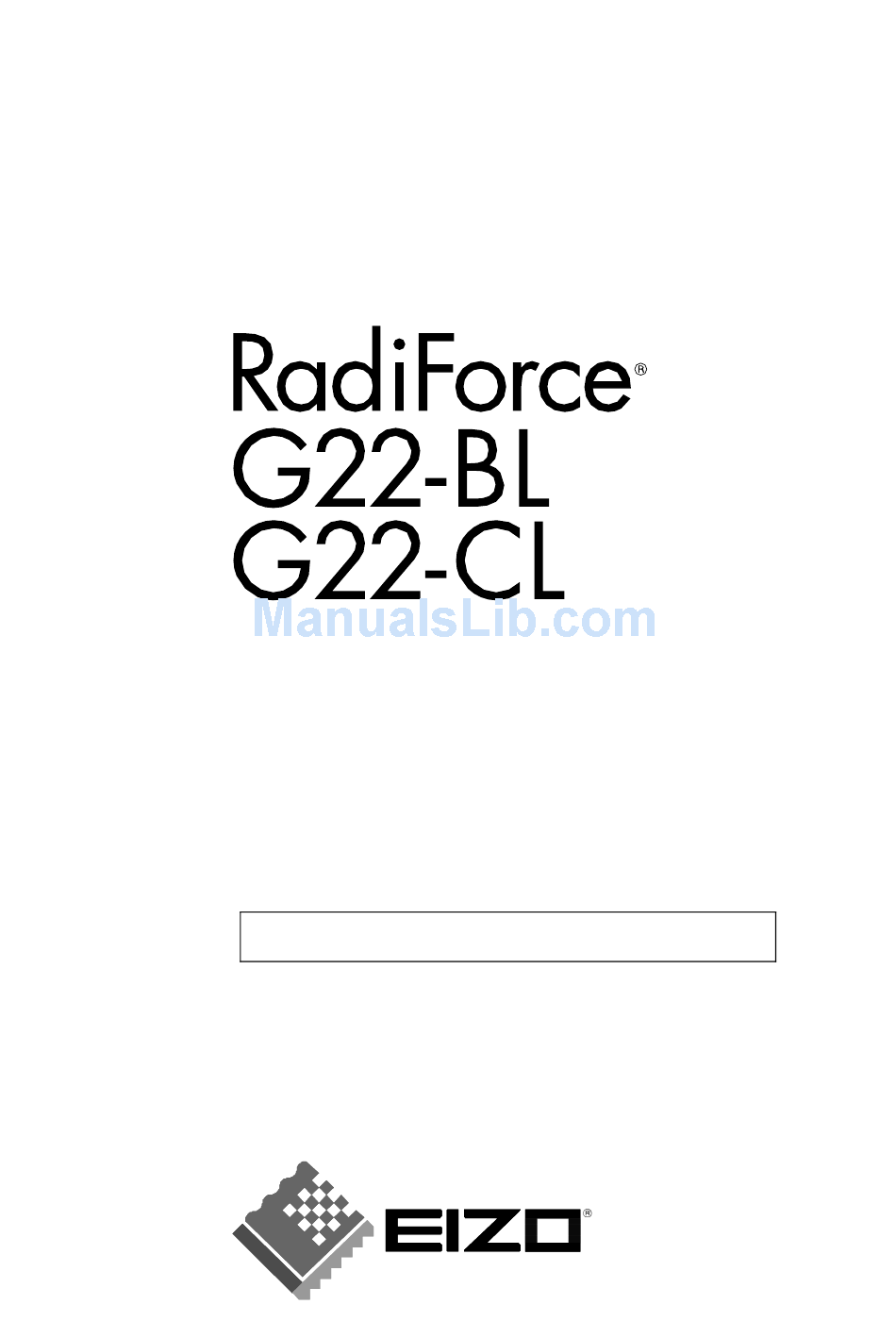

- Page 1 User’s Manual Monochrome LCD Monitor It shall be assured that the final system is in compliance to IEC60601-1-1 requirements.
-
Page 2: Safety Symbols
• This is a monitor intended for use in a medical setting. Copyright© 2004 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION. -
Page 3: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ... 4 1. INTRODUCTION ... 9 1-1. Features ...9 1-2. Package Contents...9 1-3. Controls & Connectors ...10 2. CABLE CONNECTION ... 12 3. ScreenManager ... 15 3-1. How to use the ScreenManager ...15 3-2. ScreenManager Adjustments and Settings...16 3-3. -
Page 4: Precautions
English PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •... - Page 5 WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
- Page 6 English WARNING To avoid danger of suffocation, keep the plastic packing bags away from babies and children. Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock.
- Page 7 WARNING When attaching an arm stand, please refer to the user’s manual of the arm stand and install the unit securely with the enclosed screws. Not doing so may cause the unit to become unattached, which may result in injury or equipment damage. When the unit is dropped, please ask your dealer for advice.
-
Page 8: Lcd Panel
English CAUTION Do not touch the plug with wet hands. Doing so may result in electric shock. Use an easily accessible power outlet. This will ensure that you can disconnect the power quickly in case of a problem. Periodically clean the area around the plug. Dust, water, or oil on the plug may result in fire. -
Page 9: Introduction
• Ultra slim bezel incorporated • Power saving function (p.18) (DVI-DMPM(p.31)) NOTE • Regarding the scanning resolution, the G22-BL/G22-CL supports only the exclusive timing. 1-2. Package Contents Please contact your local dealer for assistance if any of the listed items are missing or damaged. -
Page 10: Controls & Connectors
English 1-3. Controls & Connectors Front Control Panel (1) ScreenManager Main Power Switch (3) ENTER Enter Button Control Buttons (Left, Down, Up, Right) Power Button Power Indicator Green Orange Flashing orange (2 times for each) Flashing orange slowly These buttons are changed to Up, Left, Right, Down in case of selecting “Landscape”... - Page 11 Rear (10) (11) (12) Side (7) Height Adjustable Stand (Detachable) Security Lock Slot USB Port (1 Upstream) (10) USB Port (2 Downstream) (11) DVI-D Input Connector (12) Power Connector The LCD monitor has the capability of the Portrait/Landscape display. (The panel pivots in the clockwise direction 90°.) The LCD monitor can be used with an optional arm stand by removing the stand (p.22).
-
Page 12: Cable Connection
English 2. CABLE CONNECTION NOTE • Be sure that the power switches of both the PC and the monitor are OFF. • Please refer to the manual of the PC also to connect the monitor. Pivot the panel in the counter-clockwise to fix in portrait position. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC. -
Page 13: The Monitor
Lead the power cord and signal cable into the cable holder at rear of the monitor. NOTE • When housing the cables into the cable holder, lead them to the cable entrance side and pinch the projection to open the cable entrance. •... - Page 14 English Turn on the monitor’s Power Button and then switch on the PC’s power. The monitor’s power indicator will light up (green). If an image does not appear, refer to the “6. TROUBLESHOOTING” (p.24) for advice. Whenever finished, turn off the PC and the monitor. Set the kind of graphics card.
-
Page 15: Screenmanager
3. ScreenManager 3-1. How to use the ScreenManager ScreenManager Main Menu Entering the ScreenManager Press the Enter Button once to display the main menu of the ScreenManager. Making Adjustments and Settings (1) Select the desired sub menu icon using the Control Buttons and press the Enter Button. -
Page 16: Screenmanager Adjustments And Settings
English 3-2. ScreenManager Adjustments and Settings The following table shows all the ScreenManager’s adjustment and setting menus. Main menu Screen Brightness Unlock LUT Setting Default / Normal PowerManager DVI DMPM Others Off Timer Menu Settings Orientation Signal Selection Power Indicator Reset Information Information... -
Page 17: Useful Functions
3-3. Useful Functions Adjustment Lock Use the “Adjustment Lock” function to prevent any accidental changes. Locked function [How to lock] (1) Switch off the monitor’s power by the power button on the control panel. (2) Press on the Enter button while switching on the monitor’s power. [How to unlock] (1) Switch off the monitor’s power by the power button on the control panel. - Page 18 English Unlock Function after Calibration The calibration is available when using the specified optional calibration kit (p.29). After the calibration, the functions below are automatically locked. Locked function Unlock function is available by using ScreenManager. [How to unlock] (1) Select the <Unlock> of <Screen> menu. (2) Select “Unlock”.
-
Page 19: Power-Save Setup
3-4. Power-save Setup The <PowerManager> menu in the ScreenManager enables to set the power-save setup. NOTE • Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely. -
Page 20: Making Use Of Usb (Universal Serial Bus)
Required system environment • PC with build-in USB ports or another USB hub connected to the USB compliant PC • EIZO USB Cable (MD-C93) NOTE • The USB hub function may not work properly depending on the PC or peripherals. - Page 21 After setting up, the monitor’s USB hub is available for connecting USB compliant peripherals to the downstream ports of the monitor. Connecting Examples Keyboard Downstream Ports: Connect the cables from USB compliant peripherals such as a mouse, keyboard, etc. Monitor Mouse Printer Keyboard...
-
Page 22: Attaching An Arm
English 5. ATTACHING AN ARM The LCD monitor can be used with an arm by removing the tilt stand and attaching the arm or stand to the LCD monitor. NOTE • If you will use the arm or stand of other companies, confirm the followings to the arm or stand maker before selecting. - Page 23 English Attach an arm stand to the LCD monitor securely. Arm-stand 4 Mounting Screws: M4 × 10 (mm) 5. ATTACHING AN ARM...
-
Page 24: Troubleshooting
English 6. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. • No picture problems → See No.1 - No.2 • Imaging problems → See No.3 - No.7 • Other problems → See No.8 - No.9 •... - Page 25 Problems 4. The screen is too bright or too dark. 5. Afterimages appear. 6. The screen has defective pixels (e.g. slightly light or dark). 7. Fingerprints remain on the screen. 8. “Locked!” message appears and the adjustment controls are not available when pressing the Control Buttons.
- Page 26 Check that the USB cable is correctly connected. Check the downstream ports by connecting the peripherals to other downstream ports. If the problem is solved by doing this, contact an EIZO dealer. (For details, refer to the manual of the PC.) Try executing the following method.
-
Page 27: Cleaning
7. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel. -
Page 28: Specifications
English 8. SPECIFICATIONS LCD Panel Viewing Angle Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock Gray Scale Display Area Power Supply Power Consumption Input Connector Input Signal Dimensions Dimensions (without stand) Weight Weight (without stand) Environment Conditions Temperature Operating: 0 °C ∼... - Page 29 300.8(11.8) 3(0.12) 3(0.12) FRONT Default settings PowerManager Off Timer Menu Position Menu Off Timer Orientation Signal Selection Language Optional Calibration Kit SIDE DVI DMPM Disable Center 45 seconds Portrait Monochrome 8bit English EIZO RadiCS GX2 English mm (inches) 8. SPECIFICATIONS...
-
Page 30: Pin Assignment
English Pin Assignment DVI-D Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24 USB Ports Upstream Series B 8. SPECIFICATIONS Signal TMDS Data2- TMDS Data2+ TMDS Data2/4 Shield DDC Clock... -
Page 31: Glossary
The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO G22-BL/G22-CL display panel consists of 1600 horizontal pixels and 1200 vertical pixels. At a resolution of 1600 × 1200, all pixels are displayed as a full screen. -
Page 32: Canadian Notice
Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class A digital device. - AC Cord Shielded Signal Cable (enclosed) This Class A digital apparatus complies with Canadian ICES-003.
