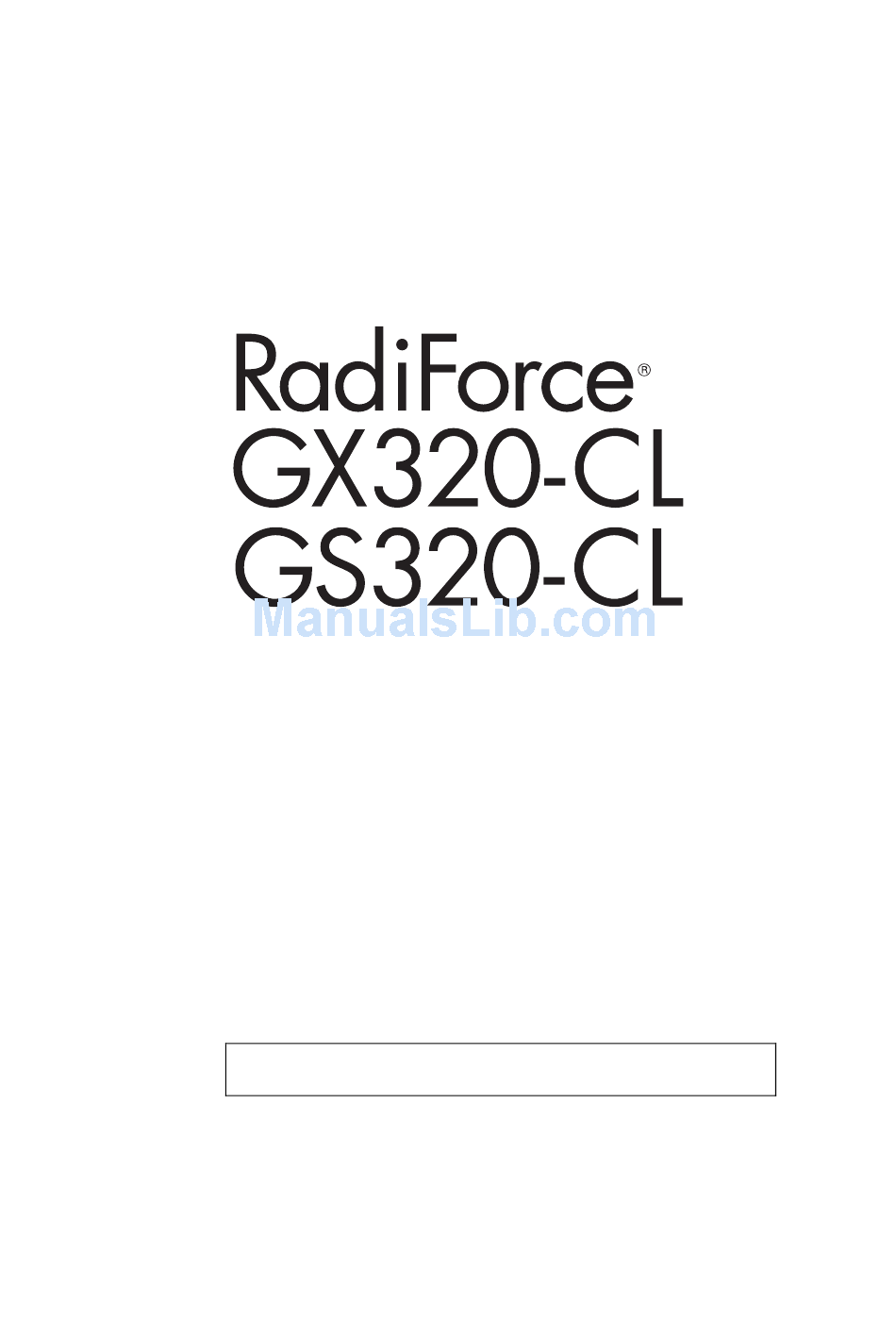

- Page 1 User’s Manual Monochrome LCD Monitor It shall be assured that the final system is in compliance to IEC60601-1-1 requirements.
-
Page 2: Fcc Declaration Of Conformity
Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class B digital device. - AC Cord - Shielded Signal Cable (enclosed) This Class B digital apparatus complies with Canadian ICES-003. -
Page 3: Safety Symbols
Copyright© 2006 EIZO NANAO CORPORATION All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of EIZO NANAO CORPORATION. -
Page 4: Table Of Contents
TABLE OF CONTENTS PRECAUTIONS ... 4 1. INTRODUCTION ... 9 1-1. Features ...9 1-2. Package Contents...9 1-3. Controls & Connectors ...10 2. INSTALLATION ... 12 2-1. Before Connecting ...12 2-2. Cable Connection ...12 2-3. Environmental Settings ...15 3. ADJUSTMET & SETTINGS ... 17 3-1. -
Page 5: Precautions
English PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •... - Page 6 WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
- Page 7 English WARNING To disconnect the power cord, grasp the plug firmly and pull. Tugging on the cord may damage and result in fire or electric shock. The equipment must be connected to a grounded main outlet. Not doing so may result in fire or electric shock. Use the correct voltage.
- Page 8 WARNING Do not touch a damaged LCD panel directly with bare hands. The liquid crystal which leaks from the panel is poisonous if it enters the eyes or mouth. If any part of the skin or body comes in direct contact with the panel, please wash thoroughly.
-
Page 9: Lcd Panel
English LCD Panel The screen may have defective pixels. These pixels may appear as slightly light or dark area on the screen. This is due to the characteristics of the panel itself, and not the product. The backlight of the LCD panel has a fixed life span. When the screen becomes dark or begins to flicker, please contact your dealer. -
Page 10: Introduction
• USB (Universal Serial Bus) hub support (p. 25) • Utility software “ScreenManager Pro for Medical”, which enables control of the monitor from a Windows PC with a mouse or keyboard (refer to the EIZO LCD Utility Disk). • Monitor stand adjustable for different heights •... -
Page 11: Controls & Connectors
English 1-3. Controls & Connectors Front CAL Switch menu (1) MODE Mode Switch Enter Switch Directing Switches (Left, Down, Up, Right) Power Switch Power Indicator Green Orange Flashing orange slowly When the monitor is oriented in the landscape position, these switches can be changed to Up, Left, Right, and Down (p. - Page 12 Side / Rear DVI-D connector USB upstream port (x 1) USB downstream ports (x 2) Power connector (10) Security lock slot (11) Main Power Switch (12) Monitor stand with adjustable height (detachable) Allows for connection of a security cable. This lock supports Kensington’s MicroSaver security system.
-
Page 13: Installation
English 2. INSTALLATION 2-1. Before Connecting Before connecting your monitor to the PC, change the display screen settings resolution (p. 36) and frequency in accordance with the charts below. NOTE • When your computer and monitor support VESA DDC, the appropriate resolution and the refresh rate are set just by plugging your display into the computer without any manual settings. - Page 14 Connect the signal cable to the DVI-D input connector on the rear of the monitor and to the video output connector on the PC. After connecting, secure the cable connectors with the attached screw-in fasteners. Signal cable FD-C39 Power cord Signal Cable Signal cable (FD-C39) Connect the power cord to the power connector on the rear of the...
- Page 15 English Connect the other end of the power cord to a power outlet. WARNING Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock.
-
Page 16: Environmental Settings
2-3. Environmental Settings The monitor may need to be set in some environment. If you install it for the first time or change environment, set the monitor. • Set the signal corresponding to make a connection for non monochrome signal only specifications. - Page 17 English Landscape Select this option when using the Landscape orientation. Portrait (SW) Select this option when using the Portrait orientation. Graphics board utility software is used to rotate the display image 90 degrees. Portrait (HW) Select this option when using the Portrait orientation. The monitor function is used to rotate the display image 90 degrees.
-
Page 18: Adjustmet & Settings
3. ADJUSTMET & SETTINGS 3-1. How to use the ScreenManager Screen adjustments and settings can be performed with the ScreenManager (OSD) and switches of the monitor. ScreenManager Menu CAL Switch menu Adjustment ScreenManager menu CAL Switch menu Switches *Adjustment Lock *Signal Selection Orientation Selection For information about each function, refer to each chapter described above. -
Page 19: Screenmanager Menu
English 3-2. ScreenManager menu Using ScreenManager menu controls the screen adjustment and settings. Refer to the “Explanation” column in the following table for each detailed functions. Functions The following table shows all the ScreenManager’s adjustment and setting menus. Main menu Setup Mode Preset Mode... - Page 20 How to use the ScreenManager [Entering the ScreenManager] Touch the enter switch. [Making adjustments and settings] (1) Select the desired submenu icon with the directing switches and touch the enter switch. (2) Select the desired setting icon with the directing switches and touch the enter switch. (3) Make any required adjustments with the directing switches and touch the enter switch.
- Page 21 English Mode Preset Function <Setup>-<Mode Preset> When CAL Switch mode is selected, the computer can be forced to display only specified modes. Use this function when the display modes are restricted or when the display should not be changed needlessly. [How to set] (1) Select <Mode Preset>...
- Page 22 Off Timer <Others>-<Off Timer> The off timer function causes the monitor to turn off automatically after a predetermined amount of time has lapsed. This function was created to reduce the afterimages particular to LCD monitors, which appear when the screen is left on for long periods without use.
-
Page 23: Cal Switch Function
English 3-3. CAL Switch Function The most suitable display mode is available by switching the mode switch on the control panel. The <Brightness> settings can be adjusted on the CAL Switch menu. CAL Switch Modes Mode 1-DICOM 2-Native 3-CAL * All modes can be calibrated independently. The mode name can also be changed using the calibration kit (see Optional, p. -
Page 24: Adjustment Lock Function
3-4. Adjustment Lock Function Use the “Adjustment Lock” function to prevent any accidental changes. Locked functions Unlocked function [How to lock] (1) Turn off the monitor power by touching the power switch. (2) Touch the power switch while touching the enter switch. [How to unlock] (1) Turn off the monitor power by touching the power switch. -
Page 25: Brightness Adjustment & Image Adjustment
English 4. BRIGHTNESS ADJUSTMENT & IMAGE ADJUSTMENT 4-1. Brightness Adjustment The brightness of the entire screen can be set to a desired level. [How to adjust] (1) Select <Brightness> in the ScreenManager <Mode> menu. (2) Make adjustments with the Left and Right directing switches. The Left directing switch makes the screen darker, and the Right directing switch makes it brighter. -
Page 26: Making Use Of Usb (Universal Serial Bus)
• PC equipped with USB ports or another USB hub connected to the USB compliant PC • Windows 98/Me/2000/XP // Mac OS 8.5.1 or later • EIZO USB Cable (MD-C93) NOTE • The USB hub function may not work properly depending on the PC, OS or peripherals. - Page 27 ScreenManager Pro for Medical (for Windows) For further details about the “ScreenManager Pro for Medical (for Windows)”, refer to the EIZO LCD Utility Disk. 5. MAKING USE OF USB (Universal Serial Bus) Monitor Keyboard...
-
Page 28: Attaching An Arm
6. ATTACHING AN ARM The LCD monitor can be used with an arm by removing the tilt stand and attaching the arm or stand to the LCD monitor. NOTE • If you will use the arm or stand of other manufacturers, confirm the followings to the manufacturers before selecting. -
Page 29: Troubleshooting
English 7. TROUBLESHOOTING If a problem persists even after applying the remedies suggested below, contact an EIZO dealer. • No picture problems → See No.1 ~ No.2 • Imaging problems • Other problems • USB problems Problem 1. No picture •... - Page 30 • Make sure the air vents are not blocked. • Make sure high temperature equipment is not located nearby. Contact an EIZO dealer when the power switch fails to restart the monitor even after its location is moved. NOTE Do not block the ventilation slots on the cabinet and do not install the monitor in a closed space.
- Page 31 Try connecting the peripheral to another USB downstream port. If the problem is solved by doing this, contact an EIZO dealer. (For details, refer to the manual of the PC.) Try executing the following method. - Restarting the PC...
-
Page 32: Cleaning
8. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel. -
Page 33: Specifications
English 9. SPECIFICATIONS LCD Panel Panel Protector (GX320-CL) Viewing Angle Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (Max.) Gray Scale Recommended Brightness Display Area Power Supply Power Consumption Input Connector Input Signal Plug & Play Environment Temperature Conditions Humidity... - Page 34 GS320-CL Dimensions With stand Without stand Weight With stand Without stand Dimensions GX320-CL Front GS320-CL Front 376 mm (W) x 522.5 mm ∼ 604.5 mm (H) x 208.5 mm (D) (14.8”(W) x 20.6” ∼ 23.8” (H) x 8.2”(D)) 376 mm (W) x 500 mm (H) x 92 mm (D) (14.8”(W) x 19.7”(H) x 3.62”(D)) 9.9 kg (21.8 lbs.) 6.9 kg (15.2 lbs.)
- Page 35 • Matrox “MED3mp-PPP” • Matrox “MED5mp-PPP” • Matrox “AURORA VX3mp”” 8bit monochrome signal supported • RealVision “VREngine/CMD3W” • Matrox “RAD-PCI” EIZO “RadiCS UX1 ”Ver.2.5.0 or later EIZO “Clip-On Swing Sensor G1” (GS320-CL only) EIZO “RadiNET Pro” Ver.2.5.0 or later EIZO “ScreenCleaner”...
-
Page 36: Pin Assignment
Pin Assignment DVI-D Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 19 20 21 22 23 24 17 18 Pin No. Signal TMDS Data2- TMDS Data2+ TMDS Data2/4 Shield DDC Clock (SCL) DDC Data (SDA) Analog Vertical Sync USB Port... -
Page 37: Glossary
The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO GX320-CL / GS320-CL display panel consists of 1536 horizontal pixels and 2048 vertical pixels. At a resolution of 1536 x 2048, all pixels are displayed as a full screen. - Page 38 Vous trouverez toutes les informations sur le recyclage dans les sites Web suivants: Återvinningsinformation för kunder i EU: All information om återvinning finns på följande webbsidor: http://www.swico.ch http://www.eizo.de http://www.eizo.se Recycling Information for customers in USA: All recycling information is placed in the Eizo Nanao Technologies, Inc.'s website. http://www.eizo.com...
