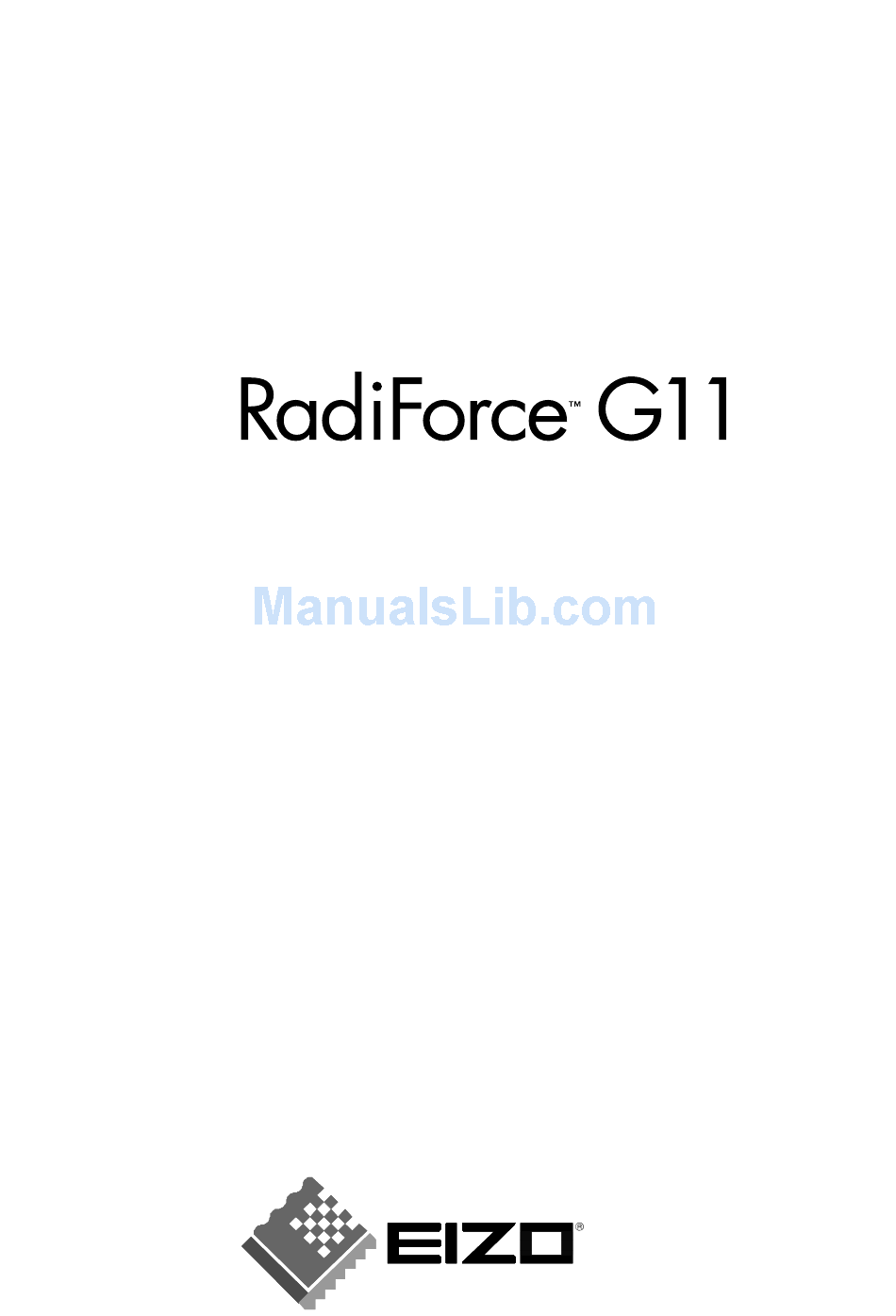

  • Page 1 User’s Manual Monochrome LCD Monitor...

  • Page 2: Safety Symbols

    Indicates a prohibited action. Indicates to ground for safety. Copyright© 2002 by EIZO NANAO CORPORATION. All rights reserved. No part of this manual may be reproduced, stored in a retrieval system, or transmitted, in any form or by any means, electronic, mechanical, or otherwise, without the prior written permission of Eizo Nanao Corporation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS PRECAUTIONS... 4 1. INTRODUCTION ... 9 1-1. Features... 9 1-2. Package Contents ... 9 1-3. Controls & Connectors ... 10 2. CABLE CONNECTION ... 12 2-1. Before connecting ... 12 2-2. Connecting the signal cable ... 13 3.

  • Page 4: Precautions

    English PRECAUTIONS IMPORTANT! • This product has been adjusted specifically for use in the region to which it was originally shipped. If operated outside the region to which it was originally shipped, the product may not perform as stated in the specifications. •...
  • Page 5 WARNING If the unit begins to emit smoke, smells like something is burning, or makes strange noises, disconnect all power connections immediately and contact your dealer for advice. Attempting to use a malfunctioning unit may result in fire, electric shock, or equipment damage.
  • Page 6 English WARNING Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock. To disconnect the power cord, grasp the plug firmly and pull. Tugging on the cord may damage and result in fire or electric shock.
  • Page 7 WARNING Do not touch a damaged LCD panel directly with bare hands. The liquid crystal that may leak from the panel is poisonous if it enters the eyes or mouth. If any part of the skin or body comes in direct contact with the panel, please wash thoroughly.

  • Page 8: Lcd Panel

    English CAUTION Unplug the unit before cleaning it. Cleaning the unit while it is plugged into a power outlet may result in electric shock. If you plan to leave the unit unused for an extended period, disconnect the power cord from the wall socket after turning off the power switch for the safety and the power conservation.

  • Page 9: Introduction

    1. INTRODUCTION Thank you very much for choosing an EIZO Monochrome Monitor. 1-1. Features • DVI (p. 41) Digital input (TMDS (p. 42)) compliant • Resolution: 1 M pixels (1280 x 1024) Horizontal scanning frequency: 27 - 82 kHz (Digital input: 27 - 64 kHz) Vertical scanning frequency: 50 - 85 Hz (1280 x 1024 ~ 75 Hz) •...

  • Page 10: Controls & Connectors

    English 1-3. Controls & Connectors Front Control Panel SIGNAL 1 - 2 (1) ScreenManager Main Power Switch (3) SIGNAL 1-2 Signal selection button (Color/Monochrome) (4) AUTO Auto Adjustment Button (5) ENTER Enter Button Control Buttons (Left, Down, Up, Right) Power Button Power Indicator Green Orange...
  • Page 11 Rear Bottom (11) (9) Height Adjustable Stand (Detachable) (10) Security Lock Slot (11) SENSOR Serial Port, Photo Sensor Connector (Mini DIN 8 pin) (12) Serial Port, Remote IN (Mini DIN 6 pin) (13) DVI-I Input Connector (14) USB Port (2 Downstream) (15) USB Port (1 Upstream) (16)

  • Page 12: Cable Connection

    English 2. CABLE CONNECTION 2-1. Before connecting Before connecting your monitor to the PC, change the display screen settings (resolution p. 42) and frequency) in accordance with the charts below. NOTE • When your computer and display support VESA DDC, the suitable resolution and the refresh rate are set by just plugging your display into the computer without any manual settings.

  • Page 13: Connecting The Signal Cable

    2-2. Connecting the signal cable NOTE • Be sure that the power switches of both the PC and the monitor are OFF. Plug the signal cable into the connector at the rear of the monitor and the other end of the cable into the video connector on the PC. After connecting, secure the connection with the screw-in fasteners.

  • Page 14: The Monitor

    English [Signal selection] Please use the signal select button on the front panel. (1) The selection menu appears by pressing the button for more than 2 seconds. (2) Choose “Monochrome” by up and down keys. SIGNAL 1 - 2 Signal selection button (Color / Monochrome) Digital Input Signal Cable Signal Cable (FD-C04 enclosed)
  • Page 15 Plug the other end of the power cord into a power outlet. WARNING Use the enclosed power cord and connect to the standard power outlet of your country. Be sure to remain within the rated voltage of the power cord. Not doing so may result in fire or electric shock.

  • Page 16: Screenmanager

    English 3. ScreenManager 3-1. How to use the ScreenManager Entering the ScreenManager Push the Enter button once to display the main menu of the ScreenManager. [Main Menu ] Making Adjustments and Settings (1) Select the desired sub menu icon using the Control buttons and push the Enter button.

  • Page 17: Screenmanager Adjustments And Settings

    3-2. ScreenManager Adjustments and Settings. The following table shows all the ScreenManager’s adjustment and setting menus. “*” indicates adjustments of analog input only and “**” indicates digital input only. Main menu Screen LUT Setting PowerManager Others Information Language This function is used for the calibration (p. 26). Set to the “Normal”...

  • Page 18: Useful Functions

    English 3-3. Useful Functions Adjustment Lock Use the “Adjustment Lock” function to prevent any accidental changes. Locked function Unlocked function • To lock Switch off the monitor’s power by the power button on the front panel. Press on the Auto adjustment button while switching on the monitor’s power. •...

  • Page 19: Adjustment

    4. ADJUSTMENT 4-1. Screen Adjustment NOTE • Allow the LCD monitor to stabilize for at least 20 minutes before making image adjustments. When connecting the digital graphics board, see page 22. Analog Input Screen adjustments for the LCD monitor should be used in suppressing screen flickering and also for adjusting the screen to its proper position.
  • Page 20 English NOTE • More precise adjustment is available for using the “Screen Adjustment program” utility software. It can be downloaded from the EIZO homepage (http://www.eizo.com/). Adjust by using <Screen> menu in the ScreenManager. (1) Vertical bars appear on the screen →...
  • Page 21 (3) The screen position is incorrect. → Use the <Position> adjustment. The correct displayed position of the monitor is decided because the number and the position of the pixels are fixed. The <Position> adjustment moves the image to the correct position. Select <Position>...

  • Page 22: Digital Input

    English Adjust the output signal range (Dynamic Range) of the signal. → Use the <Range Adjustment> (p.41) of <Screen> menu. This controls the level of output signal range to display the whole gradation (256 steps). [Procedure] Push the Auto adjustment button on the front panel while displaying the <Range Adjustment>...

  • Page 23: Displaying Low Resolutions

    4-2. Displaying low resolutions Using the <Screen Size> function in the <Others> menu enables to change the screen size of lower resolution (i.e. except 1280 x 1024). Enlarge the screen size when displaying a low resolution. → Select the <Screen Size>. Select the <Screen Size>...
  • Page 24 English Set the brightness of the black area surrounding the displayed image. → Set the <Border Intensity>. In the <Enlarge> mode or <Full Screen> mode, the outer area (border) is usually black. Select <Border Intensity> in the <Others> menu and adjust by using the right and left buttons.

  • Page 25: Power-Save Setup

    4-3. Power-save Setup The <PowerManager> menu in the ScreenManager enables to set the power-save setup. NOTE • Do your part to conserve energy, turn off the monitor when you are finished using it. Disconnecting the monitor from the power supply is recommended to save energy completely.

  • Page 26: Calibration

    English 5. CALIBRATION The calibration is available when using the specified optional calibration kit (p.38). Accessories for Calibration Kit • Photo Sensor x 1 • Maintenance cable x 4 • Calibration Software Photo Sensor Maintenance cable Confirm the graphics board settings (If the graphics board has the settings below).
  • Page 27 NOTE • Lead the maintenance cables into the cable holder after connecting (p.14). • Brightness adjustment is not available while the calibrating the monitor. • After the calibration, brightness and other functions are automatically locked. Please refer to the procedure below to unlock. Unlock function after calibration After the calibration, brightness and other functions are automatically locked.

  • Page 28: Making Use Of Usb (Universal Serial Bus)

    English 6. MAKING USE OF USB (Universal Serial Bus) This monitor provides a hub which supports the USB standard. When connecting to a USB compliant PC or another hub, the monitor functions as a hub to which the USB compliant peripherals can be easily connected. Required system environment •...
  • Page 29 After connecting the USB cable, the USB function can be set up automatically. After setting up, the monitor’s USB hub is available for connecting USB compliant peripherals to the downstream ports of the monitor. Connecting Examples Keyboard Monitor Mouse Downstream Downstream ports: Connect the cables from USB compliant peripherals such as a...

  • Page 30: Attaching An Arm Stand

    English 7. ATTACHING AN ARM STAND The LCD monitor can be used with an arm stand by removing the tilt stand and attaching the arm stand to the LCD monitor. NOTE • Use an arm stand that satisfies the followings. - When using the LCD monitor with an arm stand, the arm stand must be VESA approved: *Use an arm stand with a 100 mm x 100 mm hole spacing on the arm mounting...
  • Page 31 Remove the tilt stand by loosening the screws. (4 pcs of M4 x 15 mm BZn/Fe) Attach an arm stand to the LCD monitor securely. Arm-stand M4 Mounting Screws: M4 x 15 (mm) BZn/Fe 7. ATTACHING AN ARM STAND English...

  • Page 32: Troubleshooting

    English 8. TROUBLESHOOTING If a problem persists even after applying the suggested remedies, contact an EIZO dealer. • No picture problems → See No.1 ~ No.2 • Imaging problems → See No.3 ~ No.13 • Other problems → See No.14 ~ No.17 •...
  • Page 33 Problems 3. Display position is incorrect. 4. Screen image is smaller or larger than the actual screen images. 5. Vertical bars of distortion appear. 6. Horizontal bars of distortion appear. 7. Letters and lines appear blurred. 8. The slightly shadowed images or characters appear.

  • Page 34: 34 8. Troubleshooting

    English Problems 10. The screen is too bright or too dark. 11. Afterimages appear. 12. The screen has defective pixels (e.g. slightly light or dark). 13. Fingerprints remain on the screen. 14. <Smoothing> cannot be selected. 15. “Locked!” message appears and the adjustment controls are not available when pressing the control buttons.
  • Page 35 If the problem is solved by doing this, contact an EIZO dealer. ! The power button of the APPLE keyboard does not operate if it is connected to the EIZO USB Hub. Please connect the keyboard directly with the PC. Refer to the instruction of the PC for details.

  • Page 36: Cleaning

    English 9. CLEANING Periodic cleaning is recommended to keep the monitor looking new and to prolong its operation lifetime. NOTE • Never use thinner, benzene, alcohol (ethanol, methanol, or isopropyl alcohol), abrasive cleaners, or other strong solvents, as these may cause damage to the cabinet or LCD panel.

  • Page 37: Specifications

    10. SPECIFICATIONS LCD Panel Viewing Angle Dot Pitch Horizontal Scan Frequency Vertical Scan Frequency Resolution Dot Clock (Max.) Gray Scale Display Area Power Supply Power Consumption Input Connector Analog Input Signal (Sync) Analog Input Signal (Video) 0.7Vp-p/75Ω Positive Digital Input Signal Analog Signal registration Plug &...
  • Page 38 VESA DPMS Normal Disable Menu Size: Normal, Menu Off Timer: 45 seconds Landscape English EIZO RadiForce Calibration Kit GX1 (Accessories: Photo Sensor x 1, Maintenance cable x4, Calibration Software) EIZO RadiForce BNC Adaptor BI00FM mm (inches) Digital input DVI DMPM...

  • Page 39: Pin Assignment

    Pin Assignment DVI-I Connector 1 2 3 4 5 6 7 8 10 11 12 13 14 15 16 19 20 21 22 23 24 17 18 Pin No. Signal Pin No. TMDS Data2- TMDS Data2+ TMDS Data2/4 Shield DDC Clock (SCL) DDC Data (SDA) Analog Vertical Sync TMDS Data1-...
  • Page 40 English USB Ports Upstream Series B Preset Timing Chart for Analog input Based on the signal diagram shown below 25 factory presets have been registered in the monitor's microprocessor. Mode VGA 640 × 480 VGA 720 × 400 Macintosh 640 × 480 Macintosh 832 ×...

  • Page 41: Glossary

    11. GLOSSARY Afterimage The Afterimage is particular to LCD monitors when the monitor screen is left on for a long period without use. The “Afterimage” can be removed gradually by changing the displayed image. Clock With the analog input signal display, the analog signal is converted to a digital signal by the LCD circuitry.
  • Page 42 The LCD panel consists of a fixed number of pixel elements which are illuminated to form the screen image. The EIZO G11 display panel consists of 1280 horizontal pixels and 1024 vertical pixels. At a resolution of 1280 x 1024, all pixels are displayed as a full screen.

  • Page 43: Canadian Notice

    Note Use the attached specified cable below or EIZO signal cable with this monitor so as to keep interference within the limits of a Class A digital device. - AC Cord - Shielded Signal Cable (enclosed) This Class A digital apparatus complies with Canadian ICES-003.
