Instruction Manual for

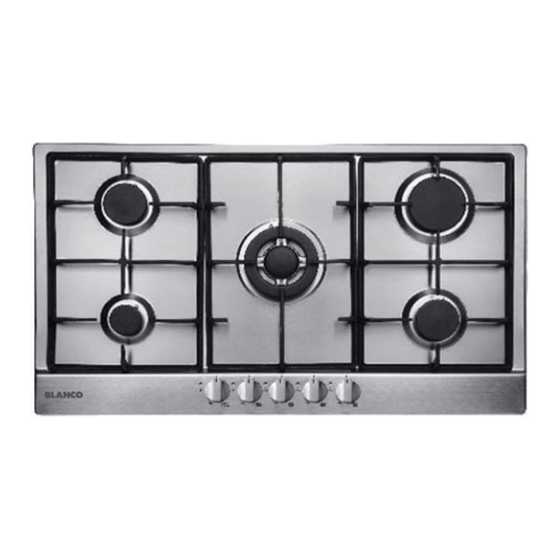

Gas Cooktop BCG905FX

Advertisement

loading
Need help?

Need help?

Do you have a question about the BCG905FX and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Blanco BCG905FX

Summary of Contents for Blanco BCG905FX

  • Page 1 Instruction Manual for Gas Cooktop BCG905FX...

  • Page 3: Table Of Contents

    Read these instructions carefully before using your cooktop and keep them in a safe place. If you follow the instructions, your cooktop will provide you with many years of good service. TABLE OF CONTENTS SECTION PAGE NO. Important Safety Instructions …………..

  • Page 4: Important Safety Instructions

    IMPORTANT SAFETY INSTRUCTIONS IMPORTANT: Read the assembly instruction section and safety precautions of this booklet carefully before removing the contents of this carton. 1. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or instruction concerning the use of the appliance by a person responsible for their safety.

  • Page 5: Appliance Details

    APPLIANCE DETAILS Gas Type: ULPG Burner Pressure: 2.75 kPa 1.00 kPa Injector Injector MJ/hr Rating MJ/hr Rating Diameter Diameter Auxiliary Burner Ø0.55 mm 4.0 MJ/ hr Ø0.90 mm 4.0 MJ/ hr Semi-Rapid Burner Ø0.70 mm 6.3 MJ/ hr Ø1.10 mm 6.0 MJ/ hr Rapid Ø0.90 mm...

  • Page 6: Gas Connections

    GAS CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Check Gas Type and specifications plate placed on the bottom face of the unit. All gas fitting work, service and repairs can only be performed by an authorized person in accordance with the current edition of AS/NZS5601 and local gas regulations.
  • Page 7 CHECKING THE BURNER PRESSURE Natural Gas (the appliance test point is located at the regulator). The supplied regulator must be fitted to the appliance inlet connection. The gas pressure must be adjusted to 1.0kPa when approximately 50% of the burners are on high. Universal LPG (the appliance test point is located at the injector).

  • Page 8: Electrical Connections

    ELECTRICAL CONNECTIONS LOCAL AUTHORITY REQUIREMENTS Installation is only permitted by an authorized person, and carried out according to instructions provided by the manufacturer. Incorrect installation might cause harm and damage which the manufacturer accepts no responsibility. The electrical connection can be found 30mm in from the rear edge and 280mm from the left hand side (looking from the front).
  • Page 9 INSTALLATION IN KITCHEN CABINET WITH DOOR The fixture must be made according to specific requirements in order to prevent the gas burners from going out, even when the flame is turned down to minimum, due to pressure changes while opening or closing the cupboard doors.

  • Page 10: Operating Instructions

    CLEANING AND STORAGE Please follow the maintenance & cleaning guidelines below to keep your Blanco cooktop in good working order. The cooktop should be cleaned regularly with all stains and boil overs being cleaned up. Do not allow stains and boil overs to become burnt onto the appliance.
  • Page 11 (Clean up spillage on burner components). Oversize cooking vessel being used on the appliance operating the (use smaller cooking vessels). Internal ignition of burner (Turn off gas and reignite burner). Wrong appliance. gas type being used (check supply and data labels). We appreciate your feedback. Please review our products on www. blanco-australia.com...
  • Page 12 BCG905FX 2018-10-15...
