Page 1: Cover

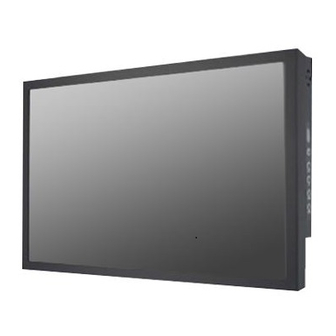

USER MANUAL MODEL: ECHW2400HDWT2 i-Tech Company LLC Modified: 10-24-22 EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... -
Page 2: Important Safety Insturctions
Product Specification Important safety insturctions 01. Please read these instructions carefully before using the product and save for later reference. 02. Follow all warnings and instructions marked on the product. 03. Unplug this product from the wall outlet before cleaning. Clean the product with a damp soft cloth. -
Page 3: Record Of Revision
Product Specification Record of Revision Version & Date Old Description First Edition for Customer 2022/10/21 3/16... -
Page 4: Table Of Contents
Product Specification Contents Cover Important safety insturctions Record of Revision Contents Introduction (1) Features (2) Notice (3) Check list Installing the monitor (1) Power & Signal connections (2) Optional cable connections (3) Dimensions Using VGA LCD monitor (1) Key definition (2) Setup for Operation (3) OSD menu system Cleaning the monitor... -
Page 5: Introduction
Product Specification 1. Introduction 1.1 Features High contrast color TFT-LCD Monitor support resolution up to 1920*1080. Power management system conforms to VESA DPMS and EPA Energy Star standards. Universal Power adapter. Support DDC1 & DDC2B for Plug & Play compatibility. Advanced OSD control for picture quality adjustment. -
Page 6: Installing The Monitor
Product Specification 2. Installing the Monitor The procedures for setting up your TFT LCD monitor are as followings: 2.1 Power & Signal connections 2.1.1 Power Switch off the power of your monitor and computer. The Power Switch is located on in the center of the monitor. 2.1.2 Power cable connection Connect the power cord to the AC outlet, and connect the power to the monitor through the AC/DC adapter. -
Page 7: Dimensions
Product Specification 2.3 Dimensions 7/16... -
Page 8: Using Vga Lcd Monitor
Product Specification 3. Using VGA LCD Monitor 3.1 Key Definition OSD KEY Function Down / value decrease Up / value increase Power Power ON / OFF Menu Menu Select Auto Auto Adjust 8/16... -
Page 9: Setup For Operation
Product Specification 3.2. Setup for Opera on The OSD (On Screen Display) menu enables user to manipulate the image and settings OSD Main menu consists of source: Backlight Adjust the Backlight of the screen. Brightness Adjust the Brightness of the screen. Picture Contrast Adjust the Contrast of the screen. -
Page 10: Osd Menu System
Product Specification 3.3 OSD Menu [PICTURE] Press "+" to increase or "-" to decrease theBacklight, Brightness or Contrast. or Sharpness. PICTURE Backlight Backlight Brightness Adjust the Backlight of the screen. Contrast Brightness Sharpness Adjust the brightness of the screen. Contrast Adjust the contrast of the screen. - Page 11 Product Specification [COLOR] Gamma Set the Gamma to 2.0, 2.2, 2.4 anf off. Color Temp Set color to 6500k , 9300k , USER . COLOR You can select the screen’s color level of the white Gamma color field from the default color temperature settings.
- Page 12 Product Specification [INPUT] Gamma Set the Auto Select/VGA/HDMI/DVI. INPUT Auto Select HDMI [AUDIO] Volume Adjust the Volume. Mute Set the Mute on/off. AUDIO Volume Audio Source Set the Audio Source Analog/Digital. Mute Analog Audio Source 12/16...
- Page 13 Product Specification [OTHER] Reset Menu Time Adjust the Menu Time. OSD H. Position. OTHER Reset Adjust the horizontal position of the Menu Time OSD Menu screen’s image. OSD H Position OSD V. Position. OSD V Position Adjust the vertical position of the Language English OSD Menu screen’s image.
-
Page 14: Cleaning The Monitor
Product Specification 4. Cleaning the monitor 1. Make sure the monitor is turned off. 2. Never spray or pour any liquid directly onto the screen or case. 3. Wipe the screen with a clean, soft, lint-free cloth. This removes dust and other particles. 4. -
Page 15: Trouble Shooting
Product Specification 6. Trouble shooting If your monitor fails to operate correctly, consult the following chart for possible solution before calling for repairs: Check if the signal cable is firmly seated in the socket. Check if the Power is ON at the computer The picture does not appear Check if the brightness control is at the appropriate position, not at the Maximum . -
Page 16: Specifications
Product Specification 7. Specifications Panel Type 24.0-inch TFT LCD Screen Diagonal 24.0-inch Active Display Area (mm) 531.36 (H) x 298.89 (V) Pixel Pitch (um) 276.75 (per one triad) ×276.75 Number of Pixels 1920 (x3) x 1080 Contrast Ratio 5000:1 Display Color 16.7M colors (true 8-bit) Brightness (cd/ ) 300 cd/...
