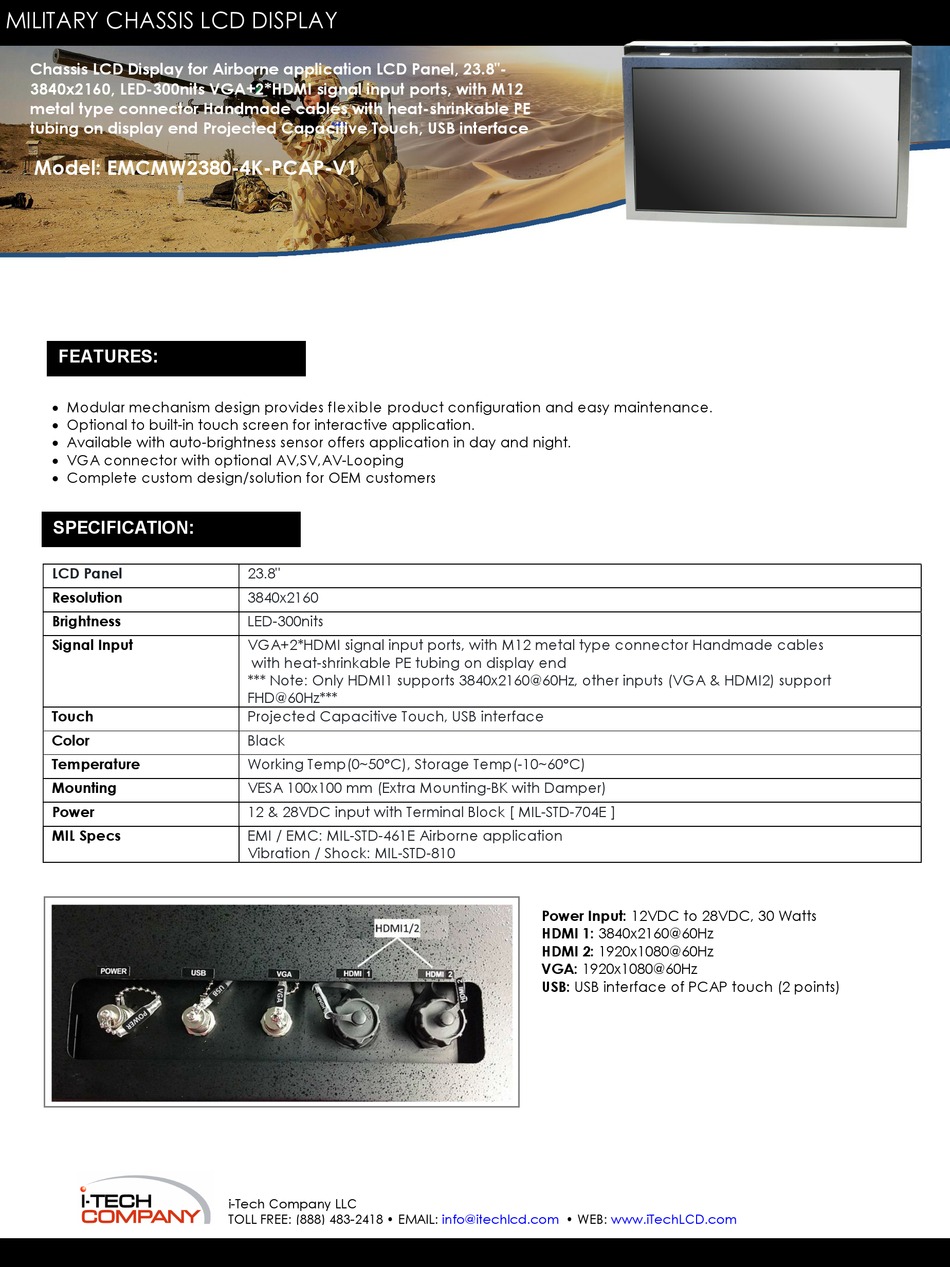

MILITARY CHASSIS LCD DISPLAY
Chassis LCD Display for Airborne application LCD Panel, 23.8"-
3840x2160, LED-300nits VGA+2*HDMI signal input ports, with M12
metal type connector Handmade cables with heat-shrinkable PE
tubing on display end Projected Capacitive Touch, USB interface
Model: EMCMW2380-4K-PCAP-V1
FEATURES:
Modular mechanism design provides flexible product configuration and easy maintenance.
Optional to built-in touch screen for interactive application.
Available with auto-brightness sensor offers application in day and night.
VGA connector with optional AV,SV,AV-Looping
Complete custom design/solution for OEM customers
SPECIFICATION:
LCD Panel
Resolution
Brightness
Signal Input
Touch
Color
Temperature
Mounting
Power
MIL Specs
23.8"
3840x2160
LED-300nits
VGA+2*HDMI signal input ports, with M12 metal type connector Handmade cables
with heat-shrinkable PE tubing on display end
*** Note: Only HDMI1 supports 3840x2160@60Hz, other inputs (VGA & HDMI2) support
FHD@60Hz***
Projected Capacitive Touch, USB interface
Black
Working Temp(0~50°C), Storage Temp(-10~60°C)
VESA 100x100 mm (Extra Mounting-BK with Damper)
12 & 28VDC input with Terminal Block [ MIL-STD-704E ]
EMI / EMC: MIL-STD-461E Airborne application
Vibration / Shock: MIL-STD-810
i-Tech Company LLC
TOLL FREE: (888) 483-2418 • EMAIL:
Power Input: 12VDC to 28VDC, 30 Watts
HDMI 1: 3840x2160@60Hz
HDMI 2: 1920x1080@60Hz
VGA: 1920x1080@60Hz
USB: USB interface of PCAP touch (2 points)
info@itechlcd.com
• WEB:
www.iTechLCD.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for I-Tech EMCMW2380-4K-PCAP-V1
Summary of Contents for I-Tech EMCMW2380-4K-PCAP-V1
- Page 1 3840x2160, LED-300nits VGA+2*HDMI signal input ports, with M12 metal type connector Handmade cables with heat-shrinkable PE tubing on display end Projected Capacitive Touch, USB interface Model: EMCMW2380-4K-PCAP-V1 FEATURES: Modular mechanism design provides flexible product configuration and easy maintenance. Optional to built-in touch screen for interactive application.
-
Page 2: Mechanical Drawing
MILITARY CHASSIS LCD DISPLAY MECHANICAL DRAWING:... -
Page 3: Lcd Options
Privacy Filter Front Glass Options: Anti Reflective AR Glass 3mm Anti Reflective AR Glass 6mm Vandal-Resistance Anti Reflective AR Glass 8mm Vandal-Resistance Anti Glare AG Glass 3mm i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... -
Page 4: Osd Manual
Press the and buttons to move between options. As you move from one icon to another, the option name is highlighted. Choose the Display Mode for 1P , 2P Display Mode 1/2P Right Left 1/2P Up down i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com... - Page 5 OSD Rotated: OFF / 90 / 270 c. Picture b-1 Backlight If select BackLight function, you can push ADJ+ or ADJ- key to increase or decrease backlight current of the inverter. BackLight i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com...
- Page 6 Adjusts the image CONTRAST in relationship to the background. Press“ ” or “ ” to adjust. Contrast c-4. Sharpness < > Adjusts the crispness of the image. Press“ ” or “ ”to adjust. i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com...
- Page 7 In this function, that will be activated the auto adjusting for the picture. Auto Adjust d-2. H-Position If select H Position function, you can push ADJ+ or ADJ- key to shift to Right or Left of the picture. H-Position i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB: www.iTechLCD.com...
- Page 8 Temperature: Adjusts the color temperature of the entire screen. A low color temperature will make the screen reddish. A high color temperature will make the screen bluish. i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB:...
- Page 9 ASPECT button on the remote control. Pictures appear in wrong ratio g. Signel Input source Use the Input Source menu to select between different video inputs that are be connected to your monitor. i-Tech Company LLC TOLL FREE: (888) 483-2418 • EMAIL: info@itechlcd.com • WEB:...
-
Page 10: Test Report
Test Report Customer: ElectroWing Technologies Pvt. Ltd. Customer PO No: EWT/PO-027/2019-2020 i-Tech Sales Order No: 108965 Part No: ECH1040XWT-TR x 3 pcs and EWT-EMCMW2380-4K-PCAP-V1 x 1 pcs Burn in Test Testing Program: checkit (4 hours) Serial No. Burn Test S/N # 8119110000329-108965 to 8119110000331-108965 √... -
Page 11: Certificate Of Conformance
I-Tech Company LLC 42978 Osgood Road. Fremont, CA 94539 Tel: 1-888-483-2418 Fax: 1-510-372-2736 ElectroWing Technologies Pvt. Ltd. Order Number: EWT/PO-027/2019-2020 iTech part# ECH1040XWT-TR x 3 pcs and EWT-EMCMW2380-4K-PCAP-V1 x 1 pcs Drawing Number Revision _________ Specification(s), if applicable N/A Revision ___________... -
Page 12: Warranty Certificate
I-Tech Company. Any freight charges incurred are at the user's expense. Limitations: The warranty is the only warrantees and remedies provided for by i-Tech Company LLC to the user. I-Tech Company disclaims all implied warrantees of merchantability and fitness. In no event shall I- Tech Company be liable, except to the extent that this limitation is found to be unenforceable under the applicable law.
