20/1/23, 12:11

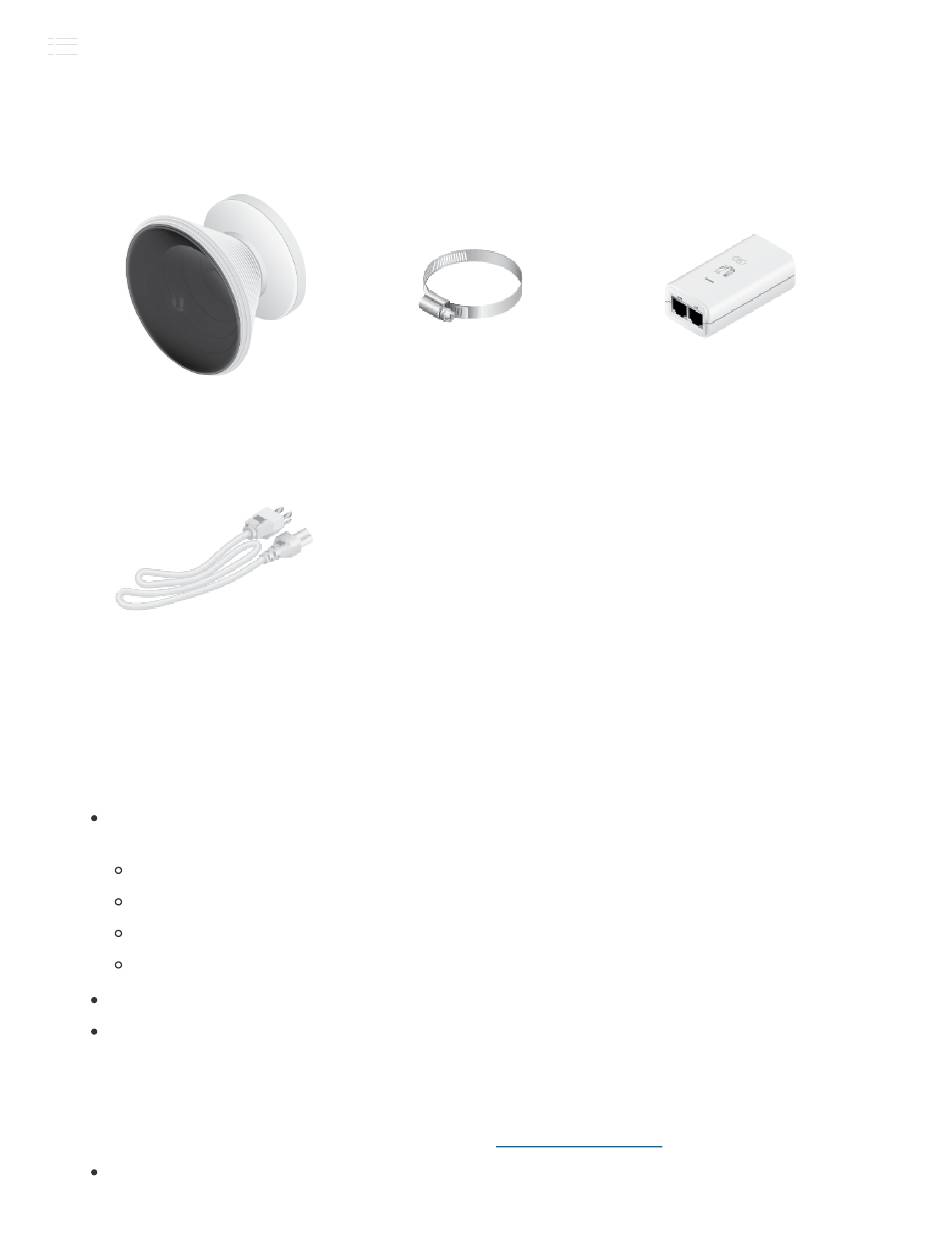

Package Contents
IsoStation AC
Power Cord
Installation Requirements
The IS-5AC comes with a default horn antenna, Horn-5-45, and is compatible with
the following options:
Horn-5-30
Horn-5-60
Horn-5-90
U-OMT-Dish
7 mm socket wrench or screwdriver
Shielded Category 5 (or above) cabling with drain wire should be used for all wired
Ethernet connections and should be grounded through the AC ground of the PoE.
We recommend that you protect your networks from harmful outdoor
environments and destructive ESD events with industrial-grade, shielded Ethernet
cable from Ubiquiti. For more details, visit
Surge protection should be used for all outdoor installations. We recommend that
you use two Ethernet Surge Protectors, model ETH-SP, one near the IsoStation
https://dl.ui.com/qsg/IS-5AC/IS-5AC_EN.html
IS-5AC Quick Start Guide
IS-5AC Quick Start Guide
Metal Strap
ui.com/toughcable
Gigabit PoE (24V, 0.5A) with
Mounting Bracket
1/15

Advertisement

Table of Contents
loading

Related Manuals for Ubiquiti IS-5AC

Summary of Contents for Ubiquiti IS-5AC

  • Page 1 IsoStation AC Metal Strap Gigabit PoE (24V, 0.5A) with Mounting Bracket Power Cord Installation Requirements The IS-5AC comes with a default horn antenna, Horn-5-45, and is compatible with the following options: Horn-5-30 Horn-5-60 Horn-5-90 U-OMT-Dish 7 mm socket wrench or screwdriver Shielded Category 5 (or above) cabling with drain wire should be used for all wired Ethernet connections and should be grounded through the AC ground of the PoE.

  • Page 2: Hardware Overview

    20/1/23, 12:11 IS-5AC Quick Start Guide and the other at the entry point to the building. The ETH-SP will absorb power IS-5AC Quick Start Guide surges and safely discharge them into the ground. Hardware Overview https://dl.ui.com/qsg/IS-5AC/IS-5AC_EN.html 2/15...

  • Page 3: Hardware Installation

    20/1/23, 12:11 IS-5AC Quick Start Guide IS-5AC Quick Start Guide Power LED The LED will light blue when the device is connected to a power source. Ethernet Port This Gigabit Ethernet port is used to connect the power and should be connected to the LAN and DHCP server.

  • Page 4: Pole Mounting

    20/1/23, 12:11 IS-5AC Quick Start Guide IS-5AC Quick Start Guide Pole-Mounting https://dl.ui.com/qsg/IS-5AC/IS-5AC_EN.html 4/15...

  • Page 5: Connecting Power

    20/1/23, 12:11 IS-5AC Quick Start Guide IS-5AC Quick Start Guide Connecting Power https://dl.ui.com/qsg/IS-5AC/IS-5AC_EN.html 5/15...
  • Page 6 20/1/23, 12:11 IS-5AC Quick Start Guide IS-5AC Quick Start Guide https://dl.ui.com/qsg/IS-5AC/IS-5AC_EN.html 6/15...
  • Page 7 20/1/23, 12:11 IS-5AC Quick Start Guide IS-5AC Quick Start Guide 6. Connect the power using: https://dl.ui.com/qsg/IS-5AC/IS-5AC_EN.html 7/15...
  • Page 8 20/1/23, 12:11 IS-5AC Quick Start Guide included Gigabit PoE Adapter IS-5AC Quick Start Guide PoE switch WARNING: The switch port must comply with the power specifications listed in this Quick Start Guide. Connecting to the PoE Adapter 1. Connect the Ethernet cable from the device to the POE port of the PoE adapter.

  • Page 9: Installer Compliance Responsibility

    20/1/23, 12:11 IS-5AC Quick Start Guide Verify connectivity in the airOS® Configuration Interface using the UISP™ app or IS-5AC Quick Start Guide Web Portal. Both are available for 15 minutes immediately after you power on the device. If necessary, you can power cycle the device to re-enable its Wi-Fi.

  • Page 10: Specifications

    20/1/23, 12:11 IS-5AC Quick Start Guide The Output Power field is provided to the professional installer to assist in meeting IS-5AC Quick Start Guide regulatory requirements. Specifications IS-5AC Dimensions 174 x 174 x 150 mm (6.85 x 6.85 x 5.91")

  • Page 11: Safety Notices

    20/1/23, 12:11 IS-5AC Quick Start Guide Operating Frequency (MHz) IS-5AC Quick Start Guide US/CA U-NII-1 5150 - 5250 U-NII-2A 5250 - 5350 U-NII-2C 5470 - 5725 U-NII-3 5725 - 5850 Management Radio (MHz) Worldwide 2412 - 2472 US/CA 2412 - 2462 Safety Notices 1.

  • Page 12: Limited Warranty

    20/1/23, 12:11 IS-5AC Quick Start Guide death. IS-5AC Quick Start Guide c. Contact a qualified electrician or the manufacturer if there are questions about the installation prior to connecting the equipment. d. Protective earthing is provided by Listed AC adapter. Building installation shall provide appropriate short-circuit backup protection.
  • Page 13 20/1/23, 12:11 IS-5AC Quick Start Guide 2. This device must accept any interference, including interference that may cause undesired IS-5AC Quick Start Guide operation of the device. This radio transmitter (IC: 6545A-IS5AC) has been approved by ISED Canada to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated.

  • Page 14: Australia And New Zealand

    20/1/23, 12:11 IS-5AC Quick Start Guide Cet émetteur ne doit être installé à proximité d’aucune autre antenne ni d’aucun autre IS-5AC Quick Start Guide émetteur, et ne doit être utilisé conjointement à aucun autre de ces appareils. Australia and New Zealand Warning: This equipment is compliant with Class A of CISPR 32.

  • Page 15: Declaration Of Conformity

    20/1/23, 12:11 IS-5AC Quick Start Guide Declaration of Conformity IS-5AC Quick Start Guide Online Resources © 2023 Ubiquiti Inc. All rights reserved. https://dl.ui.com/qsg/IS-5AC/IS-5AC_EN.html 15/15...
