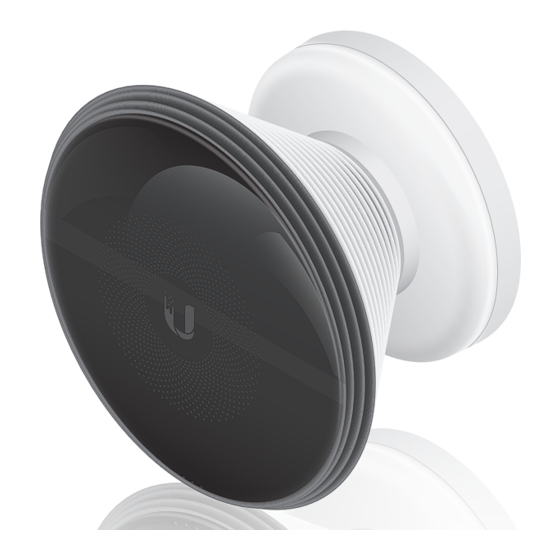

Shielded airMAX
Radio
®
with Isolation Antenna
Model: IS-M5

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the airMAX IsoStation M5 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Ubiquiti airMAX IsoStation M5

Summary of Contents for Ubiquiti airMAX IsoStation M5

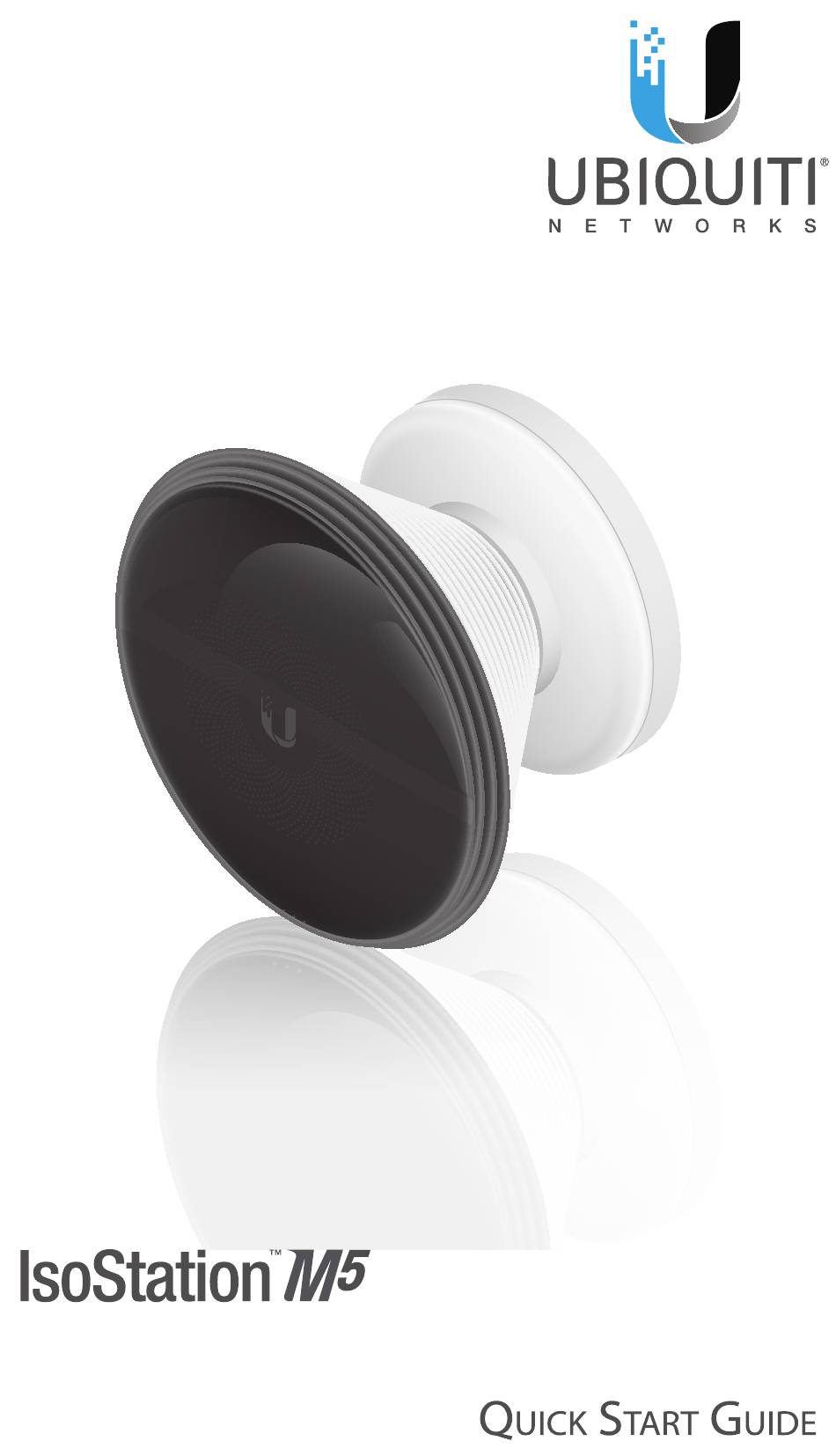

  • Page 1 Shielded airMAX Radio ® with Isolation Antenna Model: IS-M5...

  • Page 2: Package Contents

    Quick Start with Mounting Bracket Guide TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ designed for outdoor installations. It is the customer’s responsibility to follow local country regulations, including operation within legal frequency channels, output power, and Dynamic Frequency Selection (DFS) requirements.

  • Page 3: Installation Requirements

    Ethernet connections and should be grounded through the AC ground of the PoE. We recommend that you protect your networks from harmful outdoor environments and destructive ESD events with industrial‑grade, shielded Ethernet cable from Ubiquiti Networks. For more details, visit www.ubnt.com/toughcable Hardware Overview Power...

  • Page 4: Release Button

    Release Button Release Button Release Button The default horn (beamwidth: 45°) can be swapped out for an optional horn with a different beamwidth. To remove the attached horn, rotate the horn counterclockwise while depressing the Release Button. To reinstall the horn, align the arrow on the horn with the Release Button.

  • Page 5: Hardware Installation

    Hardware Installation The IsoStation was designed for quick mounting on a pole. 1. Open the Metal Strap and feed it through the base of the IsoStation. 2. Wrap the Metal Strap around the pole. Use a 7 mm socket wrench to turn the screw clockwise and securely fasten the clamp to the pole.
  • Page 6 Connecting to the PoE Adapter 1. Remove the port cover by pressing down the center of the cover and sliding the cover out. 2. Remove the rubber gasket from the port cover. *640-00268-03* 640-00268-03...
  • Page 7 3. Connect an Ethernet cable to the Ethernet port. 4. Replace the port cover.
  • Page 8 5. Fit the rubber gasket over the Ethernet cable, and then slide the gasket into the port cover.

  • Page 9: Connecting Power Over Ethernet

    Connecting Power over Ethernet 1. Connect the Ethernet cable from the IsoStation to the POE port on the PoE Adapter. 2. Connect an Ethernet cable from your LAN to the LAN port on the PoE Adapter. 3. Connect the Power Cord to the PoE Adapter, and then plug the Power Cord into a power outlet.
  • Page 10 Accessing airOS Verify connectivity in the airOS® Configuration Interface. 1. Make sure that your host system is connected via Ethernet to the IsoStation. 2. Configure the Ethernet adapter on your host system with a static IP address on the 192.168.1.x subnet. 3.

  • Page 11: Installer Compliance Responsibility

    Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer's responsibility to make sure the device is operated within local country regulatory requirements. The Antenna Gain and Output Power fields are provided to the professional installer to assist in meeting regulatory requirements.

  • Page 12: Specifications

    Specifications IS‑M5 Dimensions 174 x 174 x 150 mm (6.85 x 6.85 x 5.91") Without Horn 131 x 131 x 65 mm (5.16 x 5.16 x 2.56”) Weight 725.7 g (1.60 lb) Without Horn 408.2 g (0.90 lb) Gain 14 dBi Beamwidth 45°...

  • Page 13: Safety Notices

    Safety Notices Read, follow, and keep these instructions. Heed all warnings. Only use attachments/accessories specified by the manufacturer. WARNING: Do not use this product in location that can be submerged by water. WARNING: Avoid using this product during an electrical storm.

  • Page 14: Limited Warranty

    (VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA.
  • Page 15 No Products will be accepted for replacement or repair without obtaining a Return Materials Authorization (RMA) number from UBIQUITI NETWORKS during the warranty period, and the Products being received at UBIQUITI NETWORKS’ facility freight prepaid in accordance with the RMA process of UBIQUITI NETWORKS.

  • Page 16: Limitation Of Liability

    Limitation of Liability EXCEPT TO THE EXTENT PROHIBITED BY LOCAL LAW, IN NO EVENT WILL UBIQUITI OR ITS SUBSIDIARIES, AFFILIATES OR SUPPLIERS BE LIABLE FOR DIRECT, SPECIAL, INCIDENTAL, CONSEQUENTIAL OR OTHER DAMAGES (INCLUDING LOST PROFIT, LOST DATA, OR DOWNTIME COSTS), ARISING...
  • Page 17 Compliance Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions. This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.

  • Page 18: Industry Canada

    Industry Canada CAN ICES‑3(A)/NMB‑3(A) This Class A digital apparatus complies with Canadian CAN ICES‑003. To reduce potential radio interference to other users, the antenna type and its gain should be so chosen that the equivalent isotropically radiated power (e.i.r.p.) is not more than that permitted for successful communication.
  • Page 19 RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 40 cm from all persons and must not be lo cated or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé...
  • Page 20 RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams.
  • Page 21 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.

  • Page 22: Declaration Of Conformity

    [German] Anforderungen und den anderen relevanten Vorschriften der Richtlinie 1999/5/EG befindet. Ελληνική Δια του παρόντος, UBIQUITI NETWORKS, δηλώνει ότι αυτή η συσκευή UBIQUITI NETWORKS, είναι σε συμμόρφωση με τις [Greek] βασικές απαιτήσεις και τις λοιπές σχετικές διατάξεις της οδηγίας 1995/5/ΕΚ.

  • Page 23: Online Resources

    NETWORKS zariadenie, je v súlade so základnými požiadavkami a [Slovak] ďalšími relevantnými ustanoveniami smernice 1999/5/ES. Español Por medio de la presente UBIQUITI NETWORKS declara que este dispositivo UBIQUITI NETWORKS, cumple con los requisitos [Spanish] esenciales y cualesquiera otras disposiciones aplicables o exigibles de la Directiva 1999/5/CE.
  • Page 24 . u b n t . c o m ©2016‑2017 Ubiquiti Networks, Inc. All rights reserved. Ubiquiti, Ubiquiti Networks, the Ubiquiti U logo, the Ubiquiti beam logo, airMAX, airOS, IsoStation, and TOUGHCable are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries.
