Summary of Contents for Ubiquiti B-DB-AC

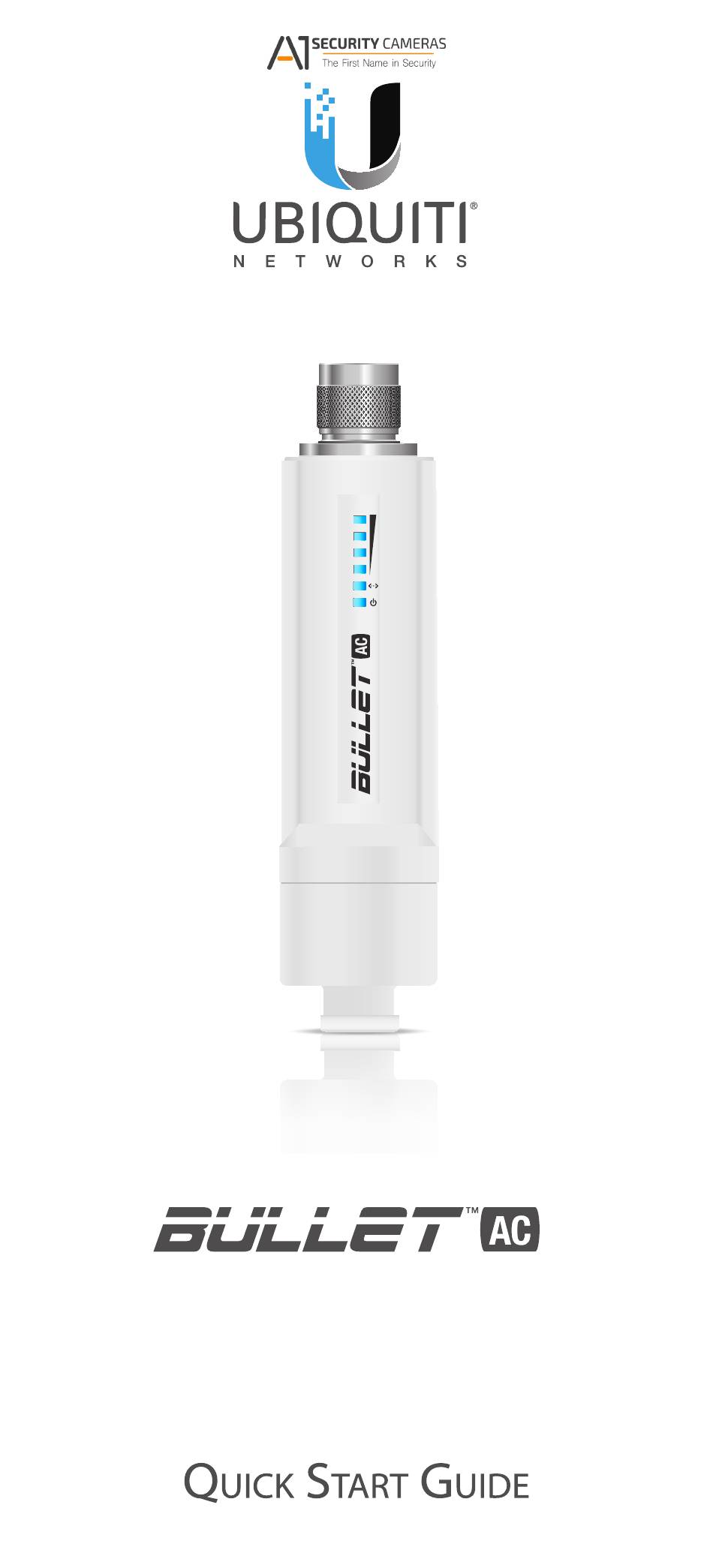

- Page 1 Dual-Band airMAX® ac Radio with Dedicated Wi-Fi Management Model: B-DB-AC ailable from A1 Security Cameras ritycameras.com email: sales@a1secur...
-
Page 2: Package Contents
B-DB-AC ETH-SP ETH-SP To LAN TERMS OF USE: Ubiquiti radio devices must be professionally installed. Shielded Ethernet cable and earth grounding must be used as conditions of product warranty. TOUGHCable ™ is designed for outdoor installations. It is the professional installer’s responsibility to follow local country regulations,... -
Page 3: Hardware Overview
Hardware Overview N-Type Connector LEDs Ethernet Port Cable Gland Body Compression Seal ailable from A1 Security Cameras ritycameras.com email: sales@a1secur... -
Page 4: Hardware Installation
Hardware Installation Unscrew the Cable Gland Body and detach it from the Bullet. Feed the Ethernet cable through the Cable Gland Body. Slip the Compression Seal around the cable. Seat the Compression Seal into the Cable Gland Body. ailable from A1 Security Cameras ritycameras.com email: sales@a1secur... - Page 5 Connect the Ethernet cable to the port located on the bottom of the Bullet. Securely attach the Cable Gland Body onto the Bullet. Ensure the Compression Seal is securely compressed and tightly sealed around the cable. RESET M/N: BM5HP 24V 1A PoE ailable from A1 Security Cameras ritycameras.com email: sales@a1secur...
- Page 6 Connect the Bullet to the N‑Type connector of the antenna. ailable from A1 Security Cameras ritycameras.com email: sales@a1secur...
- Page 7 Download the UNMS app from the App Store (iOS) or Google Play (Android). ™ Connect your device’s Wi‑Fi to the Bullet AC SSID named: B-DB-AC:<MAC Address> Note: Ensure that DHCP is enabled on your Wi‑Fi adapter. Launch the app. Tap the Bullet AC on the Connections screen.
- Page 8 Tap Connect on the Login screen. Bullet AC 192.168.172.1 BDBAC:F09FC25EXXXX Select your Country and tap Done. United Kingdom Argentina Armenia Aruba Australia Austria Azerbaijan Bahrain Barbados Belarus Note: For the Country setting, U.S. product versions are restricted to a choice of Canada, Puerto Rico, or the U.S.
- Page 9 Under Configuration, customize your settings as needed. Bullet AC (Not Applicable) ailable from A1 Security Cameras ritycameras.com email: sales@a1secur...
-
Page 10: Web Portal
Web Portal Connect your device’s Wi‑Fi connection to the Bullet AC SSID named: B-DB-AC:<MAC Address> Note: Ensure that your Wi‑Fi connection has DHCP enabled. Launch a web browser and go to: http://setup.ubnt.com Enter ubnt in the Username and Password fields. Select your Country and Language. You must agree to the Terms of Use to use the product. -
Page 11: Installer Compliance Responsibility
Installer Compliance Responsibility Devices must be professionally installed and it is the professional installer’s responsibility to make sure the device is operated within local country regulatory requirements. The Output Power field is provided to the professional installer to assist in meeting regulatory requirements. ailable from A1 Security Cameras ritycameras.com email: sales@a1secur... -
Page 12: Specifications
Specifications Bullet AC Dimensions 190 x 46 mm (7.48 x 1.81") Weight 196 g (6.91 oz) Enclosure Powder-Coated Aluminum Networking Gigabit Ethernet Port Interface Antenna Connector N-Type Connector LEDs Power, Ethernet, (4) Signal Strength Max. Power Consumption Output Power 22 dBm Power Supply AC to 24VDC, 0.5 A Gigabit PoE Adapter... -
Page 13: Safety Notices
“Product(s)”) shall be free from defects in material and workmanship for a period of one (1) year from the date of shipment by UBIQUITI NETWORKS under normal use and operation. UBIQUITI NETWORKS’ sole and exclusive obligation and liability under the... -
Page 14: Warranty Conditions
(VI) has no original Ubiquiti MAC label, or is missing any other original Ubiquiti label(s); or (VII) has not been received by Ubiquiti within 30 days of issuance of the RMA. -
Page 15: Limitation Of Liability
MAY BE SUBJECT TO LIMITATIONS, INTERRUPTIONS, DELAYS, CANCELLATIONS AND OTHER PROBLEMS INHERENT IN THE USE OF COMMUNICATIONS FACILITIES. UBIQUITI NETWORKS, ITS AFFILIATES AND ITS AND THEIR THIRD PARTY PROVIDERS ARE NOT RESPONSIBLE FOR ANY INTERRUPTIONS, DELAYS, CANCELLATIONS, DELIVERY FAILURES, DATA LOSS, CONTENT CORRUPTION, PACKET LOSS, OR OTHER DAMAGE RESULTING FROM ANY OF THE FOREGOING. - Page 16 Note Some countries, states and provinces do not allow exclusions of implied warranties or conditions, so the above exclusion may not apply to you. You may have other rights that vary from country to country, state to state, or province to province. Some countries, states and provinces do not allow the exclusion or limitation of liability for incidental or consequential damages, so the above limitation may not apply to you.
-
Page 17: Ised Canada
This radio transmitter (FCC: SWX‑BDBAC) has been approved by FCC to operate with the antenna types listed below with the maximum permissible gain and required antenna impedance for each antenna type indicated. Antenna types not included on page 18, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device. - Page 18 CAN ICES‑3(A)/NMB‑3(A) Le présent appareil est conforme aux CNR d’ISDE Canada applicables aux appareils radio exempts de licence. L’exploitation est autorisée aux deux conditions suivantes : l’appareil ne doit pas produire de brouillage; l’appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d’en compromettre le fonctionnement.
-
Page 19: Rf Exposure Warning
RF Exposure Warning The antennas used for this transmitter must be installed to provide a separation distance of at least 20 cm from all persons and must not be located or operating in conjunction with any other antenna or transmitter. Les antennes utilisées pour ce transmetteur doivent être installé... - Page 20 CE RF Exposure Warning This device meets the EU requirements (2014/53/EU Article 3.1a) on the limitation of exposure of the general public to electromagnetic fields by way of health protection. The device complies with RF specifications when the device is used at 29 cm from your body. Country List BFWA (Broadband Fixed Wireless Access) members noted in blue Note:...
-
Page 21: Rohs/Weee Compliance Statement
RoHS/WEEE Compliance Statement English European Directive 2012/19/EU requires that the equipment bearing this symbol on the product and/or its packaging must not be disposed of with unsorted municipal waste. The symbol indicates that this product should be disposed of separately from regular household waste streams. - Page 22 Español La Directiva 2012/19/UE exige que los equipos que lleven este símbolo en el propio aparato y/o en su embalaje no deben eliminarse junto con otros residuos urbanos no seleccionados. El símbolo indica que el producto en cuestión debe separarse de los residuos domésticos convencionales con vistas a su eliminación.
- Page 23 Italiano La direttiva europea 2012/19/UE richiede che le apparecchiature contrassegnate con questo simbolo sul prodotto e/o sull’imballaggio non siano smaltite insieme ai rifiuti urbani non differenziati. Il simbolo indica che questo prodotto non deve essere smaltito insieme ai normali rifiuti domestici. È responsabilità del proprietario smaltire sia questi prodotti sia le altre apparecchiature elettriche ed elettroniche mediante le specifiche strutture di raccolta indicate dal governo...
-
Page 24: Declaration Of Conformity
2014/53/EU. EU‑overensstemmelseserklæringens fulde tekst kan findes på følgende internetadresse: www.ubnt.com/compliance Nederlands [Dutch] Hierbij verklaar ik, UBIQUITI NETWORKS, dat het type radioapparatuur NBE‑5AC‑Gen2 conform is met Richtlijn 2014/53/EU. De volledige tekst van de EU‑conformiteitsverklaring kan worden geraadpleegd op het volgende internetadres: www.ubnt.com/compliance... - Page 25 įrenginių tipas NBE‑5AC‑Gen2 atitinka Direktyvą 2014/53/ES. Visas ES atitikties deklaracijos tekstas prieinamas šiuo interneto adresu: www.ubnt.com/compliance Malti [Maltese] B’dan, UBIQUITI NETWORKS, niddikjara li dan it‑tip ta’ tagħmir tar‑radju NBE‑5AC‑Gen2 huwa konformi mad‑Direttiva 2014/53/UE. Id‑dikjarazzjoni tal‑konformità tista’ tiġi kkonsultata minn www.ubnt.com/compliance Norsk [Norwegian] UBIQUITI NETWORKS erklærer herved at...
- Page 26 2014/53/EÚ. Úplné EÚ vyhlásenie o zhode je k dispozícii na tejto internetovej adrese: www.ubnt.com/compliance Slovenščina [Slovenian] UBIQUITI NETWORKS potrjuje, da je tip radijske opreme NBE‑5AC‑Gen2 skladen z Direktivo 2014/53/EU. Celotno besedilo izjave EU o skladnosti je na voljo na naslednjem spletnem naslovu: www.ubnt.com/compliance...
-
Page 27: Online Resources
Online Resources Support help.ubnt.com Community community.ubnt.com Downloads downloads.ubnt.com ailable from A1 Security Cameras ritycameras.com email: sales@a1secur... - Page 28 ™ Bullet, and UNMS are trademarks or registered trademarks of Ubiquiti Networks, Inc. in the United States and in other countries. Android, Google, Google Play, the Google Play logo and other marks are trademarks of Google Inc. Apple, the Apple logo, and iPhone are trademarks of Apple Inc., registered in the U.S.
