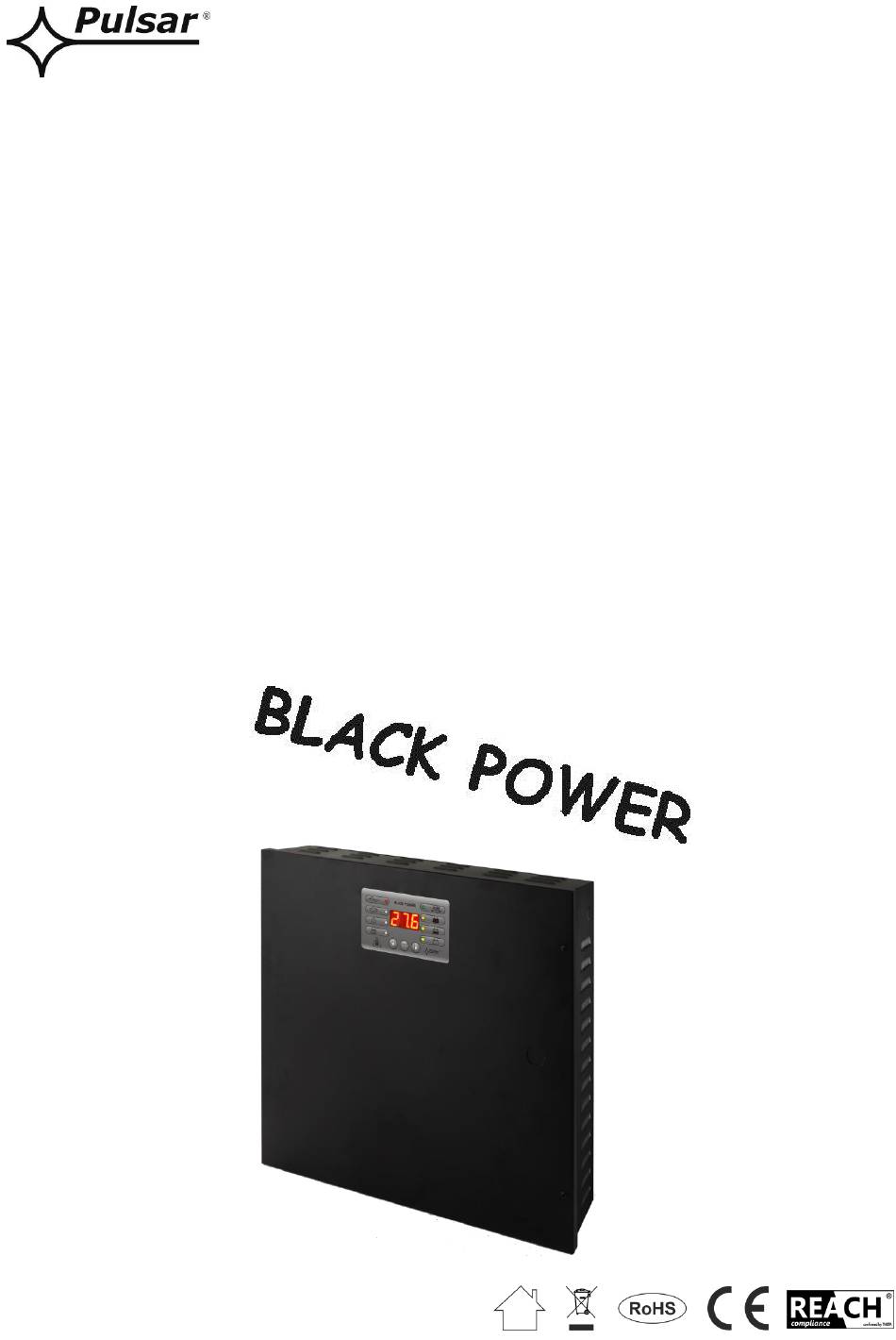

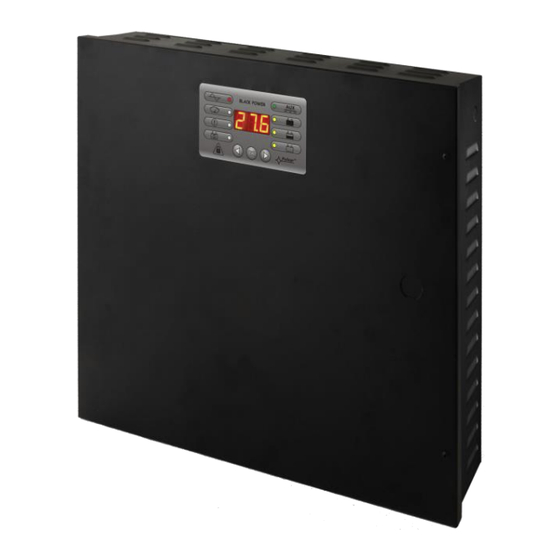

- Page 1 PSBEN 5024C v.1.1 PSBEN 27,6V/5A/2x17Ah/EN Buffer, switch mode power supply unit Grade 3. EN** Edition: 9 from 27.11.2019 Supercedes edition: 8 from 31.01.2019 LED Version...
-
Page 2: Table Of Contents
BLACK POWER www.pulsar.pl PSBEN5024C TABLE OF CONTENTS 1. PSU FEATURES..................................4 2. FUNCTIONAL REQUIREMENTS OF THE PSU COMPLIANT WITH THE EN 50131-6 STANDARD....5 3. TECHNICAL DESCRIPTION............................. 6 3.1 G ................................ 6 ENERAL DESCRIPTION 3.2 B . - Page 3 BLACK POWER www.pulsar.pl PSBEN5024C 8. TECHNICAL PARAMETERS............................30 13. E ............................30 ABLE LECTRICAL PARAMETERS 14. M ............................. 31 ABLE ECHANICAL PARAMETERS 15. S ................................ 31 ABLE AFETY OF USE 9. TECHNICAL INSPECTIONS AND MAINTENANCE....................32...
-
Page 4: Psu Features
BLACK POWER www.pulsar.pl PSBEN5024C 1. PSU features. EN50131-6 compliance, 1÷3 grades and II jumper selectable battery charging current environmental class 0,6 A/1,5 A/2,2 A/3 A mains supply of ~230 V remote battery test (additional module required) ... -
Page 5: Functional Requirements Of The Psu Compliant With The En 50131-6 Standard
BLACK POWER www.pulsar.pl PSBEN5024C 2. Functional requirements of the PSU compliant with the EN 50131-6 standard. Requirements of EN 50131-6 Functional requirements PSBEN5024C Grade 1 Grade 2 Grade 3 EPS network absence Low battery voltage Protection against complete battery discharge... -
Page 6: Technical Description
2. Buffer power supply PSBEN 27,6 V/24 V/2,5 A/2x17 Ah/INTERFACE - PSBEN 5024C + RN25024 (27,6 V/24 V)+2x17 Ah+INTERFACE 3. Buffer power supply PSBEN 27,6 V/24 V/4x0,5 A/2x17 Ah - PSBEN 5024C + RN25024 (27,6 V/24 V)+LB4 4x0,5 A (AWZ575, AWZ576)+2x17 Ah... -
Page 7: Block Diagram
BLACK POWER www.pulsar.pl PSBEN5024C 3.2 Block diagram. The PSU is manufactured based on a high-duty system of DC/DC converter. The microprocessor system is responsible for full diagnostics of the PSU and battery parameters. Fig. 1. Block diagram of the PSU. -
Page 8: Description Of Psu's Components And Connectors
BLACK POWER www.pulsar.pl PSBEN5024C 3.3 Description of PSU’s components and connectors. Table 1. Elements of the PSU pcb (see Fig. 2). Element no. Description PANEL – optical indication connector ; pin - configuration of battery protection UVP battery protection (disconnection) off ... - Page 9 BLACK POWER www.pulsar.pl PSBEN5024C Fig. 2. The view of the PSU’s PCB. Table 2. PSU elements (see fig. 3). Element no. Description Insolation transformer PSU board (see Tab.1, fig.2) TAMPER; micro-switch (contacts) of tamper resistance (NC) fuse in the supply circuit (~230 V)
-
Page 10: Installation
BLACK POWER www.pulsar.pl PSBEN5024C 4. Installation. 4.1 Requirements. The PSU is to be mounted by a qualified installer, holding relevant permits and licenses (applicable and required for a given country) for ~230 V in and low-voltage installations. As the power supply is designed for a continuous operation and is not equipped with a power- switch, therefore, an appropriate overload protection in the power supply circuit should be provided. - Page 11 BLACK POWER www.pulsar.pl PSBEN5024C off. The battery protection is on when the P jumper is off. 7. Switch on the ~230 V supply (red AC diode and green AUX diode should be on). 8. Check the output voltage (the PSU voltage without load and without battery should amount to 27.5 V÷27.7 V, with a battery or during battery charging process: 22 V÷27.6 V).
-
Page 12: Functions
BLACK POWER www.pulsar.pl PSBEN5024C 5. Functions. 5.1 Control Panel. The PSU features a panel with buttons and LED display, enabling reading of all the available electrical parameters. The panel buttons are used to select and confirm the parameters, which should be displayed. -
Page 13: Main Menu
BLACK POWER www.pulsar.pl PSBEN5024C 5.2 Main menu. The PSU is equipped with a menu, which allows to preview the current electrical parameters. The diagram explaining the menu structure is presented below. Fig. 6. The menu of the display. Table 6. The description of display symbols. -
Page 14: Current Failures „Flc
BLACK POWER www.pulsar.pl PSBEN5024C The PSU stores 30 last failures in non-volatile memory, which can be reviewed later. In order to review the failures, use the "<" or ">" button to set the FLh parameter and confirm by pressing "OK". -
Page 15: List Of Failure Codes And Information Messages
BLACK POWER www.pulsar.pl PSBEN5024C - press „<” or „>” button to set the „FLc” parameter on the display „FLc” - press „OK” button - the number 1, indicating the number of failure in the memory (the highest priority), will be displayed. Then, after one second, failure code will be automatically displayed - press „OK”... - Page 16 BLACK POWER www.pulsar.pl PSBEN5024C Technical Failure Additional Information output Additional information code information activation - No AC mains supply AC power fail! EPS FLT fuse failure MAINS - Blown F fuse AUX fuse fail! PSU FLT - AUX output overload...
-
Page 17: Psu Configuration
BLACK POWER www.pulsar.pl PSBEN5024C 5.3 PSU configuration. The PSU is equipped with a configuration menu that allows to configure the settings by changing or the activation of some of its parameters. The figure illustrating the configuration menu structure is shown below. -
Page 18: Battery Test On/Off „Tst
BLACK POWER www.pulsar.pl PSBEN5024C Battery test ON/OFF „tSt” 5.3.1 The "tSt" function allows to enable or disable the test of the battery (Section 6.3) connected to the power supply. When activated, the battery test occurs automatically if it is not blocked by the control system (section 6.3). -
Page 19: Setting The Communication Address „Adr" Applies To Cooperation With Powersecurity
BLACK POWER www.pulsar.pl PSBEN5024C LED display dimmer allows to dim the display if no buttons are pressed within 5 minutes.If the display is in the blackout mode, pressing any button will "reactivate" the display. - simultaneously press the „<,>” rightmost and leftmost buttons on the LED panel - the „tSt”... -
Page 20: Setting The Transmission Speed „Trs" Applies To Cooperation With Powersecurity
BLACK POWER www.pulsar.pl PSBEN5024C - press „OK” - the current address of the PSU will be displayed - use the „<” or „>” buttons in order to set the address 1÷ 247 – address of the PSU during the communication with the computer - confirm by pressing „OK”... -
Page 21: Acoustic Indication
BLACK POWER www.pulsar.pl PSBEN5024C All the parameters responsible for communication between the PSU and the computer, namely the address, parity and speed should have the same settings for both the PSU and the PowerSecurity program. The PSU has preset transmission parameters of 115200 baud 8E1. However, if it is connected to the network with differently defined parameters, make the appropriate changes to its configuration. -
Page 22: Technical Outputs
BLACK POWER www.pulsar.pl PSBEN5024C 5.5 Technical outputs. The PSU feature indication outputs, with galvanic isolation, which change their state if any of the following events occur: EPS FLT - output indicating 230 V power loss. The output indicates 230 V power loss. Under normal status (with 230 V supply on) the output is closed. -
Page 23: Enclosure Tamper Indication - Tamper
BLACK POWER www.pulsar.pl PSBEN5024C The electrical diagram below shows the way of connecting external devices to the EXT IN input. Outputs such as: OC (open collector), relay may be used as a source of the signal. Fig. 10. Examples of connections. -
Page 24: Psu Overload
BLACK POWER www.pulsar.pl PSBEN5024C In case of voltage exceeding 31 V±0.5 V at the switching regulator’s output, the system cuts off the power at the outputs to protect the battery and the receivers from damage. The outputs will be battery-powered. -
Page 25: Reserve Power Supply Circuit
BLACK POWER www.pulsar.pl PSBEN5024C 6 Reserve power supply circuit. The power supply is equipped with intelligent circuits: charging and battery control circuit, whose main task is to monitor the condition of the battery and its connections in the circuit. If the power supply driver detects a malfunction in the battery circuit, appropriate signaling and change in the APS FLT technical output take place. -
Page 26: Standby Time
BLACK POWER www.pulsar.pl PSBEN5024C 6.4 Standby time. Battery-assisted operating depends on battery capacity, charging level and load current. To maintain an appropriate standby time, current drawn from the PSU in battery mode should be limited. Characteristics for a 2x17 Ah/12 V SLA:... -
Page 27: Remote Monitoring (Options: Ethernet, Rs485)
BLACK POWER www.pulsar.pl PSBEN5024C 7. Remote monitoring (options: Ethernet, RS485). The PSU has been adjusted to operate in a system that requires a remote control of the parameters in a monitoring centre. Transmitting data concerning PSU status is possible due to an additional, external communication module responsible for communication in Ethernet or RS485 standard. - Page 28 BLACK POWER www.pulsar.pl PSBEN5024C Fig. 13. Ethernet network communication using the RS485 „INTRE” interface.
-
Page 29: Powersecurity" Program
BLACK POWER www.pulsar.pl PSBEN5024C 7.2 „PowerSecurity” program. The ”Power Security” program is available at www.pulsar.pl Its detailed description can be found in the manual. „Power Security” is a free computer program for viewing and analyzing the information sent from the PSU installation spots. - Page 30 BLACK POWER www.pulsar.pl PSBEN5024C 8. Technical parameters. Electrical parameters (Table 13). Mechanical parameters (Table 14). Safety of use (Table 15). Table 13. Electrical parameters. PSU type A, protection class 1÷3, II environmental class Mains supply ~230 V; 50 Hz Current consumption 1,1 A PSU’s power...
- Page 31 BLACK POWER www.pulsar.pl PSBEN5024C - RS485 ‘INTR’ interface: RS485 communication - Ethernet ‘INTE’ interface; Ethernet communication Additional accessories (not included) - RS485-Ethernet “INTRE’ interface; RS485-Ethernet communication Table 14. Mechanical parameters. Dimensions W=400, H=350, D+D =92+8 [+/- 2mm] =405, H =355 [+/- 2mm]...
- Page 32 CAUTION! The power supply unit is adapted for cooperation with the sealed lead-acid batteries (SLA). After the operation period they must not be thrown but recycled according to the applicable law Pulsar sp. j. Siedlec 150, 32-744 Łapczyca, Poland Phone (+48) 14-610-19-40, Fax (+48) 14-610-19-50 E-mail: biuro@pulsar.pl,...
