INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief descrip- ® tion of safety, use and debugging. We care about the environment, therefore, we consider it expedient to save paper and leave in print a short description of the most important sections. Please, read full and the latest version of manual of the web-site of official importer of Könner &...
Page 3
- Do not let the presence of unauthorized persons, children or animals when working with generator. If necessary, make sure to fencing the working area. - Please use safety shoes and protective gloves when working with generator. ELECTRICAL SAFETY ELECTRICAL SAFETY The device generates electricity.
Page 4
Using device for other purposes deprives the right for IMPORTANT! free warranty. PERSONAL SAFETY PERSONAL SAFETY - Be careful. Do not operate the generator, if you are tired, under the influence of drugs or alcohol. Inatten- tion may cause a serious injury. - Avoid inadvertent start.
Page 5
- Disconnect the load before you stop the engine, disconnect all the connected devices first, then close the gas valve, then turn off the engine. After that set the starter switch to OFF position and turn off the gas supply valve. - Before usage make sure, that all the hoses are connected properly.

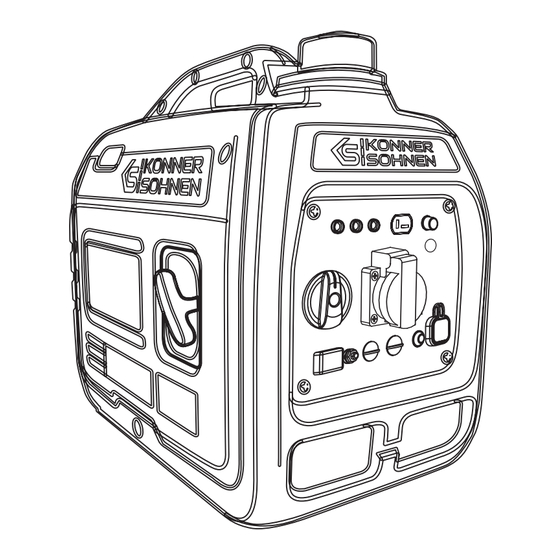

MAIN OVERVIEW MODELS KS 2100 MODELS KS 2100i i S, KS 2100 S, KS 2100i i G S, KS 3100 G S, KS 3100i i S, KS 3100 S, KS 3100i i G S 1. Manual starter 6. Spark plug service cover 2.
Page 7
М М ODELS KS 5500 ODELS KS 5500i i ES ATSR, KS 5500 ES ATSR, KS 5500i i EG S EG S 1. LPG input 4. Fuel tank cap 8. Muffler (for model KS 5500iG S) 5. Oil filler neck 9.
SPECIFICATIONS Model KS 2100i S KS 2100iG S KS 3100i S KS 3100iG S Voltage, V Maximum power, W 2000 2000* 3100 3100* Nominal power, W 1800 1800* 2800 2800* Frequency, Hz Current, A (max.) 13.5 13.5 Outlets 1*13A 1*13A...
Page 9
Model KS 5500iES ATSR KS 5500iEG S Voltage, V Maximum power, W 5500 5500* Nominal power, W 5000 5000* Frequency, Hz Current, A (max.) 23.9 23.9 Outlets 1*13А, 1*32А 1*13А, 1*32А Engine start manual/electric manual/electric Fuel tank volume, l 13.5 13.5 Working time at 50% load (petrol fuel)**, h...
TERMS OF USE OF INVERTER GENERATOR It is recommended to ground the generator before operating it for the first time. Before starting the device, remember that the total power of the connected power consumers should not exceed the nominal power of the generator.
Page 11
If the DC fuse turns off, reduce the load of the connected electrical device. If the DC protector turns off again, stop IMPORTANT! operation and contact your nearest Könner & Söhnen ® service center. FUEL TANK CAP AIR VENT FUEL TANK CAP AIR VENT (EXPECT FOR MODELS KS 5500 (EXPECT FOR MODELS KS 5500i i ES ATSR, KS 5500 ES ATSR, KS 5500i i EG S)
GETTING STARTED Before starting the engine, Before starting the engine, make sure that the rated power of power consumers matches with the power of generator. Do not exceed the nominal power of the generator. Do not connect any devices before you Do not connect any devices before you start the engine! start the engine!
Page 13
Each time you start the generator, be sure to check oil IMPORTANT! and fuel level. It is forbidden to start the generator with the Economy Mode ON. Economy mode should be turned on only after starting the generator and only with a low load. Failure to comply with this requirement may result in generator failure and void warranty repair.
Page 14
RUNNING GENERATOR ON LPG (KS 2100iG S, KS 3100iG S , KS 5500iEG S) RUNNING GENERATOR ON LPG (KS 2100iG S, KS 3100iG S , KS 5500iEG S) 1. Check oil level. Fig. 4 2. For model KS 5500iEG S - set the fuel switch FUEL CHOICE to LPG.
Page 15
4. For manual start turn MAIN POWER button to “ON” position, pull the manual starter until a slight resistance is felt, then pull it toward you relatively sharply. Slowly turn the manual starter by hand, do not release it abruptly. 4.1.
Page 16
4. For model KS 5500iE G set the FUEL CHOICE knob to the “OFF” position. 5. For models KS 2100i S, KS 3100i S, KS 2100iG S, KS 3100iG S. Turn the multifunctional engine switch to the “OFF” position. For models KS 5500iES ATSR, KS 5500iEG S press the ELECTRIC START button, then press MAIN POWER button to “OFF”...
IMPORTANT! - Make sure the ECON mode is off while the battery is being charged. - Be sure to connect the charger’s red wire to the plus (+) terminal of the battery and the black wire to the minus (-) terminal of the battery. Do not swap the terminals. - Connect the charger to the battery terminals securely so that they are not disconnected due to motor vibrations or other actions.
RECOMMENDED OILS Use oils designed for four-stroke cycle vehicle engines SAE10W-30, SAE10W-40. Motor oils with other viscosity 10W-30, 10W-40 levels, may be used only if the average air temperature in your region does not exceed the limits of the tem- perature range, specified in the table.
FUEL FILTER Never use petrol while smoking or in the immediate IMPORTANT! vicinity of an open flame. 1. Remove the fuel tank cap and fuel filter. 2. Clean the filter with petrol. 3. Wipe the filter and replace it. 4. Replace the fuel tank cap. Make sure that the fuel tank cap is tight. BATTERY USE The generator battery is not subject to service.
POSSIBLE FAILURES AND SOLUTIONS Typical failures Possible reason Solution Engine starting swinch set Set the engine starting to OFF position switch to ON Fuel valve set to off position Turn the valve to ON position Air flap is opened Shut the air flap Engine does not No fuel Add fuel...
Page 21
AVERAGE POWER USAGE Device Average power usage, W 500-1100 Iron 450-1200 Air hair dryer 800-1500 Coffee machine 800-1800 Electric cooking stove 600-1500 Toaster 1000-2000 Air heater 400-1000 Vacuum cleaner 50-250 Radio 1200-2300 BBQ Grill electric device 1000-2000 Oven 100-150 Refrigerator 100-400 TV set 600-1400...
Page 22
ELECTRIC SCHEME FOR MODEL KS 2100 FOR MODEL KS 2100i i S S uk.koenner-soehnen.com |...
Page 23
ELECTRIC SCHEME FOR MODEL KS 2100 FOR MODEL KS 2100iG iG S S uk.koenner-soehnen.com |...
Page 24
ELECTRIC SCHEME FOR MODEL KS 3100 FOR MODEL KS 3100i i S S uk.koenner-soehnen.com |...
Page 25
ELECTRIC SCHEME FOR MODEL KS 3100 FOR MODEL KS 3100iG iG S S uk.koenner-soehnen.com |...
Page 26
ELECTRIC SCHEME FOR MODEL KS 5500 FOR MODEL KS 5500iE iE S ATSR S ATSR uk.koenner-soehnen.com |...
Page 27
ELECTRIC SCHEME FOR MODEL KS 5500 FOR MODEL KS 5500iEG iEG S S uk.koenner-soehnen.com |...
Page 28
ELECTRIC SCHEME FOR MODEL KS 5500 FOR MODEL KS 5500iEG iEG S S uk.koenner-soehnen.com |...
Page 30
CONTACTS Official representative in the United Kingdom: Innovation trade LLC, info.uk@dimaxgroup.de Technical support Technical support support.uk@dimaxgroup.de Deutschland: DIMAX International GmbH Flinger Broich 203 -FortunaPark- 40235 Düsseldorf, Deutschland www.koenner-soehnen.com Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service...
