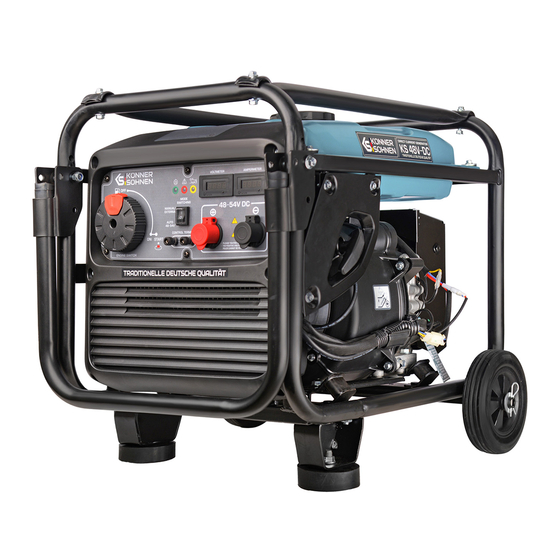

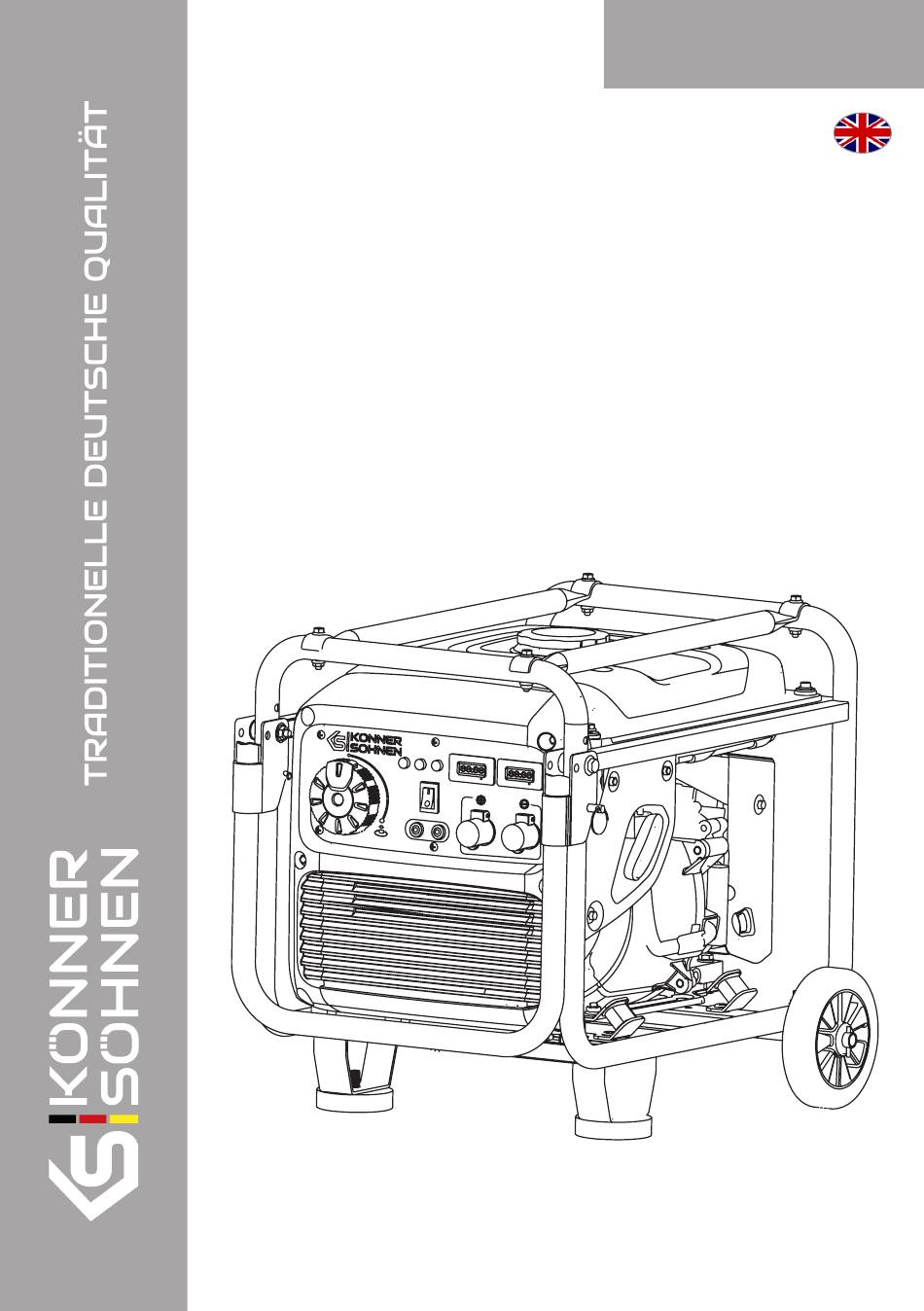

- Page 1 Owner’s Manual Please, read this manual carefully before use! Direct current generator KS 48V-DC...
-
Page 2: Safety Information
INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of ® safety, use and debugging. More information can be found on the official manufacturer’s website in the support section: konner-sohnen.com/manuals You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of Könner &... -
Page 3: Main Overview
It is STRICTLY FORBIDDEN TO CONNECT to DRY contact (CONTROL TERMINAL) WIRES UNDER VOLTAGE. It may IMPORTANT! cause the generator to fail SAFETY PRECAUTIONS FOR OPERATING THE DIRECT CURRENT GENERATOR The generator is only suitable for charging batteries whose voltage range (48-54 V) matches that of the generator. -
Page 4: Specifications
SPECIFICATIONS Model KS 48V-DC Voltage, V 48-54 Nominal power, kW Current, A Start auto, manual/external Fuel tank volume, l 12.5 Working time at 50% load (gasoline fuel)*, h LED display voltage, amperage Noise level Lpa (7m)/Lwa, dB 70/95 Engine model... -
Page 5: Before First Start
POWER LED (GREEN) POWER LED (GREEN) The LED flashes (current consumption below 20 A) or is continuously lit (current consumption above 20 A) as long as the generator output voltage is applied to the DC output terminals. OVERLOAD LED (RED) OVERLOAD LED (RED) The overload LED lights up when the current consumption reaches the maximum or in case of a malfunction. - Page 6 All connecting the generator to the network must be made by certified electrician in accordance with all elect- WARNING! rical rules and regulations. COMMISSIONING COMMISSIONING 1. Fill the crankcase with engine oil. The recommended amount of oil for each model is indicated in the specification chart.
-
Page 7: External Control Mode
EXTERNAL CONTROL MODE The EXTERNAL CONTROL mode is enabled by closing the CONTROL TERMINAL contacts and disabled by opening them. This mode enables optimal generator integration into various power supply systems through external control of devices using “dry” contacts, thus considerably expanding its range of applica- tions. -
Page 8: Recommended Oils
- If the generator often operates at high temperature or high load, the oil should be replaced every 25 operating hours. - If the engine often runs in dusty or other harsh conditions, clean the air filter every 10 operating hours. - If you missed the maintenance time, perform it as soon as possible to save the generator engine. -
Page 9: Fuel Filter
Match the protrusion of the flame arrester to the hole in IMPORTANT! the pipe damper. FUEL FILTER Never use gasoline while smoking or in the immediate IMPORTANT! vicinity of an open flame. 1. Remove the fuel tank cap and fuel filter. 4. - Page 10 WARRANTY SERVICE TERMS The international manufacturer warranty is 1 year. The warranty period starts from the date of purchase. In cases when warranty period is longer than 1 year according to local legislation please contact your local dealer. The Seller which sells the product is responsible for granting the warranty. Please contact the Seller for warranty.
- Page 12 CONTACTS Deutschland: Deutschland: DIMAX International GmbH Flinger Broich 203 -FortunaPark- 40235 Düsseldorf, Deutschland www.koenner-soehnen.com Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service Garantie, Reparatur und Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska:...
