Summary of Contents for Könner & Söhnen KS 4100iE

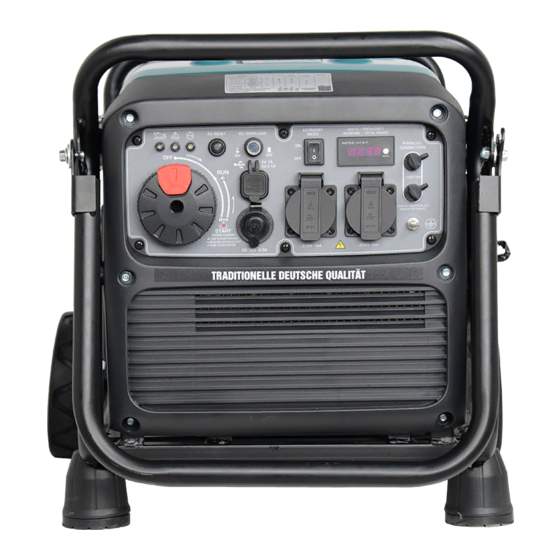

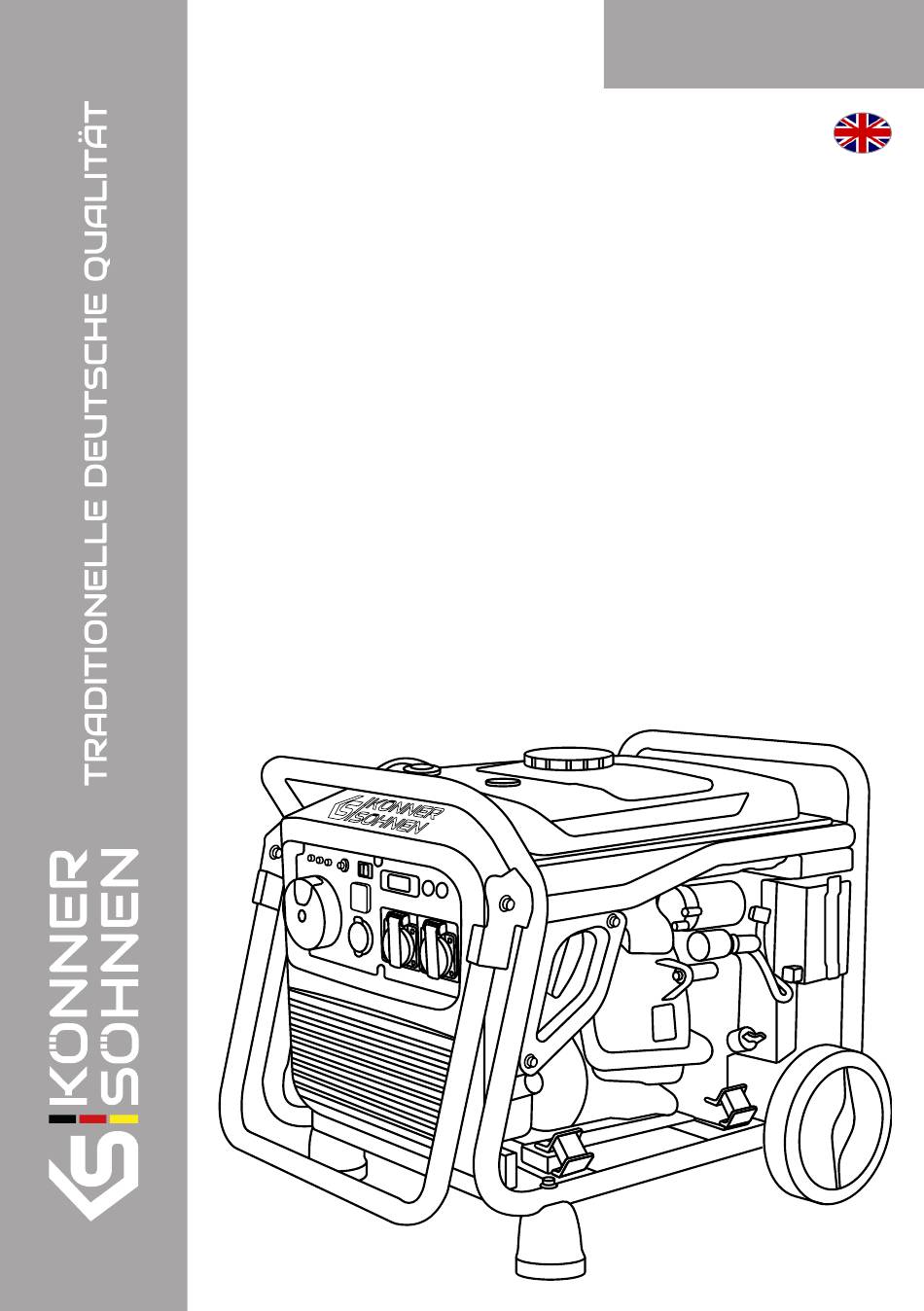

- Page 1 Owner’s Manual Please, read this manual carefully before use! Inverter Generator KS 4100iE KS 4100iEG KS 8100iE KS 8100iEG KS 8100iE ATSR KS 8100iEG ATSR Inverter Generator in Soundproof Housing KS 2000i S KS 2000iG S KS 4000iE S KS 4000iEG S...
-
Page 2: Safety Information
INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of ® safety, use and debugging. More information can be found on the official manufacturer’s website in the support section: konner-sohnen.com/manuals You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of Könner &... -
Page 3: Electrical Safety
ELECTRICAL SAFETY The device generates electricity. Follow safety precautions ATTENTION – DANGER! to avoid electric shock. The generator should be used as an IT or TN system based on the application. Earthing and additional pro- tective measures such as insulation monitoring or pro- IMPORTANT! tection against accidental contact (residual current de- vice) must be provided based on the application and the... -
Page 4: Main Overview
E ATSR, KS 8100i i EG EG 1. Fuel tank cap 2. Fuel level indicator 3. Control panel 4. Carrying handles 5. Manual starter (only for models KS 4100iE, KS 4100iEG) 6. Transport wheels 7. Oil-depth gage 1. Multifunctional engine switch 2. Oil level indicator 3. - Page 5 Manufacturer reserves the right to make changes and/or improvements in design, components set and technical attributes without notice and without incurring obliga- IMPORTANT! tion. The pictures in this manual are schematical and may not match the parameters of original product. MODELS MODELS KS 2000 KS 2000i i S, KS 2000...
- Page 6 In addition to the components shown in the figure of a gasoline generator, a generator with a hybrid system (LPG/ gasoline) is equipped with a hose for supplying LPG to the generator. 1. Built-in reducer. 1. Built-in reducer. 2. Gas cylinder connection hose (1.5 m). 2.
-
Page 7: Specifications
SPECIFICATIONS Model KS 2000i S KS 2000iG S Voltage, V Maximum power, kW 2.0* Nominal power, kW 1.8* Frequency, Hz Current, A (max.) Outlets 1*16A 1*16A Engine start manual manual Fuel tank volume, l Working time at 50% load 6.25 6.25 (gasoline fuel)**, h LED display... - Page 8 Model KS 4000iE S KS 4000iEG S KS 4000iE S ATS Voltage, V Maximum power, kW 4.0* Nominal power, kW 3.5* Frequency, Hz Current, A (max.) 17.4 17.4 17.4 Outlets 2*16A 2*16A 2*16A Engine start manual/electro manual/electro manual/electro Fuel tank volume, l Working time at 50% load (gasoline fuel)**, h LED display...
- Page 9 Model KS 6000iE S KS 6000iE S ATS Voltage, V Maximum power, kW Nominal power, kW Frequency, Hz Current, A (max.) 23.9 23.9 Outlets 1*16A, 1*32A 1*32A Engine start manual/electro manual/electro Fuel tank volume, l Working time at 50% load (gasoline fuel)**, h LED display multifunctional***...
- Page 10 Model KS 4100iE KS 4100iEG Voltage, V Maximum power, kW 4.0* Nominal power, kW 3.6* Frequency, Hz Current, A (max.) 17.4 17.4 Outlets 2*16A 2*16A Engine start manual/electro manual/electro Fuel tank volume, l 12.5 12.5 Working time at 50% load...
- Page 11 Model KS 8100iE KS 8100iEG KS 8100iE ATSR KS 8100iEG ATSR Voltage, V Maximum power, kW 8.0* 8.0* 8.0* Nominal power, kW 7.2* 7.2* 7.2* Frequency, Hz Current, A (max.) 34.8 34.8 34.8 34.8 Outlets 1*16A, 1*32A 1*16A, 1*32A 1*16A, 1*32A 1*16A, 1*32A Engine start electro...
-
Page 12: Generator Operation
TERMS OF USE OF INVERTER GENERATOR It is recommended to ground the generator before operating it for the first time. Before starting the device, remember that the total power of the connected power consumers should not exceed the nominal power of the generator. -
Page 13: Getting Started
FUEL TANK CAP AIR VENT (FOR MODEL KS 2000 FUEL TANK CAP AIR VENT (FOR MODEL KS 2000i i S) S) The fuel cap is equipped with a vent for air supply to the fuel tank. When the engine is running, the vent must be in the “ON”... - Page 14 In the power supply mode, the generator should operate no longer than 1 minute in the range from nominal to ATTENTION – DANGER! maximum power. Standby generators should not run continuously (e.g. by adding fuel to the tank or connecting a large fuel tank) or ATTENTION –...
- Page 15 KS 6000iE S, KS 6000iE S ATS, KS 4000iE S). Fig. 1 5.1 For manual start (models KS 4100iE, KS 4000iE S, KS 6000iE S, KS 6000iE S ATS), pull the manual starter until a slight resistance is felt, then pull it toward you relatively sharply. Slowly turn the manual starter by hand, do not release it abruptly.
- Page 16 4. Connect the hose end with the reducer to the gas cylinder (connect hose end B to the gas cylinder, as shown in Fig. 4). 5. Open the gas valve on the cylinder, making sure that no gas is leaking. 6.
- Page 17 Fuel can be changed without stopping the generator. When switching from gasoline to LPG operation, the generator may be unstable during the first 2-3 minutes and the low voltage protection may trip. If the red indicator (overload indicator) lights up in 2-3 minutes after running the generator on LPG when it is running stable, press the AC Reset BUTTON on a panel of generator to restore voltage supply If during usage of gasoline, need to switch to LPG supply, directly connect the LPG pipe, turn on the LPG supply, and press the LPG RESET on the control panel to switch to LPG.
- Page 18 PARALLEL FUNCTION PARALLEL FUNCTION The total output power of the generators can be increased by connecting two inverter generators together using the Parallel Unit KS PU1 from Könner & Söhnen. Parallel connection of two generators ensures total rated output power of these generators. When the generators are connected in parallel, the power loss is 0.2 kW of the total rated power that can be obtained (suitable for all models of inverter generators from Könner &...
- Page 19 IMPORTANT! - Make sure the ECON mode is off while the battery is being charged. - Be sure to connect the charger’s red wire to the plus (+) terminal of the battery and the black wire to the minus (-) terminal of the battery. Do not swap the terminals. - Connect the charger to the battery terminals securely so that they are not disconnected due to motor vibrations or other actions.
-
Page 20: Recommended Oils
RECOMMENDED OILS Use oils designed for four-stroke cycle vehicle engines SAE10W-30, SAE10W-40. Motor oils with other viscosity 10W-30, 10W-40 levels, may be used only if the average air temperature in your region does not exceed the limits of the temperature range, specified in the table. Upon oil level decrease it is necessary to add the required quantity in order to provide the correct generator operation. -
Page 21: Fuel Filter
FUEL FILTER Never use gasoline while smoking or in the immediate IMPORTANT! vicinity of an open flame. 1. Remove the fuel tank cap and fuel filter. 2. Clean the filter with gasoline. 3. Wipe the filter and replace it. 4. Replace the fuel tank cap. Make sure that the fuel tank cap is tight. -
Page 22: Possible Failures And Solutions
POSSIBLE FAILURES AND SOLUTIONS Typical failures Possible reason Solution Engine starting swinch set Set the engine starting to OFF position switch to ON Fuel valve set to off position Turn the valve to ON position Air flap is opened Shut the air flap Engine does not starting No fuel... - Page 24 CONTACTS Deutschland: Deutschland: DIMAX International GmbH Flinger Broich 203 -FortunaPark- 40235 Düsseldorf, Deutschland www.koenner-soehnen.com Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service Garantie, Reparatur und Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska:...
