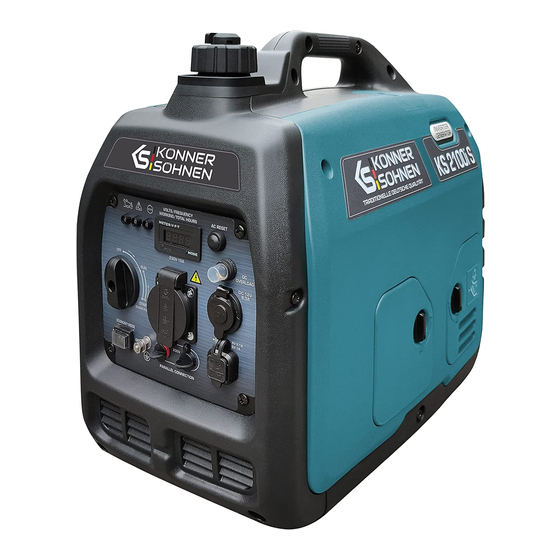

- Page 1 Owner’s Manual Please, read this manual carefully before use! Inverter Generator KS 2100i S KS 2100iG S KS 3100i S KS 3100iG S KS 5500iES ATSR KS 5500iEG S...
-
Page 2: Safety Information
INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of safety, use and debugging. More information can be found on the official manufacturer’s website in the support section: ks-power.de/betriebsanleitungen. You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of Könner &... -
Page 3: Main Overview
Using device for other purposes deprives the right for IMPORTANT! free warranty. Be careful. Do not operate the generator, if you are tired, under the influence of drugs or alcohol. Inattention may ATTENTION – DANGER! cause a serious injury. PRECAUTIONS WHEN WORKING WITH GASOLINE GENERATOR Do not start the generator operation upon presence of electric load! Disconnect the load before you stop the engine. - Page 4 5. Air filter service cover 6. Spark plug service cover 7. Ventilation grille 8. Muffler 9. Service cover (for motor oil change) 1. Earthing bolt 2. Multifunctional engine switch 3. Fuel indicator. Green indicator is used for LPG and the blue one for gasoline. 4.
- Page 5 1. LED display 9. 12V DC fuse 2. ATS output 10. 12V/8.3A DC outlet (for model KS 5500iES ATSR) 11. Fuel indicator. Green indicator is used for LPG and the blue one for gasoline. 3. Reset button 12. Earthing bolt 4.
-
Page 6: Specifications
SPECIFICATIONS Model KS 2100i S KS 2100iG S KS 3100i S KS 3100iG S Voltage, V Maximum power, kW 2.0* 3.1* Nominal power, kW 1.8* 2.8* Frequency, Hz Current, A (max.) 13.5 13.5 Outlets 1*16A 1*16A 1*16A 1*16A Engine start... - Page 7 Model KS 5500iES ATSR KS 5500iEG S Voltage, V Maximum power, kW 5.5* Nominal power, kW 5.0* Frequency, Hz Current, A (max.) 23.9 23.9 Outlets 1*16А, 1*32А 1*16А, 1*32А Engine start manual/electro manual/electro Fuel tank volume, l 13.5 13.5 LED display multifunctional** Noise level Lpa (7m)/Lwa, dB 66/91...
-
Page 8: Generator Operation
Make sure that the control panel, the blinds and the underside of the inverter are well cooled and protected against the ingress of small solids, dirt, and water. Im- IMPORTANT! proper operation of the cooler can cause damage to the motor, inverter or alternator. -
Page 9: Getting Started
CHECK BEFORE GETTING STARTED CHECKING THE FUEL LEVEL CHECKING THE FUEL LEVEL 1. Unscrew the fuel cap and check the fuel level in the tank. 2. Fill the fuel tank to the fuel filter level. 3. Tighten the fuel cap securely. 4. - Page 10 1. Fill the crankcase with engine oil. The recommended amount of oil for each model is indicated in the specification chart. 2. Check oil level with an oil dipstick. It should be between the MIN and MAX marks on the oil dipstick. 3.
- Page 11 Do not connect two or more devices at a time. The start-up of many devices requires high power. Devices should be ATTENTION – DANGER! connected one at a time according to their power rating. RUNNING GENERATOR ON LPG (KS 2100iG S, KS 3100iG S , KS 5500iEG S) RUNNING GENERATOR ON LPG (KS 2100iG S, KS 3100iG S , KS 5500iEG S) 1.
- Page 12 TO START LPG/GASOLINE GENERATOR IN GASOLINE MODE TO START LPG/GASOLINE GENERATOR IN GASOLINE MODE FOR MODEL FOR MODEL KS 5500 KS 5500i i EG S EG S 1. Check oil level. 2. Check fuel level. 3. Set the fuel switch FUEL CHOICE to GASLONE. 4.
- Page 13 7. After the generator stops, allow it to cool down and close the air vent on the fuel cap (set to OFF, as shown in Fig. 4, for models KS 2100i S, KS 2100iG S, KS 3100i S, KS 3100iG S - when switching off gasoline operation).
-
Page 14: Maintenance
IMPORTANT! - The DC protector turns off automatically if the current is higher than the rated current while the battery is being charged. To restore battery charging, turn on the DC fuse by pressing the “ON” button. If the DC protector turns off again, stop charging the battery because the charging current is too high. Do not charge batteries if their current consumption is more than 8.3 A (depending on the generator model). -
Page 15: Fuel Filter
Upon oil level decrease it is necessary to add the required quantity in order to provide the correct generator operation. It is necessary to check the oil levels according to technical maintanance schedule. Further details can be found in the full version of the manual on our website. AIR FILTER TECHNICAL MAINTENANCE Air filter cleaning is to be performed each 50 hours of the generator operation (every 10 hours in unusually dusty conditions). -
Page 16: Battery Use
BATTERY USE The generator battery is not subject to service. Low temperatures may lower the capacity of the lithium-ion battery and may cause an unstable generator start. Battery warranted – three months from the date of purchase of the generator. The generator is supplied with disconnected battery. - Page 17 Typical failures Possible reason Solution Cooling fins are dirty Clean the cooling fins Engine overheated Air filter is dirty Clean the air filter Circuit breaker is active Turn on the cricuit breaker No voltage while Check the cables; if using extension Connected cables are corrupted cord, change it working engine...
- Page 19 CONTACTS Deutschland: Deutschland: DIMAX International GmbH Flinger Broich 203 -FortunaPark- 40235 Düsseldorf, Deutschland www.ks-power.de Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service Garantie, Reparatur und Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska:...
