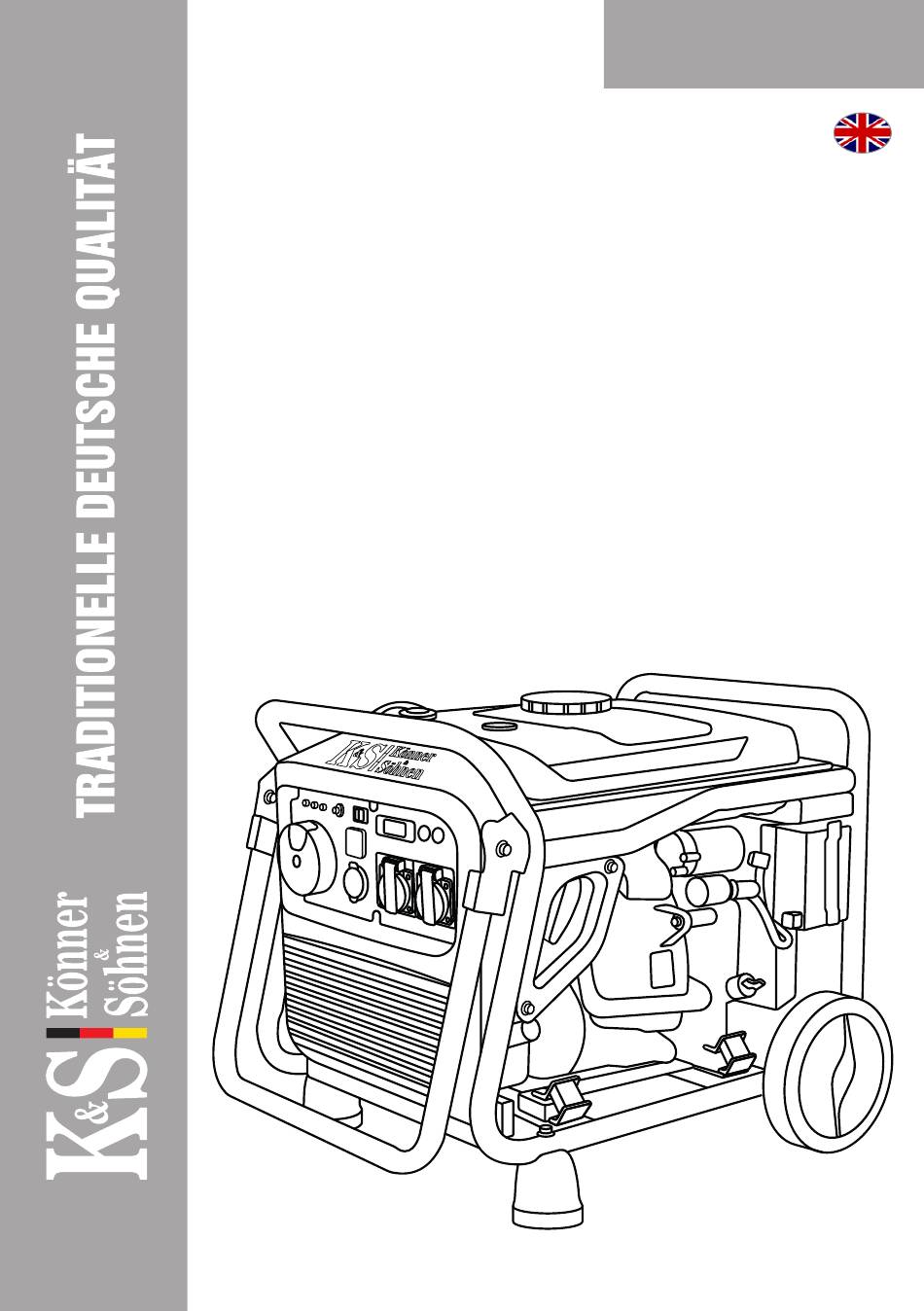

- Page 1 Owner’s Manual Please, read this manual carefully before use! Inverter Generator KS 4100iE KS 4100iEG KS 8100iE KS 8100iEG KS 8100iE ATSR KS 8100iEG ATSR Inverter Generator in Soundproof Housing KS 2000i S KS 2000iG S KS 4000iE S KS 4000iEG S...
- Page 2 Owner’s Manual Please, read this manual carefully before use! Inverter Generator KS 4100iE KS 4100iEG KS 8100iE KS 8100iEG KS 8100iE ATSR KS 8100iEG ATSR Inverter Generator in Soundproof Housing KS 2000i S KS 2000iG S KS 4000iE S KS 4000iEG S...
-
Page 3: Safety Information
INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of safety, use and debugging. More information can be found on the official manufacturer’s website in the support section: ks-power.de/betriebsanleitungen. You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of Könner &... -

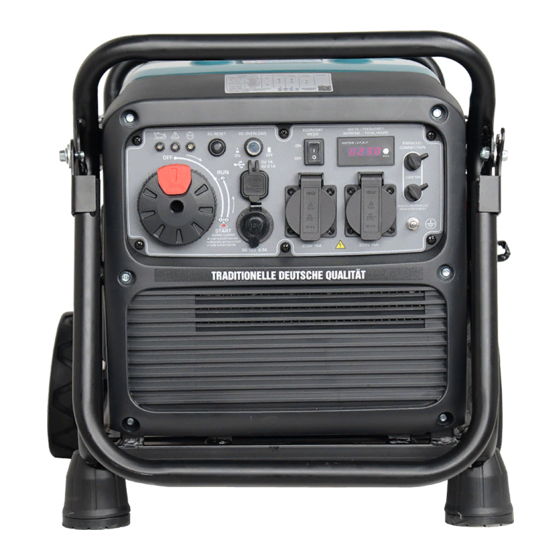

Page 4: Main Overview
1. Fuel tank cap 2. Fuel level indicator 3. Control panel 4. Carrying handles 5. Manual starter (only for models KS 4100iE, KS 4100iEG) 6. Transport wheels 7. Oil-depth gage 1. Multifunctional engine switch (except for dual-fuel models) 2. Oil level indicator 3. - Page 5 2. Carrying handles 3. Control panel 4. Manual starter 5. Transport wheels 6. Maintenance cover 7. Multifunction engine switch (For KS 4100iE G - fuel type switch. Engine switch and air choke are located on the control panel) | 304 www.ks-power.de/en...
-
Page 6: Specifications
1. 2 USB-Outputs 2. Economy mode switch (ЕCОN) 3. LED display with oil level indicator, overload indicator, voltage indicator 4. 12V DC fuse 5. 2x16А AC outlets 6. Ground terminal 7. Generator parallel socket 8. Reset button 9. 12V/8A DC outlet (except for KS 4100iEG model) In addition to the components shown in the figure of a gasoline generator, a generator with a hybrid system (LPG/ gasoline) is equipped with a hose for supplying LPG to the generator. - Page 7 Model KS 4100iE KS 4100iEG KS 8100iE KS 8100iEG KS 8100iE ATSR KS 8100iEG ATSR Voltage, V Maximum power, kW 4.0* 8.0* 8.0* 8.0* Nominal power, kW 3.6* 7.2* 7.2* 7.2* Frequency, Hz Current, A (max.) 17.4 17.4 34.8 34.8 34.8...
-
Page 8: Generator Operation
TERMS OF USE OF INVERTER GENERATOR It is recommended to ground the generator before operating it for the first time. Before starting the device, remember that the total power of the connected power consumers should not exceed the nominal power of the generator. -
Page 9: Getting Started
FUEL TANK CAP AIR VENT (FOR MODEL KS 2000 FUEL TANK CAP AIR VENT (FOR MODEL KS 2000i i S) S) The fuel cap is equipped with a vent for air supply to the fuel tank. When the engine is running, the vent must be in the “ON”... - Page 10 Each time you start the generator, be sure to check oil and IMPORTANT! fuel level FOR MODELS KS 4100iE, KS 8100iE, KS 4000iE S, KS 8100iE ATSR 1. Check oil level. 2. Check fuel level. 3. Turn the Multifunctional engine switch to the “START” position.
- Page 11 5. Pull the manual starter until a slight resistance is felt, then pull it toward you relatively sharply. Slowly turn the manual starter by hand, do not release it abruptly. 6. Turn the air choke control knob to the “RUN” position. Fig.
- Page 12 For all modifications of models KS 2000i, loosen the 2 screws on the side panel with a key (size 8). Loosen drain screw C on the carburetor and let the remaining fuel drain through pipe D into the dedicated drip pan. Avoid gasoline leaks. Tighten up the screw. Install back the generator housing cover. Start the generator on LPG.
- Page 13 Do not stop the generator with the devices turned on. This may disable the generator or devices connected to it! TO STOP THE ENGINE, PROCEED AS FOLLOWS: FOR MODELS KS 4100iE, KS 8100iE, KS 4000iE S, KS 8100iE ATSR 1. Turn off all devices. 2. Allow the generator to run idle for approx. 1-2 minutes.
-
Page 14: Maintenance
4. Connect the wire to a 12V/8A DC socket on the control panel of the generator. 5. To start charging the battery, set ECON to “OFF”. 6. Turn the 12 V DC fuse to the “ON” position. Please note! Generators with electric start are equipped with lithium-ion batteries, which may only be charged IMPORTANT! with dedicated chargers for lithium-ion batteries (not... -
Page 15: Recommended Oils
The manufacturer shall not be liable for any damage IMPORTANT! caused by failure to perform maintenance work. RECOMMENDED OILS Use oils designed for four-stroke cycle vehicle engines SAE10W-30, SAE10W-40. Motor oils with other viscosity 10W-30, 10W-40 levels, may be used only if the average air temperature in your region does not exceed the limits of the temperature range, specified in the table. -
Page 16: Fuel Filter
FUEL FILTER Never use gasoline while smoking or in the immediate IMPORTANT! vicinity of an open flame. 1. Remove the fuel tank cap and fuel filter. 2. Clean the filter with gasoline. 3. Wipe the filter and replace it. 4. Replace the fuel tank cap. Make sure that the fuel tank cap is tight. - Page 18 CONTACTS Deutschland: Deutschland: DIMAX International GmbH Deutschland, Hauptstr. 134, 51143 Köln, www.ks-power.de Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service Garantie, Reparatur und Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska: Polska: DIMAX International...
