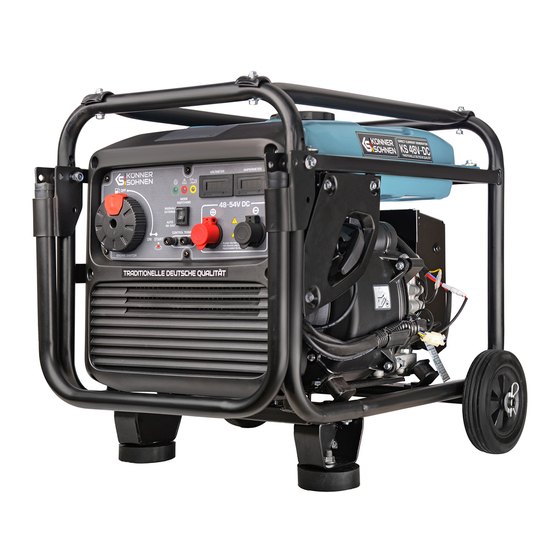

- Page 1 Owner’s Manual Please, read this manual carefully before use! Direct current generator KS 48V-DC...
-
Page 2: Safety Information
INTRODUCTION Thank you for your purchase of Könner & Söhnen products. This manual contains a brief description of ® safety, use and debugging. More information can be found on the official manufacturer’s website in the support section: konner-sohnen.com/manuals You can also go to the support section and download the full version of the manual by scanning the QR code, or on the website of the official importer of Könner &... -
Page 3: Main Overview
It is STRICTLY FORBIDDEN TO CONNECT to DRY contact (CONTROL TERMINAL) WIRES UNDER VOLTAGE. It may IMPORTANT! cause the generator to fail PRECAUTIONS WHEN WORKING WITH GASOLINE GENERATOR The generator can be connected only in parallel with the 48-54V battery! Disconnect the load before you stop the engine. -
Page 4: Specifications
SPECIFICATIONS Model KS 48V-DC Voltage, V 48-54 Nominal power, kW Current, A (max.) Start manual/auto/external Fuel tank volume, l 12.5 Working time at 50% load (gasoline fuel)*, h LED display voltage, amperage Noise level Lpa (7m)/Lwa, dB 70/95 Engine model... -
Page 5: Getting Started
OVERLOAD INDICATOR OVERLOAD INDICATOR The overload indicator lights up when the connected generator is overloaded, the inverter control unit overheats or the output voltage rises. In this case, you must perform the following steps: 1. Turn off all connected electrical appliances and stop the engine. 2. - Page 6 All connecting the generator to the network must be made by certified electrician in accordance with all elect- WARNING! rical rules and regulations. COMMISSIONING COMMISSIONING 1. Fill the crankcase with engine oil. The recommended amount of oil for each model is indicated in the specification chart.
-
Page 7: Stopping The Engine
EXTERNAL CONTROL FUNCTIONAL DESCRIPTION When the “MANUAL / EXTERNAL CONTROL” mode on the front panel is activated, generator control will occur by means of “dry contact” (Control terminal) To switch to “MANUAL / EXTERNAL CONTROL” mode you need: 1. Set the mode switch to “MANUAL / EXTERNAL CONTROL”. 2. -
Page 8: Recommended Oils
TECHNICAL MAINTENANCE WORKS Level check Motor oil Replacement Air filter Check /Cleaning Spark plug Cleaning Level check Fuel tank Cleaning Fuel filter Check (clean out) - If the generator often operates at high temperature or high load, the oil should be replaced every 25 operating hours. -
Page 9: Maintenance
SPARK PLUG VERIFICATION: SPARK PLUG VERIFICATION: 1. Remove the cap from the spark plug. 2. Remove the spark plug by means of a corresponding spanner. 3. Examine the spark plug. If is is shattered – it is necessary to replace it. Recommended replacement spark plugs –... -
Page 10: Possible Failures And Solutions
POSSIBLE FAILURES AND SOLUTIONS Typical failures Possible reason Solution Engine starting swinch set Set the engine starting to OFF position switch to ON Fuel valve set to off position Turn the valve to ON position Air flap is opened Shut the air flap Engine does not starting No fuel... - Page 12 CONTACTS Deutschland: Deutschland: DIMAX International GmbH Flinger Broich 203 -FortunaPark- 40235 Düsseldorf, Deutschland www.koenner-soehnen.com Ihre Bestellungen Ihre Bestellungen orders@dimaxgroup.de Kundendienst, technische Fragen Kundendienst, technische Fragen und Unterstützung und Unterstützung support@dimaxgroup.de Garantie, Reparatur und Service Garantie, Reparatur und Service service@dimaxgroup.de Sonstiges Sonstiges info@dimaxgroup.de Polska:...
