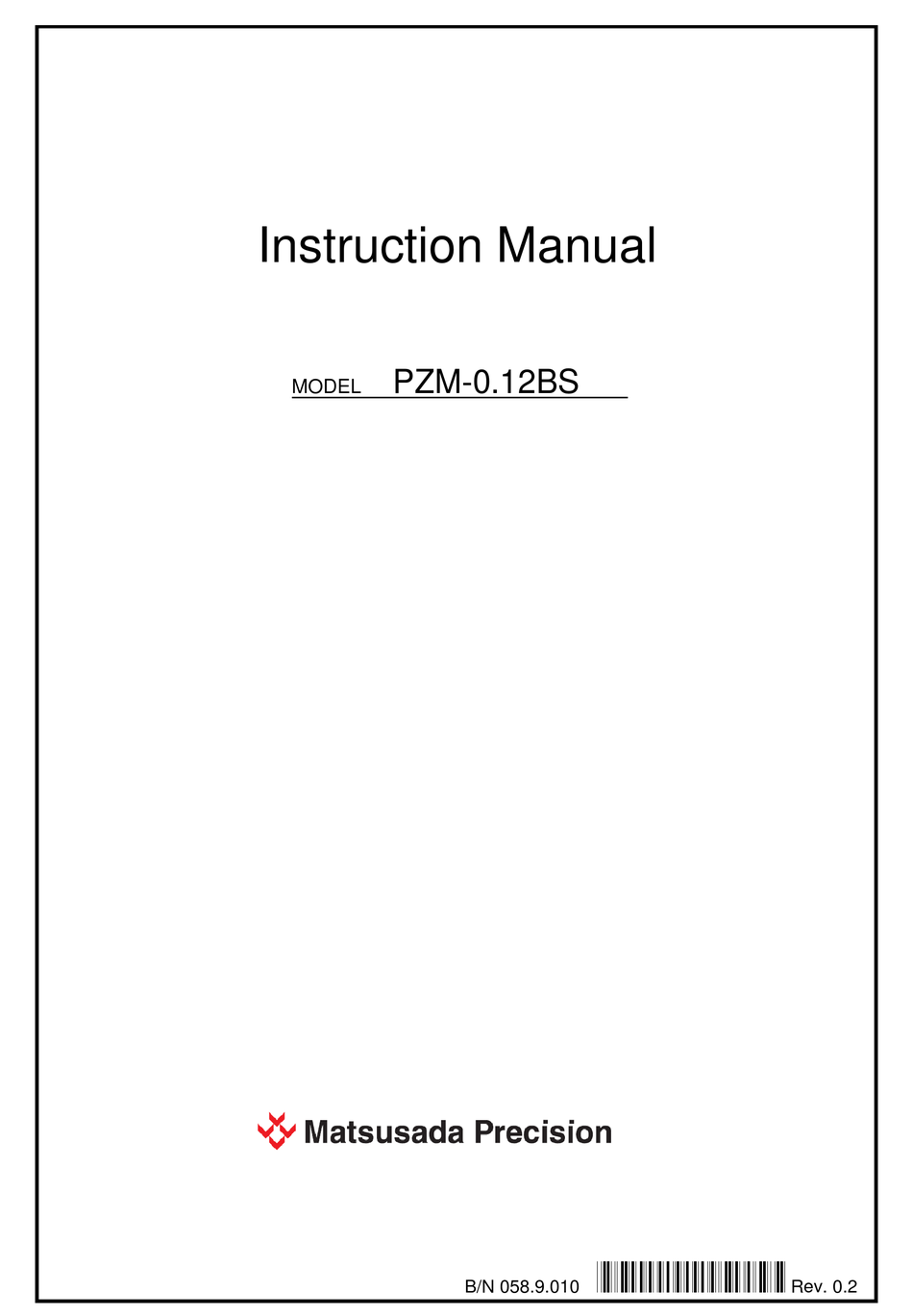

- Page 1 Instruction Manual PZM-0.12BS MODEL *058.9.010* B/N 058.9.010 Rev. 0.2...
- Page 3 ◆ No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of Matsusada Precision. ◆ No patent liability is assumed with respect to the use of the information contained herein.
- Page 4 Bistable push button switch for preventing electric shock) Indicates the possible danger of death if Bistable push button switch you drink it and burns or blindness if it attaches. Indicates the possible danger of exposure Alternative Current to radiation. Matsusada Precision PZM-0.12BS...
- Page 5 ◆ Do not process or damage power cables It may result in electric shock or fire. ◆ Regarding the input voltage Check the page describing the input terminals and input voltage in the instruction manual. Do not provide any voltage out of the specifications. Matsusada Precision PZM-0.12BS...
- Page 6 In order to avoid electric shock, ground the terminals to discharge using a short-circuit grounding apparatus and check the voltage again. The terminals here mean all terminals like input and output terminals and terminals for communications and remote controls. Matsusada Precision PZM-0.12BS...
- Page 7 It requires to be replaced at regular intervals to extend the lifetime. For the replacement, contact us. (It requires a replacement charge separately. Do not replace it by yourself, as there is a risk of electric shock.) Matsusada Precision PZM-0.12BS...
-
Page 8: Table Of Contents
Handling Precautions ........................2 Troubleshooting .......................... 2 2. External Appearance ..........................3 External Appearance ........................3 Control Connector Pin Assignment (15-pin, Female) ..............4 3. Instruction for Handling ......................... 5 Overview ............................. 5 Features ............................. 5 Operation ............................ 6 Matsusada Precision PZM-0.12BS... -
Page 9: Introduction
1. Introduction Greetings Thank you very much for your purchase of Matsusada Precision piezo driver. This Instruction Manual was written to provide the user with instructions on the safe operation of our piezo driver. Matsusada Precision takes every precaution to ensure the quality of our products. Please refer carefully to this manual in order to use this product correctly and safely, and to achieve the best possible performance. -
Page 10: Handling Precautions
・ Be careful not to touch the load immediately after the output is turned off. Troubleshooting In case of no output voltage, 1. Check whether the specified voltage is input. ・ Power supply voltage: 12 to 15Vdc ・ External input voltage: 0 to 10V Matsusada Precision PZM-0.12BS... -
Page 11: External Appearance
(1)Output connector One-pin LEMO receptacle (00250) (2)Sensor input connector Four-pin LEMO receptacle (0S304) (3)LED (green) for Power ON (4)LED (red) for Overload (5)Displacement display monitor volume for gain adjustment (6)Displacement mode volume for gain adjustment (7)Zero adjustment volume Matsusada Precision PZM-0.12BS... -
Page 12: Control Connector Pin Assignment (15-Pin, Female)
14. COM 7. Dmoni 15. GND 8. Mode switching Precaution about connection Connect this unit to a PZ series device as given below. Main unit SENSOR LEMO Output One-pin cable connector LEMO 4-pin connector Sensor cable (gray) Matsusada Precision PZM-0.12BS... -
Page 13: Instruction For Handling
The output waveform of this product is as shown Output waveform at maximum 200mA Fig. 2 in Fig. 2. Since a peak current of 200 mA can be removed, the response of the piezo element increases, making the operation faster. 200m ≦15msec -200m Matsusada Precision PZM-0.12BS... -
Page 14: Operation
It is advisable to select a distortion gauge suitable for this product. The standard circuit consists of two gauges (700Ω). As you select the option, the following configuration of the resistance and number of distortion gauges are available. Matsusada Precision PZM-0.12BS... - Page 15 6. If the displacement detector unit is set to the initial value, displacement can be monitored from the Dmoni terminal. 10V/maximum displacement It is also possible to display the amount of displacement by connecting the DISPLAY terminal to a digital meter (1.999V of rating). Matsusada Precision PZM-0.12BS...
- Page 16 (7) After calibration, the PZJ is ready for displacement control. * Please note that if the sensor cable is extended unnecessarily, displacement may not be detected correctly and zero adjustment may not be made properly within the specified range. Matsusada Precision PZM-0.12BS...
- Page 17 6. It is possible to display the amount of displacement by connecting the DISPLAY terminal (13) to a digital meter (1.999V of rating). Other functions Monitor output: Outputs from the control connector (6) and (7). Output impedance is 1kΩ. Output voltage monitor (Vmoni): 1.2V/120V output Displacement monitor (Dmoni): 10V/max. displacement Matsusada Precision PZM-0.12BS...
- Page 18 Revision History Rev. No. Rev. Date Revised Contents 2020/10 First edition 2022/09 Corrected description. Matsusada Precision PZM-0.12BS...
- Page 19 Matsusada Precision PZM-0.12BS...
