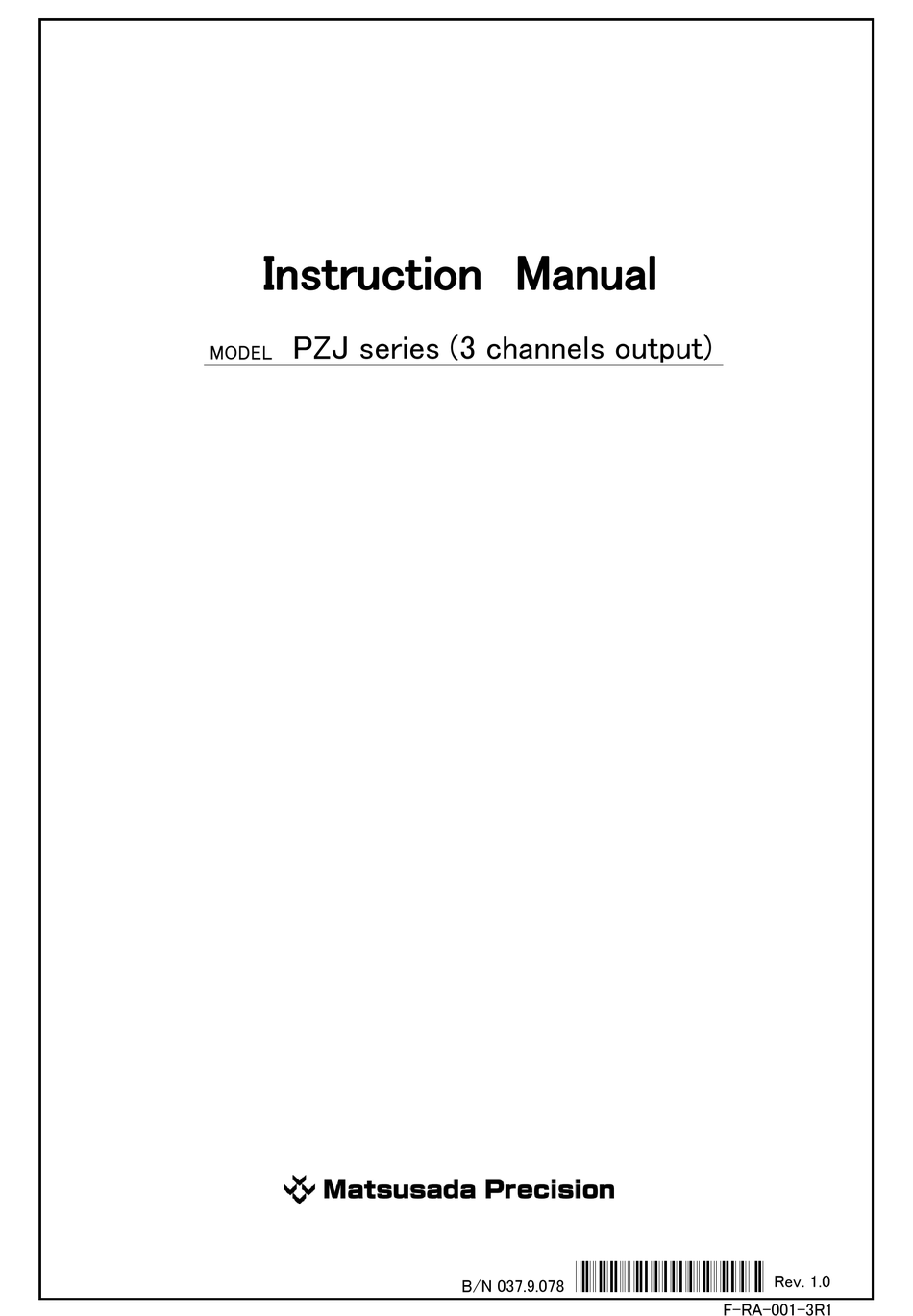

- Page 1 Instruction Manual PZJ series (3 channels output) MODEL *037.9.078* Rev. 1.0 B/N 037.9.078 F-RA-001-3R1...
- Page 2 F-RA-001-5R0 For Safe Use ◆ Introduction This product generates high voltage and energy. In order to use the product safely and prior to using the product, please read the instruction manual to the end before use in order to use the product safely, because there is a danger of death or serious injury due to electric shock.
- Page 3 F-RA-001-5R0 WARNING ◆ Understand the risk. Products generate high voltage and energy. An electrician or equivalent knowledge must read the instruction manual to the end and familiarize yourself with the proper use and danger of the product. If you want the product to be handled by another person, limit it to those with knowledge of electricity, and have people who are familiar with correct use and danger of the product conduct education and training before handling it, or handle the product under the supervision of those who are familiar with the proper use and danger of the product.
- Page 4 F-RA-001-5R0 WARNING ◆ Designed for indoor use Use the product indoors. Do not use it outdoors or indoors where there is a possibility of water leakage, flooding, or crown. ◆ About operating temperature and humidity Use within the range of operating temperature and humidity stated in the instruction manual. Do not use it in a place where the ambient temperature becomes higher than the operation temperature of the product or in a narrow closed place.
- Page 5 F-RA-001-5R0 CAUTION ◆ Install horizontally. Do not install the product in the reverse direction and the lateral direction. Internal heat dissipation becomes insufficient, parts deteriorate, there is a risk of smoke and fire. ◆ Do not install in the place where cool air blows directly. There is a danger of condensation, leakage current and burnout.
-
Page 6: Table Of Contents
Table of Contents 1. Introduction 1-1 Introduction 1-2 Unpacking the Power Supply 1-3 Installation requirements 1-4 Handling 1-5 Trouble shooting 2. Exterior view diagram 2-1 Front panel 2-2 Rear panel 3. Instructions for handling 3-1 Summary 3-2 Features 3-3 Operation 3-4 Protection a. -
Page 7: Introduction
1 Introduction 1-1 Introduction Thank you very much for your purchase of our product, PZJ SERIES. We have done our best to exercise quality control of out products. Please handle this unit properly according to this instruction manual so that you can display the full capacity of this unit, operate it smoothly in high efficiency for many years and safely. -
Page 8: Handling
1 Introduction 1-4 Handling ・ The chassis must be grounded as illustrated below. Connection diagram to ground output cable ground terminal load Power Supply Chassis load frame ground ・ The chassis and the load frame must be grounded by using a short and thick wire. ・... -
Page 9: Exterior View Diagram
2 Exterior view diagram 2 Exterior view diagram ２－１ Front panel CH 1 CH 2 CH 3 ④ ⑧ BIAS BIAS BIAS OUTPUT ⑦ ② POWER ① ③ ⑤ ⑥ ① POWER ON／OFF switch ② OUTPUT ON／OFF switch ③ Selector switch of the digital display meter ④... -
Page 10: Rear Panel
2 Exterior view diagram ２－２ Rear panel ⑤ ⑧ ② ① ③ FUSE ④ ⑥ ⑦ ①Fan ②GROUND terminal ③FUSE (5A) ④AC115V input connector ⑤Sensor input terminal（LVs option） ⑥Output voltage monitor（L2 option） ⑦Terminal block option（LS option） ⑧External sensor select switch（LVs option） Dimension ：... -
Page 11: Instructions For Handling
3 Instructions for handling 3 Instructions for handling ３－１ Summary This unit is a piezo driver power supply designed to drive piezo devices. Output current is capable to increase up to three times of rated current. ３－２ Features This unit is a peak power amplifier type piezo driver. Peak current, 3 times more than average current, can be drawn when step operation. -
Page 12: Operation
3 Instructions for handling 3-3 Operation 1. Ensure the grounding connection such as specified page 2. 2. Connect the AC power cord to an outlet. 3. Turn on the POWER ON/OFF switch then the unit is ready for operate. 4. Turn the OUTPUT ON/OFF switch to the ON position. The yellow indicator will light up to indicate that the power supply is ready for operation. -
Page 13: Optional Features
4 Optional features 4 Optional features 4-1 Output voltage monitor (L2) 10 V(positive output → +10 V) is to be output from output voltage monitor terminal on rear panel. Output impedance is 1 kΩ. 4-2 Remote ON/OFF switch (LS) The output can be turned on and off with remote switch. Note: When the output overcurrent protection is effective, the unit doesn’t output without the reset. -
Page 14: External Sensor Input (Lvs)
4 Optional features 4-3 External sensor input (LVs) Closed loop operation can be possible by inputting external displacement sensor signal. Please adjust the Input signal to be 0 to 10 V in advance (at maximum displacement 10 V max.) Displacement in accordance with Vcon input voltage can be obtained by inputting 0 to 10 V from Vcon-in terminal.
