Summary of Contents for Clarke BR9/200

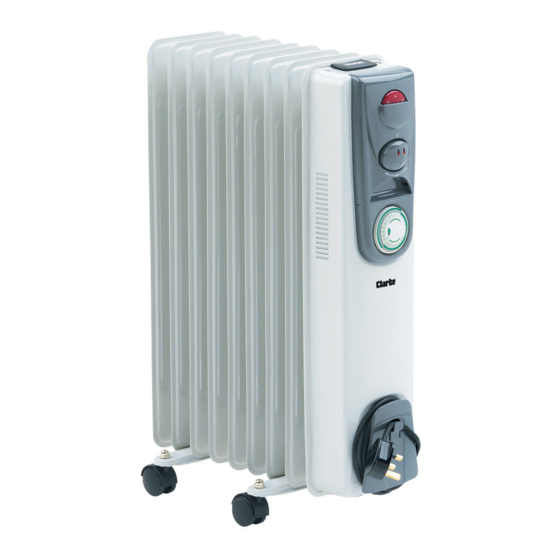

- Page 1 Only suitable for well insulated areas and not designed to be the primary heat source 2 KW OIL FILLED RADIATOR MODEL NO: BR9/200 PART NO: 6934009 OPERATION & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS LS1119 - ISS 5...
-
Page 2: Environmental Recycling Policy
INTRODUCTION Thank you for purchasing this CLARKE 2 kW oil filled radiator. Before attempting to use this product, please read this manual thoroughly and follow the instructions carefully. In doing so you will ensure the safety of yourself and that of others around you, and you can look forward to your purchase giving you long and satisfactory service. - Page 3 THE FOLLOWING TABLE ADDRESSES THE INFORMATION REQUIREMENTS OF REG.2015/1188 Item Symbol Value Unit Heat output Measured seasonal space heating energy efficiency n/a % Nominal heat output Minimum heat output (indicative) Maximum continuous heat output Auxiliary electricity consumption At nominal heat output At minimum heat output In standby mode Type of heat input for electric storage local heaters only...
-
Page 4: General Safety Rules
GENERAL SAFETY RULES 1. Read these instructions carefully in 14. If the oil filled radiator is tipped over, conjunction with the illustrations, unplug it and allow it to cool before before using the oil filled radiator. standing it back up. 2. -
Page 5: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electricity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 6: Before Use
BEFORE USE CONNECTING THE FEET 1. Turn the oil filled radiator upside down and insert the securing loop as shown. 2. Hook the securing loop to the wheel plate and feed the threaded end of the securing loop through the second hole as shown. -
Page 7: Operation
OPERATION CAUTION: DO NOT OPERATE THE RADIATOR UNLESS IT IS PLACED IN AN UPRIGHT POSITION. • Select an indoor location for the radiator away from electrical cables, drapes and other furnishings. • DO NOT place radiator directly beneath an electrical outlet or against paper board or low density fibreboard. - Page 8 SETTING THE TEMPERATURE The operating temperature is selected by adjustment of the thermostat. • The hottest setting will be when the thermostat is set to “6” and the power switches are set to maximum, the coolest, when it is set to “0”. TIMER FUNCTION SETTING THE CURRENT TIME 1.
-
Page 9: Specification
The safety device supplied must never be replaced by anyone other than an approved service agent. SPECIFICATION Model Number BR9/200 Operating Voltage and Frequency 230 V @ 50 Hz Input Power 2000 W Number of segments Class of Protection:... -
Page 10: Maintenance
MAINTENANCE CLEANING The oil filled radiator requires regular cleaning to ensure trouble free operation: 1. Do not stand on or drop the heater and treat it carefully at all times. 2. Always turn off and unplug the oil filled radiator from the mains supply and allow it to cool before cleaning. -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
