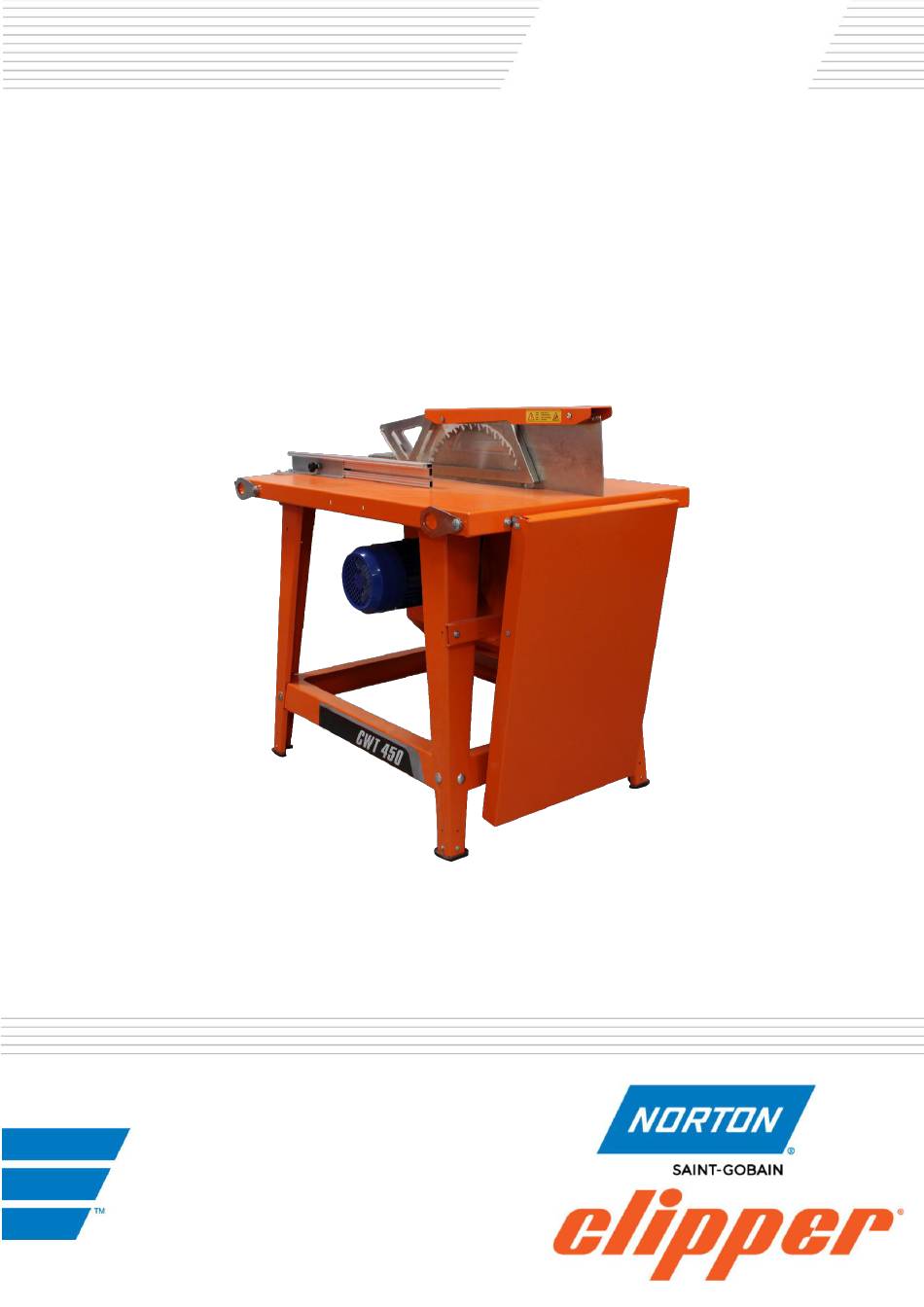

- Page 1 CWT 450 OPERATING INSTRUCTIONS Translation of the original instructions...
- Page 2 VERS. 2022.11.14 CWT 450_MAN_EN...
- Page 3 The undersigned manufacturer: SAINT - GOBAIN ABRASIVES SA 190, BD. JF KENNEDY L-4930 BASCHARAGE Declares that the products: CWT 450 Code: 70184631920 is in conformity with the following standard: "MACHINES" 2006/42 / EC "LOW VOLTAGE" 2014/35 / UE ...
- Page 4 Declaration of Conformity The undersigned manufacturer: SAINT - GOBAIN ABRASIVES SA 190, BD. JF KENNEDY L-4930 BASCHARAGE Declares that the products: CWT 450 Code: 70184631920 is in conformity with the following standard: Supply of Machinery (Safety) Regulations 2008 ...
-
Page 5: Product Description

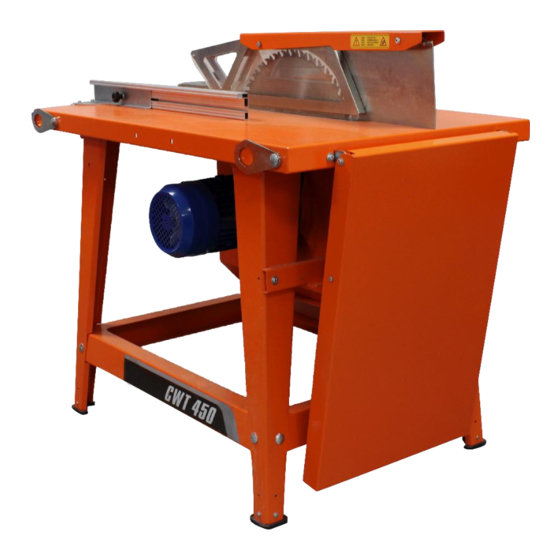

VERS. 2022.11.14 CWT 450_MAN_EN PRODUCT DESCRIPTION: Circular saw for cutting wooden planks and joists and similar. ATTENTION: upon arrival, the machine must be immediately checked. If any transport damage or missing parts are found, immediately send a written damage report to the shipper. Therefore also inform the supplier. -
Page 6: Table Of Contents
VERS. 2022.11.14 CWT 450_MAN_EN CWT 450 SUMMARY PRODUCT DESCRIPTION: ..................5 1 - GENERAL INFORMATION ..................7 1.1 PURPOSE OF THE MANUAL ................7 1.2 USERS OF THE MANUAL ................7 1.3 PRESERVATION OF THE MANUAL ..............8 1.4 LIABILITY AND WARRANTY ................8 1.5 MANUFACTURER'S DISCLAIMER ..............8 2 - TECHNICAL INFORMATION ................9... -
Page 7: General Information
VERS. 2022.11.14 CWT 450_MAN_EN 1 - GENERAL INFORMATION PURPOSE OF THE MANUAL The purpose of this manual is to provide the information necessary for assembly, use, maintenance and safety regarding the machine in question. The instructions contained therein are aimed at obtaining maximum performance in terms of performance, productivity, technological result, safeguarding the safety of the personnel in charge and the integrity of the machine. -
Page 8: Preservation Of The Manual
VERS. 2022.11.14 CWT 450_MAN_EN PRESERVATION OF THE MANUAL The manual must be carefully kept in a place suitable for correct storage to ensure its physical integrity; it must be easily accessible to anyone authorized to consult it. The manual is an important document that accompanies the machine and all users must be responsible for its protection. -
Page 9: Technical Information
VERS. 2022.11.14 CWT 450_MAN_EN - TECHNICAL INFORMATION 2.1 IDENTIFICATION The following data are shown on the machine plate: • Manufacturer identification • Machine model and serial number • Voltagepower supply (Volt) • Electric motor amps (A) • Electric motor power (Kw) •... - Page 10 VERS. 2022.11.14 CWT 450_MAN_EN 1 - Table 70x108 cm 2 - Self-adjusting headset 3 - Extendable table cm.48x74 4 - Dividing wedge 5 - Control switch 6 - Longitudinal square 7 - Cross square 8 - Lifting eyes 9 - Blade group 10 - Service key 11 - Pusher 12 - Side pusher...
-
Page 11: Dimensions And Features "Fixed Blade Model
VERS. 2022.11.14 CWT 450_MAN_EN 2.3 DIMENSIONS AND FEATURES "Fixed blade model" Power Nortn Clipper tooth Useful cut Weight Kg model bade CWT450 3 Kw - 400V tri phase Ø450 Ø30 sp 4.4/3 , Z36 2860 g/min 155 mm Sound levels with the use of a special blade with 28 teeth and Ø 315mm Equivalent continuous sound pressure level in the workplace dB (A) 93.7... -
Page 12: 3- General Safety Rules
VERS. 2022.11.14 CWT 450_MAN_EN 3- GENERAL SAFETY RULES PREMISE Although the rigid and massive assembly offers the maximum guarantee for solidity and robustness, a good placement is always advisable to increase the solidity and eliminate unnecessary and harmful vibrations. The manufacturer is exempt from any responsibility for any damage caused by negligence. -
Page 13: Positioning The Machine (Fig. 1)
VERS. 2022.11.14 CWT 450_MAN_EN • The use of the machine is recommended for adults and competent people (for those who have never used the machine, an insertion course is recommended). • Work operations are safe if the following standards are observed. •... -
Page 14: Safety Precautions
VERS. 2022.11.14 CWT 450_MAN_EN SAFETY PRECAUTIONS - All the adjustment and maintenance operations must be carried out with the power socket disconnected. - Always unset the plug when you are not using the machine. - Don't try to use the machine with any voltage other than that indicated. - Never open the switch box as it is electronic. -
Page 15: Symbol Used In The Manual
VERS. 2022.11.14 CWT 450_MAN_EN Symbol used in the manual The plates and wordings applied to the machine must not be removed and must be kept in good condition without compromising their legibility. In case of damage they must be replaced. DANGER! Information Before using the machine, it is mandatory to read the entire user manual and understand the contents! All moving parts... - Page 16 VERS. 2022.11.14 CWT 450_MAN_EN MANDATORY! It is mandatory during work to wear work dust protection mask FORBIDDEN! It is forbidden to carry out maintenance or adjustments when the machine is running. FORBIDDEN! It is forbidden for the user to smoke while working. ATTENTION! ELECTRIC CURRENT Check the correct voltage as indicated on the 400V motor nameplate.
-
Page 17: Handling And Installation
VERS. 2022.11.14 CWT 450_MAN_EN 4 - HANDLING AND INSTALLATION TRANSPORTATION BY TRUCK Due to its particularly sturdy monolithic structure, the machine can be easily transported without any disassembly operations; however, it is important to pay attention to the following rules: –... -
Page 18: Preliminary Checks
VERS. 2022.11.14 CWT 450_MAN_EN 4.3 PRELIMINARY CHECKS Before inserting the power plug, you need to: - Place the machine on a stable and level surface to ensure optimal support. - Check that the state sharpness of the cutting disc is in good condition conditions. - The blade must be free of cracks or cracks have all teeth at the same length;... -
Page 19: Starting And Stopping
VERS. 2022.11.14 CWT 450_MAN_EN 5 - STARTING AND STOPPING STARTING AND STOPPING THE MACHINE The switch is placed in a convenient position and accessible from the operator's workplace. It is of the motor protection type with thermal protection, against current surges and with release coil in the absence of voltage. -
Page 20: Instructions For Using The Electrical Equipment
VERS. 2022.11.14 CWT 450_MAN_EN INSTRUCTIONS FOR USING THE ELECTRICAL EQUIPMENT Please observe the following warnings: Do not operate the appliance if the power cable, motor cable or switch show visible damage. Turn off the switch before carrying out any maintenance, adjustment or repair work and unplug the power cord from the socket. -
Page 21: Anomalies And Remedies
VERS. 2022.11.14 CWT 450_MAN_EN 5.3 ANOMALIES AND REMEDIES ANOMALY POSSIBLE CAUSE REMEDY The engine does not Bad connection Check the connection start after pressing the No mains voltage Check the mains voltage start button The motor protection has tripped Start the engine again after a sufficient cooling period (when the engine is no longer hot) After the drive... -
Page 22: Blade Cover Cap
VERS. 2022.11.14 CWT 450_MAN_EN ANOMALY POSSIBLE CAUSE REMEDY After switching off, the Electronic brake adjustment is not Change the position of the flywheel of the circular ideal jumper or the potentiometer on blade is braked too the electronic brake until you fast or too much have an ideal adjustment of the slowly exceeding 10... -
Page 23: Use Of The Machine
VERS. 2022.11.14 CWT 450_MAN_EN 6 - USE OF THE MACHINE 6.1 USE OF THE CIRCULAR SAW Wood is a not very regular material: the same piece can have more or less hard, more or less healthy areas, with irregular pattern, knots, etc. A careful examination of the piece is always necessary before putting it in the car. - Page 24 VERS. 2022.11.14 CWT 450_MAN_EN IT IS STRICTLY FORBIDDEN TO CHANGE THE DIAMETER OF THE BLADE. THE MACHINE HAS BEEN DESIGNED FOR THE EXCLUSIVE USE OF A Ø 450 mm DISC, WITH A Ø 30 mm HOLE, THICKNESS 4,4/3,0 mm. DURING WORK: DO NOT USE YOUR HANDS TO CLEAN THE WORKTOP, USE A BRUSH WITH HANDLE, OR A WOODEN CUT AND IN ANY CASE WITH THE ENGINE OFF.
-
Page 25: Use Of The Square Guide
VERS. 2022.11.14 CWT 450_MAN_EN 6.3 USE OF THE SQUARE GUIDE The machine is equipped with a parallel square to perform longitudinal cuts. After setting the measurement (ENGINE OFF), lock the square with the special locking knob (1 Fig.8). The square can be adjusted longitudinally by releasing the knob (2 Fig. 8). The square can also be used in the lowest measure by changing the position of the knob 5 (2 Fig.9). -
Page 26: Longitudinal And Side Pusher
VERS. 2022.11.14 CWT 450_MAN_EN 6.4 LONGITUDINAL AND SIDE PUSHER To avoid accidental contact and to prevent your hands from getting close to the teeth of the blade, you must use the special pushers supplied. The machine is equipped with two types of pushers: - The longitudinal pusher (Fig. -
Page 27: Extension Of The Work Bench
VERS. 2022.11.14 CWT 450_MAN_EN 6.5 EXTENSION OF THE WORK BENCH The machine is supplied with an extensible workbench that allows a support in the case of cutting long boards. If you need to cut an excessively long board, use an additional stand to be positioned on the opposite side of the operator, to accommodate the board after cutting (Fig. -
Page 28: Stability' Of The Machine (Fig 19)
VERS. 2022.11.14 CWT 450_MAN_EN 6.6 STABILITY' OF THE MACHINE (Fig 19) Fig. 19 If you have to make cuts on large panels, it is necessary to place special sliding supports next to the machine and fix the machine itself on two large axes sp. -
Page 29: Maintenance
VERS. 2022.11.14 CWT 450_MAN_EN 7 - MAINTENANCE 7.1 REPLACEMENT OF THE BELT Check the tension of the transmission belts as indicated . ATTENTION: THESE OPERATIONS MUST BE CARRIED OUT WITH THE POWER SOCKET OFF... -
Page 30: Replacement Of The Blade
VERS. 2022.11.14 CWT 450_MAN_EN 7.2 REPLACEMENT OF THE BLADE 1- Using two wrenches of 13, unscrew 2 -Remove the blade protection. and extract the screw, paying attention that the support (A), being pushed by the springs, rises. 3- Unscrew the knob (B) located under the 4- Unlock the nut using the supplied counter. -
Page 31: Braking Time
VERS. 2022.11.14 CWT 450_MAN_EN ATTENTION: Fig. 26 THESE OPERATIONS MUST BE CARRIED OUT WITH THE POWER M arcade: Blade 450 mm, SOCKET OFF hole Ø30, thickness 4.4/3 , Distance between knife and blade 3mm All models are fitted with a 450 mm, hole Ø30, thickness 4.4/3 , Z36 It is not recommended to use blades with reduction rings. -
Page 32: Description Of The Periodic Checks To Be Carried Out On The Machine Before Use
VERS. 2022.11.14 CWT 450_MAN_EN 7.4 DESCRIPTION OF THE PERIODIC CHECKS TO BE CARRIED OUT ON THE MACHINE BEFORE USE CONTROLS DESCRIPTION CHECK FREQUENCY Before using the saw, check if the machine has any damaged parts. Whenever the machine is used Before starting work, check the position of the work area: (clutter can cause personal injury) Check the direction of rotation of the blade, the teeth must... -
Page 33: 8- Tri-Phase Wiring Diagram
VERS. 2022.11.14 CWT 450_MAN_EN 8- TRI-PHASE WIRING DIAGRAM... -
Page 34: Customer Service
VERS. 2022.11.14 CWT 450_MAN_EN Customer service When ordering spare parts, please mention: The serial number (7 digits). The code of the part. The exact denomination. The number of parts required. The delivery address. Please indicate clearly the means of transportation required such as "express" or "by air". Without specific instructions, we will forward the parts through the means which seem appropriate to us --- but which is not always the quickest way. -
Page 35: Spare Parts
For a quick access, you can also use the QR Code shown below using your mobile phone: This electronic catalogue provides exploded views and spare parts lists for different machines designed by Norton Clipper so you can find references you need. Guarantee can be claimed and technical support obtained from your local distributor where... - Page 36 VERS. 2022.11.14 CWT 450_MAN_EN...
