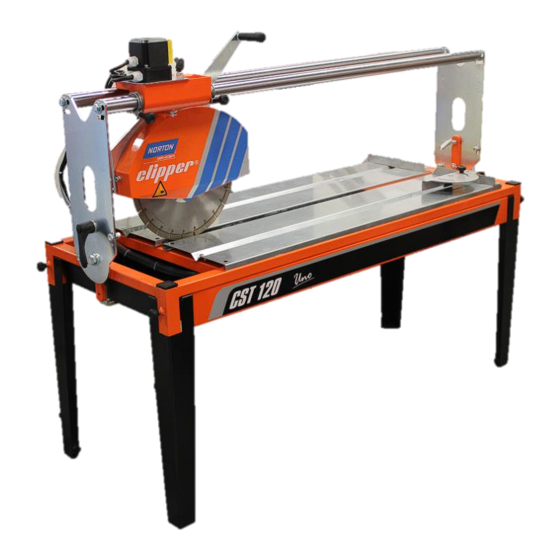

Norton Clipper CST 120 UNO Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Norton Clipper Manuals
  4. Saw
  5. CST 120 UNO
  6. Operating instructions manual

Norton Clipper CST 120 UNO Operating Instructions Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CST 120 UNO
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CST 120 UNO and is the answer not in the manual?

Questions and answers

Related Manuals for Norton Clipper CST 120 UNO

Summary of Contents for Norton Clipper CST 120 UNO

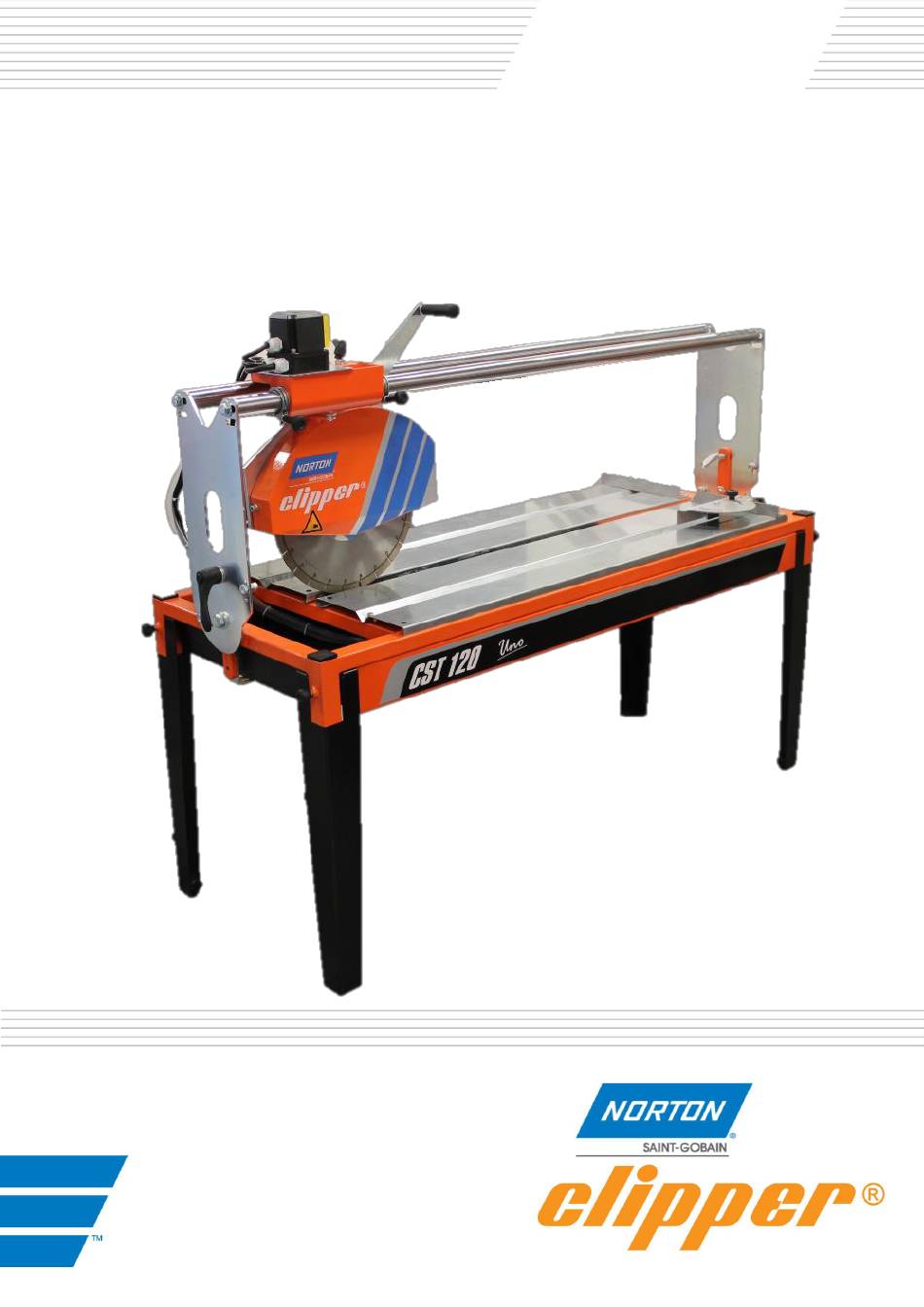

  • Page 1 CST 120 UNO OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS.2016.01.12 CST 120 Uno_MAN_EN...
  • Page 3 SAINT - GOBAIN ABRASIVES S.A. 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that this product: Masonry saw: CST 120 Uno 230V - 350MM -2.2 KW - 2800RPM 70184601846 is in conformity with the following directives:  "MACHINES" 2006/42/CE ...
  • Page 4 VERS.2016.01.12 CST 120 Uno_MAN_EN...

  • Page 5: Table Of Contents

    VERS.2016.01.12 CST 120 Uno_MAN_EN CST 120 Uno: OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 BASIC SAFETY INSTRUCTIONS ....................6 1.1 Symbols ..........................6 1.2 Machine plate .......................... 7 1.3 Safety instructions for particular operating phases ............7 2 MACHINE DESCRIPTION ......................8 2.1 Short description ........................

  • Page 6: Basic Safety Instructions

    CST 120 Uno_MAN_EN 1 BASIC SAFETY INSTRUCTIONS The CST 120 UNO is exclusively designed for the cutting of abrasive materials with NORTON diamond blades, mainly on construction sites. Uses other than the manufacturer's instructions shall be considered as contravening the regulations.

  • Page 7: Machine Plate

    Machine with electric motor  Turn off the power of the CST 120 UNO and disconnect it from the network before any work on the machine itself.  Avoid contact of electrical connections with water projections or moisture.

  • Page 8: Machine Description

    2.1 Short description CST 120 UNO type Masonry saw is a machine with fixed table and mobile head. Robust and powerful, it allows precise cuts in a wide variety of building materials. It can be used on construction and also on industrial sites.

  • Page 9: Layout

    VERS.2016.01.12 CST 120 Uno_MAN_EN 2.3 Layout Frame (1) Jig-welded steel construction, the frame is robust and resistant. The side posts of the machine ensure that the rail is parallel to the table. The rails (4) assembly can also be tilted to 45º to make bevel cuts.
  • Page 10 VERS.2016.01.12 CST 120 Uno_MAN_EN allows easy access to shaft for inspection and blade replacement when motor is switched off, while fully protecting the blade when in operation. An arrow on the blade guard indicates the direction of the blade rotation. Emergency stop button (5) The red button stops the motor.
  • Page 11 VERS.2016.01.12 CST 120 Uno_MAN_EN...

  • Page 12: Technical Data

    VERS.2016.01.12 CST 120 Uno_MAN_EN 2.4 Technical data Code CST120 Uno Description 230V Power 2,2 kW Voltage 230V 1~ Motor protection IP 54 Sound pressure level 73,5 dB (A) (selon ISO EN 11201) Sound energy level 88,5 dB (A) (selon ISO EN 3744) Cutting length 1200 mm Max.

  • Page 13: Statement Regarding The Vibration Emission

    Tool used Modèle / code vibration emission at Model / code Duo Granit CST 120 UNO / 70184601846 <2.5  The vibration value is lower and does not exceed 2.5 m / s.  Values determined using the procedure described in the standard EN 12418.

  • Page 14: Statement Regarding Noise Emission

    73.5 dB(A) 2.5 dB(A) 88.5 dB(A) 4 dB(A) CST 120 Uno / 70184601846  Values determined using the procedure described in the standard EN 12418.  The measurements are made with new machines. Actual values may vary with site conditions, in terms of: ...

  • Page 15: Assembly Andcommissioning

    VERS.2016.01.12 CST 120 Uno_MAN_EN 3 ASSEMBLY ANDCOMMISSIONING The machine is delivered fully equipped. It is ready for operation when you mount the diamond blade, the handles and the conveyor cart and after you connect to the appropriate power supply. 3.1 Tool assembly Only NORTON blades should be used.

  • Page 16: Water Cooling System

    VERS.2016.01.12 CST 120 Uno_MAN_EN 3.5 Water cooling system  Fill the water pan with clean water to approximately 1cm from top (ensure that bottom of pump is fully immersed in water).  Open water-tap at blade guard (note that handle on water-tap should be in line with water-flow). ...

  • Page 17: Transport And Stocking

    VERS.2016.01.12 CST 120 Uno_MAN_EN 4 TRANSPORT AND STOCKING 4.1 Securing for transport Before transporting or lifting the machine, always remove the blade and empty the water pan. Also lock the cutting head on the rail. To do so, move the head in the middle of the rail and tighten the knob screw until the cutting head is secured on the rail.

  • Page 18: Operating The Machine

    5.2 Cutting material To use the CST 120 UNO correctly, you must face it with one hand on one of the 3 handles of the cutting head, and the other ready to shut the machine down in case of emergency. Always keep your hands away from the moving blade.

  • Page 19: General Advice For The Cutting

    CST 120 Uno_MAN_EN 5.3 General advice for the cutting  The CST 120 UNO is designed to cut materials until 80kg and with maximal dimensions of 1200x660x120mm.  The width of the table and of the material can be increased by adding a table extension.

  • Page 20: Maintenance And Servicing

    VERS.2016.01.12 CST 120 Uno_MAN_EN 6 MAINTENANCE AND SERVICING To ensure a long-term quality from the cutting with the CST 120 UNO, please follow the maintenance plan below: Visual control (general aspect, watertightness) Whole machine Clean Flange and blade fixing devices...

  • Page 21: Faults: Causes And Cures

    VERS.2016.01.12 CST 120 Uno_MAN_EN 7 FAULTS: CAUSES AND CURES 7.1 Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician.

  • Page 22: Circuit Diagram

    VERS.2016.01.12 CST 120 Uno_MAN_EN 7.3 Circuit diagram 230V Motor...
  • Page 23 VERS.2016.01.12 CST 120 Uno_MAN_EN Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well:...
  • Page 24 VERS.2016.01.12 CST 120 Uno_MAN_EN www.construction.norton.eu Saint-Gobain Abrasives 190, Bd. J. F. Kennedy L-4930 BASCHARAGE LUXEMBOURG Tel: ++352 50401-1 Fax: ++352 501633 e-mail: sales.nlx@saint-gobain.com...
