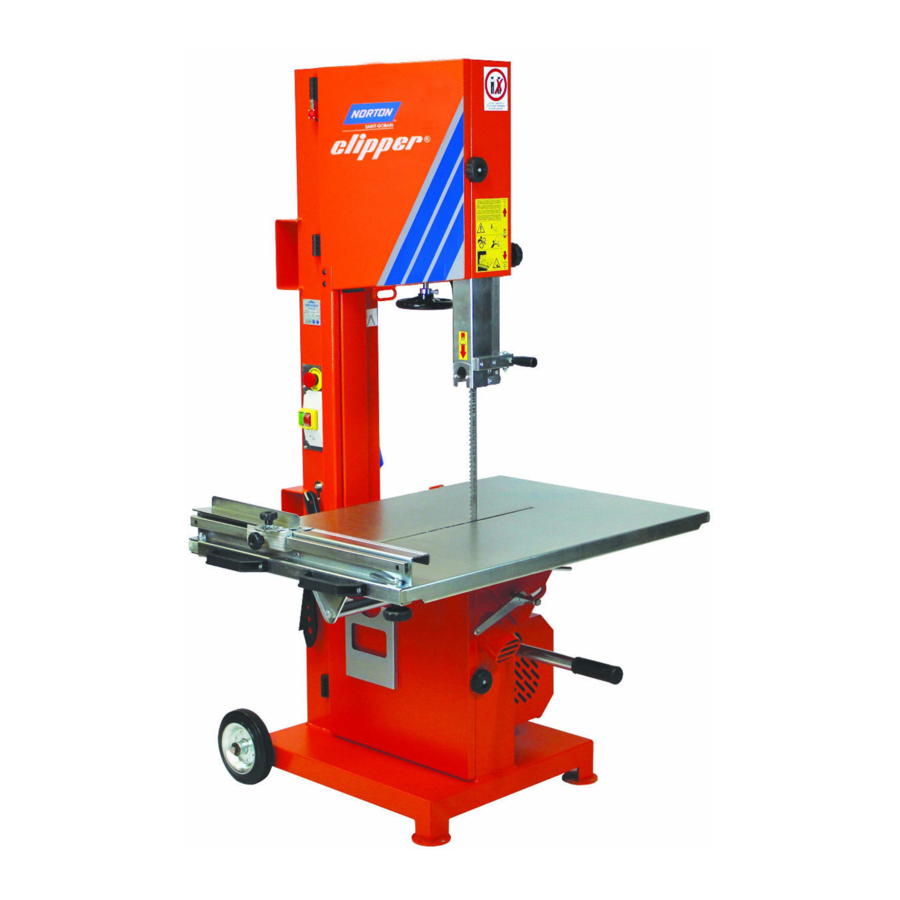

Norton Clipper CB 651 Operating Instructions Manual
  1. Manuals
  2. Brands
  3. Norton Clipper Manuals
  4. Saw
  5. CB 651
  6. Operating instructions manual

Norton Clipper CB 651 Operating Instructions Manual

Translation of the original instructions
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CB 511/ CB 651
OPERATING INSTRUCTIONS
Translation of the original instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CB 651 and is the answer not in the manual?

Questions and answers

Related Manuals for Norton Clipper CB 651

Summary of Contents for Norton Clipper CB 651

  • Page 1 CB 511/ CB 651 OPERATING INSTRUCTIONS Translation of the original instructions...
  • Page 2 VERS.2017.11.21 CB511_CB 651_MAN_EN...
  • Page 3 190, BD. J. F. KENNEDY L-4930 BASCHARAGE Declares that this product: Band sawing machine (code) CB 651 230V 70184602676 CB 511 230V 70184694702 is in conformity with the following Directives:  "MACHINES" 2006/42/CE  "LOW VOLTAGE" 2014/35/UE  "ÉLECTROMAGNÉTIC COMPATIBILITY" 2014/35/CE  "NOISE" 2000/14/CE...
  • Page 4 VERS.2017.11.21 CB511_CB 651_MAN_EN...

  • Page 5: Table Of Contents

    VERS.2017.11.21 CB511_CB 651_MAN_EN CB 511 / CB 651: OPERATING INSTRUCTIONS TABLE OF CONTENTS 1 – BASIC SAFETY INSTRUCTIONS ..........................6 Symbols ..................................6 Machine plate ................................8 Safety instructions for particular operating phases ....................8 Safety regulations ..............................9 MACHINE DESCRIPTION ............................10 Short description ..............................

  • Page 6: Basic Safety Instructions

    1 – BASIC SAFETY INSTRUCTIONS DESCRIPTION DU PRODUIT: The CB 511 /CB 651 is exclusively intended for the cut of concrete blocks cellular and similar using its blade NORTON, mainly on building site. Uses other than the manufacturer's instructions shall be considered as contravening the regulations.
  • Page 7 VERS.2017.11.21 CB511_CB 651_MAN_EN COMPULSORY! It is compulsory to use earmuffs when using the machine. COMPULSORY! It is compulsory to wear safety shoes when using the machine to protect against pieces from falling onto your feet. COMPULSORY! It is compulsory to wear work gloves to protect yourself against chips and splinters. COMPULSORY! It is compulsory to wear work goggles or protective visor when working to protect against chips and splinters.

  • Page 8: Machine Plate

    VERS.2017.11.21 CB511_CB 651_MAN_EN 1.2 Machine plate Important data can be found on the following plate located on the machine: Safety standard Type Machine Machine Model Year of production Serial number Weight Symbols Voltage Intensity Frequency Power 1.3 Safety instructions for particular operating phases The machine has residual risks that cannot realistically be eliminated by the manufacturer.

  • Page 9: Safety Regulations

    VERS.2017.11.21 CB511_CB 651_MAN_EN If the band breaks, even if the stop control is engaged, the upper flywheel is not braked. To avoid all risks always wait until the flywheel is completely stopped. It is always recommended to properly put the machine in place to increase its solidity and prevent useless and damaging vibrations, even though the machine is rigid and massive and offers the utmost guarantee in terms of solidity and sturdiness.

  • Page 10: Machine Description

    VERS.2017.11.21 CB511_CB 651_MAN_EN  The machine should only be used by adult and competent persons (a training course is recommended for those who have never used the machine).  Work procedures are safe when the following instructions are complied with. ...
  • Page 11 VERS.2017.11.21 CB511_CB 651_MAN_EN The structure (3) is out of welded electro sheet steel and the frame (4) carrying is built out of steel tube, painted with synthetic enamel RAL 2004. The materials employed are not harmful to the machine operator nor to the environment. The machine is equipped with a safety switch (5), located on the cover (6), which cuts off the supply when the machine is under operation.

  • Page 12: Technical Data

    Useful cut - height 50 cm Useful cut - width 42 cm Useful cut - length 66 cm Sliding table 71x106 cm Flywheel diameter: 440 mm Norton Clipper blade 27x3850 mm Wheels Ø200 mm Weight 203 Kg. Single-phase 230V 1.85 Kw...
  • Page 13 Useful cut - height 64,5cm Useful cut - width 42 cm Useful cut - length 66 cm Sliding table 71x106 cm Flywheel diameter: 440 mm Norton Clipper blade 34*4120 mm Wheels Ø200 mm Weight 207 Kg. Single-phase 230V 1.85 Kw...

  • Page 14: Statement Regarding The Vibration Emission

    Machine Measured value of vibration Uncertainty K Tool used Model / code emission at m/s Model / code CB 511 230V 70184694702 <2.5 Original Band Saw CB 651 230 V 70184602676  The vibration value is lower and does not exceed 2.5 m / s.

  • Page 15: Statement Regarding Noise Emission

    Pressure level (Sound level (Sound power level Pressure level EN ISO 11201 NF EN ISO 3744 NF EN ISO 3744) EN ISO 11201) CB 511 230V 70184694702 80 dB(A) 2.5 dB(A) 93 dB(A) 4 dB(A) CB 651 230 V 70184602676 ...

  • Page 16: Assembly And Commissioning

    VERS.2017.11.21 CB511_CB 651_MAN_EN 3 ASSEMBLY AND COMMISSIONING The machine is delivered fully equipped (although without diamond blade). It is ready for operation when you mount the diamond blade, the handles and the conveyor cart and after you connect to the appropriate power supply.

  • Page 17: Tool Assembly

    VERS.2017.11.21 CB511_CB 651_MAN_EN Tool assembly The machine is sold ready to use with a blade already set and adapted to the machine. For any intervention, follow the instructions given in the part “MAINTENANCE”. Electrical connections Check that:  The voltage/phase supply corresponds to the information indicated on the motor plate. ...

  • Page 18: Transport

    VERS.2017.11.21 CB511_CB 651_MAN_EN 4 TRANSPORT 4.1 Security The machine, given its exceptionally sturdy enbloc structure, can be easily shipped without requiring any disassembly operation: however it is important to keep to the following precautions:  Make sure that hoisting or anchor cables do not rest on fragile parts, on protective covers or on tubes that protect the electrical system;...

  • Page 19: Stockage

    VERS.2017.11.21 CB511_CB 651_MAN_EN 4.4 Stockage The storage site must be clean, dry and at a constant temperature. If the machine is not going to be used for a long period, please take the following measures:  Completely clean the machine ...

  • Page 20: Operating The Machine

    VERS.2017.11.21 CB511_CB 651_MAN_EN OPERATING THE MACHINE 5.1 Positioning the machine (Pic.4) An at least 1.5 meter space must be left around the machine for passage of persons and property without the danger of blows and to permit normal maintenance procedures. Any area inside and/or in the vicinity of a machine where the presence of an exposed person is a risk for his health and safety is to be considered a dangerous area.

  • Page 21: Start-Up And Stoppage

    VERS.2017.11.21 CB511_CB 651_MAN_EN 5.3 Start-up and stoppage 5.3.1 Preliminary checks It is prohibited to use the machine if any guards or safety devices are missing or inactive CAUTION: Before starting the blade make sure that no other operators or various objects are in the vicinity of the machine.
  • Page 22 VERS.2017.11.21 CB511_CB 651_MAN_EN 5.3.2 Starting and stopping the machine Properly plug in the EEC Standard electric plug. The switch is located in a comfortable position, accessible from the operator’s workplace. The switch is an overload cutout type with circuit breaker and power failure release coil.
  • Page 23 VERS.2017.11.21 CB511_CB 651_MAN_EN During work: do not use your hands to clean the work surface, use a brush with a handle or a piece of wood. Caution ! The machine must only be used by skilled persons who have been adequately qualified and trained.

  • Page 24: Sequences For Cutting Gasbeton

    VERS.2017.11.21 CB511_CB 651_MAN_EN 5.4 Sequences for cutting GASBETON START UP – CUTTING PHASE Pressing the green push-button starts the blade moving. The blade stops by itself at the end of the table’s travel. The green push-button must be reset after each cut. WARNINGS FOR INTERMEDIATE CUTS The blade does not stop by itself when an intermediate cut is made on a piece.
  • Page 25 VERS.2017.11.21 CB511_CB 651_MAN_EN IT IS FORBIDDEN TO CUT: Stone, rocks, marble, granite, ceramics, concrete blocks, iron, etc. IMPORTANT For maximum machine durability and cutting precision always make the first cuts with very low pressure levels, increasing pressure slowly until you reach the optimum level based on the type of material to be cut.

  • Page 26: Operating Requirements

    VERS.2017.11.21 CB511_CB 651_MAN_EN 5.5 Operating requirements Maximum piece dimensions are:  Height 50 cm, length 66 cm, useful cutting width 42 cm. (CB511)  Height 64.5 cm, length 66 cm, useful cutting width 42 cm. (CB611) The machine must not be used in the following environment conditions: ...

  • Page 27: Square For Angle Cuts (Pic. 11)

    VERS.2017.11.21 CB511_CB 651_MAN_EN 5.7 Square for angle cuts (Pic. 11) This square can be placed either to the right or to the left of the blade with a simple procedure. Just loosen knob (p), pull out aluminum support (o) and thread it onto the cross guide tube (u) to the right of the blade.

  • Page 28: Maintenance

    VERS.2017.11.21 CB511_CB 651_MAN_EN 6 - MAINTENANCE CAUTION ! All adjustment and maintenance procedures must be done with the machine stopped, the motor off and the power supply cut off! It is prohibited to tamper with or remove guards. Pay attention to your hands: rotating blade ! It is prohibited to remove residual materials and dust while the blade is moving.

  • Page 29: Blade Alignment

    VERS.2017.11.21 CB511_CB 651_MAN_EN 6.2 Blade alignment If the blade is not correctly positioned during rotation it must be adjusted using screw (1, Pic.16) after loosening lock nut (2, Pic.16). Turning it counterclockwise increases tooth protrusion. Turning it clockwise decreases tooth protrusion. It is not necessary to loosen the blade after use. 6.3 Blade guide The two blade guides are equipped with widia inserts (Pic.17-18).

  • Page 30: Cleaning And Lubrication

    VERS.2017.11.21 CB511_CB 651_MAN_EN 6.4 Cleaning and lubrication Caution ! All adjustment and maintenance procedures must be performed with the machine off and power disconnected! It is prohibited to remove or tamper with the guards. It is prohibited to clean the blade while it is moving. Periodically clean the machine and remove deposits from the work table, lubricate the upper flywheel stretching guide, lubricate the blade-guide rod and all joints to prevent rust from forming.

  • Page 31: Motor

    VERS.2017.11.21 CB511_CB 651_MAN_EN 7 – MOTOR 7.1 Electric motor Engine of a power of 1.85 kW. The machine is equipped with a thermal protection which turn off the engine in the event of overload and this in two different situations: a) Stop little time after the interlocking The connection is not made correctly or a phase is not under tension.

  • Page 32: Faults : Causes And Cures

    VERS.2017.11.21 CB511_CB 651_MAN_EN 8 – FAULTS : CAUSES AND CURES 8.1 Fault-finding procedures Should any fault occur during the use of the machine, turn it off, and isolate it from the electrical supply. Any works dealing with the electrical system or supply of the machine can only be carried out by a qualified electrician.

  • Page 33: Customer Service

    VERS.2017.11.21 CB511_CB 651_MAN_EN 8.4 Customer service When ordering spare parts, please mention:  The serial number.  The code of the part.  The exact denomination.  The number of parts required.  The delivery address.  Please indicate clearly the means of transportation required such as "express" or "by air". Without specific instructions, we will forward the parts through the means which seem appropriate to us --- but which is not always the quickest way.
  • Page 34 VERS.2017.11.21 CB511_CB 651_MAN_EN...
  • Page 35 VERS.2017.11.21 CB511_CB 651_MAN_EN...
  • Page 36 VERS.2017.11.21 CB511_CB 651_MAN_EN Guarantee can be claimed and technical support obtained from your local distributor where machines, spare parts and consumables can be ordered as well:...
