- Page 1 AI Dash Cam User Operating Manual Document Ref. No. : DN3515 Version No. : 1.1.0 Document Date : May 2023...
-
Page 2: Table Of Contents
RIGGER STATUS ................. 24 5.4 D RIVER LERT UTTON ETUP ......................26 6 AI DASH CAM CONFIGURATION AND SETTINGS ................. 26 6.1 C ONFIGURATION VERVIEW ......................27 6.2 D OWNLOADING ........................38 7 AI DASH CAM INSTALLATION INSTRUCTIONS ................39 7.1 AI D... - Page 3 8.4 C ........................42 ABLING IAGRAM 9 CUSTOMER LIMITED WARRANTY ....................43 10 CONTACT INFORMATION......................45 APPENDIX ............................46 11.1 R ADAS AI C EQUIREMENTS OF SETTING IN ALIBRATION BY EYES ............. 46 11.2 R AI C EQUIREMENT OF SETTING IN...
-
Page 4: Introduction

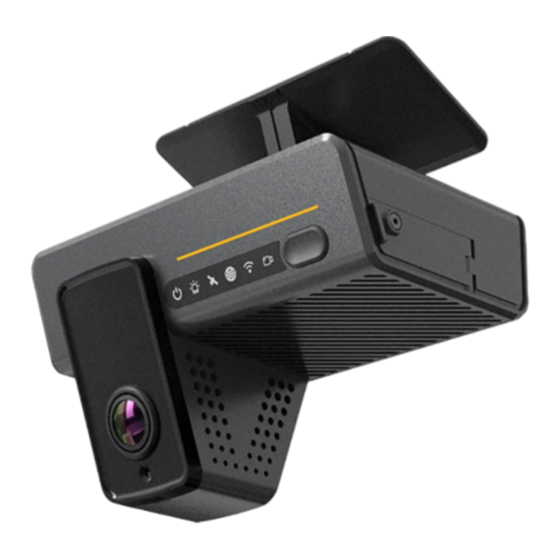

AI Dash Cam User Operating Manual 1 Introduction The Gatekeeper Systems AI Dash Cam DVR is an AI based dashcam that helps drivers to identify dangerous driving events and unsafe driving behaviors. It supports sending real-time reminders to the drivers to avoid risks and uploads the events to fleet management platform for driver training. - Page 5 AI Dash Cam User Operating Manual Alarm Indicator Name Status description OFF: Indicates power off Power indicator Green light always: Indicates power supply is normal OFF: Indicates there is no alarm Alarm indicator Red light blinks three times: Indicates an alarm is generated...
- Page 6 AI Dash Cam User Operating Manual ≥48db Lens mount Built-in lens Wide Dynamic Range (WDR) Digital WDR Backlight Compensation Supported Camera Parameters of driver facing camera (supports DSM) Sensor 1/2.7" 5M pixel CMOS Sensor Electronic Shutter 1/30 Second - 1/100000 Second Lens Focal length: 2.2mm...
-
Page 7: Micro Sd Card
Micro SD Card (in a Windows environment), click CANCEL. Reformatting the SD Card will delete all recorded data, and will require that the Micro SD card be re-formatted in the AI Dash Cam format before video recording can occur. -
Page 8: 'Quick Start' Guide
2 ‘Quick Start’ Guide The Quick Start guide is intended to get you up and running with your new AI Dash Cam system and assumes that the device has been installed in your vehicle by a Gatekeeper Installation Technician. If you prefer to mount the device yourself, please refer to the ‘AI Dash... -
Page 9: Step 3: Connecting To The Ai Dash Cam
(play.google.com) Once the G4 Connect app is installed, start your vehicle to power on the AI Dash Cam. After the Wi-Fi light turns green, using your Android device, search for the broadcast network ID (e.g. 000035000AE6) from its Wi-Fi settings list, enter the password and connect to this network. -
Page 10: Viewing Video With G4 Connect
AI Dash Cam User Operating Manual Start your vehicle to power on the AI Dash Cam device. Using a PC or laptop with an active Wi-Fi connection, search for and connect to your AI Dash Cam’s broadcast network ID (e.g. -
Page 11: Status
3.1 The ‘General’ tab – Your Device’s Status Device status settings can be viewed by using the ‘General’ tab in the G4 Connect app. This tab provides insight into the basic operating information for your AI Dash Cam device, and includes technical details such as: Basic Info: The Current / Server / Sensor / Input &... -
Page 12: The 'Playback Tab - Managing Recorded Video
AI Dash Cam User Operating Manual 3.3 The ‘Playback’ tab – Managing Recorded Video Video playback, or viewing data that has been previously recorded, is done through the ‘Playback’ tab. When opening the tab, you will be presented with a calendar view of all the videoclip data recorded to the internal Micro SD card. -
Page 13: Using 'Video Export' To Export A Video Clip
AI Dash Cam User Operating Manual Select Storage Type the Stream Type and Channel to filter the video data, and then click on ‘Next’ to open the video playback timeline. By moving the playback slider (located near the bottom of the panel) you can specify where your video playback will begin. -
Page 14: Tab - Configuring Your Device
AI Dash Cam User Operating Manual bar appears above the recorded video (green bar). This indicates the start time and duration of the video to be exported. Click on ‘End Time’ to complete your selection. Click on ‘Video Export’ completes the export process. -
Page 15: Viewing Video With Google Chrome (View Ipc)
AI Dash Cam User Operating Manual 4 Viewing Video with Google Chrome (View IPC) A Google Chrome web browser can be used to access the ‘View IPC’ interface. The View IPC interface shares many of the same features as the G4 Connect app, and includes four tabs: ‘Playback’, ‘Live view’, ‘Log’, and ‘Config’. - Page 16 AI Dash Cam User Operating Manual Play: Start the video in normal speed ▪ Pause: Stop the recording for a short time ▪ Stop: To prevent the recording from continuing ▪ Slow: Playback the videoclip in reverse. Each time the button is clicked will increase ▪...
-
Page 17: The 'Config' Tab - Configuring Your Device
AI Dash Cam User Operating Manual The Record List view also allows you to backup any selected video (to the internal SD card). 4.2 The ‘Config’ tab – Configuring Your Device For details on configuring the device using the ‘Config’ tab refer to the ‘AI Dash Cam... -
Page 18: Tab - Viewing And Managing Device Logs
4.4 The ‘Log’ tab – Viewing and Managing Device Logs The View IPC log tab provides a view into the log information being collected by your AI Dash Cam device. Log information can be useful for tracking the operation of a vehicle or reviewing any alarms (events) encountered while the vehicle is in operation. -
Page 19: Ai Dash Cam Alarm Setting
Click the ‘Export’ button will save the log information displayed to a text file (*.txt) format. 5 AI Dash Cam Alarm Setting The Gatekeeper systems also supports Veyes app in alarm setting. For more details on calibrating the device using Veyes, please refer to the ‘Appendix’ section at the end of the manual. -
Page 20: Requirements Of Adas Setting In Ai Calibration
Calibration Mode Normal Mode 5.1 Requirements of ADAS setting in AI Calibration 1. When you have AI Dash cam connected to G4Connect, go to Preview, click on ‘AI Calibration’ for calibration selection. 2. Select on ‘ADAS’ for calibration. 20 of 51... - Page 21 AI Dash Cam User Operating Manual 3. Click on ‘Calibration’ in Channel1 to move to next step. 4. Select all the boxes and click on ‘next’. 5. Input the installation measurements and click on ‘next’. 21 of 51...
- Page 22 AI Dash Cam User Operating Manual 6. Check the image and click on ‘next’. Note: Signals are optional connected to the AI Dashcam. It is mandatory to checkmark the box “Did you connect the vehicle left/right turn signal to MDVR,” even when signals are not connected to AI Dashcam in order to complete calibration.
-
Page 23: Requirement Of Dsm Setting In Ai Calibration
AI Dash Cam User Operating Manual 5.2 Requirement of DSM setting in AI Calibration 1. When you have AI Dashcam connected to G4Connect, go to Preview, click on ‘AI Calibration’ for calibration selection. (Double-tap the driver channel to enter the main stream full screen) 2. -
Page 24: Adas Event Monitor Alarm Trigger Status
AI Dash Cam User Operating Manual 4. In the Driver Position page, choose ‘Left-hand drive’ or ‘Right-hand drive’ option, then click on ‘Save’. 5.3 ADAS Event Monitor Alarm Trigger status Type Icons Distraction Alarm Trigger Action: One hand driving, lean over the steering wheel Sound Alert: A “beep”... - Page 25 AI Dash Cam User Operating Manual Display Instructions: 1. Distance more than 2.5s Displays the green vehicle icon when a vehicle is detected in the front. 2. Distance between 1.1 ~ 2.5s Displays the green vehicle icon and the time between the two cars.
-
Page 26: Driver Alert Button: Setup
232-1 Driver Alert 57600 6 AI Dash Cam Configuration and Settings The AI Dash Cam supports a wide range of configurable preferences that can be used to capture information and configure the device to your specification. AI Dash Cam configuration parameters are accessed using the ‘Preferences’ tab (for the G4 connect app), or the ‘Config’... -
Page 27: Configuration Overview
Collection – used to configure the behaviour of sensors. ▪ Alarm – used to configure and define the behaviour of ▪ alarms. 6.1 Configuration Overview The following provides an overview of the AI Dash Cam’s configurable parameters. Basic Setups Vehicle Information and Operator Including vehicle Preferences ➔... - Page 28 AI Dash Cam User Operating Manual Mode: Week Start: Mar 2 Sunday 2:00 End: Nov 1 Sunday 2:00 Device Behaviour on Vehicle Ignition Startup Specifying timer, ignition ▪ and light off time. Preferences ➔ Basic Setup ➔ Startup ➔ ON/OFF...
- Page 29 AI Dash Cam User Operating Manual Enable Network: Auto Detect Register Server IP: Leave Blank Register Server port: TCP: 5556 TLS: 6556 Media Server IP: Leave Blank Media Server port: TCP: 5556 TLS: 6556 And specifying ports for ▪ use.
- Page 30 AI Dash Cam User Operating Manual Communication ▪ protocols Preferences Basic Setup Network Communication ➔ ➔ ➔ Module Default: Server Type: No Service Network Type: Mix Dialing Parameter: APN: Leave Blank User Name: Leave Blank Password: Leave Blank Number: Leave Blank...
- Page 31 AI Dash Cam User Operating Manual Channel: Enable 1,2,3,4 Preview Audio: Disable Auto Loop Enable: Disable Options to enable/ ▪ disable different OSD Preferences Surveillance Live View Live OSD ➔ ➔ ➔ Default: Date/Time: Enabled Vehicle Plate: Disabled Alarm /Event: Enabled...
- Page 32 AI Dash Cam User Operating Manual Mode and Type for Sub Channel Enable Resolution Frame Quality Encode Audio Rate Standard Stream, 1 (Best) H264 Always Audio 1 (Best) H264 Always Audio 1 (Best) H264 Always Audio 1 (Best) H264 Always...
- Page 33 AI Dash Cam User Operating Manual Video Parameters for Preferences Surveillance Image Setup Video ➔ ➔ ➔ ▪ each channel Parameters Default: Channel: Channel1 BRI:31 COL:31 CON:31 SAT:31 SHA:31 Day/Night Mode: Auto Mirror/Filp: OFF WDR: Auto 2DNR: Auto 3DNR: Auto...
- Page 34 AI Dash Cam User Operating Manual Serial ports to enable Preferences Collection General Serial Port ➔ ➔ ➔ ▪ sensor connectivity. Default: 232-1 RWATCH 57600 Serial ports to enable ▪ sensor connectivity. Preferences ➔ Collection ➔ General ➔ Network Default:...
- Page 35 AI Dash Cam User Operating Manual ‘Alarm’ parameters may be set through the ‘Preferences’ tab, and include: Configure Input / Output Alarms (e.g.) ‘BRAKE’, ‘LEFT ▪ Preferences ➔ Alarm ➔ Base ➔ IO Alarm TURN’, ‘RIGHT TURN’, Default: ‘REVERSE’, etc.
- Page 36 AI Dash Cam User Operating Manual Preferences Alarm Video Privacy Mode ➔ ➔ ➔ Default: Name Enable Alarm Trigger Linkage Type Privacy Disabled Alarm Setup Setup Mode Advanced Configure G Sensor ▪ Alarms Preferences Alarm Advanced G Sensor ➔ ➔...
- Page 37 AI Dash Cam User Operating Manual Configure Auxiliary ▪ Dashcam Alarms Preferences ➔ Alarm ➔ AI App ➔ Auxiliary Dashcam Default: Name Enable Alarm Trigger Linkage Alarm Type Capture Fatigued Disabled Alarm Setup Setup Setup Driving No Driver Disabled Alarm...
-
Page 38: Downloading Data
Micro SD card. Failure to power down the device may result in data corruption and the loss of videoclip information. Connecting a portable USB drive (“thumb drive”) to the AI Dash Cam via the Mini USB to ▪... -
Page 39: Ai Dash Cam Installation Instructions
Ensure that the product is mounted in a suitable location which does not exceed temperature ranges during normal operations. The AI Dash Cam is designed for interior use only. Do not install the device in areas that ▪ are exposed to excessive moisture. -
Page 40: Sensor Connections
Users will connect to the AI Dash Cam using Wi-Fi on their iOS or Android device utilizing ▪ the G4 Connect App. The Wi-Fi will be active on the AI Dash Cam for two minutes after booting up. Look for ▪ an SSID: ST-xxxxxxxx. Enter the following password when prompted: 30131127 When connecting wirelessly through the G4 Connect™... -
Page 41: Sensor Cabling
AI Dash Cam User Operating Manual 8.3 Sensor Cabling The CAB000548 sensor cable or CAB000549 sensor cable connects to the power supply box. 41 of 51... -
Page 42: Cabling Diagram
AI Dash Cam User Operating Manual 8.4 Cabling Diagram 42 of 51... -
Page 43: Customer Limited Warranty
Gatekeeper Systems Installation and Operating Manual. This warranty does not apply to any damage to the Gatekeeper Systems product that is the result of improper maintenance or to any Gatekeeper Systems’ product that has been altered or modified so as to adversely affect the products’... - Page 44 AI Dash Cam User Operating Manual CANADA OPERATIONS: Gatekeeper Systems Inc. 301-3 1127 Wheel Avenue Abbotsford BC V2T 6H1 Tel. 1.604.864.6187 Fax. 1.604.864.8490 Toll Free (N.A.) 1.888.666.4833 44 of 51...
-
Page 45: Contact Information
Tel - 1 604 864 6187 Fax - 1 604 864 8490 Toll Free - 1 888 666 4833 SALES & TECHNICAL SUPPORT For technical support, contact Gatekeeper’s Customer Care Group at Toll Free (N.A.) 1-888- 666-4833 or email customercare@gatekeeper-systems.com Gatekeeper also provides additional online training and support tools at: https://www.gatekeeper-systems.com/support/... -
Page 46: Appendix
The calibration line help installer identifies the installation position. Normal Mode Calibration Mode 11.1 Requirements of ADAS setting in AI Calibration by Veyes 1. When you have AI Dash cam connected to Veyes, go to Preview, click on ‘AI Calibration’ for calibration selection. 46 of 51... - Page 47 AI Dash Cam User Operating Manual 2. Select on ‘ADAS’ for calibration. 3. Click on ‘Calibration’ in Channel1 to move to next step. 4. Select all the boxes and click on ‘next’. 47 of 51...
- Page 48 AI Dash Cam User Operating Manual 5. Input the installation measurements and click on ‘next’. 6. Click on ‘next’. 7. Check the image and click on ‘next’. 48 of 51...
- Page 49 AI Dash Cam User Operating Manual Note: Signals are optional connected to the AI Dashcam. It is mandatory to checkmark the box “Did you connect the vehicle left/right turn signal to MDVR,” even when signals are not connected to AI Dashcam in order to complete calibration.
-
Page 50: Requirement Of
11.2 Requirement of DSM setting in AI Calibration by Veyes 1. When you have AI Dashcam connected to Veyes, go to Preview, click on ‘AI Calibration’ for calibration selection. (Double-tap the driver channel to enter the main stream full screen) 2. - Page 51 AI Dash Cam User Operating Manual 4. In the Driver Position page, choose ‘Left-hand drive’ or ‘Right-hand drive’ option, then click on ‘Save’. 51 of 51...
