- Page 1 User Manual Model ID: REMRB100CMIP...
- Page 2 REM-RB100CM IP as of the release date of this edition. Trademarks Chauvet, Chauvet Professional, the Chauvet logo, and REM are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Claims ......................Text Conventions ..................Symbols ......................Safety Notes....................2. Introduction ................Description ....................Features ......................Product Overview..................Product Dimensions ..................3. Setup ................... Mounting ....................... Orientation...................... -
Page 4: Before You Begin
Before You Begin 1. Before You Begin What Is Included • REM-RB100CM IP • 2x Clamp attachment bracket (DRB-CTC) • 2x Clamp bolt for TRUSST CTC-50HC • Quick Reference Guide Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 5: Safety Notes
Before You Begin Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. -
Page 6: Introduction

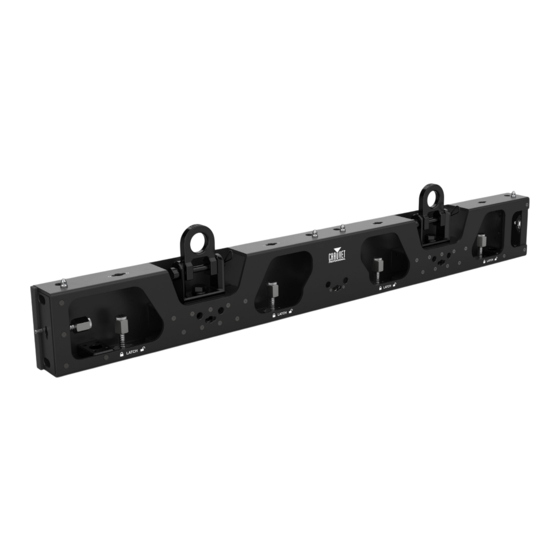

Introduction 2. Introduction Description The REM-RB100CM IP is a dual-function rig bar which can be used to hang video panels overhead and for ground-stacking purposes with the Ground Support 2 Kit. With an IP65 rating, use in combination with REM IP video panels for versatile and easy video wall setups almost anywhere. Features •... -
Page 7: Setup
Setup 3. Setup Mounting Before mounting the product, read and follow the safety recommendations indicated in the Safety Notes. Orientation Always mount this product in a safe position, making sure there is adequate room for ventilation, configuration, and maintenance. Rigging Chauvet recommends using the following general guidelines when mounting this product. -
Page 8: Clamp Attachment Bracket
To mount the REM-RB100CM IP overhead with standard Trusst clamps, follow the instructions under Removing the Hoist Rings and replace the hoist rings with the included clamp attachment brackets. For the Chauvet Professional line of mounting clamps, go to http://trusst.com/products/. Clamp Mounting clamp... -
Page 9: Stacking
Setup Stacking Stack video panels upon the REM-RB100CM IP when using with the Ground Support 2 Kit from Chauvet. Latch (x4) Vertical alignment conical (x4) Receivers (For use with Ground Support 2 Kit) TR16 screw jack (10 included with Ground Support 2 Kit) 1. -
Page 10: Stacking With Ground Support 2 Kit
Setup Stacking with Ground Support 2 Kit For more information on how to use the REM-RB100CM IP with the Ground Support 2 Kit, download the User Manual for the Ground Support 2 Kit from www.chauvetprofessional.com. Receiver Latches Latch TR16 screw jack (10 included with Ground Support 2 Kit) Ground Support 2 Kit... -
Page 11: Adjusting The Height
Setup Adjusting the Height When connected video panels aren’t aligning 100% correctly, adjusting the height of the REM-RB100CM IP hoist ring even the smallest amount can correct the issue. Turn the height adjustment bolt with an adjustable wrench to adjust the height of the hoist ring. Height adjustment bolt Adjust the height if necessary so... -
Page 12: Technical Specifications
Note: Dimensions in inches are rounded. Hanging Load Capacity Stacking Load Capacity Recommended Shackle Sizes 1,710.8 lb (776 kg) 1,752.7 lb (795 kg) 1/2”, 5/8” Ordering Product Name Item Name Item Code UPC Number REM-RB100CM IP REMRB100CMIP 23092181 781462225292 REM-RB100CM IP User Manual Rev. 1... -
