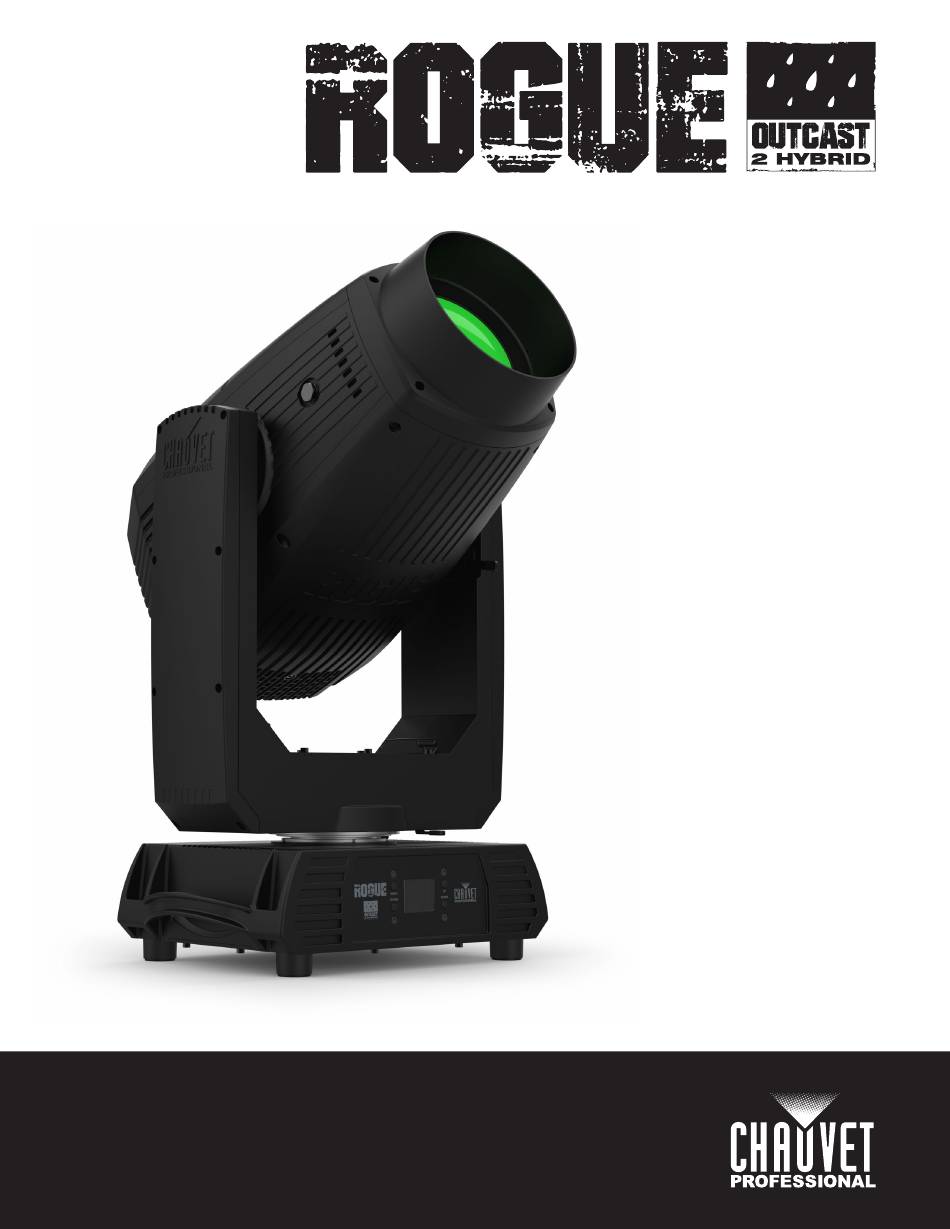

- Page 1 User Manual Model ID: ROGUEOUTCAST2HYBRID...
- Page 2 Trademarks Chauvet, Chauvet Professional, the Chauvet logo, Rogue, Outcast, and Rogue Outcast are registered trademarks or trademarks of Chauvet & Sons, LLC (d/b/a Chauvet and Chauvet Lighting) in the United States and other countries. Other company and product names and logos referred to herein may be trademarks of their respective companies.
-
Page 3: Table Of Contents
Table of Contents TABLE OF CONTENTS 1. Before You Begin ............... What Is Included ................... Claims ......................Text Conventions ..................Symbols ......................FCC Compliance................... Safety Notes....................Personal Safety....................Mounting and Rigging ..................Power and Wiring....................Operation ......................2. Introduction ................Description .................... - Page 4 Table of Contents Lamp On/Off ........................Lamp State at Power On....................Off Via DMX ........................On If DMX On ......................... Off If DMX Off ......................... Ignition Delay ........................Low Power Delay ......................Reset Lamp On Time...................... Maintenance Timer Interval................18 Reset Maintenance Timer ..................
-
Page 5: Before You Begin
Before You Begin 1. Before You Begin What Is Included • Rogue Outcast 2 Hybrid • 2 Omega brackets with mounting hardware • Seetronic Powerkon IP65 power cable • Quick Reference Guide Claims Carefully unpack the product immediately and check the container to make sure all the parts are in the package and are in good condition. -
Page 6: Safety Notes
Before You Begin Safety Notes Read all the following safety notes before working with this product. These notes contain important information about the installation, usage, and maintenance of this product. This product contains no user-serviceable parts. Any reference to servicing in this User Manual will only apply to properly trained, certified technicians. -
Page 7: Operation
Before You Begin Operation • Do not operate this product if there is damage on the housing, lenses, or cables. Have the damaged parts replaced by an authorized technician at once. • Do not cover the ventilation slots when operating to avoid internal overheating. •... -
Page 8: Introduction

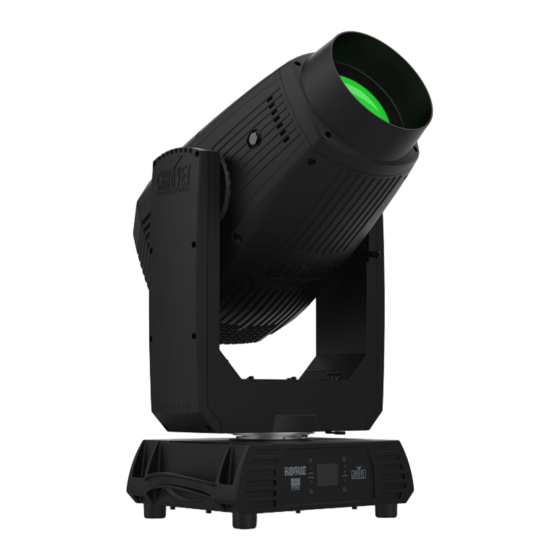

Introduction 2. Introduction Description The Rogue Outcast 2 Hybrid is an outdoor-ready, IP65 spot/beam/wash moving head ideal for small to medium festivals and events. Powered by an intense 400W lamp, Rogue Outcast 2 Hybrid delivers a 6500 K output with tight beam angles of 0.9° to 20.7° in Beam Mode and a zoom range of 1.4° to 37.2° in Spot Mode and 5.4°... -
Page 9: Product Dimensions
Introduction Product Dimensions 10.04 in 255 mm 18.98 in 482 mm 27.76 in 705 mm 15.24 in 387 mm 4.41 in 112 mm 14.41 in 9.61 in 366 mm 244 mm Rogue Outcast 2 Hybrid User Manual Rev. 1 Page 5 of 25... -
Page 10: Setup
Setup 3. Setup AC Power The Rogue Outcast 2 Hybrid has an auto-ranging power supply and it can work with an input voltage range of 100 to 240 VAC, 50/60 Hz. To determine the product’s power requirements (circuit breaker, power outlet, and wiring), use the current value listed on the label affixed to the product’s back panel, or refer to the product’s specifications chart. -
Page 11: Mounting
The Rogue Outcast 2 Hybrid comes with 2 omega brackets to which mounting clamps (sold separately) can be directly attached. Make sure the clamps are capable of supporting the weight of this product. Use at least two mounting points per product. For the Chauvet Professional line of mounting clamps, go to http:// www.trusst.com/products. -
Page 12: Lamp Replacement
Setup Lamp Replacement The Rogue Outcast 2 Hybrid is equipped with an USHIO NSL 400-W lamp. Follow the procedure below to safely change the lamp. Disconnect the product from power before performing this procedure. Procedure 1. Turn the product off and disconnect it from power. Wait at least 15 minutes for the lamp to cool down. -
Page 13: Increasing Lamp Lifespan
Setup 6. Using the lamp base, push the lamp away from the loosened plate. 7. Slide the loosened plate away from the lamp. 8. Roll the lamp out and pull it away. 9. Reverse the steps above to install the new lamp. DO NOT touch the glass with bare hands! DO NOT turn the product on without a lamp! Increasing Lamp Lifespan •... -
Page 14: Operation
Operation 4. Operation Control Panel Description Button Function <MENU> Exits from the current menu or function <ENTER> Enables the currently displayed menu or sets the selected value into the selected function <UP> Navigates upwards through the menu list or increases the value when in a function <DOWN>... - Page 15 Operation Main Level Programming Levels Description 540° pan range Pan Angle 360° pan range 180° pan range 260° tilt range Tilt Angle 180° tilt range 90° tilt range Enable/disable blackout while panning/ BL.O.P/T Move tilting BL.O. Enable/disable blackout while color ColorMove wheel is moving BL.O.
-
Page 16: Configuration (Dmx)
Operation Main Level Programming Levels Description Shows firmware version Running Mode _ _ _ Shows current running mode DMX Address _ _ _ Shows current DMX address Temperature _ _ _ Shows the product temperature in °C Lamp On Time _ _ _ _ _ Shows lamp on time Remaining... -
Page 17: Control Channel Assignments And Values
Operation Control Channel Assignments and Values 20CH 25CH Function Value Percent/Setting 000 255 0–100% Fine pan 000 255 Fine control (16-bit) Tilt 000 255 0–100% Fine tilt 000 255 Fine control (16-bit) Pan/tilt speed 000 255 Fast to slow Dimmer 000 ... - Page 18 Operation 20CH 25CH Function Value Percent/Setting 001 003 Open 004 006 Gobo 1 007 009 Gobo 2 010 012 Gobo 3 013 015 Gobo 4 016 018 Gobo 5 019 021 Gobo 6 022 ...
- Page 19 Operation 20CH 25CH Function Value Percent/Setting Open 001 005 Open (aperture sets to Spot mode) 006 011 Gobo 1 012 017 Gobo 2 018 023 Gobo 3 024 029 Gobo 4 030 035 Gobo 5 036 ...
-
Page 20: Gobo Wheels
Operation 20CH 25CH Function Value Percent/Setting 000 010 No function – Auto focus 011 255 Auto detect distance Zoom 000 255 0–100% – Zoom fine 000 255 Fine control (16-bit) 000 069 No function 070 079 Blackout during pan/tilt 080 ... -
Page 21: Configuration (Settings)
Operation Configuration (Settings) Pan Reverse To set the orientation of the pan: 1. Go to the Setup main level. 2. Select the Pan Reverse option. 3. Select from NO (normal pan motion), or YES (reversed pan motion). Tilt Reverse To set the orientation of the tilt: 1. -
Page 22: Off Via Dmx
Operation Off Via DMX To enable the ability to turn the lamp off with a DMX controller: 1. Access the Lamp Settings. 2. Select the Off Via DMX option. 3. Select from NO (DMX may not turn lamp off), or YES (DMX may turn lamp off). On If DMX On To set the lamp to turn on when a DMX signal is detected: 1. -
Page 23: Usb Update
Operation USB Update To enable or disable software update using USB: 1. Go to the Setup main level. 2. Select the USB Update option. 3. Select NO (disables software update through USB) or YES (enables software update through USB). See the USB Software Update section for the detailed instructions on how to update the Rogue Outcast 2 Hybrid software using a USB C connection. -
Page 24: Gobo Replacement
Operation Gobo Replacement The gobos in gobo wheel 1 are removable from their gobo holders. This operation requires a technician to carefully follow the recommended procedure. • Make sure to disconnect the product’s power cord before replacing a gobo. • Always replace a gobo with a gobo of the same dimensions. -
Page 25: Torque Measurements
Operation Torque Measurements • Screws inside feet – 15.2 Kgf.cm, 13.2 lgb.in • Base screws around outside (not the feet) – 16.3 Kgf.cm, 14.1 lgb.in • Base screws in middle – 35.7 Kgf.cm, 31 lgb.in • Omega bracket holder – 12.2 Kgf.cm, 10.6 lgb.in •... -
Page 26: Maintenance
Maintenance 5. Maintenance Product Maintenance Dust build-up reduces light output performance and can cause overheating. This can lead to reduction of the light source’s life and/or mechanical wear. To maintain optimum performance and minimize wear, clean your lighting products at least twice a month. However, be aware that usage and environmental conditions could be contributing factors to increase the cleaning frequency. -
Page 27: Technical Specifications
5-pin XLR 20 or 25 Ordering Product Name Item Name Item Code UPC Number Rogue Outcast 2 Hybrid ROGUEOUTCAST2HYBRID 08011974 781462223229 UL 1573 CSA C22.2 No. 166 E113093 Rogue Outcast 2 Hybrid User Manual Rev. 1 Page 23 of 25... -
Page 28: Returns
Returns Returns Send the product prepaid, in the original box, and with the original packing and accessories. Chauvet will not issue call tags. Call Chauvet and request a Return Merchandise Authorization (RMA) number before shipping the product. Be prepared to provide the model number, serial number, and a brief description of the cause(s) for the return. -
Page 29: Contact Us
Contact Us Contact Us General Information Technical Support Chauvet World Headquarters Address: 5200 NW 108th Ave. Voice: (844) 393-7575 Sunrise, FL 33351 Fax: (954) 756-8015 Voice: (954) 577-4455 Email: chauvetcs@chauvetlighting.com Fax: (954) 929-5560 Toll Free: (800) 762-1084 Website: www.chauvetprofessional.com Chauvet U.K. Address: Unit 1C Email: UKtech@chauvetlighting.eu...
