Oriental motor World K Series Operating Manual

O P E R A T I N G M A N U A L
World K Series
Terminal Box Type 6 W
Electromagnetic Brake Motors
Introduction
„ Before use
Only qualified personnel should work with the product.
Use the product correctly after thoroughly reading the section "Safety
precautions. "
Should you require the inspection or repair of internal parts, contact the
Oriental Motor office where you purchased the product.
The product described in this manual has been designed and manufactured
for use in general industrial machinery, and must not be used for any other
purpose. Oriental Motor Co., Ltd. is not responsible for any damage caused
through failure to observe this warning.
Safety precautions
The precautions described below are intended to prevent danger or injury to
the user and other personnel through safe, correct use of the product. Use the
product only after carefully reading and fully understanding these instructions.
Handling the product without observing the instructions
WARNING
that accompany a "WARNING" symbol may result in
serious injury or death.
Handling the product without observing the instructions
CAUTION
that accompany a "CAUTION" symbol may result in injury
or property damage.
The items under this heading contain important
Note
handling instructions that the user should observe to
ensure safe use of the product.
• Do not use the product in explosive or corrosive environments, in the
presence of flammable gases, locations subjected to splashing water, or near
combustibles. Doing so may result in fire, electric shock or injury.
• Assign qualified personnel the task of installing, wiring, operating/controlling,
inspecting and troubleshooting the product. Failure to do so may result in
fire, electric shock or injury.
• Do not transport, install the product, perform connections or inspections
when the power is on. Always turn the power off before carrying out these
operations. Failure to do so may result in electric shock.
• Do not use the electromagnetic brake for stopping or for safety purposes.
Using it for purposes other than holding the moving parts and motor in
position may cause injury or damage to equipment.
Ⅰ
• The motor is Class
equipment. Install the motor so as to avoid contact with
hands, or ground it to prevent the risk of electric shock.
• Install the motor in an enclosure in order to prevent electric shock or injury.
• Keep the input power voltage within the specification to avoid fire and
electric shock.
• Connect the cables securely according to the wiring diagram in order to
prevent fire and electric shock.
• Do not forcibly bend, pull or pinch the lead wires (cables). Doing so may result
in fire and electric shock.
• Be sure to insulate the connection terminal of the capacitor. Failure to do so
may result in electric shock.
• Turn off the power in the event of a power failure, or the motor will suddenly
start when the power is restored and may cause injury or damage to
equipment.
• Do not touch the connection terminal of the capacitor immediately after the
power is turned off (for a period of 30 seconds). The residual voltage may
cause electric shock.
• Do not disassemble or modify the motor. This may cause electric shock or
injury.
WARNING
HM-9250-7
Thank you for purchasing an Oriental Motor product.
This Operating Manual describes product handling procedures and safety
precautions.
• Please read it thoroughly to ensure safe operation.
• Always keep the manual where it is readily available.
• Do not use the motor beyond its specifications, or electric shock, injury or
damage to equipment may result.
• Do not touch the motor during operation or immediately after stopping. The
surface is hot and may cause a burn.
• Do not hold the motor output shaft. This may cause injury.
• Keep the area around the motor free of combustible materials in order to
prevent fire or a burn.
• To prevent the risk of damage to equipment, leave nothing around the motor
that would obstruct ventilation.
• To prevent bodily injury, do not touch the rotating parts (output shaft) of the
motor during operation.
• When an abnormality is noted, turn off the power immediately, or fire, electric
shock or injury may occur.
• The motor's surface temperature may exceed 70 °C, even
under normal operating conditions. If a motor is accessible
during operation, post the warning label shown in the figure
in a conspicuous position to prevent the risk of burns.
• Dispose the product correctly in accordance with laws and regulations, or
instructions of local governments.
Preparation
„ Checking the product
Verify that the items listed below are included. Report any missing or damaged
items to the branch or sales office from which you purchased the product.
• Motor .........................................................................1 unit
• Capacitor ..................................................................1 pc. (only for single-phase motors)
• Capacitor cap ..........................................................1 pc. (only for single-phase motors)
• Set of mounting bolts .........................................1 set (only for combination type)
Mounting bolts, hexagonal nuts, washers: 4 pcs. each
• Instructions and Precautions for Safe Use ...1 copy
„ Checking the model name
Check the model number against the number indicated on the product.

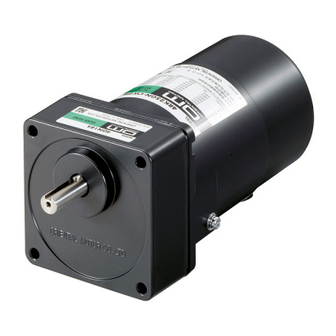

z Combination type
Model *
2RK6AMB-oS
2RK6FMB-oS
2RK6CMB-oS
2RK6EMB-oS
2IK6SMB-oS
* The box ( o ) of the model will be filled with the numeral to represent the
gear reduction ratio.
z Pinion shaft type, round shaft type
Model *
2RK6GN-AW2MBJ
2RK6GN-AW2MBU
2RK6GN-CW2MBJ
2RK6GN-CW2MBE
2IK6GN-SW2MB
* The list above shows pinion shaft motors. For the round shaft motor, "GN" in
the model and motor model are replaced by "A".
CAUTION
Motor model Capacitor model Gearhead model *
CH45FAUL2
2RK6GN-AW2MB
CH35FAUL2
CH10BFAUL
2RK6GN-CW2MB
CH08BFAUL
2IK6GN-SW2MB −
Motor model Capacitor model
CH45FAUL2
2RK6GN-AW2MB
CH35FAUL2
CH10BFAUL
2RK6GN-CW2MB
CH08BFAUL
2IK6GN-SW2MB
Warning label
2GNoS
−
1
