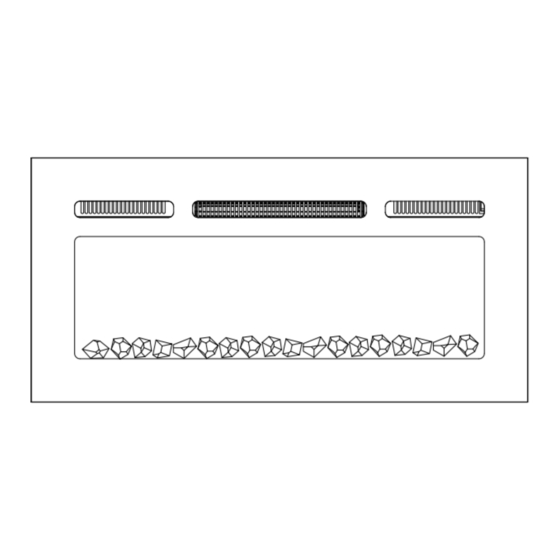

- Page 1 IN230500369V01_UK 820-345V73_820-345V74 820-345V73 (EF140N) 820-345V74 (EF150N) IMPORTANT, RETAIN FOR FUTURE REFERENCE: READ CAREFULLY INSTALLATION AND USER INSTRUCTION GUIDE...
- Page 2 IMPORTANT: BEFORE USE, READ ALL INSTRUCTIONS CAREFULLY. KEEP THIS MANUAL FOR FUTURE REFERENCE! Important Safety Instructions When using this electrical appliance, follow basic precautions to reduce the risk of fire, electric shock and injury to persons, including the following: ● Under guided supervision, this appliance can be used by children aged eight years and above, provided they understand the potential risks and hazards.
- Page 3 ● If the supply cord is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons to avoid hazards. ● Do not place the heater directly below a socket outlet. ● Never use the heater near bathtubs, showers, swimming pools or other bodies of water. ●...
- Page 4 Installation of fixing appliances This appliance is designed to be mounted to a wall. Choose a suitable location that is not prone to moisture. Keep the appliance away from congested areas, furniture and drapes. NOTE: Follow all national and local electrical codes. Minimum clearance to combustibles Note: Measurements are taken from the glass front.
-
Page 5: Insert Installation
INSERT INSTALLATION Note: The included wall-mount fasteners are to be used on concrete walls only. For wood walls, cinder blocks or other wall types, consult a professional for the best attachment methods. STEP A. Choose a drywall and create an opening for the appliance. Create a hole using the chart below in Figure (A). - Page 6 STEP E. With at least two people, move the appliance into the wall hole. If the appliance is fully recessed into the wall: 1) Using the four screws provided, secure the appliance to the wall with the existing side flanges, as shown in Figure (E). 2) Install the fireplace media and reattach the glass front.
- Page 8 Wall-mounting installation To install this appliance safely and correctly, it is strongly recommended that you seek advice from a local builder before installation, as different wall materials may require specific installation methods. A. Choose a location that is at least 36 inches (914mm) away from combustible materials, such as furniture, bedding, paper, curtains and drapes.
- Page 9 Instructions for use WARNING: Before plugging in or using this appliance, ensure you have read and understood this entire manual, including all safety information. Failure to do so could result in electric shock, fire, serious injury or even death. Methods of operation Control the fireplace with the switch, located on the right side of the cold air inlet.
- Page 10 Remote Operation Ensure the standby switch, located on the right side of the cold air inlet, is switched on. It takes some time for the receiver to respond to the transmitter. For correct use, do not press the buttons repeatedly within two seconds. 1.
-
Page 11: Troubleshooting
(II) Select date ● Press the ‘TIMER SET’ button once again. The cursor on the left side of the day starts blinking. ● Press ▲ or ▼ to select the desired day, then press + to add it or - to delete it. Repeat until all days are selected. - Page 12 Cleaning ● Warning: Always unplug the appliance before cleaning. ● For general cleaning, use a soft duster – never use abrasive cleaners. Gently clean the glass viewing screen with a soft cloth. DO NOT use proprietary glass cleaners. Technical Specification ●...
- Page 13 Table for information requirements for electric local space heaters Model identifier(s): 820-345V73 (EF140N), 820-345V74 (EF150N) Item Symbol Value Unit Item Unit Type of heat input, for electric storage local Heat output space heaters only (select one) Nominal heat Manual heat charge control with...
