INSERT INSTALLATION

Note: The included wall-mount fasteners are to be used on concrete walls only. For wood
walls, cinder blocks or other wall types, consult a professional for the best attachment
methods.

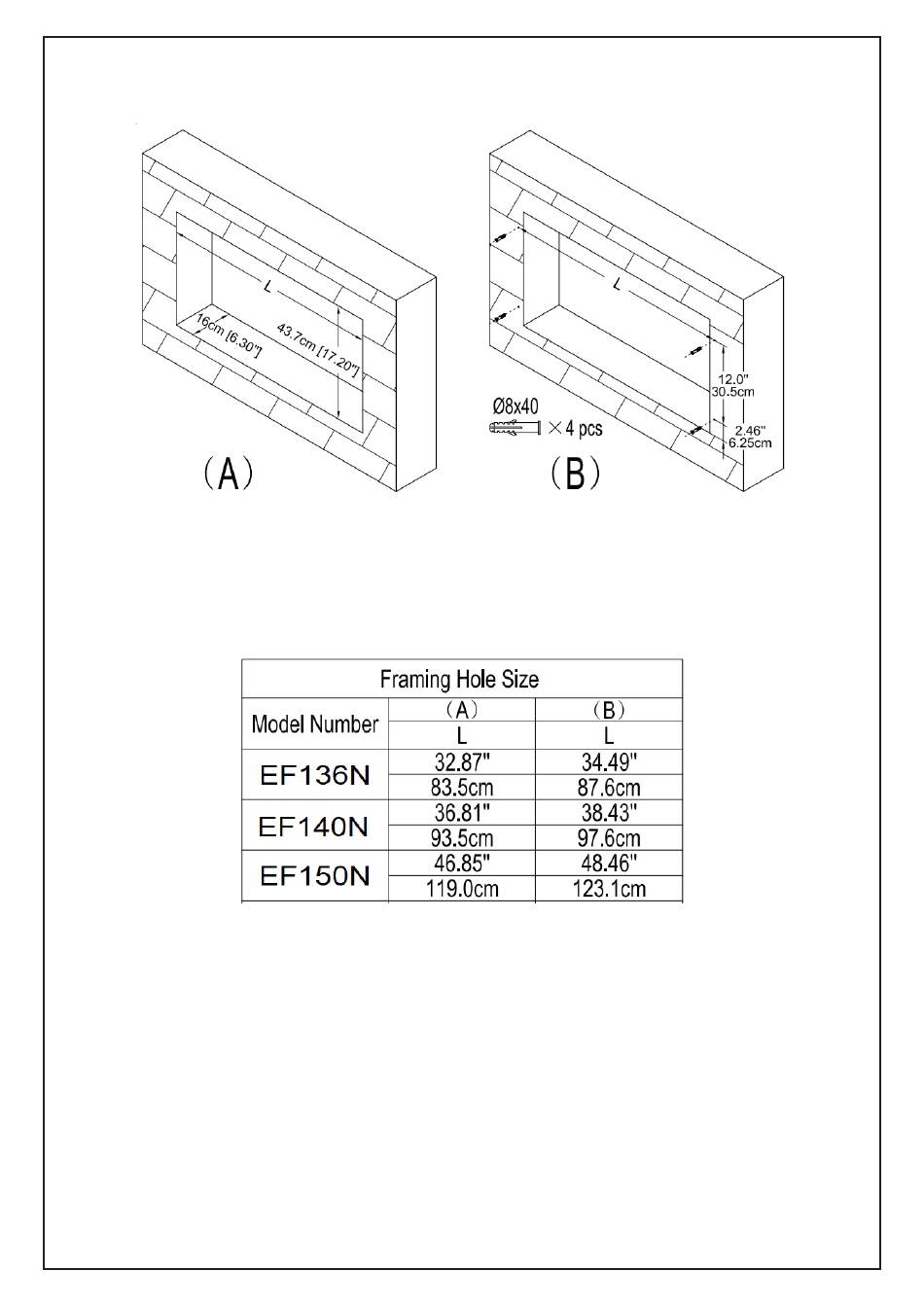

STEP A. Choose a drywall and create an opening for the appliance. Create a hole using
the chart below in Figure (A).
STEP B. Using the dimensions shown in the diagram, attach the four anchors to each side
of the appliance, as shown in Figure (B).
STEP C. Remove the two screws from both sides of the appliance Figure (C).
STEP D. With at least two people, remove the glass panel from the appliance. Place it on a
soft and clean surface, as shown in Figure (D).
