Please read these instructions carefully before attempting to install, operate or service the Ventilating Fan.
Failure to comply with instructions could result injury and / or property damage. In that case the product shall
not warrant them. Please retain this booklet for future reference.
安裝，使用和維護 換氣扇前，請仔細 閱 讀本說 明書。不遵照此 說 明書進行操作有
如果發生以上情況，生産廠家將不對其負任何責任，請

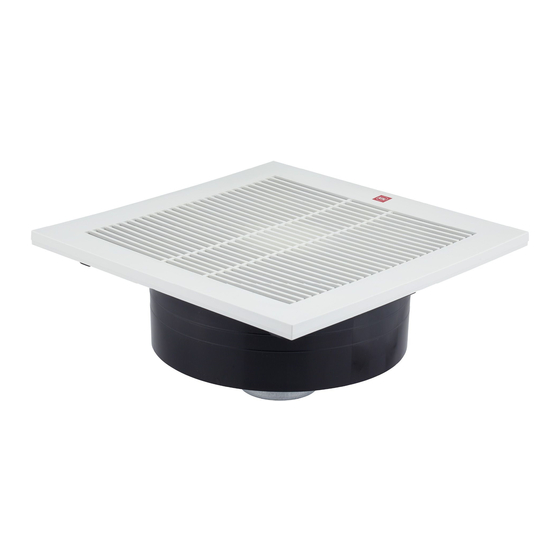

20TGQF
Model
妥善保管好此 說 明書以備日後參考。
可能導致人員受傷和/或財産損失
，
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KDK 20TGQF
Summary of Contents for KDK 20TGQF

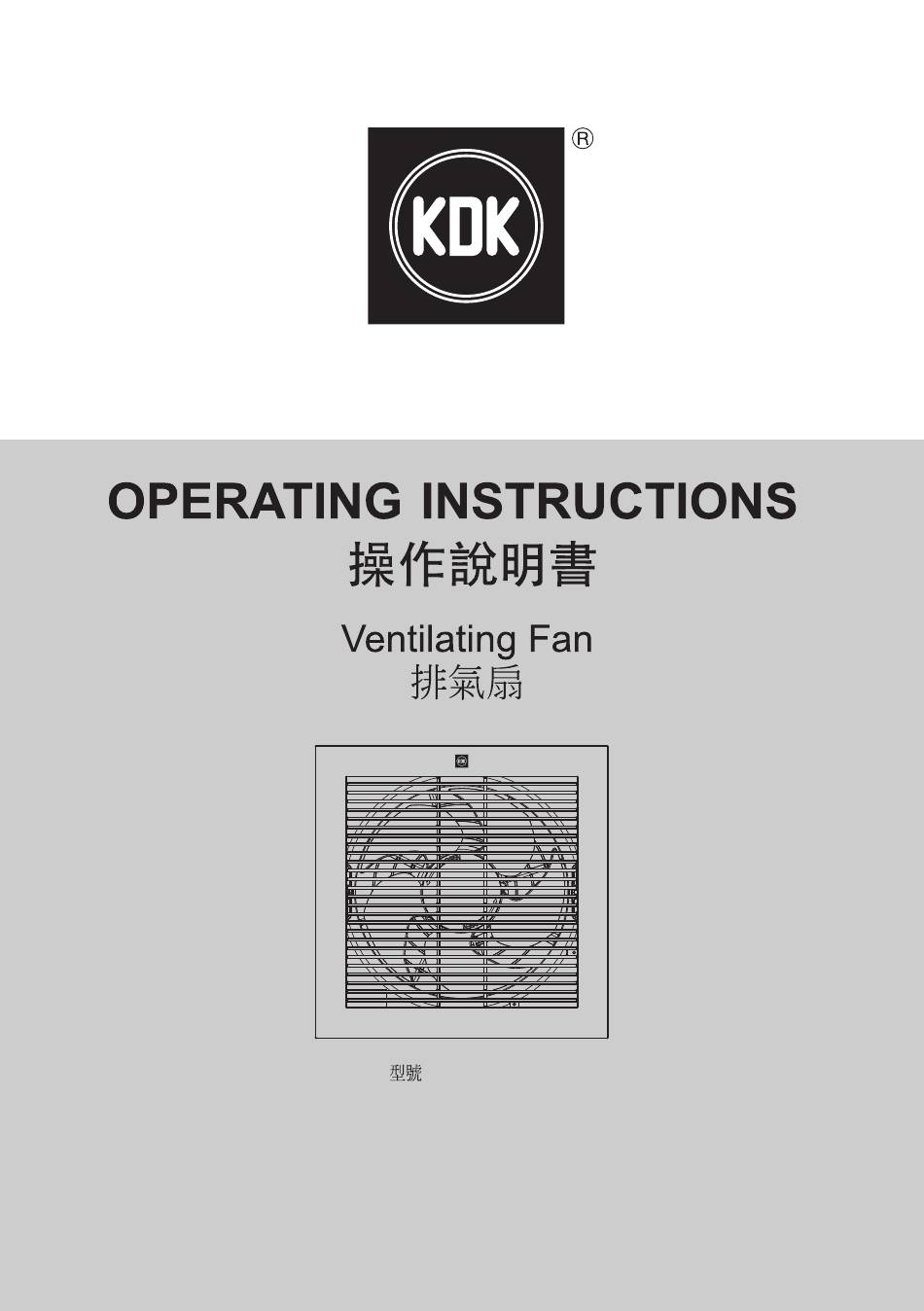

- Page 1 20TGQF Model Please read these instructions carefully before attempting to install, operate or service the Ventilating Fan. Failure to comply with instructions could result injury and / or property damage. In that case the product shall not warrant them. Please retain this booklet for future reference.
- Page 2 Disconnect the power supply until blade is stationary before cleaning and maintenance. 在清潔和維護前,請確保換氣扇的電源已經關閉且扇葉停止轉動。 本設備不適合身體、感官或精神能力下降,或缺乏經驗和知識的人員(包括兒童)使用,除非負責其 安全的人員對其使用設備進行了監督或指導。應監督兒童確保其不玩耍本設備。 如果電源軟線損壞,為避免危險,必須由製造廠商,其維修部或類似的專業人員更換。 為了避免給您及其它人造成傷害,這裡我們列出了以下安全注意事項,請務必遵守,各種標誌的含義請參照以下內容。 無視或錯誤理解這些標誌,會產生下列兩種情況。 本標誌所表示的內容為“可能造成人員重傷或傷亡”。 本標誌所表示的內容為“可能造成人身傷害和其它物品損害” 。 需要遵守的詳情類型進行了分類,並在以下插圖顯示中進行了說明。 (以下為插圖顯示系列) Before connecting the power supply, connect the earth grounding wire first. Do not disassemble the unit for reconstruction. It may cause fire or electric shock. Repairing should be serviced by authorized service center.
- Page 3 Do not install this fan where it could be directly exposed to water or excess vapour. Never install this fan over cooking equipment. Install this fan in the ceiling only. Do not connect air duct to the fan keep the air outlet clear. Be sure to provide an appropriate ventilation opening.
- Page 4 DIMENSIONS / Green/Yellow Thermal Fuse (In Motor) Brown 115 °C Black Double Pole Switch OPERATION / SUPPLIED ACCESSORIES / 包裝附件清單 Appearance Name Quantity 序號 圖樣 名稱 數量...
- Page 5 15 - 20 完成接線後請確保所有連接都已牢固地固定。 所有連接應安裝在合適的隔間內。 Use a device for disconnection from the supply, which having a contact separation of at least 3mm in all poles (switch),which must be incorporated in the fixed wiring in accordance with the local electrical wiring rules. Electrical wiring must be done according to the wiring diagram and local electrical wiring rules for fixed wiring.
- Page 6 1. Fix a wooden frame to the ceiling where the fan is installed. 2. The wooden frame should form a 270mm square opening. 3. Fix the frame at minimum distance 250mm from the ceiling and 100mm from the wall on any side. 4.
- Page 7 First, ensure that the fan is switched off. 爲了避免在萬一的情況下産品掉落，長期不使用本産品時，不得放置不管，而應予以拆除。 爲避免意外發生，清潔時請帶上膠手套...
- Page 8 Power Model Voltage Frequency Weight direction consumption Volume [Hz] [CMH] 1.30 20TGQF 20TGQF : AC 220-240 V 50 Hz KDK Company, Division of PES Head office: 4017, Takaki-cho, Kasugai, Aichi, Japan 20TGQF461...
