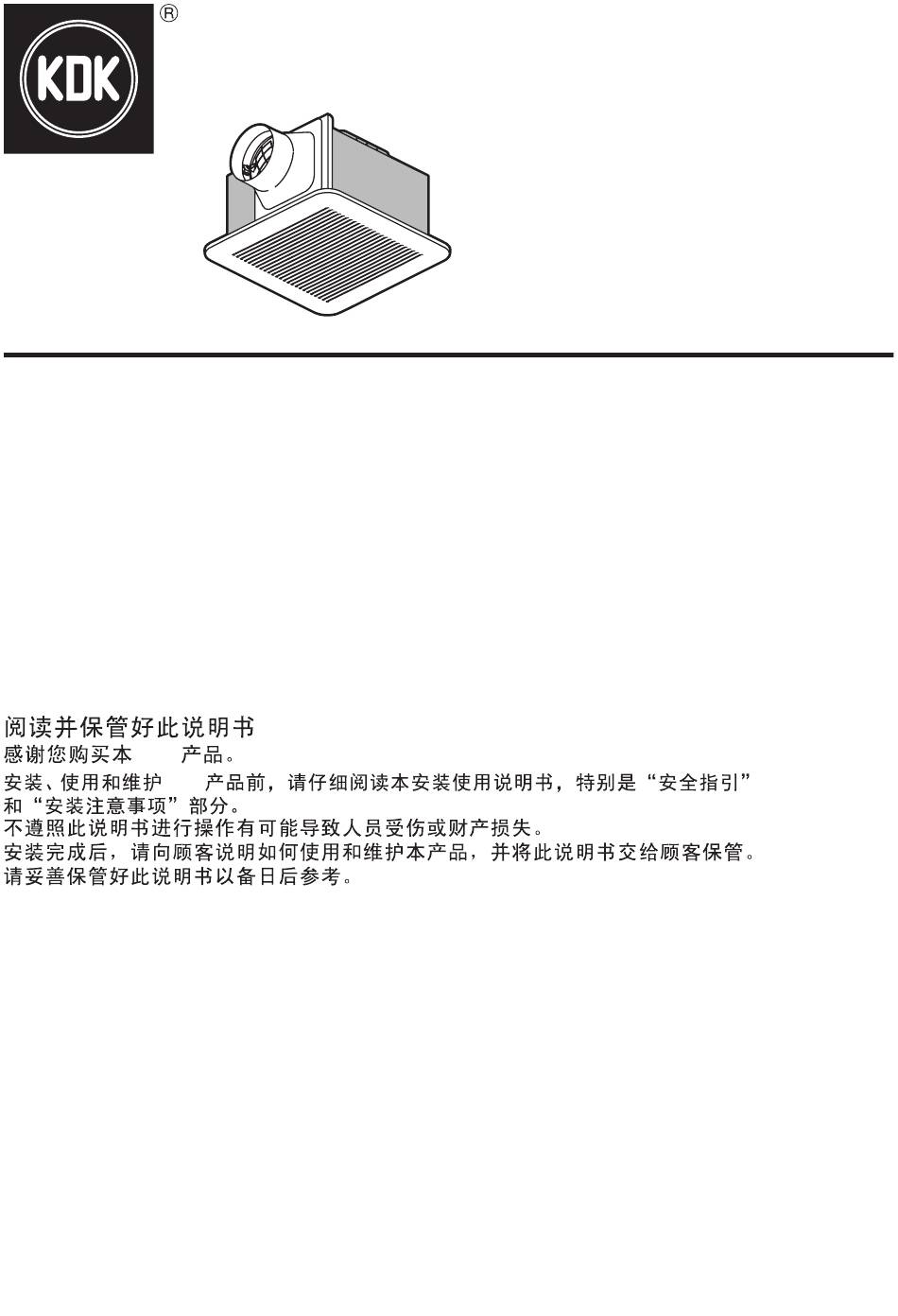

READ AND SAVE THESE INSTRUCTIONS
Thank you very much for purchasing this KDK product.
Please read these instructions especially "Safety Instructions" and "Installation Cautions"
carefully before attempting to install, operate or service the KDK product. Failure to comply
with instructions could result in personal injury or property damage.
Please explain to users how to operate and maintain the product after the installation, and
this booklet should be presented to users.
Please retain this booklet for future reference.
KDK
KDK
Installation and Operating Instructions
Model No.
型号
安装使用说明书
Ventilating Fan
换气扇
17CUH
24CUH
24CDH
24CHH
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for KDK 17CUH
Summary of Contents for KDK 17CUH
- Page 1 Thank you very much for purchasing this KDK product. Please read these instructions especially “Safety Instructions” and “Installation Cautions” carefully before attempting to install, operate or service the KDK product. Failure to comply with instructions could result in personal injury or property damage.
-
Page 2: Safety Instructions
SAFETY INSTRUCTIONS Please observe strictly 安全指引 Disconnect the power supply until blade is stationary before cleaning and maintenance. This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge, unless they have been given supervision or instruction concerning use of the appliance by a person responsible for their safety. - Page 3 SAFETY INSTRUCTIONS Please observe strictly 安全指引 The following explanations must always be observed in order to prevent harm to users or other people and prevent damage to property. The following displays are classified and explained to what extent harm or damage occurs when the display details are ignored and the unit in question is wrongly used.
-
Page 4: Installation Cautions
INSTALLATION CAUTIONS 安装注意事项 Warning 警告 The product must be grounded. Do not install the fan out of the window and wall. 必须接地。 禁止将换气扇安装于窗外或墙壁外。 Otherwise, it may cause electric shock Otherwise, the product may get wet in the rain when there is any trouble or electric leakage. and cause short circuit. - Page 5 INSTALLATION CAUTIONS 安装注意事项 Caution 注意 The special-purpose or dedicated parts, Components must be installed tightly. such as mounting fixtures, must be used if 部品安装必须牢固。 such parts are provided. 有安装五金件等专用零部件时，应使用专用 零部件。 Otherwise, it may injure person caused by product's falling off. 否则部品可能会掉落，导致受伤。...
-
Page 6: Installation Requirements
INSTALLATION REQUIREMENTS 安装要求 Please observe the following requirement. Otherwise, it may cause the product aging and breakdown. 请遵守以下安装要求事项，否则有可能会导致机体老化或发生故障。 Do not install the product where Please set a square inspection there is steam. hole of at least 45 cm. 请勿安装在有蒸汽的场所。 请设置一个45 cm以上的方形 点检口。... -
Page 7: Supplied Accessories
Part name Part name Model No. Duct size 部件名 部件名 序号 序号 型号 管道尺寸 Casing Blade 17CUH 194 84 164 170 230 13 ø100 护套 扇叶 Louver Wiring cover 24CUH 面罩 接线罩 24CDH 278 255 140 175 233 300 13 ø100... -
Page 8: How To Install
1 Construct the wooden frame and attach it 30 mm Unit : mm horizontally to the wooden joist. (Fig.1) 单位: mm 在木龙骨上水平搭建木框 ( 图1)。 24CUH Model No. 17CUH 24CDH 型号 24CHH A Size (Square) 177±2 240±2 A尺寸(正方形) The distance between the top of fan body and Fig.2 / 图2... - Page 9 HOW TO INSTALL 安装方法 4 Connect the power cord (included earth) of fan Fig.5 / Gb.5 body to lead wire in accordance with the wiring Power cord diagram. (Fig.5) Lead wire from 电源线 power source 根据接线示意图，将机体电源线 (包括地线) PVC coated cord 连接到供电电源线上(图5)。...
- Page 10 HOW TO INSTALL 安装方法 6 Fix fan body firmly with 4 self-tapping screws Fig.8 /图8 Φ4.2x20. (Fig.8) Fan body 用自攻螺丝φ4.2x20(4颗)将机体牢固的固定 机体 (图8)。 Self-tapping screw Φ4.2x20 (4 PCS) 自攻螺丝 φ4.2x20 (4颗) 7 Fix adaptor assembly and fan body firmly with Fig.9 /图9 Hexagon screw hexagon screw removed in step ②.
- Page 11 ST4. 2×8 Suspension bracket must be made of metal with Suspension sufficient strength. bracket 悬挂支架必须由具有足够强度的金属制成。 悬吊支架 24CUH Model No. 17CUH 24CDH 型号 24CHH Net weight 净重 [k ] Fig.13 /图13 2 Install the fan body on the anchor bolt. Ceiling...
- Page 12 HOW TO INSTALL 安装方法 2. Connect duct 2.管道连接 1 Insert the duct (not supply) into the adaptor and secure it with adhesive tape (not supply) tightly. Suspend the duct from the ceiling so that no force is applied to the fan body. Install the duct horizontally with a gradient downwards to the outside.
-
Page 13: Maintenance
TEST RUN 试运转 Please check whether all kinds of anomalies below happen after connecting power. (When motion sensor is detected, fan runs) 在接通电源后，检查一下是否发生以下各种异常现象。 Power switch (当动作传感器感应到用户运动时，扇叶开始运转) 电源开关 • Blades doesn't run properly. 扇叶不正常的运转。 • Blades is clockwise rotation. 扇叶顺时针旋转。 • Blades have abnormal vibration or noise. 发生不正常的声音或震动。... - Page 14 MAINTENANCE 日常使用及维修 Warning 警告 This product is applicable to living rooms, washrooms and other places where the Otherwise, it may lead to short circuit humidity is not too high. or electric shock. 本产品须安装在起居室、卫生间等湿度 否则可能会引起短路或触电。 不太高的场所。 Caution 注意 Awas Please wear the gloves when cleaning Otherwise, it may cause damage.
- Page 15 MAINTENANCE 日常使用及维修 Clean product 清洁产品 1 Remove the louver. (Fig.15) Fig.15 /图15 拆下面罩(图15)。 Groove 沟槽 Fixed spring Pegas 固定弹簧 Gloves Louver 手套 面罩 2 Clean Louver. (Don’t put into hot water. Fig.16 /图16 Use non-abrasive kitchen detergent, wipe dry with clean cloth) (Fig.16) The Louver should be dry after cleaning.
-
Page 16: Wiring Diagram
WIRING DIAGRAM 电气原理图 17CUH 24CUH 24CDH 24CHH Double Double pole pole Thermal fuse Thermal fuse switch switch (In motor) (In motor) Brown Brown Brown Brown 115 °C 134 °C White Blue Black Blue Black Capacitor Capacitor Green/Yellow Green/Yellow SPECIFICATIONS 规格... - Page 17 MEMO...
- Page 18 MEMO...
- Page 19 MEMO...
- Page 20 Head office: 4017, Takaki-cho, Kasugai, Aichi, Japan 17CUH4061A V1222-1063...
