- Page 1 In-ceiling Housing Installation Manual SHD-3000F3 SHD-3000FW3...
-
Page 2: Table Of Contents
TABLE OF CONTENTS Overview What’s Included Installation Instructions Installation (OUTDOOR TYPE) Product Specifications 2_ SHD-3000F3... -
Page 3: Overview

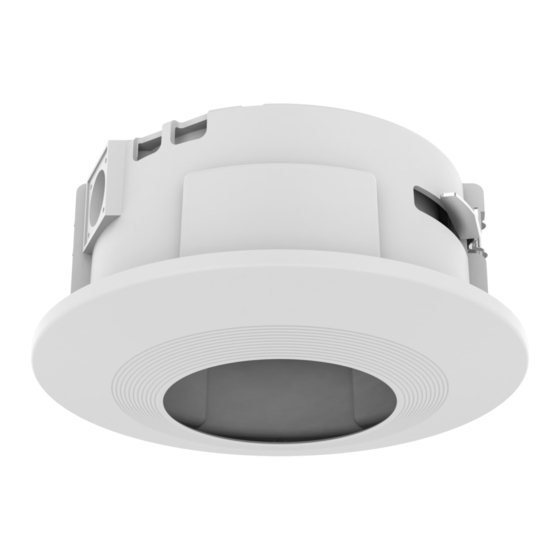

OVERVIEW This In-CEILING HOUSING is a mounting ADAPTOR that is designed to mount the smart dome camera in built-in style on a double-layer ceiling. WHAT’S INCLUDED HOUSING SAFETY BRACKET (1EA) SAFETY WIRE (1SET) Lower bracket (exclusively for TEMPLATE (1EA) SCREW (2EA) indoor dome cameras) (1EA) In-ceiling Housing Installation Manual... -
Page 4: Installation Instructions
INSTALLATION INSTRUCTIONS 1. Select an installation position or place that can endure more than 4 times of the total weight of the installation structure. 2. At least 250mm or more of spare height is required above the CEILING BOARD. 3. CEILING BOARD’s thickness should be less than 40mm. 4. - Page 5 2. Fix the ANCHOR BOLT onto the concrete CEILING, and secure the SAFETY WIRE to the ANCHOR BOLT as below: ❶ Tighten the nut (“N1”) on the ANCHOR BOLT. ➋ Insert the provided SAFETY BRACKET into the ANCHOR BOLT. ➌ Tighten two nuts (“N2”,”N3”) onto the ANCHOR BOLT.
- Page 6 4. Push the HOUSING inside the CEILING through the CEILING hole, and tighten the SCREWs (x2) clockwise to fix the HOUSING on the CEILING. (The BRACKET will be positioned from <A> to <B> as shown.) Ensure that the HOUSING is firmly secured to the CEILING BOARD. BRACKET 브라켓...
- Page 7 6. Combine the dome camera and the bracket using two screws. 7. Insert the bracket where the camera is mounted into the housing and fix it by turning it in the LOCK direction. When the installation is completed, remove both PROTECTIVE TAPE and PRETOECTIVE COVER from the lens.
- Page 8 8. Attach the COVER to the HOUSING. HOUSING 하우징 COVER 커버 A ssemble the network cable through the hole on the bottom part of the housing. 8_ SHD-3000F3...
-
Page 9: Product Specifications
PRODUCT SPECIFICATIONS Item Specifications Dimension (mm) D224 X H106.9 Weight 490g Temperature -10°C ~ 50°C Material Color Ivory 224 (8.8") SHD-3000F3 _9... - Page 10 Head Offi ce 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 www.hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free +1.877.213.1222 Direct +1.201.325.6920 Fax +1.201.373.0124 www.hanwha-security.com Hanwha Techwin Europe Heriot House, Heriot Road, Chertsey, Surrey, KT16 9DT, United Kingdom...
