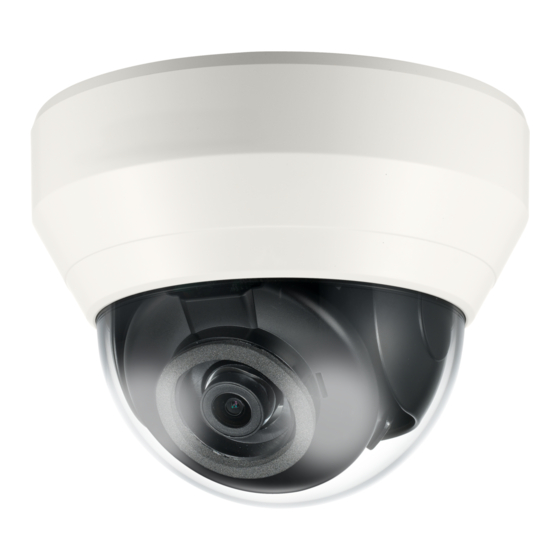

NETWORK CAMERA
Quick Guide
SND-L6013/SND-L6013R/SNO-L6013R/
SND-L6083R/SNO-L6083R/SNV-L6083R

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SND-L6013 and is the answer not in the manual?

Questions and answers

Summary of Contents for Wisenet SND-L6013

  • Page 1 NETWORK CAMERA Quick Guide SND-L6013/SND-L6013R/SNO-L6013R/ SND-L6083R/SNO-L6083R/SNV-L6083R...
  • Page 2: What's Included

    WHAT’S INCLUDED • SND-L6013/SND-L6013R Camera (SND-L6013) Camera (SND-L6013R) Quick Guide (Optional) Warranty card Template Tapping Screw (Optional) • SNO-L6013R Warranty card Camera Quick Guide (Optional) (Optional) Template Tapping Screw Sunshield Sunshield Hold RJ45 waterproof accessory 2_ English...
  • Page 3 • SND-L6083R Warranty card Camera Quick Guide (Optional) (Optional) Indoor Buried Housing Template Tapping Screw (Options) • SNO-L6083R Warranty card Camera Quick Guide (Optional) (Optional) Template Tapping Screw Sunshield Sunshield Hold RJ45 waterproof accessory L Wrench Card-type moisture absorbent English _3...
  • Page 4 • SNV-L6083R Warranty card Camera Quick Guide (Optional) (Optional) Template Tapping Screw L Wrench Card-type moisture absorbent Indoor Buried Housing Audio cable Cable bush Machine Screws (Options) 4_ English...
  • Page 5: Network Wiring Diagram

    NETWORK WIRING DIAGRAM Camera INTERNET Camera PPPoE or PPPoE or Broadband Cable Modem Cable Modem Router External Remote PC DDNS Server (Data Center, KOREA) Local PC MANUAL NETWORK SETUP Run <IP Installer_v2.XX.exe> to display the camera search list. At the initial startup, both [Auto Set] and [Manual Set] will be grayed out. ...
  • Page 6: Connecting To The Camera From A Shared Local Pc

    CONNECTING TO THE CAMERA FROM A SHARED LOCAL PC 1. Run the IP Installer. It will scan for connected cameras and display them as a list. 2. Double-click a camera to access. The Internet browser starts and connects to the camera. ...
  • Page 7: Connecting To The Camera From A Remote Pc Via The Internet

    Port forwarding can be done without additional router setup if the router supports the UPnP (Universal Plug and Play) function. After connecting the network camera, set <Quick connect> of <Wisenet DDNS> to <On> in the “Setup  Network  DDNS” menu.
  • Page 8 Registering with DDNS 1. Visit the Wisenet DDNS web site (http://ddns.hanwha-security.com) and sign in with a registered account. 2. From the top menu bar, select <DDNS SERVICE> - <MY DDNS>. 3. Click [PRODUCT REGISTRATION]. 4. Please enter the product ID and fill in the items displayed.
  • Page 9 Head Offi ce 6, Pangyo-ro 319 beon-gil, Bundang-gu, Seongnam-si, Gyeonggi-do, 463-400 Rep. of KOREA Tel : +82.70.7147.8753 Fax : +82.31.8018.3740 http://hanwha-security.com Hanwha Techwin America 500 Frank W. Burr Blvd. Suite 43 Teaneck, NJ 07666 Toll Free : +1.877.213.1222 Direct : +1.201.325.6920 Fax : +1.201.373.0124 www.hanwha-security.com Hanwha Techwin Europe...

This manual is also suitable for:

Snd-l6013rSno-l6013rSnd-l6083rSno-l6083rSnv-l6083r
