Commissioning Manual
PD 400 CNC-ready
NO 24 504

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PD 400 CNC-ready and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Proxxon PD 400 CNC-ready

Summary of Contents for Proxxon PD 400 CNC-ready

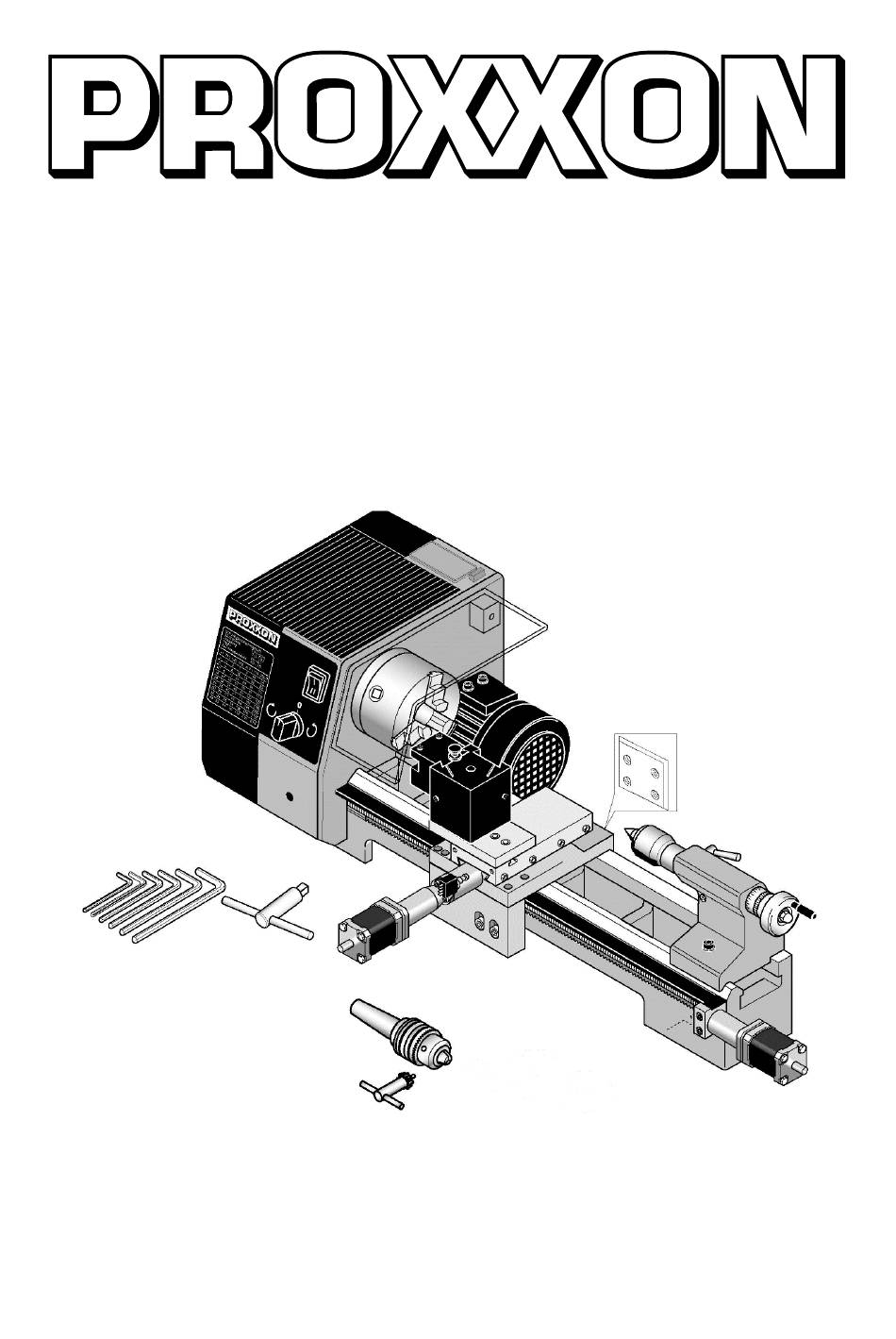

  • Page 1 Commissioning Manual PD 400 CNC-ready NO 24 504...

  • Page 2: Table Of Contents

    Commissioning Manual PD 400 CNC-ready Something general in advance: ................3 The technology of your PD 400 CNC-ready at a glance ......... 4 Scope of supply ...................... 4 View of the machine with its elements ..............5 Technical data ......................6 5.1.

  • Page 3: Something General In Advance

    WARNING Read all safety warnings, instructions, illustrations and specifications provided with this power tool. Failure follow all instructions listed below may result in electric shock, fire and l or serious injury. Save all warnings and instructions for future reference. The term "power tool" used in the safety instructions refers to mains-operated power tools (with mains lead) or battery-operated power tools (without mains lead).

  • Page 4: The Technology Of Your Pd 400 Cnc-Ready At A Glance

    2. The technology of your PD 400 CNC-ready at a glance Dear User, With the PD 400 CNC-ready lathe, you have acquired a powerful, precise processing machine that meets high demands on operability, precision and reliability: The mechanical basis is the proven PD 400 lathe from PROXXON.

  • Page 5: View Of The Machine With Its Elements

    4. View of the machine with its elements Main spindle Sleeve adjusting wheel Lathe chuck Clamping screw for sleeve Motor Clamping screw for tailstock Gearbox Direction of rotation switch Machine base Indicator light Tailstock 023 Speed step switch Drive for Z axis Speed table Spindle for Z axis Flange surface for milling unit PF 230/250/BL...

  • Page 6: Technical Data

    5. Technical data 5.1. Lathe: Length between centres: 400 mm Height of centres: 85 mm Maximum work piece diameter: 116 mm Machine base: Cross-ribbed surface, high-quality cast iron with ground prismatic guide Spindle: Main spindle, supported with 2 adjustable taper roller bearings Spindle receiver: Spindle drill hole:...

  • Page 7: Drives Of The Tool Axes

    5.2. Drives of the tool axes 5.2.1. Spindle drive Z-axis Recirculating ball screw with 4mm pitch Effective diameter 12 mm Traverse path: 300mm Limit switch position: left Motor: Current: 1,8 A Holding torque: 50 Ncm 5.2.2. Spindle drive X-axis Recirculating ball screw with 2 mm pitch Effective diameter 8 mm Traverse path: 70mm Limit switch position: in front...

  • Page 8: Unpacking And Setting Up The Machine

    Do not grasp the gear case, the motors, or the cover of the motor to lift the machine out of the Styrofoam packaging. The plastic caps could break. Please enlist the aid of a helper to lift your PD 400 CNC-ready out of the package as illustrated in the figure on the right.

  • Page 9: Basic Tips On Setting Up And Assembling The Machine

    7. Basic tips on setting up and assembling the machine • The machine may only be set up and operated in dry and well ventilated rooms. • The installation surface must be level and sufficiently stable to absorb the vibrations that occur during operation. For this purpose, the machine must be fixed to a firm, level surface using the holes provided.

  • Page 10: Fundamentals On Turning And The Pd 400 Cnc-Ready Lathe

    8.1. Fundamentals on turning and the PD 400 CNC-ready lathe 8.1.1. Straight turning Straight turning is the type of turning whereby the cutter moves on a path parallel to the work piece axis, the "longitudinal feed". The cutting depth, also called "infeed" is the amount by which the cutter dips deeper into the material for every turning cycle.

  • Page 11: Various Cutting Tools And Their Properties

    8.2. Various cutting tools and their properties For various work tasks there are special tools that are optimally co-ordinated to their respective intended use due to their form. The right choice of tool is thus not only essential for the perfect quality of the work result, but some machining can only be done with certain tool forms from the outset.

  • Page 12: Inserting The Cutting Tool In The Tool Holder

    8.3. Inserting the cutting tool in the tool holder The basic equipment of the PD 400 CNC-ready includes a multiple tool holder consisting of tool holder block 1 and two tool holder elements 2. The tool holder elements can be adjusted in height: Turn the knurled screw 5 up or down until the tool centre is exactly in the centre, meaning at the same height as the work piece axis.

  • Page 13: Clamping In The Lathe Chuck

    8.4. Clamping in the lathe chuck Caution! Please comply with the enclosed operating instructions of the chuck manufacturer as necessary! Caution! If work pieces are only clamped in the lathe chuck without counter-bracket by the tailstock, the projection may not be greater than the three-fold diameter of the material (L = 3 x D), see figure at right.

  • Page 14: Determining The Correct Spindle Speed

    8.6. Determining the correct spindle speed The cutting speed is a decisive parameter during machining. Too high or too low cutting speeds affect the good end result, so the choice of spindle speed – which is decisive for the cutting speed – is very important for a good surface and clean metal removal. Another determining factor is the diameter of the work piece: the greater it is, the greater the relative speed is at the circumference at constant speed.

  • Page 15: Shifting The Drive Belt

    8.8. Shifting the drive belt The spindle speed can be changed by shifting the motor (multiple contact switch 1 Fig. 4). The speed is halved or doubled. On the other hand, the speed can be changed by shifting the drive belt in the spindle box at the left. Switch off the CNC control at the mains switch and open the gear case with the Allen key.

  • Page 16: General

    9.1. General Please keep the machine clean and handle it with care. Keep in mind that a "healthy" mechanical system is decisive for the quality of the work result. The guides in particular play an important role here: they are important machine elements and must be treated with particular care.

  • Page 17: Adjusting The Play Of The Guides

    9.4. Adjusting the play of the guides 9.4.1. Adjusting the play of the guide of the cross slide Even if the guides are regularly oiled, cleaned and properly adjusted, the guides will show play after some time. Release the counter nuts 1 (Fig. 18) of the adjusting screws for upper carriage 2, turn in all adjusting screws 3 evenly until the play is eliminated and then retighten the counter nuts.

  • Page 18: Care And Maintenance Checklist

    11. Compilation of safety notes As with any other machine, there are some things that need to be observed when operating the CNC lathe PD 400 CNC-ready so that dangers to humans and the environment cannot occur. In this context, please also observe the separately enclosed pamphlet with the safety notes.
  • Page 19 User group Persons above the age of 14 may use the system; instructions on safety and compliance with the safety notes is always required. Caution! Risk of injury! Always keep your fingers away from the rotating work piece while turning! Never measure the work piece during operation with a sliding calliper or similar! Do not process the work piece during operation with a rasp or sandpaper! Setting up the...

  • Page 20: Ec Declaration Of Conformity

    Adress: Proxxon S. A. Härebierg 6-10 LU-6868 Wecker Product designation CNC Lathe Type designation PD 400 CNC-ready Article number 24504 Applicable Guidelines and Standards: EC EMC Directive 2004/108/EG DIN EN 55014-1/08.2018 DIN EN 55014-2/01.2016 DIN EN 61000-3-2/03.2017 DIN EN 61000-3-3/03.2014 EC Machinery Directive 2006/42/EG DIN EN 62841-1/07.2016...

  • Page 21: List Of Components And Exploded Views

    13. List of components and exploded views Please order spare parts in writing from the PROXXON Central Service...

  • Page 22: Assembly Group 01 Headstock

    13.1. Assembly group 01 Headstock...
  • Page 23 ET No.: Designation 24504 - 01 - 01 Cover for gearbox 24504 - 01 - 02 Table thread pitch 24504 - 01 - 03 Placement pad for cover 24504 - 01 - 04 Screw for hinge 24504 - 01 - 05 Screw for gear plate 24504 - 01 - 06 Screw...
  • Page 24 ET No.: Designation 24504 - 01 - 54 Screw for chuck guard 24504 - 01 - 55 Chuck guard 24504 - 01 - 56 Placement pad headstock 24504 - 01 - 57 Motor (complete with cover plate) 24504 - 01 - 58 Cover plate for motor 24504 - 01 - 60 Stop screw...

  • Page 26: Assembly Group 02: Bed With Drive For Z Axis

    13.2. Assembly group 02: Bed with drive for Z axis...
  • Page 27 No.: Designation 24504 - 02 - 01 Bed with hardened guide 24504 - 02 - 02 Cover plate 24504 - 02 - 03 Screw for cover plate 24504 - 02 - 04 Screw for motor mounting 24504 - 02 - 05 Flange for motor mounting 24504 - 02 - 06 Ball bearing...

  • Page 28: Assembly Group 03: Support With Drive For X Axis

    13.3. Assembly group 03: Support with drive for X axis...
  • Page 29 No.: Designation 24504 - 03 - 01 Screw 24504 - 03 - 02 Set screw 24504 - 03 - 03 Knurled nut 24504 - 03 - 04 Knurled nut 24504 - 03 - 05 Tool holder element 24504 - 03 - 06 Screw 24504 - 03 - 07 Tool holder...

  • Page 30: Assembly Group 04: Tailstock

    13.4. Assembly group 04: Tailstock...
  • Page 31 No.: Designation 24504 - 04 - 1 Travelling lathe centre 24504 - 04 - 2 Sleeve 24504 - 04 - 3 Toggle 24504 - 04 - 4 Washer 24504 - 04 - 5 Threaded pin 24504 - 04 - 6 Screw 24504 - 04 - 7 Spindle...
  • Page 32 Service note All PROXXON products are thoroughly inspected after production. Should a defect occur nevertheless, please contact the dealer from whom you purchased the product. Only the dealer is responsible for handling all legal warranty claims which refer exclusively to material and manufacturer error.
