Figure 5B shows a similar installation with the UVISENSOR looking down at the top of the lamp through a
1/4" diameter hole. In this configuration, the UVISENSOR must look at the lamp and not beside it. This is
to prevent the UVISENSOR from seeing reflections from the work surface below the lamp. Be certain to
remove the protective film from the mirrored surface inside the bracket.
REMOVE PROTECTIVE
FILM FROM MIRROR
INSIDE OF BRACKET
BRACKET OUTLINE
.53
UVISENSOR
BRACKET
LIGHT SOURCE

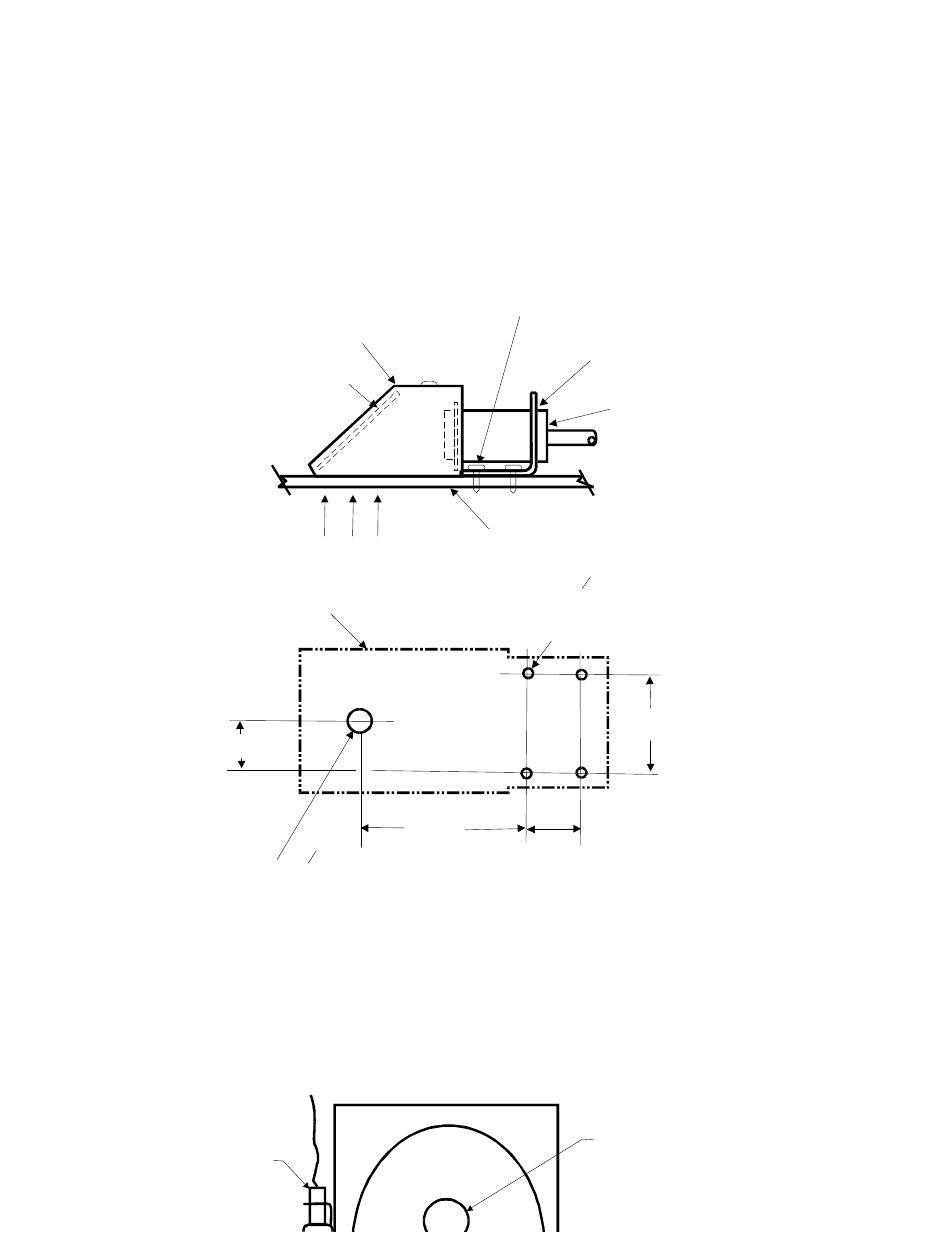

BRACKET MOUNTING DETAIL
1.75
.25 O HOLE FOR LIGHT SOURCE
Figure 4. Bracket Mounting Drill Template.
®
MultiBrite Operator's Manual
MOUNTING HARDWARE
4 PLACES
FASTENER ON EACH
END OF SENSOR
SENSOR
MOUNTING SURFACE
.095 O (NO. 40 DRILL) HOLES
REQD IN MOUNTING SURFACE
IF USING SCREWS PROVIDED
IN MOUNTING KIT
4 PLACES
1.062
.562
LAMP
7
