Typical Clamp And Mirror Installation - EIT MULTIBRITE MB100AC1 Operator's Manual

Once a suitable mounting location is determined, a 7/8" diameter hole is drilled or punched in the side of the
lamp housing. The clamp is mounted in this hole with the threaded side facing toward the inside of the
housing. Secure the conduit fitting with the jam nut. The UVISENSOR is inserted into the clamp and
secured using the clamp's lock screw. See figure 2.
The mirror should be mounted by drilling two 1/8" diameter holes in the lamp housing directly opposite the
UVISENSOR and secured with the #4-40 screw supplied in the mounting kit. Figure 2 shows details for
mounting the clamp and the mirror. Note that two methods (A and B) are shown for mounting the mirror as
this part has mounting holes on the top and the side. Refer to Figure 3 for a drill template for the mirror.
Mounted as shown in Figure 1, the UVISENSOR will "look" directly across the work area into the mirror
which is reflecting light from the entire length of the lamp reflector.
Because the UVISENSOR's output is very position sensitive, it is important that the mirror and
UVISENSOR be mounted rigidly and care must be taken not to disturb them during re-lamping or cleansing.
MOVING THE UVISENSOR OR THE MIRROR WILL AFFECT THE CALIBRATION OF THE
INSTRUMENT.
(FAR PLATE)
SENSOR
LAMP
CONVEYOR
MIRROR
MIRROR
a) SIDE VIEW
MIRROR
b) END VIEW

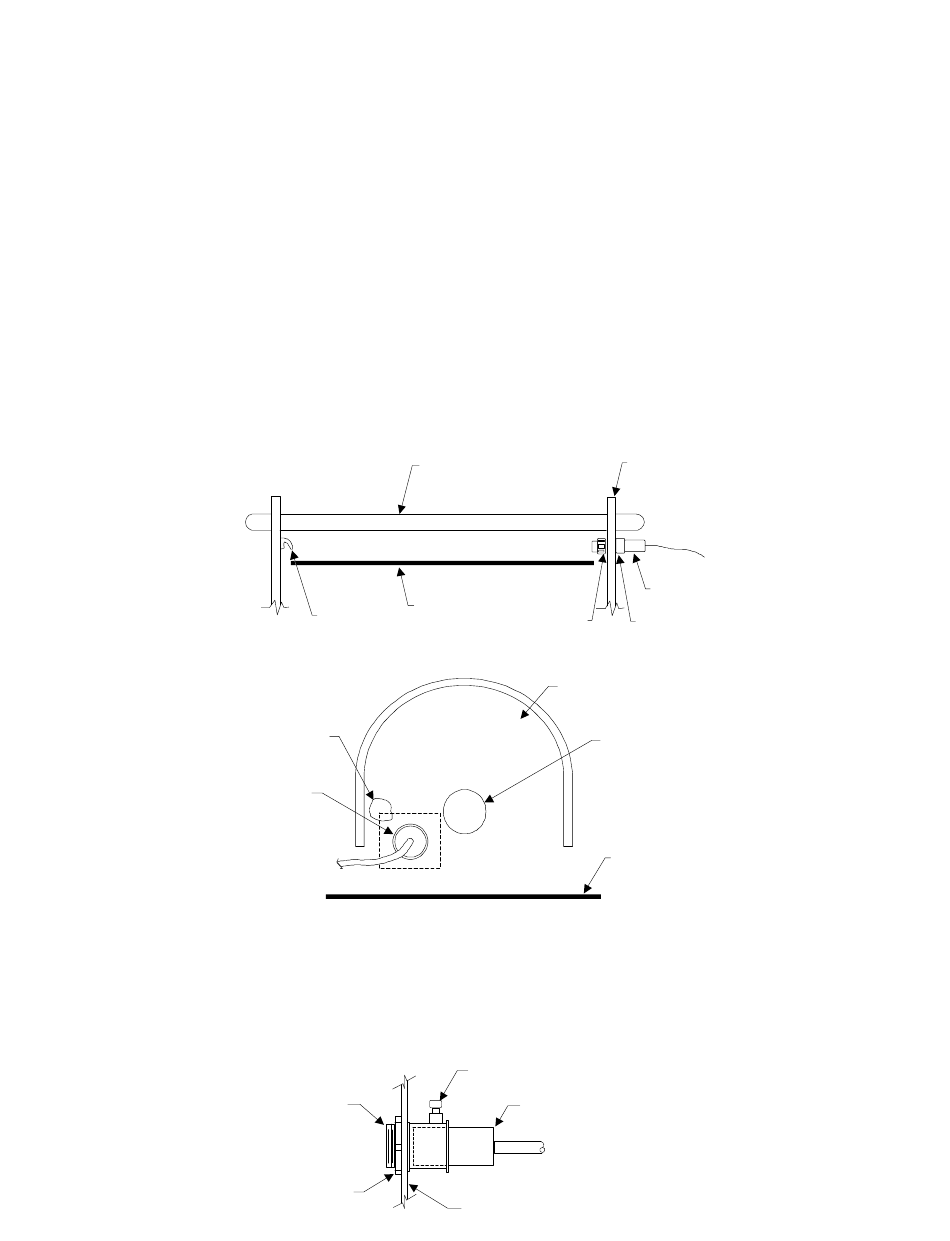

Figure 1. Typical Clamp and Mirror Installation
