Dimensions; Construction; Multi Brite Top View , Dimensional Diagram - EIT MULTIBRITE MB100AC1 Operator's Manual

Weight approximately forty-eight ounces.

Dimensions

3.8
The enclosure portion is 7.82 inches wide by 3.5 inches high by 6.37 inches deep (7.82"W x 3.5"H x 6.37"
D).
The front panel is 9.44 inches wide by 3.5 inches high by 0.125 inches thick (9.44"W x 3.5"H x 0.125"T).

Construction

3.9
Painted aluminum with integral mounting flanges on the front panel.
Mounting: Designed for panel mounting (1/2 rack dimensions).
The strain relief shell, described in section 2.2, can be removed from the I/O connectors to reduce the
connector/cable clearance from 2.5" to 1.5".

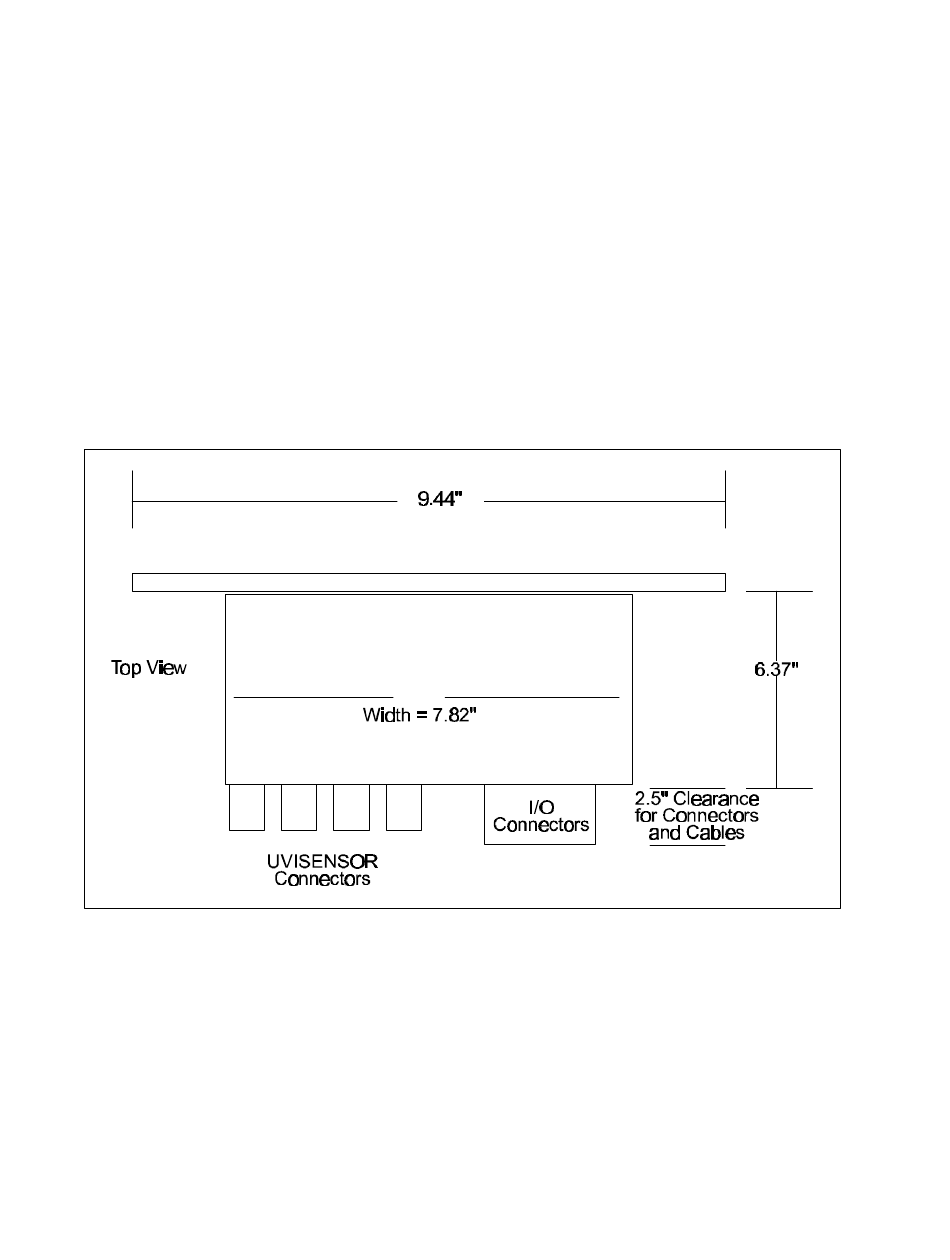

Figure 15. MultiBrite top view, dimensional diagram
®
