Angle Bracket Method

2.2
The other mounting bracket supplied is a reflectorized 45° angle bracket. This bracket allows the
UVISENSOR to be mounted on the side or top of the lamp's reflector housing. Figure 4 shows two typical
installations.
The bracket is mounted by drilling four 0.096 diameter holes and securing it to the lamp housing with the #4
sheet metal screws supplied in the kit. The UVISENSOR is retained in the bracket by sliding it into the large
holes in the bracket and pressing one of the large internal-tooth fasteners supplied on each end of the
UVISENSOR. Figure 4 shows the angle bracket mounting details and also provides a drill template for this
bracket.
In Figure 5A, the angle bracket with the UVISENSOR is mounted on the side of the reflector housing. A
1/4" diameter hole has been drilled through the side of the housing and reflector. This bracket arrangement
allows the UVISENSOR to look directly across the assembly at the far side of the lamp reflector.
6
Figure 2. Clamp and Mirror Method
CENTERLINE OF SENSOR
.219
.438
.17
.125 0 HOLE IN MIRROR
4 PLACES
CENTER OF MIRROR
OPPOSITE SIDE

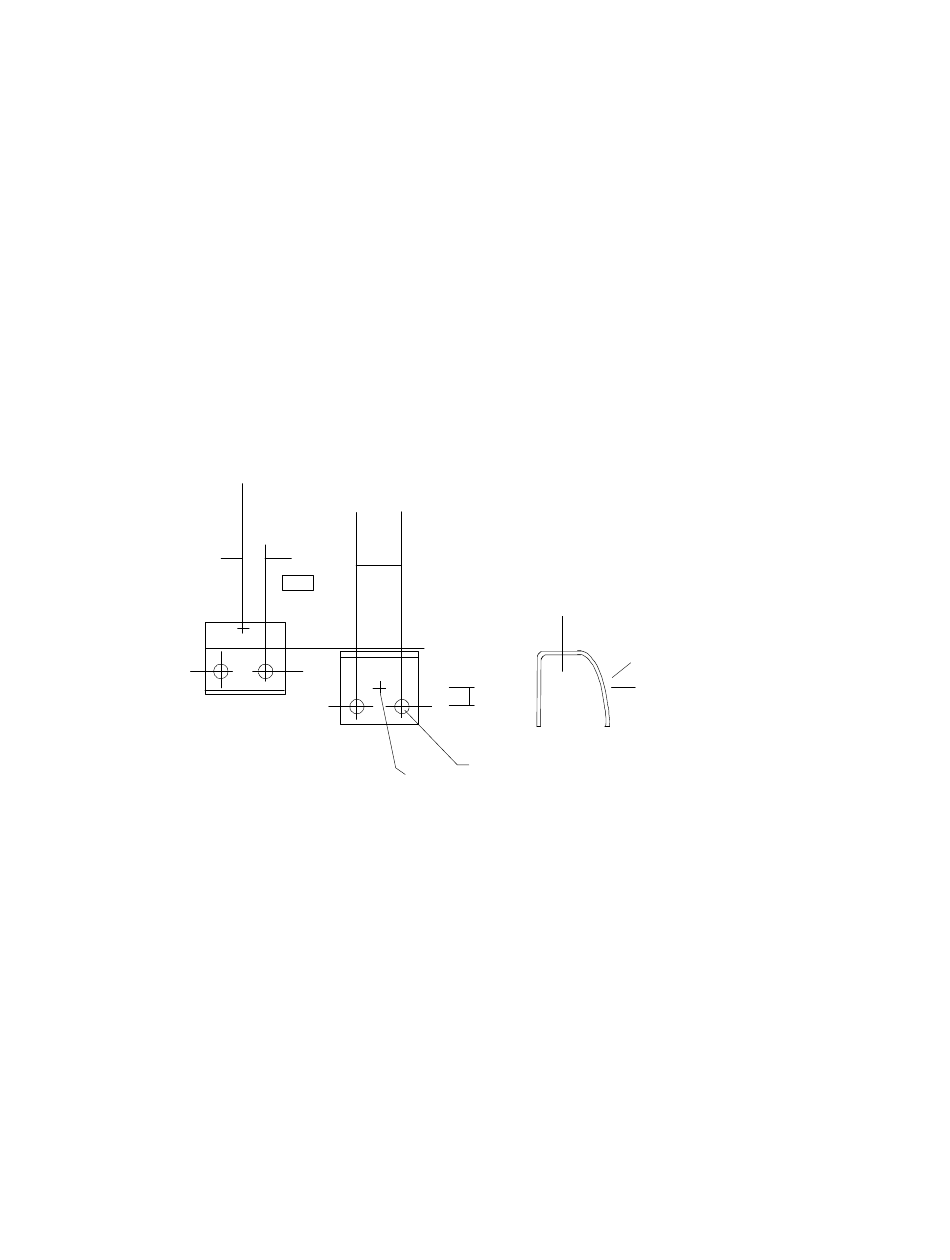

Figure 3. Mirror Mounting Template
LIGHT SOURCE
CENTERLINE
OF SENSOR
