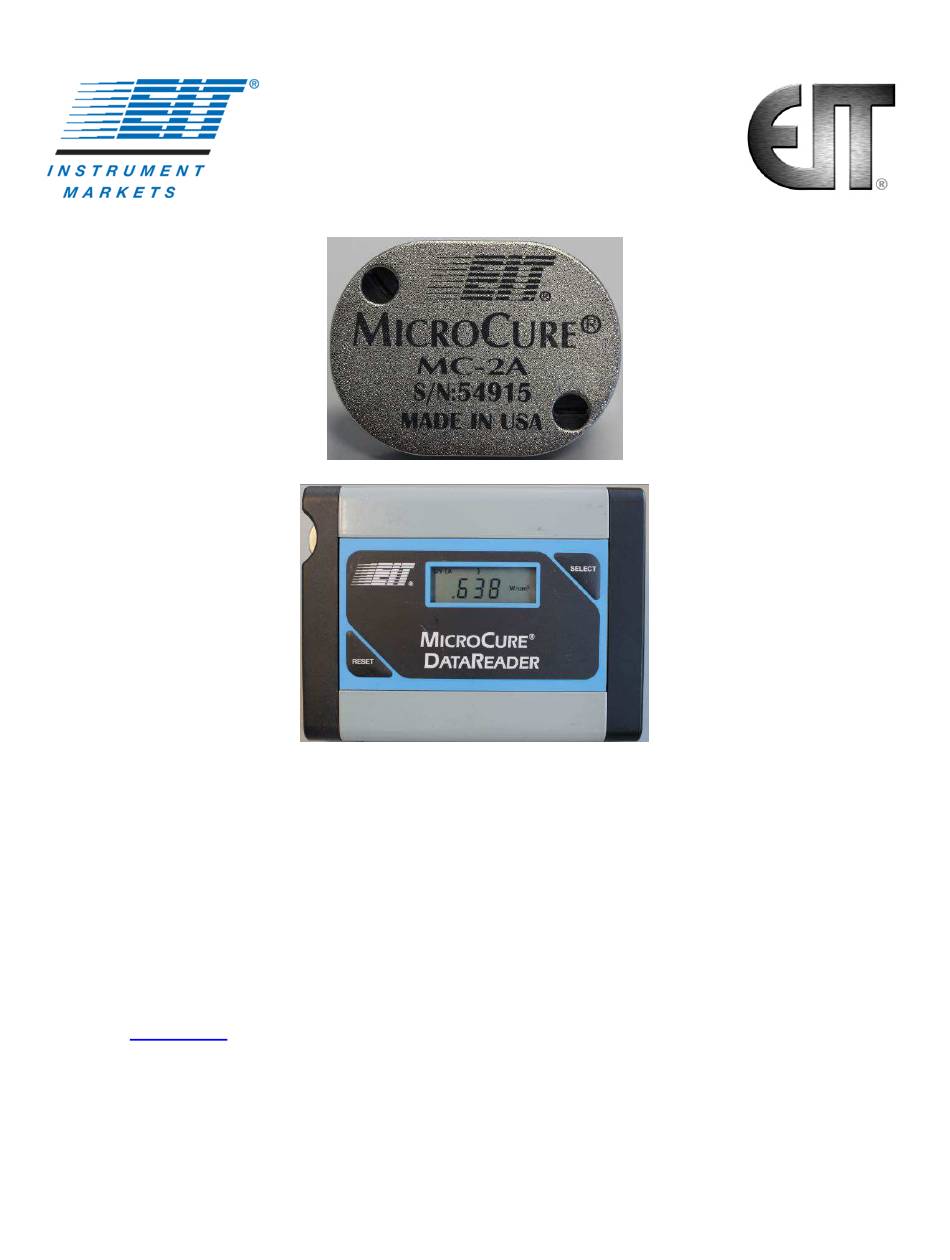

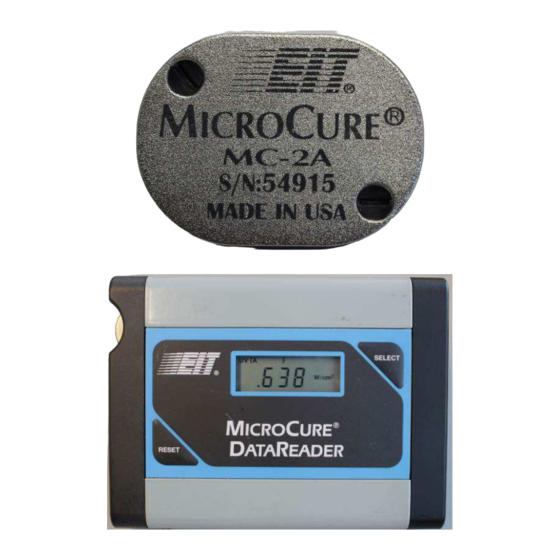

MicroCure
Radiometer and
MicroCure® DataReader
User Manual
®
®
MicroCure
Radiometer and MicroCure
DataReader
Electronic Instrumentation and Technology (EIT) LLC
309 Kelly's Ford Plaza SE
Leesburg VA 20175 USA
Phone: 703-478-0700
Email:
uv@eit.com
Web: www.eit.com
EIT Part Number: P/N IM-0110 Rev A Issued April 2019
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for EIT MicroCure MC-2A
Summary of Contents for EIT MicroCure MC-2A
- Page 1 User Manual ® ® MicroCure Radiometer and MicroCure DataReader Electronic Instrumentation and Technology (EIT) LLC 309 Kelly’s Ford Plaza SE Leesburg VA 20175 USA Phone: 703-478-0700 Email: uv@eit.com Web: www.eit.com EIT Part Number: P/N IM-0110 Rev A Issued April 2019...
-
Page 2: Table Of Contents
Appendix D Technical Support, MicroCure Disposal and Warranty....14 ® ® ® MicroCure , MicroCure DataReader, EIT and the EIT Logos below are registered trademarks of Electronic Instrumentation and Technology, LLC, Leesburg, Virginia EIT Part Number: P/N IM-0110 Rev A Issued April 2019... -
Page 3: Introduction
Introduction The EIT MicroCure® system addresses UV measurement and process control in areas where using a standard radiometer is difficult due to size and space limitations. The MicroCure’s compact size allows it to fit into, and adapt to a variety of demanding physical and thermal environments. This makes it possible to obtain reliable UV measurements in curing applications that would ordinarily be inaccessible to larger radiometers. -
Page 4: Product Overview
MicroCure showing range UVV (390-445 nm) (10 Watts) and band (UVA) NOTE: The responsivity of the EIT MicroCure UVA and UVV bands are similar but are not identical to the UVA and UVV bands used in other EIT instruments. •... - Page 5 ‘r’ value of 119 Bottom Left: DataReader display showing irradiance value of 1.435 W/cm in UVA Bottom Right: DataReader display showing Energy Density value of 1.197 J/cm in UVA EIT Part Number: P/N IM-0110 Rev A Issued April 2019 Page 3...
-
Page 6: Establishing A Cure Or Process Window/Process Parameters
Note: In a UV process, variables or process parameters related to the formulation (ink, adhesive, coating, etc.) and substrate must also be tracked and controlled. Examples include can formulation thickness and substrate dyne levels. EIT Part Number: P/N IM-0110 Rev A Issued April 2019 Page 4... - Page 7 The instrument calculates energy density by adding many irradiance samples together. The numerical irradiance reported is the peak irradiance value recorded by the instrument EIT Part Number: P/N IM-0110 Rev A Issued April 2019 Page 5...
-
Page 8: Handling And Safety Precautions
Handling and Safety Precautions UltraViolet (UV) Radiation • The EIT MicroCure and DataReader are measurement instruments and are not a source of UV radiation. • They are used in an environment where UV radiation is present and Personal Protective Equipment (PPE) should be worn to protect the eyes and skin. -
Page 9: Operation
Bottom: Optics side of MicroCure which needs to be exposed to UV 10. To clear the current reading and to reset the MicroCure for its next reading, press the RESET button. EIT Part Number: P/N IM-0110 Rev A Issued April 2019 Page 7... -
Page 10: Error Messages
When comparing readings, the irradiance values provided by the MicroCure are similar to the irradiance values collected with EIT instruments used in the “Smooth Off” (instantaneous peak) mode versus “Smooth On” or “Smooth Profile” (average peak) mode. Contact EIT if you have any questions on samples rates or ‘smoothing’... - Page 11 Use isopropyl alcohol and a soft cloth to clean the case of the MicroCure • Do not open the radiometer's case. There are no user-serviceable parts inside the unit EIT Part Number: P/N IM-0110 Rev A Issued April 2019 Page 9...
- Page 12 The MicroCure radiometer is calibrated prior to shipment from EIT. It is specified to take 200 readings or a period of approximately one year. Once the unit meets one of these conditions, it must be replaced.
-
Page 13: Appendix A Microcure Product Specifications
395-445 nm Spectral Response Note The MicroCure UVA and UVV bands are similar but not identical to the UVA and UVV bands in other EIT instruments that are 0.5” in height Suggested Operating (Dynamic) 10 Watt (UVA or UVV): 500 mW/cm... -
Page 14: Appendix B Datareader Product Specifications
11.75 oz. (333.11 grams) Operating Temperature Range 0-70°C Timeout 30 seconds Battery User changeable 9V battery either alkaline or lithium Materials Steel, nylon, polycarbonate, RoHS Specifications subject to change without notice EIT Part Number: P/N IM-0110 Rev A Issued April 2019 Page 12... -
Page 15: Appendix C Regulatory Statement
The MicroCure and MicroCure DataReader are manufactured in the USA. MicroCure units are RoHS compliant and should be recycled. Units may be sent to EIT for proper disposal, if needed at no charge. Please return to: Electronic Instrumentation and Technology (EIT) LLC Attention: EIT Instrument Markets 309 Kelly’s Ford Plaza SE... -
Page 16: Appendix D Technical Support, Microcure Disposal And Warranty
200 readings or one year, whichever comes first. Once the MicroCure reaches the first one of either of these two conditions, the EIT warranty is void on the MicroCure and the unit must be replaced. Please refer to the Handling and Safety Precautions stated earlier in this manual. -
Page 17: Eit Part Number: P/N Im-0110 Rev A Issued April
EIT. Once received, EIT will determine if the issue will be covered under warranty or of the issue is a non-warranty issue Equipment covered under warranty will be returned to the user with no charge for the repair or shipping.
