MultiBrite Operator's Manual
CHANNEL 1
0 TO 10 VOLT

2.7.2 4 to 20 mA Output Connections

A continuous analog current loop output is available for each of the 4 lamp monitor channels in the
MultiBrite System. The 40 to 20 mA output signal is capable of driving a resistive load up to 250 ohms.
Connections to the output should be made using a twisted pair cable. The 4 to 20 mA output is a
continuous analog representation of the relative intensity of the lamp being monitored. The current loop
signal is directly proportional to the percentage reading on the front panel display. 4 to 20 mA
corresponds to 0 to 100% on the display.
Intensity Channel 1
Range S 1
0 to 100% Switch Position 1
0 to 200% Switch Position 2
12
CHANNEL 2
GUARD
0 TO 10 VOLT

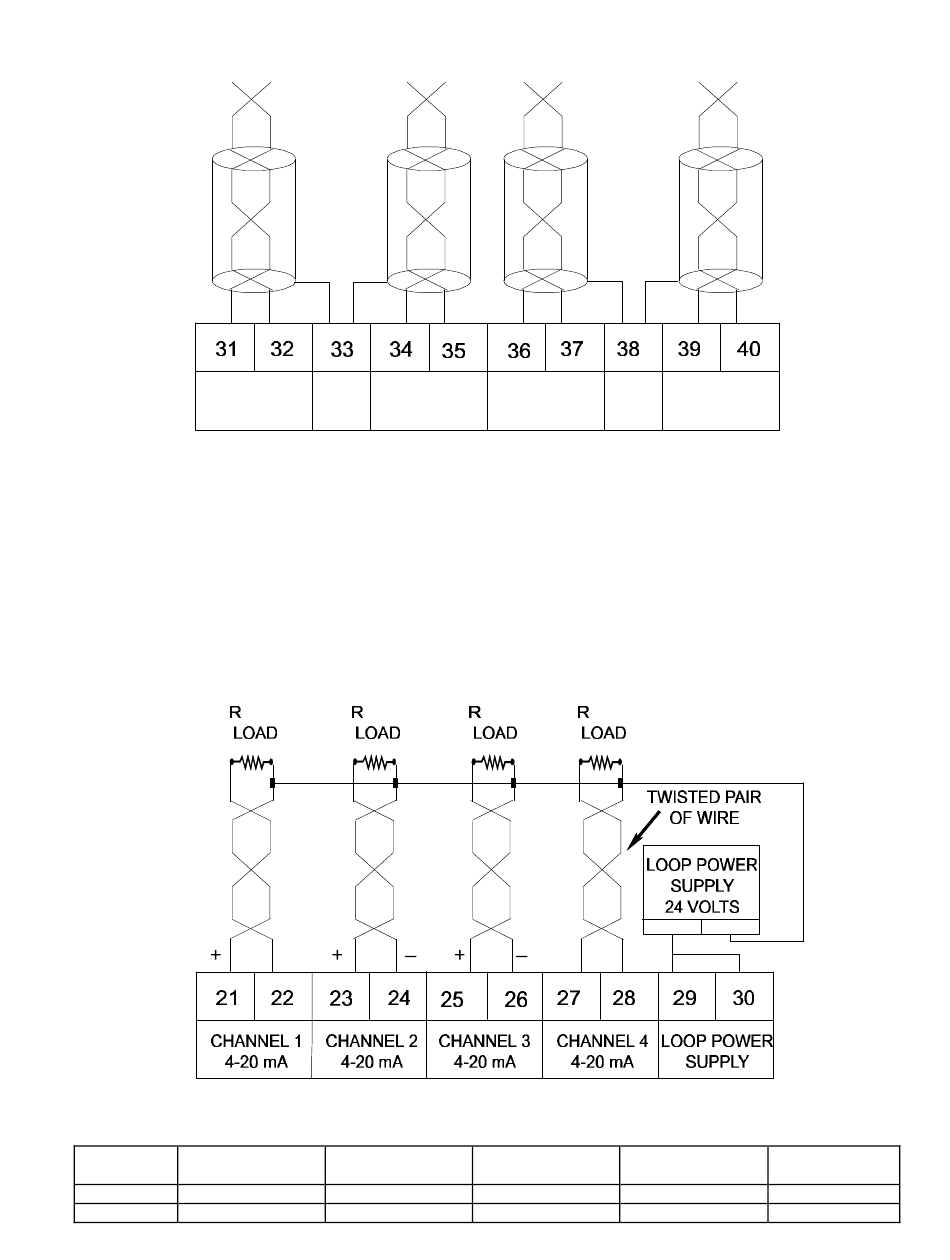

Figure 11. 0 to 10 volt connections
_
Figure 12. 4 to 20 mA connections
Channel 2
S 2
Switch Position 1
Switch Position 2
CHANNEL 3
GUARD
0 TO 10 VOLT
+
_
+
Channel 3 Channel 4
S 3
Switch Position 1 Switch Position 1
Switch Position 2 Switch Position 2
CHANNEL 4
0 TO 10 VOLT
_
Output
S 4 Voltage
0 to 10 Volts
0 to 10 Volts
