Summary of Contents for Inovance Easy302 Series

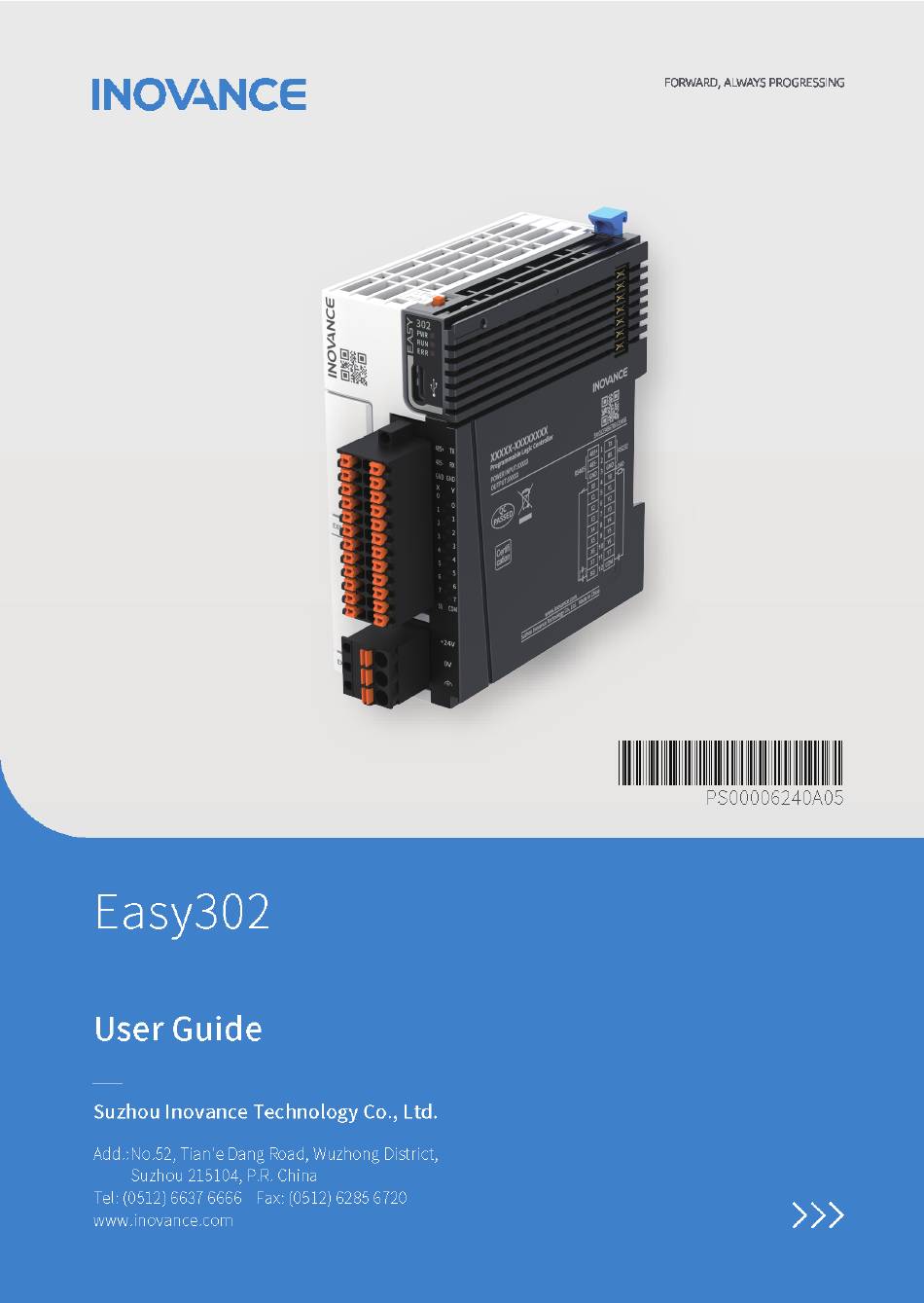

Page 1 *PS00006240A05* Programmable Logic Controller...
Page 3 Introduction This product is a new generation of small‑sized programmable logic controller (PLC) independently developed by Inovance. It supports RS485 and RS232 communication features and implements multi‑layer network communication through the RS485 and RS232 ports. It allows process encapsulation and reuse through the Function Block (FB) and Function (FC) features.
Page 4 Certifica‑ Directive Standard tion EMC Directive 2014/30/EU 24 VDC products: EN 61131‑2 220 VAC products: EN 61131‑2 EN 61000‑3‑2 EN 61000‑3‑3 2014/35/EU EN 61010‑1 EN 61010‑2‑201 RoHS Directive 2011/65/EU EN IEC 63000 amended by (EU) 2015/863 UL/cUL ‑ UL 61010‑1 UL 61010‑2‑201 CAN/CSA‑C22.2 No.
Page 5 ■ More Documents Doc Name Data Code Description GE20 Series Expansion Card PS00006443 Describes the product information, User Guide installation and wiring, and programming examples of the GE20 series expansion card H5U and Easy Series 19012249 Describes the basics of PLC Programmable Logic programming, quick start guide, Controller Programming and...
Page 6: Revision History
M expansion module in " 1.3.2 Power Supply Specifications " on page 15 March 2024 Addition Added the Easy302 series programmable controller models and the GL20 series expansion module " Appendix " on page 38 models in Change Updated the descriptions of status ●...
Page 7: Warranty
QR code: Scan the QR code on the product with your smart phone to obtain the ● corresponding guide. My Inovance app: Scan the QR code below to install the My Inovance app, and ● search for the corresponding guide in the app.
Page 8 Damage caused by fire, flood, or abnormal voltage ● Damage caused by unintended use of the product ● Damage caused by use beyond the specified scope of application of the product ● Damage or secondary damage caused by force majeure (natural disaster, ●...
Page 9: General Safety Precautions
4. Use this product in an environment that complies with the design specifications. Malfunctions or component damage caused by improper use is not covered by warranty. 5. Inovance shall not be liable for any physical injuries or property loss caused by improper use. ■...
Page 10: Installation
Design an external emergency stop circuit, protective circuit, forward and reverse ● rotation interlock circuit, as well as up and down limit interlock circuit to be connected to the programmable controller. Design an external protective circuit and a safety mechanism for output signals that may ●...
Page 11 During installation, prevent metal chippings and cable ends from falling into the vent of ● the product. Failure to comply may result in fire, faults, or malfunctions. After installation, ensure that no unwanted objects exist on the ventilation surface. ● Failure to comply may result in poor heat dissipation, fire, faults, or malfunctions.
Page 12 Safety suggestions In places where operators have direct contact with mechanical parts, such as loading ● and unloading places and areas with automatic machinery operation, carefully configure an on‑site manual operating device or alternative means that works independently of the programmable controller and can start or stop the automatic operation.
Page 13: Product Information
1 Product Information Model Number and Nameplate ■ Model number ① Product series ③ Input and output channels Easy: Easy series programmable 08: 8‑channel input logic controller 08: 8‑channel output ② Series ④ Output type TN: Sink transistor 3: 300 series platform 0: No Ethernet 2: Model serial number ■...
Page 14 Components Port Type Mark Meaning Indicator Description Color Steady ON: Power supply ● Power normal Yellow‑green supply OFF: Power supply off or ● normal abnormal Operation Steady ON: User program ① status ● Normal running Yellow‑green indicator running OFF: User program stopped ●...
Page 15 Port Type Mark Meaning Indicator Description Color Communi‑ Type‑C port ③ cation with ‑ ‑ RS485+ RS485 ‑ ‑ communica‑ tion signal+ RS485– RS485 ‑ ‑ communica‑ ④ RS485 tion signal– RS485 ‑ ‑ communica‑ tion ground Expansion EXP‑A/ Expansion ‑...
Page 16: Product Specifications
Port Type Mark Meaning Indicator Description Color RS232 ‑ ‑ transmit signal RS232 ‑ ‑ receive ⑩ RS232 signal RS232 ‑ ‑ communica‑ tion ground [1]: If the product malfunctions and needs to be powered off and restarted, be sure to turn off the power and unplug the USB power cable, and wait for at least 10 seconds after the power indicator is off before proceeding with the power‑on and startup operation.
Page 17: Power Supply Specifications
Item Specifications Floating point 0.779 μs/instruction operation Ethernet ‑ EtherCAT ‑ communication Number of axes Maximum 5 axes (maximum 5 local pulse axes and 16 virtual axes) supported Serial communication Support for a maximum of three channels (two on the PLC itself and one through the expansion cards) CAN communication Support for one master through an expansion card (requiring the...
Page 18: Input Specifications
Item Specifications Rated voltage of bus output power 5 VDC (4.75 VDC to 5.25 VDC) Rated current of bus output power 2 A (typical value at 5 V) 24 V input power protection Protection against short circuit and reverse connection Hot swapping Not supported Note...
Page 19: Output Specifications
Item Specifications Low‑speed: 2 ms to 1,000 ms ● Software filter time High‑speed: 2 μs to 1,000 μs ● Isolation mode Capacitive isolation for integrated chip Common terminal mode 8‑point/common terminal (positive/ negative polarity of input power being changeable) Input action display The input indicator lights up (controlled by software) when the input is in drive state.
Page 20 Item Specifications Short circuit protection Protection against short circuit of each channel, recovered after power‑off External inductive load protection A flywheel diode is required when an external inductive load is connected. Output action display The output indicator lights up (controlled by software) when the output is in drive state.
Page 21: Mechanical Installation
2 Mechanical Installation Installation Environment Requirements When installing the programmable controller on the guide rail, take the operability, maintainability, and environment adaptation into account. Item Specifications Operating environment Places without corrosive or inflammable gas or severe conductive dust Altitude Maximum 2,000 m (80 kPa) Pollution degree Interference immunity 2 kV on power supply line (IEC 61000‑4‑4)
Page 22 Item Specifications Installation position and limit Installation position: The PLC can be installed in four directions. For details, see " 2.2 Installation Position Requirements " on page 21 Limit: Horizontal installation: Input derating: When the ambient ● temperature is 45°C, the PLC can work at full load.
Page 23: Installation Position Requirements
Item Specifications Continued (To be continued) Output derating: When the ambient ● temperature is 45°C, the PLC can work at full load (that is, the total current of the eight outputs not higher than 2 A). When the ambient temperature is 55°C, the total current of simultaneously active outputs shall be reduced to 50% (that is, the total current of the eight outputs not higher...
Page 24: Other Installation Positions
Note Keep the PLC away from high‑temperature heating sources (heater, transformer, large resistor, etc.) by at least 100 mm. ■ Other installation positions For other installation positions, the same clearance requirements as the optimal installation position apply. Other installation positions are shown in the following figure.
Page 25: Installation Precautions
In case of vertical installation: Install the PLC below all I/O modules. ● Hold the cables with a cable duct to prevent the weight of cables being ● applied to the lower end plate. Failure to comply may cause displacement of the PLC from the DIN rail, leading to maloperation of the PLC.
Page 26: Installation Dimensions
Installation Dimensions The installation dimensions (in mm) are shown in the figure below. Installation Methods The master is mounted onto a DIN rail that complies with IEC 60715 (width: 35 mm, thickness: 1 mm). The dimensions (unit: mm) are shown below. When installed on a DIN rail other than the recommended one (especially the one whose thickness is not 1.0 mm), the module will not fit in place as the mounting hook does not work.
Page 27 2. Make sure the DIN rail mounting hook of the master is locked. The locked and unlocked states of the mounting hook are shown below. If the mounting hook is pressed down, it is locked. ● If the mounting hook is lifted up, it is unlocked. ●...
Page 28: Removing The Module
Install an DIN rail end plate to both sides of the master or module. To mount the end plate, hook the bottom of it to the bottom of the DIN rail, rotate the end plate to hook the top of it to the top of the DIN rail, and then tighten the screw to lock the end plate in place, as shown below.
Page 29 ‑ ‑...
Page 30: Terminal Arrangement
3 Electrical Installation Terminal Arrangement Left Signal Left Right Right Signal Termi‑ Termi‑ X0 input Y0 output X1 input Y1 output X2 input Y2 output X3 input Y3 output X4 input Y4 output X5 input Y5 output X6 input Y6 output X7 input Y7 output Input common terminal...
Page 31: Terminal Wiring
Check the silk print on both sides of the terminal to prevent wrong cable ● connection. Failure to comply may lead to short circuit, which can damage the components. The total extended length of high‑speed I/O interface extension cable must ●...
Page 32 ■ Output terminal circuit diagram Note An external flywheel diode is required when an inductive load is connected. In this case, use a 1N4001 or similar diode. ‑ ‑...
Page 33 ■ Input and output terminal wiring diagram ‑ ‑...
Page 34: Cable Selection
4 Communication Connection Cable Selection Power cable ● The cable lugs and cable sizes in the following table are for reference only. Select proper cables based on actual situations. Material Name Applicable Cable Size Tubular lug 0.75 If other tubular lugs are used, crimp them to twisted cables. The following figure shows requirements of the shape and size.
Page 35: Cable Connection
Cable Connection ■ RS485&RS232 communication The RS485 communication port and the RS232 communication port share the same terminal block, with RS485 communication port on the left and RS232 communication port on the right. The signal on the left side of the terminal is RS485 communication, and the signal on the right side is RS232 communication.
Page 36 Check the silk print on both sides of the terminal to prevent wrong cable connection. Do not connect the GND cable to the I/O terminal on the lower side. Failure to comply can lead to short circuit and damage the components. ■...
Page 37 ■ Wiring " 4.1 Cable Selection " on page 32 to select the communication cable and insert it into the communication port. RS485 Communication It is recommended to use a shielded twisted pair cable as the RS485 bus, and use twisted pair cables to connect the RS485+ and RS485–...
Page 38: Operation And Maintenance
5 Operation and Maintenance Program Run and Stop After writing a program while the PLC is in the "STOP" state, execute the shutdown operation as described in the following table. Status Operation 1. Set the system to the "RUN" state. To run the system 2.
Page 39 5. After successful download, the RUN indicator blinks slowly at 1 Hz and the PLC enters the "STOP" state. Then, remove the SD card. If the ERR indicator blinks slowly, it is indicated that the download has failed. Check whether the downloaded file is applicable to the PLC model and whether the login password of the downloaded file is the same as the login password of the PLC.
Page 40 6 Appendix ■ Easy302 series programmable controllers Model Description Code Easy302‑0808TN Easy300 series 8‑input 8‑output 01440324 programmable controller ■ GE20 series expansion cards Type Model Description Code Slot Digital GE20‑4DI 4‑channel input 01480032 input/ 24 VDC input output Source/Sink GE20‑4DO‑...
Page 41 Note The ID is "0" when there is no expansion card. For expansion card IDs, see the relevant expansion card user guides. ‑ ‑...
Page 42 ■ GL20 series expansion modules Module Model Description Code GL20‑ 16‑channel digital output (PNP) 01440292 0016ETP GL20‑ 16‑channel digital input 01440291 1600END GL20‑ 16‑channel digital output (NPN) 01440293 0016ETN GL20‑ 8‑channel digital input 01440381 0800END GL20‑ 8‑channel digital output (PNP) 01440380 0008ETP GL20‑...
Page 43 Module Model Description Code Tempera‑ GL20‑4PT 4‑channel thermistor input type 01440337 ture GL20‑4TC 4‑channel thermocouple input 01440338 measure‑ type ment GL20‑ 2‑channel serial module (third‑ 01440463 2SCOM party products not supported) Commu‑ GL20‑2S485 2‑channel RS485 expansion 01440398 nication module, currently only supporting EtherCAT couplers (third‑party products not supported) Process...
