modway EEI-2786 Manual

Bookcase

EEI –2786

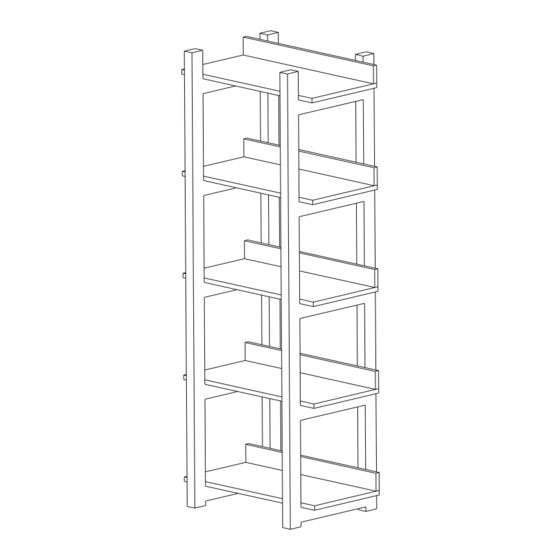

BOOKCASE

Thank you for purchasing the MODWAY BOOKCASE！

Before you start, here is some helpful advice:

1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step

instructions.

2.Owing to the size and weight of the bookcase, we recommend that it is assembled by two adults, on a carpeted

or padded area, in the room that it is intended for. Approximate assembly time: 30 minutes.

3.Please do not use any tools other than those provided or recommended in these instructions.

4.Please do not throw away any of the packaging or the instruction until you have checked all the components and

hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and

environmentally friendly way.

5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the

components from time to time, so please save the tools that have been provided.

6.Please keep all fitting out of reach of children.

Component:

Left Frame

Customer Service 908-368-1025︱www.modwayfurniture.com

Right Frame

Shelf

Cam

Cam Post

Bolt M6x60mm

Allen Wrench M4

Phillips Head Screwdriver

( Not included)

Back Panel

Page 1 of 3

x10

x30

Table of Contents

Need help?

Do you have a question about the EEI-2786 and is the answer not in the manual?

Page 1 EEI –2786 BOOKCASE Thank you for purchasing the MODWAY BOOKCASE！ Before you start, here is some helpful advice: 1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step instructions. 2.Owing to the size and weight of the bookcase, we recommend that it is assembled by two adults, on a carpeted or padded area, in the room that it is intended for.
Page 2 EEI –2786 BOOKCASE HOW TO USE CAM AND CAM POST HARDWARE Note cam arrow direction Turn cam clockwise 1/2 turn Note cam arrow direction STEP 1: Put 1 piece of Shelf (3) to 1 piece of Back Panel (4) together as shown.. Attach them by using 2 pieces of Cam Post (B) and 2 pieces of Cam (A) Fully tighten Cams (A) by using Phillips Head Screwdriver (not included).
Page 3 EEI –2786 BOOKCASE STEP 2: Put Left Frame (1) and Right Frame (2) to the assembled Shelves (1) and Back Panel (2) as shown. Attach 1 piece of assembled Shelf (3) and Back Panel (4) to Left Frame (1) and Right Frame (2) by using 6 pieces of Bolt (C).
