EEI –2788
DESK

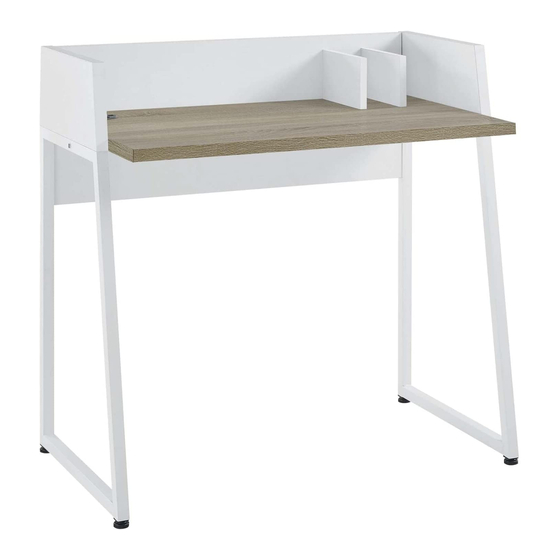

Thank you for purchasing the MODWAY DESK！
Before you start, here is some helpful advice:
1.We suggest you spend a short time reading through this leaflet and then follow the simple step-by-step
instructions.
2.Owing to the size and weight of the desk, we recommend that it is assembled by two adults, on a carpeted or
padded area, in the room that it is intended for. Approximate assembly time: 45 minutes.
3.Please do not use any tools other than those provided or recommended in these instructions.
4.Please do not throw away any of the packaging or the instruction until you have checked all the components and
hardware and the furniture is fully assembled. Please ensure that the packaging is disposed of in a safe and
environmentally friendly way.
5.Assemble all components loosely until advised to tighten. Depending on use, it may be necessary to tighten the
components from time to time, so please save the tools that have been provided.
6.Please keep all fitting out of reach of children.
Component:
1
Top Panel
x1
5
Divider Panel
x2
Customer Service 908-368-1025︱www.modwayfurniture.com
2
1
6
2
Left Panel
x1
6
Left Frame
x1
Hardware:
A
B
C
D
E
F
G
H
J
K
4
5
5
3
8
7
3
3
Right Panel
7
Right Frame
Cam
Cam Post
Bolt M6x40mm
Large Screw M7x70mm
Dowel
Medium Screw M7x50mm x8
Short Screw M4x14mm
Adjustable Leveler
Plastic Cover
Allen Wrench M4
Phillips Head Screwdriver
( Not included)
4
x1
Back Panel
8
x1
Rail
Page 1 of 6
x11
x11
x2
x4
x2
x12
x4
x1
x1
x1
x1
