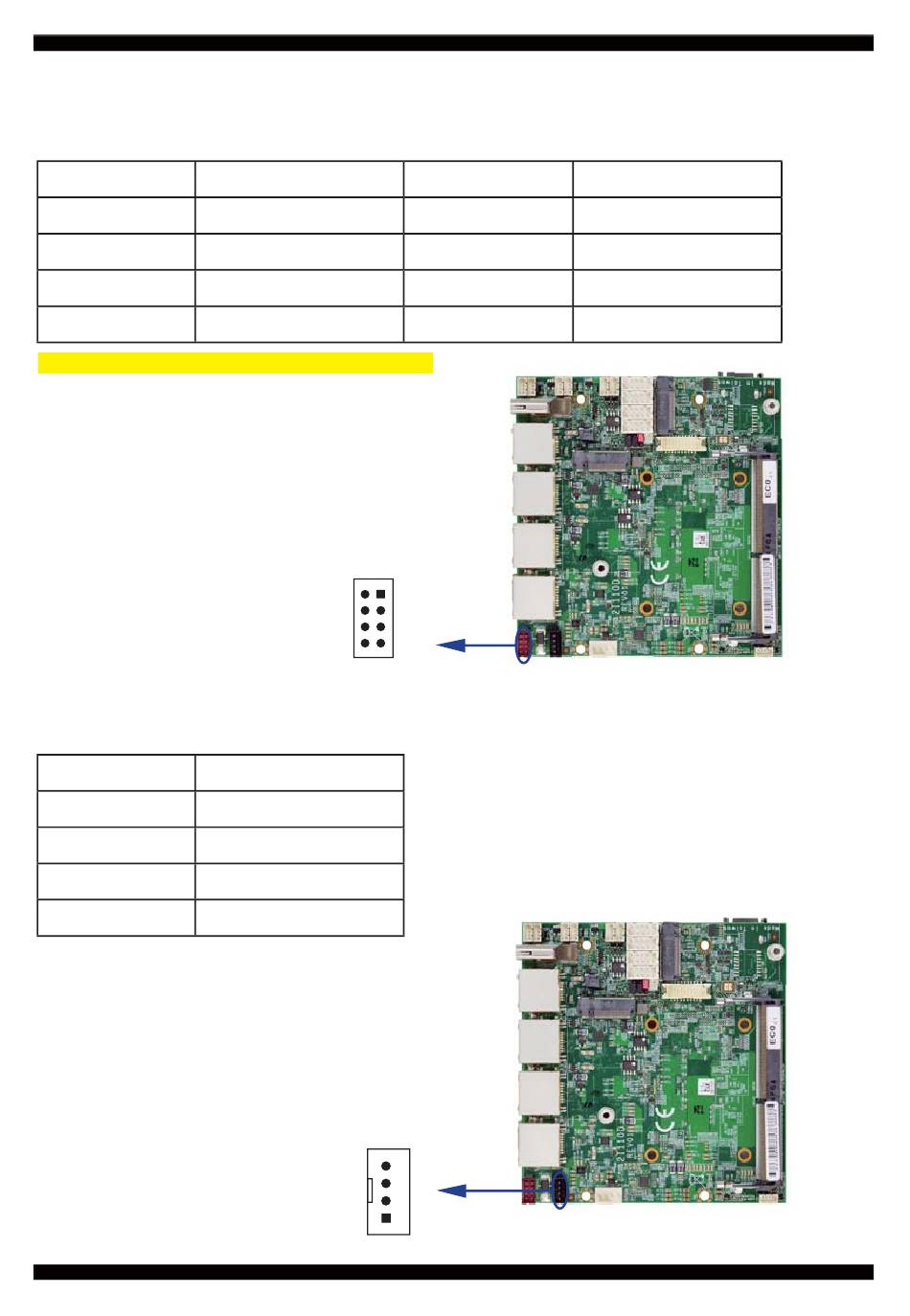

3-10 CPI1: DC Power input (2x4 pin 2.0mm Wafer) (Red)

PIN NO.
DESCRIPTION
1
GND
3
DC-IN
5
DC-IN
7
GND
Note: 1. Very important check DC-in Voltage.

3-11 CPO1: DC +5 / +12V output 1x4 pin (2.0mm) Black Wafer

PIN NO.
DESCRIPTION
1
+5V
2
GND
3
GND
4
+12V
Note: Attention! Check Device Power in spec
PIN NO.
2
4
6
8
CPI1
pin1
8
CPO1
pin1
37
DESCRIPTION
GND
DC-IN
DC-IN
GND
