LCD KVM Switch
CL1008 / CL1016
User Manual
www.aten.com

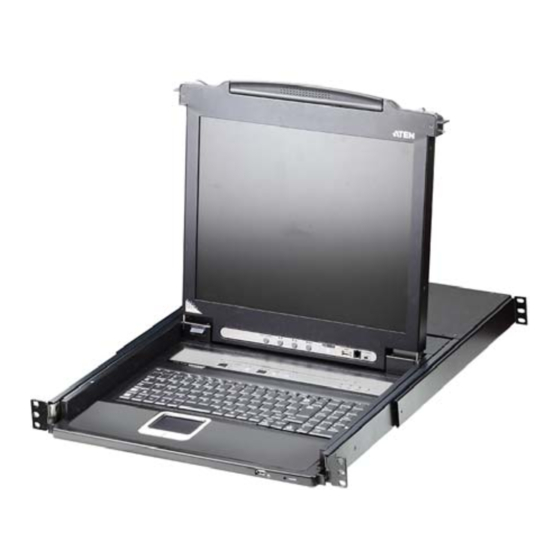

Aten CL1016M
o

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CL1016M and is the answer not in the manual?

Questions and answers

Summary of Contents for ATEN CL1016M

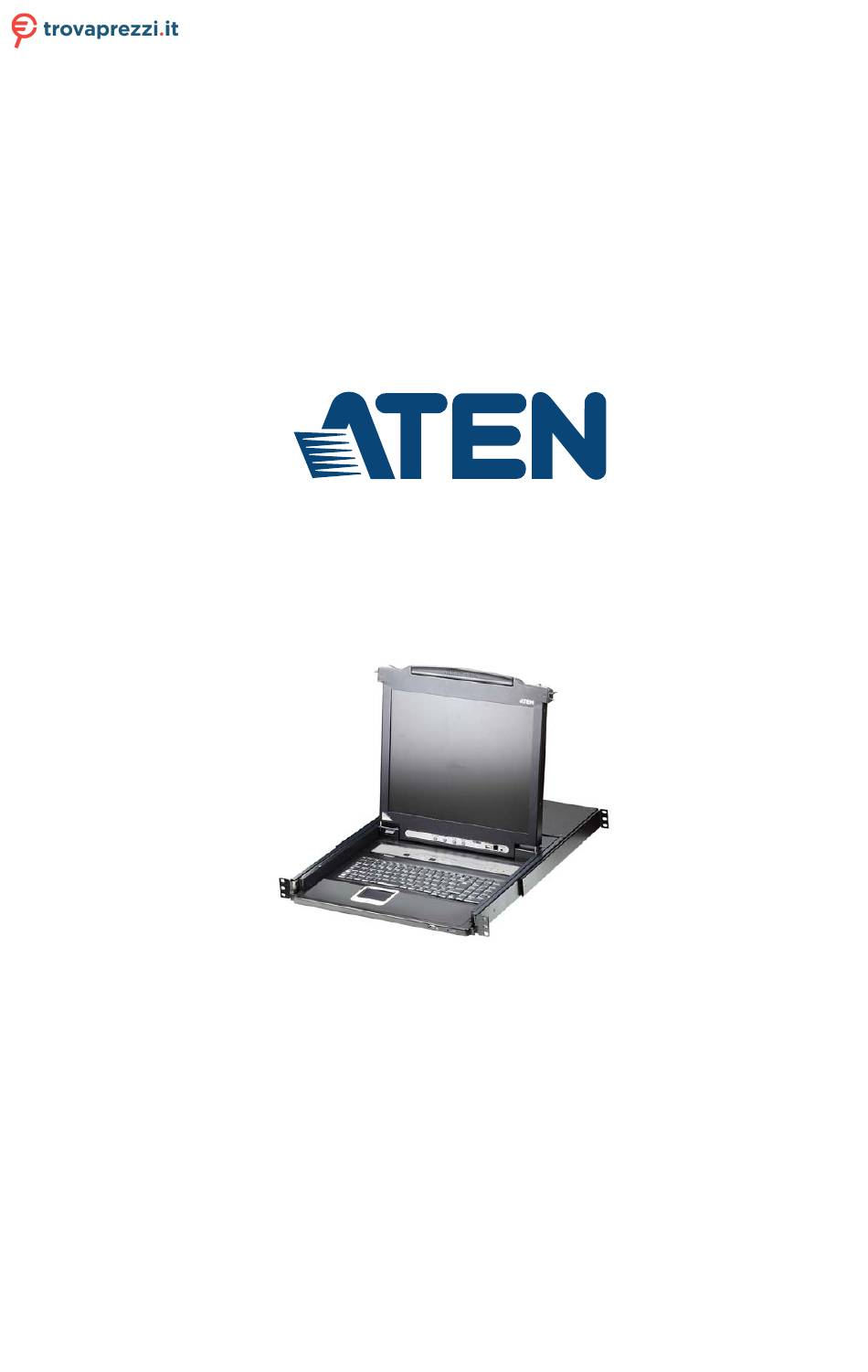

  • Page 1 Questo manuale d’istruzione è fornito da trovaprezzi.it. Scopri tutte le offerte per Aten CL1016M cerca il tuo prodotto tra le migliori offerte di Switch LCD KVM Switch CL1008 / CL1016 User Manual www.aten.com...
  • Page 2: Emc Information

    CL1008 / CL1016 User Manual EMC Information FEDERAL COMMUNICATIONS COMMISSION INTERFERENCE STATEMENT: This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a commercial environment.
  • Page 3 CL1008 / CL1016 User Manual SJ/T 11364-2006 The following contains information that relates to China.
  • Page 4: User Information

    86-10-5255-0110 Japan 81-3-5615-5811 Korea 82-2-467-6789 North America 1-888-999-ATEN ext 4988 United Kingdom 44-8-4481-58923 User Notice All information, documentation, and specifications contained in this manual are subject to change without prior notification by the manufacturer. The manufacturer makes no representations or warranties, either expressed or implied, with respect to the contents hereof and specifically disclaims any warranties as to merchantability or fitness for any particular purpose.
  • Page 5: Package Contents

    © Copyright 2008–2015 ATEN® International Co., Ltd. Manual Date: 2015-04-24 ATEN and the ATEN logo are registered trademarks of ATEN International Co., Ltd. All rights reserved. All other brand names and trademarks are the registered property of their respective owners.
  • Page 6: Table Of Contents

    CL1008 / CL1016 User Manual Contents EMC Information..........ii RoHS .
  • Page 7 CL1008 / CL1016 User Manual 4. OSD Operation OSD Overview ..........23 Logging In .
  • Page 8 CL1008 / CL1016 User Manual International ..........56 North America .
  • Page 9: About This Manual

    CL1008 / CL1016 User Manual About this Manual This User Manual is provided to help you get the most from your CL1008 / CL1016 system. It covers all aspects of installation, configuration and operation. An overview of the information found in the manual is provided below.
  • Page 10: Conventions

    For information about all ATEN products and how they can help you connect without limits, visit ATEN on the Web or contact an ATEN Authorized Reseller. Visit ATEN on the Web for a list of locations and telephone numbers: International http://www.aten.com...
  • Page 11: Introduction

    Chapter 1 Introduction Overview The CL1008 / CL1016 Slideaway LCD KVM Switch series are control units that allow access to multiple computers from a single keyboard, video, and mouse (KVM) console. A single CL1008 or CL1016 can control up to 8 or 16 computers.
  • Page 12: Features

    CL1008 / CL1016 User Manual Features Exclusive LED illumination light - designed by ATEN to illuminate the keyboard and touchpad to allow visibility in low-light conditions KVM console with 17" LED-backlit LCD monitor in a sliding housing – top and bottom clearance for smooth operation in a 1U high system rack...
  • Page 13: Requirements

    1. Introduction Requirements Computers The following equipment must be installed on each computer: A VGA, SVGA or multisync card Note: The integrated LCD monitor's maximum resolution is 1280 x 1024 @ 75 Hz. Make sure that none of the computer resolution settings exceed the LCD monitor's maximum resolution.
  • Page 14: Os Support

    CL1008 / CL1016 User Manual OS Support Version Windows 2000 and higher Linux RedHat 7.1–7.3, 8.0, 9.0, Fedora Core 2–4 SuSE 8.2, 9.3, 10 Mandriva (Mandrake) 9, 2005 Limited Edition, 2006 UNIX AIX: 4.3, 5L FreeBSD 4.2, 4.5 Novell Netware: 5.0, 6.0 Components Front View Press the Exit/Light pushbutton for...
  • Page 15 1. Introduction Component Description Handle Pull to slide the KVM module out; push to slide the module in (see item 2 in this table). Slide Release In order to slide the console out, you must first release it by sliding these tabs to the inside. See page 15 for details on sliding the console in and out.
  • Page 16 CL1008 / CL1016 User Manual Component Description Firmware Firmware Upgrade Port: The Firmware Upgrade Cable Upgrade that transfers the firmware upgrade data from the Section administrator's computer to the CL1008 / CL1016 plugs into this RJ-11 connector. Firmware Upgrade Switch: During normal operation this switch should be in the NORMAL position.
  • Page 17: Rear View

    1. Introduction Rear View Component Description Daisy Chain Port When daisy chaining units, the cable plugs in here. KVM Port The cables that link to the computers plug in here. Section Note: The shape of these SPHD connectors has been specifically modified so that only KVM cables designed to work with this switch can plug in (see the Cables section on page 3, for details).
  • Page 18 CL1008 / CL1016 User Manual This Page Intentionally Left Blank...
  • Page 19: Hardware Setup

    Chapter 2 Hardware Setup Before you Begin 1. Important safety information regarding the placement of this device is provided on page 49. Please review it before proceeding. 2. Make sure that power to all the devices you will be connecting up have been turned off.
  • Page 20 CL1008 / CL1016 User Manual To rack mount the switch, do the following: 1. While one person positions the switch in the rack and holds it in place, the second person loosely screws the front brackets to the rack. 2. While the first person still holds the switch in place, the second person slides the L brackets into the switch's side mounting brackets, from the rear until the bracket flanges contact the rack, then screws the L brackets to the rack.
  • Page 21: Single Stage Installation

    2. Hardware Setup Single Stage Installation In a single stage installation, there are no additional switches daisy chained down from the first unit. To set up a single stage installation, refer to the installation diagram on the next page (the numbers in the diagram correspond to the numbers of the installation steps), and do the following: 1.
  • Page 22 CL1008 / CL1016 User Manual Note: The CL1016 is pictured above. The CL1008 rear panel is the same as that of the CL1016, except that it has 8 KVM ports instead of 16.
  • Page 23: Daisy Chain Installation

    2. Hardware Setup Daisy Chain Installation To control even more computers, up to 15 ACS1208A or ACS1216A KVM switches can be daisy chained down from the CL1008 / CL1016. In a complete installation, as many as 248 or 256 computers can be controlled from the CL1008 / CL1016.
  • Page 24 CL1008 / CL1016 User Manual CL1016 ACS1216A ACS1216A Note: The CL1016 is pictured above. The CL1008 rear panel is the same as that of the CL1016, except that it has 8 KVM ports instead of 16.
  • Page 25: Basic Operation

    Chapter 3 Basic Operation Opening the Console The CL1008 / CL1016's console is located under the top cover. As a safety precaution, the console is locked into the In position. To access the console, push the release catches on the unit's front panel toward the center of the switch;...
  • Page 26: Closing The Console

    CL1008 / CL1016 User Manual Closing the Console To slide the console module in, close the cover and do the following: 1. Pull the safety catches on the unit's side rails toward you and push the module in until it stops. 2.
  • Page 27: Operating Precautions

    3. Basic Operation Operating Precautions The maximum load bearing capacity of the keyboard module is 30 kg. Failure to heed the information below can result in damage to the keyboard module. Right! Rest your hands and arms lightly on the keyboard module as you work.
  • Page 28: Powering Up

    CL1008 / CL1016 User Manual Powering Up Power up the installation according to the following procedure: 1. Power on the first station (CL1008 / CL1016) and wait a few seconds for the unit to ascertain its station ID. 2. Plug in the power adapters for each daisy chained station on the installation in turn (second station, then third station, etc.).
  • Page 29: Lcd Osd Configuration

    3. Basic Operation LCD OSD Configuration The LCD Buttons The LCD OSD allows you to set up and configure the LCD display. Four buttons are used to perform the configuration, as described in the table, below: Button Function MENU When you have not entered the LCD OSD Menu function, pressing this button invokes the Menu function, and brings up the Main Menu.
  • Page 30: Lcd Adjustment Settings

    CL1008 / CL1016 User Manual LCD Adjustment Settings An explanation of the LCD OSD adjustment settings is given in the table below: Setting Explanation Brightness Adjusts the background black level of the screen image. Contrast Adjusts the foreground white level of the screen image. Phase If pixel jitter or horizontal line noise is visible on the display, your LCD may have the wrong phase setting.
  • Page 31: Port Id Numbering

    3. Basic Operation Port ID Numbering Each KVM port on the installation is assigned a unique Port ID. The Port ID is made up of two parts: a Station Number, and a Port Number: The Station Number – is a two digit number which reflects the switch's position in the daisy chain sequence.
  • Page 32: Hot Plugging

    CL1008 / CL1016 User Manual Hot Plugging The CL1008 / CL1016 supports hot plugging – computers can be removed and added back into the installation by unplugging and replugging their cables from/into the switch’s KVM ports. In order for the switch’s OSD menus to correspond to the change, however, you must manually reconfigure the OSD to reflect the new port information.
  • Page 33: Osd Operation

    Chapter 4 OSD Operation OSD Overview The on-screen display (OSD) is a menu driven method to handle computer control and switching operations. All procedures start from the OSD main screen. There are two ways to invoke the OSD: 1. Tap the OSD invocation key on the keyboard (see p. 60), or 2.
  • Page 34: Osd Main Screen

    F2:LIST F4:ADM F6:BRC F8:LOUT ADMINISTRATOR LIST:ALL SN PN NAME ATEN INTL.CO. 1 ATEN INTL.CO. 2 ATEN INTL.CO. 3 FAX SERVER 1 FAX SERVER 2 WEB SERVER 1 WEB SERVER 2 MAIL SERVER 1 Note: 1. The diagram depicts the administrator's main screen. The user main screen does not show the F4 and F6 functions since these are reserved for the administrator and can't be accessed by users.
  • Page 35: Osd Main Screen Headings

    Chapter 4. OSD Operation OSD Main Screen Headings Heading Explanation SN-PN This column lists the port ID numbers (station number - port number) for all the KVM ports on the installation. The simplest method to access a particular computer is to click it, or move the highlight bar to it, then press Enter.
  • Page 36: Osd Functions

    CL1008 / CL1016 User Manual OSD Functions OSD functions are used to configure and control the OSD. For example, you can: rapidly switch to any port, scan selected ports only, limit the list you wish to view, designate a port as a quick view port, create or edit a port name, or make OSD setting adjustments.
  • Page 37: F2: List

    Chapter 4. OSD Operation F2: LIST This function lets you broaden or narrow the scope of ports the OSD displays on the main screen. Many of the OSD functions only operate on the computers currently selected for listing on the main screen with this function. The submenu choices and their meanings are given in the table below: Choice Meaning...
  • Page 38: F3: Set

    CL1008 / CL1016 User Manual F3: SET This function allows the administrator and each user to set up their own, individual, working environment. A separate profile for each is stored by the OSD and is activated according to the username provided during login. To change a setting: 1.
  • Page 39 Chapter 4. OSD Operation (Continued from previous page.) Setting Function PORT ID Selects how the port ID is displayed: the port number alone (PORT DISPLAY NUMBER); the port name alone (PORT NAME); or the port MODE number plus the port name (PORT NUMBER + PORT NAME). The default is PORT NUMBER + PORT NAME).
  • Page 40: F4: Adm

    CL1008 / CL1016 User Manual F4: ADM F4 is an administrator only function. It allows the administrator to configure and control the overall operation of the OSD. To change a setting double click it; or use the up and down arrow keys to move the highlight bar to it then press [Enter].
  • Page 41 Chapter 4. OSD Operation (Continued from previous page.) Setting Function EDIT PORT To help remember which computer is attached to a particular port, NAMES every port can be given a name. This function allows the administrator to create, modify, or delete port names. To edit a port name: 1.
  • Page 42 CL1008 / CL1016 User Manual (Continued from previous page.) Setting Function SET QUICK This function lets the administrator select which ports to include as VIEW PORTS quick view ports. To select/deselect a port as a quick view port, use the navigation keys to move the highlight bar to it, then press the [Spacebar].
  • Page 43: F5: Skp

    Chapter 4. OSD Operation F5: SKP This function enables you to easily skip backward or forward, switching the KVM focus, from the currently active computer port to the previous or next available one. The selection of computers available for Skip mode switching is made with the Scan/Skip mode setting under the F3 SET function (see page 28).
  • Page 44: F6: Brc

    CL1008 / CL1016 User Manual F6: BRC F6 is an administrator only function. When this function is in effect, commands sent from the console are broadcast to all available computers on the installation. This function is particularly useful for operations that need to be performed on multiple computers, such as performing a system wide shutdown, installing or upgrading software, etc.
  • Page 45: F7: Scan

    Chapter 4. OSD Operation F7: SCAN This function allows you to automatically switch among the available computers at regular intervals so that you can monitor their activity without having to take the trouble of switching yourself. The selection of computers to be included for auto scanning is made with the Scan/Skip mode setting under the F3 SET function (see page 28).
  • Page 46: F8: Lout

    CL1008 / CL1016 User Manual F8: LOUT Clicking the F8 field, or pressing [F8] logs you out of the OSD, and blanks the console screen. This is different from simply deactivating the OSD when you are at the main screen by pressing [Esc]. With this function you must log in all over again to regain access to the OSD, whereas with [Esc], all you have to do to reenter the OSD is tap the OSD hotkey.
  • Page 47: Hotkey Operation

    Chapter 5 Hotkey Operation Hotkey Port Access Hotkey port access allows you to provide the KVM focus to a particular port directly from the keyboard. The CL1008 / CL1016 provides three hotkey port access features: Selecting the Active Port Auto Scanning Skip Mode Switching Note: The hotkey function must be enabled in the settings.
  • Page 48: Hotkey Mode Operation

    CL1008 / CL1016 User Manual Hotkey Mode Operation Hotkey Mode Characteristics When Hotkey Mode is active: The Caps Lock, and Scroll Lock LEDs flash in succession to indicate so. They stop flashing and revert to normal status when you exit Hotkey mode. A Command Line appears on the monitor screen.
  • Page 49: Auto Scan Mode

    5. Hotkey Operation Auto Scan Mode Auto Scan automatically switches among all the active KVM ports that are accessible to the currently logged in user at regular intervals, allowing automatic monitoring of computer activity. (See Scan/Skip Mode of the OSD F3: SET function, page 28 for information regarding accessible ports.) Setting the Scan Interval The amount of time Auto Scan dwells on each port is set with the Scan...
  • Page 50: Pausing Auto Scan

    CL1008 / CL1016 User Manual Pausing Auto Scan While you are in Auto Scan mode, you can pause the scanning in order to keep the focus on a particular computer either by pressing P or with a left click of the mouse.
  • Page 51: Skip Mode

    5. Hotkey Operation Skip Mode This feature allows you to switch between computers in order to monitor them manually. You can dwell on a particular port for as long or as little as you like, as opposed to auto scanning, which automatically switches after a fixed interval.
  • Page 52: Hotkey Beeper Control

    CL1008 / CL1016 User Manual Hotkey Beeper Control The beeper can be hotkey toggled on and off (see ACTIVATE BEEPER, page 31). To toggle the beeper, key in the following hotkey combination: 1. Invoke Hotkey mode (see page 37). 2. Press [B] After you press B, the beeper toggles on or off.
  • Page 53: The Firmware Upgrade Utility

    Chapter 6 The Firmware Upgrade Utility The Windows-based Firmware Upgrade Utility (FWUpgrade.exe) provides a smooth, automated process for upgrading the KVM switch's firmware. The utility comes as part of a Firmware Upgrade Package that is specific for each device. New firmware upgrade packages are posted on our web site as new firmware revisions become available.
  • Page 54 CL1008 / CL1016 User Manual 4. Shut down all of the computers, but not the stations, on your KVM installation. 5. From your KVM switch console, bring up the OSD (see p. 23) and select the F4 ADM function. 6. Scroll down to FIRMWARE UPGRADE. Press [Enter], then press [Y] to invoke Firmware Upgrade mode (see p.
  • Page 55: Starting The Upgrade

    6. The Firmware Upgrade Utility Starting the Upgrade To upgrade your firmware: 1. Run the downloaded firmware upgrade package file, either by double clicking the file icon, or by opening a command line and entering the full path to it. The firmware upgrade utility Welcome screen appears: Note: The screens shown in this section are for reference only.
  • Page 56 CL1008 / CL1016 User Manual The firmware upgrade utility main screen appears: The utility inspects your installation. The devices capable of being upgraded are listed in the Device List panel. 4. After all the devices have been listed, click Next to perform the upgrade. If you enabled Check Firmware Version, the utility compares the device's firmware level with that of the upgrade files.
  • Page 57: Upgrade Succeeded

    6. The Firmware Upgrade Utility As the upgrade proceeds status messages appear in the Status Messages panel, and the progress toward completion is shown on the Progress bar. To abort the upgrade procedure before it completes, click Cancel. If you cancel before completion, a dialog box appears warning you that quitting at this point may cause the device’s firmware to be lost, and you are given the option to proceed or abort the cancel operation.
  • Page 58: Firmware Upgrade Recovery

    CL1008 / CL1016 User Manual Firmware Upgrade Recovery There are basically three conditions that call for firmware upgrade recovery: When you invoke Firmware Upgrade mode (see Preparation, page 43), but decide not to proceed with the upgrade. When the mainboard firmware upgrade fails. When the I/O firmware upgrade fails.
  • Page 59: Appendix

    Appendix Safety Instructions General This product is for indoor use only. Read all of these instructions. Save them for future reference. Follow all warnings and instructions marked on the device. To prevent damage to your installation it is important that all devices are properly grounded.
  • Page 60 CL1008 / CL1016 User Manual To help protect your system from sudden, transient increases and decreases in electrical power, use a surge suppressor, line conditioner, or un-interruptible power supply (UPS). If an extension cord is used with this device make sure that the total of the ampere ratings of all products used on this cord does not exceed the extension cord ampere rating.
  • Page 61: Rack Mounting

    Appendix Rack Mounting Before working on the rack, make sure that the stabilizers are secured to the rack, extended to the floor, and that the full weight of the rack rests on the floor. Install front and side stabilizers on a single rack or front stabilizers for joined multiple racks before working on the rack.
  • Page 62: Consignes De Sécurité

    CL1008 / CL1016 User Manual Consignes de sécurité Général Ce produit est destiné exclusivement à une utilisation à l’intérieur. Veuillez lire la totalité de ces instructions. Conservez-les afin de pouvoir vous y référer ultérieurement. Respectez l’ensemble des avertissements et instructions inscrits sur l’appareil.
  • Page 63 Appendix L’équipement doit être installé à proximité de la prise murale et le dispositif de déconnexion (prise de courant femelle) doit être facile d’accès. La prise murale doit être installée à proximité de l’équipement et doit être facile d’accès. Veillez à ce que rien ne repose sur le cordon d’alimentation ou les câbles. Acheminez le cordon d’alimentation et les câbles de sorte que personne ne puisse marcher ou trébucher dessus.
  • Page 64 CL1008 / CL1016 User Manual L’unité a été exposée à la pluie ou à l’eau. L’unité est tombée ou le boîtier a été endommagé. Les performances de l’unité sont visiblement altérées, ce qui indique la nécessité d’une réparation. L’unité ne fonctionne pas normalement bien que les instructions d’utilisation soient respectées.
  • Page 65: Montage Sur Bâti

    Appendix Montage sur bâti Avant de travailler sur le bâti, assurez-vous que les stabilisateurs sont bien fixées sur le bâti, qu’ils sont étendus au sol et que tout le poids du bâti repose sur le sol. Installez les stabilisateurs avant et latéraux sur un même bâti ou bien les stabilisateurs avant si plusieurs bâtis sont réunis, avant de travailler sur le bâti.
  • Page 66: Technical Support

    CL1008 / CL1016 User Manual Technical Support International For online technical support – including troubleshooting, documentation, and software updates: http://eservice.aten.com For telephone support, see Telephone Support, page iv North America Email Support support@aten-usa.com Online Troubleshooting http://www.aten-usa.com/support Technical Documentation Support Software Updates...
  • Page 67: Specifications

    Appendix Specifications CL1008 Function CL1008 Computer Direct Connections 128 (via Daisy Chain) Port Selection OSD; Hotkey; Pushbutton Switches Connectors KVM Ports 8 x SPHD-15 Female (Yellow) Daisy Chain 1 x DB-25 Male (Black) FW Upgrade 1 x RJ-11 Female Power 1 x 3-prong AC socket Switches Reset...
  • Page 68: Cl1016

    CL1008 / CL1016 User Manual CL1016 Function CL1016 Computer Direct Connections 256 (via Daisy Chain) Port Selection OSD; Hotkey; Pushbutton Switches Connectors KVM Ports 16 x SPHD-15 Female (Yellow) Daisy Chain 1 x DB-25 Male (Black) FW Upgrade 1 x RJ-11 Female Power 1 x 3-prong AC socket Switches...
  • Page 69: Connection Tables

    Appendix Connection Tables The following tables indicate the relationship between the number of units and the number of computers that they control on a daisy chained installation: CL1008 – ACS1208A Computers Computers 1–8 65–72 9–16 73–80 17–24 81–88 25–32 89–96 33–40 97–104 41–48...
  • Page 70: Cl1016 - Acs1208A

    CL1008 / CL1016 User Manual CL1016 – ACS1208A Computers Computers 1–16 73–80 17–24 81–88 25–32 89–96 33–40 97–104 41–48 105–112 49–56 113–120 57–64 121–128 65–72 129–136 CL1016 – ACS1216A Computers Computers 1–16 129–144 17–32 145–160 33–48 161–176 49–64 177–192 65–80 193–208 81–96 209–224...
  • Page 71: Clear Login Information

    Appendix Clear Login Information If you are unable to perform an Administrator login (because the username and password information has become corrupted, or you have forgotten it, for example), you can clear the login information with the following procedure: 1. Power off the switch and remove the top cover from the unit chassis. 2.
  • Page 72: Optional Rack Mounting

    CL1008 / CL1016 User Manual Optional Rack Mounting For convenience and flexibility, three optional rack mounting kits are available: A long bracket standard rack mounting kit for 68.0–105.0 cm racks; A short bracket Easy-Installation rack mount kit for 52.0–70.0 cm racks; A long bracket Easy-Installation rack mount kit for 68.0–105.0 cm racks.
  • Page 73 Appendix Rear Flange Slide Bar Rear Attachment Sliding Bracket LEFT Support Rear Flange RAIL Flange RIGHT RAIL a) Screw the front flanges to the rack first. b) Slide the bars with the rear flanges toward the rack until the flanges make contact with the rack, then screw the rear flanges to the rack.
  • Page 74 CL1008 / CL1016 User Manual 3. Slide the switch onto the support flanges. Use the screws supplied with this package to loosely attach the front of the switch to the front of the rack (only tighten the screws part way). Phillips I head M4 x 6 4.
  • Page 75: Osd Factory Default Settings

    Appendix 5. Slide the switch open and closed a couple of times to be sure that it is properly aligned and operating smoothly. (See page 15 for opening and closing procedures.) 6. After determining that the switch is properly lined up and operating correctly, finish up by fully tightening down the partially tightened front attachment screws inserted in step 3.
  • Page 76: Dedicated Invocation Keys

    CL1008 / CL1016 User Manual Dedicated Invocation Keys Two dedicated keys are provided on the keyboard module to make it easy to invoke Hotkey Mode and the OSD, as shown in the diagram, below Note: These keys are toggles. Press once to invoke the feature, press again to exit.
  • Page 77 Index Activate Beeper, 31 Easy installation rack mounting, 62 Active port Edit Port Names, 31 selecting, 38 ADM, 30 F1 GOTO, 26 Administrator functions, 30 F2 LIST, 27 Auto Scan Mode, 39 F3 SET, 28 Auto Scanning, 35 F4 ADM, 30 Invoking Auto Scan, 39 F5 SKP, 33 Pausing Auto Scan, 40...
  • Page 78 CL1008 / CL1016 User Manual exiting, 37 Display Duration, 28 Display Mode, 29 Display Position, 28 Installation Numbering, 21 Daisy chaining, 13 Port Names, 31 Single Stage, 11 Port selection, 21 Invocation Keys, 66 active port, 38 Invoking Hotkey Mode, 37 Powering Off and Restarting, 18 Powering Up, 18 Adjustment Settings, 20...
  • Page 79 Index Password, 30 Reset, 32 Quick View Ports, 32 USERNAME, 30 Technical Support, 56 Setting the Auto Scan Interval, 39 Telephone support, iv SJ/T 11364-2006, iii Timeout, 30 Skip Mode, 29, 33, 41 SKP, 33 Specifications, 57 User Notice, iv Standard rack mounting, 9 Username, 30 Station IDs, 18...

This manual is also suitable for:
