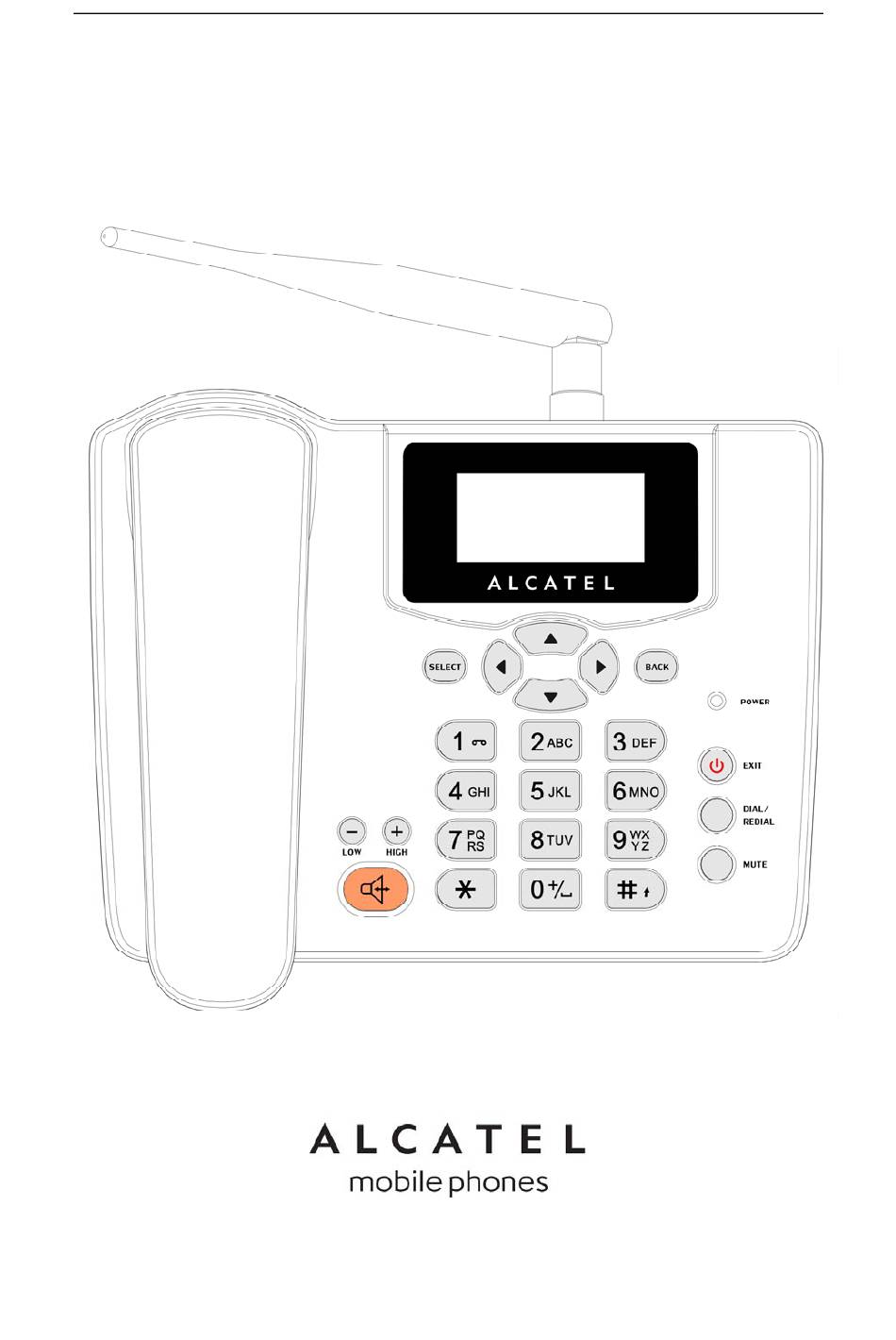

- Page 1 USER MANUAL ALCATEL one touch CF100C...
-
Page 2: Table Of Contents
Friendly reminder: This user manual applies to the one touch CF100C phone. If there are minor differences in the description or illustrations between the manual and the actual product，the actual product shall take precedence. Customers will not be notified separately of any upgraded model of this phone. Please contact our Customer service. -
Page 3: Your Mobile
1. Your mobile 1.1 Basic specifications Item Specifications Size: 200mm[L]×153.8mm[W]×48.7mm[Thickness] Phone Weight: 574g (Battery included) Screen resolution 128*64 pixels Contacts 500 entries Recent calls 60 entries Messages 350 entries Operating temperature -20℃~55℃ Capacity: 1200mAh Talk time: 5 hours(approx.) Battery Ni-MH Standby time: 220 hours (approx.) Charging time: 10 hours (approx.) Explanation:... - Page 4 Number Item Function SELECT Key Enter menu Confirm an option BACK Key Contacts List In Menu: Back/Delete Navigation Keys Left: Alarm Right: Recent Calls Up: Messages Down: Create message EXIT Key Power on/Power off End a call Back to the idle screen DIAL/REDIAL Key Recent Call Answer/Send a call...
- Page 5 Volume Key Change the volume during the call Speaker Key You can select this key to activate or deactivate handsfree 1 Key When standby, holding [1] Key 2 seconds to call the voice mail number. * Key When input numbers in standby, holding [*] Key 2 seconds to input P after main number and then extension number.
-
Page 6: Getting Started
Battery power indicator. More bars indicate a higher power level. The more bars, the stronger signal You have received one or more text messages Indicate the message box is full You have received one or more voicemail messages Indicate the phone is making a call You have missed one or more calls Alarm or schedule has been set Indicate the phone have set Voice privacy... -
Page 7: Basic Functions
Installing the battery Fixing the battery Closing the back cover 2.3 How to use the Wall Hook 3. - Page 8 3.2.1 Enter the number directly In the standby mode, use the number key to enter a phone number, and then press the Dial/Redial key to make the call. 3.2.2 Dial a number in the Call Memory In the standby mode, press the Dial/Redial key to access recent calls list, and press send key again to dial the selected number.
-
Page 9: Contacts
4. Contacts The phone can store up to 500 contacts. From the idle screen press the Back key to display the list of contacts. The contact list can also be accessed through Menu/Contacts. 4.1 Contacts List Select Menu/Contacts/Contacts List to access the contacts list. Press the Select key for the following options: View, Edit, Add New, Send Messages, Send Contacts and Delete. -
Page 10: Recent Calls
4.5 Speed Dial Select Menu/Contacts/Speed Dial to set keys 2 to 9 for speed dialing. If the number key has not been set, press the Select key and select a phone number from Contacts. If the number key has been set, press the left soft key and the following options will be available: Add New, Delete. -
Page 11: Messages
Edit: Edit the number before you save it or make the call. Save: Save the number to the contacts. Save To Contacts: Save the number to the existed contacts. Send Messages: Send a text message to the record. Send Contacts: Create a new text message and add the contact details to the content. Delete: Delete the record. - Page 12 Insert Contacts: Add different contact details from Contacts to a message. Insert Templates: Add commonly-used terms to a message. Insert Emotion Symbol: Add an expression to a message. Settings: Set the send mode, the priority and the delivery report for the message edited. 6.2 Inbox Select Menu/Messages/Inbox to access the list of messages in this box.
- Page 13 more templates accordingly. 6.6 Delete Messages Select Menu/ Messages/Delete Messages to access delete function. You may delete the messages in Inbox, Outbox, Draft and also clear all the messages. 6.7 Settings Select Menu/ Messages/Settings to access submenu with below options: Send Option, Priority, Delivery Reports, Callback Number, Message Validity and Auto Delete.
-
Page 14: Settings
Voice Mail Number: Set the voice mail number. 7. Settings 7.1 Display You can do some settings following your need. You can customize your phone by setting Brightness and Backlight Time. Brightness: You can choose the brightness as Light Dark or Normal. Backlight Time: Set the backlight time - 10 sec, 30 sec, 50 sec, always on 7.2 Phone Language: The options are Français and English. -
Page 15: Entertainment
Black List: You can activate or cancel it, add/delete numbers or clear the list. Call Conference: You can activate or cancel this service. Dialing Delay Time: You can set the dialing delay time as 3 Sec, 4 Sec,…7 Sec or Off. 7.4 Security Select Menu/Settings/Security, then enter the security submenu by inputting the phone code (default phone code: 0000). -
Page 16: Tools
9. Tools 9.1 Stopwatch Press Left soft key to start time keeping, or press pause function key to pause time keeping, or press continue function key to resume time keeping. You can press record function key to get the time recorded. 9.2 Alarm Your phone has a built-in alarm clock. -
Page 17: Fm Radio
9.5 World Time This function allows you to find out the time in different cities around the world. 10. FM Radio You can use the phone as the FM Radio. For FM Radio screen: Left and Right keys: Accommodate the channel frequency by frequency, each time by 0.1MHz. - Page 18 Item to be checked The telephone does not Make sure that the charger is correctly connected to the charge properly phone and the power socket. Make sure you are using a charger specifically designed for this phone. The phone does not Check the battery charge level.
-
Page 19: Safety And Use
Item to be checked When you cannot (1) The network provider does not provide this service or connect to the network you have not subscribed to this service. Please contact normally your provider for details on the subscription and use of these services. - Page 20 areas with “turn off two-way radio equipment” signs and places where you are usually recommended to switch off car engines. Safety of use in a vehicle Please observe the relevant local or national regulations related to the use of phones in a vehicle.
- Page 21 Keep the phone, battery and charger out of the reach of children. Do not let children use the phone, battery or charger without supervision. Do not let a child put a battery in his/her mouth to avoid electrolyte poisoning. Keep children away from small phone accessories to prevent suffocation or blocking of the oesophagus as a result of swallowing.
- Page 22 Wipe dust off the power plug and keep it dry to avoid risk of fire If the phone or accessories do not work properly, contact your local vendor Do not dismantle the phone or its accessories yourself. Protecting the environment Please observe the local regulations on phone packaging, battery and used phone disposal and bring them to the collection point for proper recycling.
- Page 23 If the battery leaks, emits smoke or a strange odour, cease use immediately and move it far away from naked flames or people to avoid a fire or injury from explosion. Do not charge the battery in a dusty or damp environment and keep the cable away from heated objects.
- Page 24 This transmitter must not be co-located or operating in conjunction with any other antenna or transmitter. ALCATEL is trademark of Alcatel-Lucent and is used under license by TCT Mobile Limited. All rights reserved © Copyright 2010 TCT Mobile Limited.
